Simultaneous chromatographic analysis of Sofosbuvir/Ledipasvir in their combined dosage form: an application to green analytical chemistry

Abstract

Application of green solvents for developing green analytical methodologies has grown dramatically in the past few years. The “more hazardous reagents” are replaced by more “environment-friendly solvents” without affecting method performance. In the present study, two simple and accurate chromatographic methods were developed and validated for determination of the new antiviral combination sofosbuvir (SBR) and ledipasvir (LPV). The first adopted method is high-performance thin-layer chromatography coupled to densitometric determination where silica gel 60 F254 plates were used as the stationary phase. Whereas, the running mobile phase used was toluene: ethanol: ammonia (4:1:0.2, v/v/v). Reversed-phase high-performance liquid chromatography with ultraviolet detection was the second method developed. The column used was Inertsil C18 column (150 × 4.6 mm, 5 μm) and the mobile phase was 20 mM potassium dihydrogen orthophosphate (adjusted to pH = 3 using acetic acid): ethanol (60:40, v/v) with a flow rate of 1.0 mL/min. The detection wavelength for both methods was 265 nm. The validation of both methods was done according to ICH guidelines where both methods were found to be accurate, reproducible, and selective. The linearity range for HPTLC and RP-HPLC methods were 0.8–25.6 and 0.4–12.8 μg/band and 6.0–100.0 and 4.0–80.0 μg/mL for sofosbuvir and ledipasvir, respectively. Comparison of the developed methods was done with reported HPLC method where no significant difference was found.

Introduction

Sofosbuvir (SBR) is a new drug used for treating hepatitis C viral infection. Hepatitis C virus (HCV) infects the liver and has many complications which might need liver transplantation (Jacobson et al. 2010; Lavanchy 2011). The mode of action of the prodrug SBR is a nucleotide analog inhibitor of HCV nonstructural protein 5B (NS5B) (Keating and Vaidya 2014; Gorman et al. 2015). Ledipasvir (LPV) also is a new antiviral drug for the treatment of HCV. The combination of SBR and LPV for the treatment of HCV is approved by FDA in 2014 (Afdhal et al. 2014; Link et al. 2014; Pollack 2014). After literature survey, we found many chromatographic methods for the determination of the combination such as LC-MS/MS (Rezk et al. 2016; Pan et al. 2016; Elkady and Aboelwafa 2016), RP-HPLC-DAD (Farid and Abdelwahab 2017), and dissolution studies using RP-HPLC (Zaman et al. 2016; Hassouna et al. 2017) and in dosage forms (Rote et al. 2017). Also, densitometric methods were reported (Salama et al. 2017; Baker et al. 2018). But we noticed that all the published methods utilize organic solvents which are hazardous or toxic to the environment.

In green analytical chemistry, hazardous chemicals are replaced with more eco-friendly solvents without affecting the overall performance of the method (Welch et al. 2010). To the best of our knowledge, no previous researches had been developed for the simultaneous determination of the suggested two-drug combination: SBR/LPV using alternative green solvents. So, our main challenge was to simultaneously determine both analytes using more eco-friendly solvents without affecting method performance. Therefore, two accurate and reproducible chromatographic methods for the simultaneous estimation of SBR/LPV in their binary laboratory-prepared mixtures and in their combined tablet dosage form using green solvents were first introduced in this work. ICH guidelines were followed for the complete validation of the developed methods (ICH 2005). Statistical comparison was applied with reported RP-HPLC method and no significant difference was found.

Methods

Instruments

  • Linomat IV auto-sampler (Camag, Muttenz, Switzerland), Camag microsyringe 100 μL (Hamilton, Bonaduz, Switzerland), Pre-coated silica gel aluminum plates 60 F254 250 μm thickness 20 cm × 10 cm (E. Merck, Darmstadt, Germany), Twin-trough Automatic Developing Chamber ADC 2 chamber 20 cm × 10 cm (Camag, Muttenz, Switzerland), Camag TLC scanner III S/N 130319 (Camag, Muttenz, Switzerland) operated using WinCATS software version 3.15.

  • The HPLC System: Jasco (JASCO, Tokyo, Japan) model LC-Net II/ADC and a UV detector UV-2070 plus equipped with an isocratic pump PU-2080 plus and 4-line degasser DG-2080-54. The stationary phase was Inertsil C18 column (150 × 4.6 mm, 5 μm). Data acquisition was performed by the use of ChromNAV software.

  • pH meter (Jenway 3310, UK)

Chemicals and solvents

Ethanol (Sigma-Aldrich, Germany), toluene (Merck, Darmstadt, Germany), acetic acid (Riedel-de Haen, Seelze, Germany), ammonia (Merck, Darmstadt, Germany), and potassium dihydrogen phosphate (Merck, Darmstadt, Germany).

Samples

  1. (a)

    Pure standard of SBR (with certified purity of 99.89 ± 0.691)

  2. (b)

    Pure standard of LPV (with certified purity of 99.79 ± 0.461)

Both standards were kindly supplied by Memphis Co. for Pharmaceutical and Chemical Industries, Cairo, Egypt. Their chemical structures are presented in Fig. 1.

  1. (c)

    Heterosofir Plus® tablet dosage form—each tablet contains SBR (400 mg) and LPV (90 mg), manufactured by PHARMED Healthcare Co., Sadat City, Egypt.

Fig. 1
figure 1

Chemical structure of SBR (a) and LPV (b)

Standard solutions

For HPTLC-densitometric method: stock standard solutions of SBR and LPV were prepared in ethanol to obtain concentrations of 2.0 mg/mL and 1.0 mg/mL, respectively. For RP HPLC-UV method, the two previously prepared stock standard solutions for HPTLC-densitometric method for each drug were then subjected to further dilutions using the HPLC mobile phase to obtain two working standard solutions having concentrations of 200.0 μg/mL for SBR and 100.0 μg/mL for LPV. All experiments were conducted away from direct sunlight and stock standard solutions were refrigerated up to 1 week.

Chromatographic conditions

HPTLC-densitometric method

On a pre-coated silica gel aluminum plate 60 F254 20 cm × 10 cm, samples from the prepared stock standard solutions were applied in the form of bands (6 mm width) by the Camag microsyringe 100 μL using Camag Linomat IV autosampler. After chamber saturation, linear ascending development was carried out in 20 cm × 10 cm twin-trough Automatic Developing Chamber ADC 2 chamber by the use of a mobile phase system consisted of toluene: ethanol: ammonia (4:1:0.2, v/v/v). As soon as the solvent front reached a pre-defined position, the plate was removed and was subjected to flow-optimized conditions to dry. The experimental wavelength selected for detection and quantification was 265 nm.

RP HPLC-UV method

The stationary phase was Inertsil C18 column (150 × 4.6 mm, 5 μm) and the mobile phase was 20 mM potassium dihydrogen orthophosphate (adjusted to pH = 3 using acetic acid): ethanol (60:40, v/v). Injection volume was 10 μL and the flow rate was adjusted at 1.0 mL/min and the UV detection was performed at 265 nm. Data manipulation was carried out using ChromNAV software.

Construction of calibration curves

HPTLC-densitometric method

Onto the pre-coated silica gel aluminum plates 60 F254 20 cm × 10 cm, accurate volumes were transferred from the stock standard solution of SBR (2.0 mg/mL) and LPV (1.0 mg/mL) and applied separately in triplicate in the form of bands 6 mm width to reach to a concentration range of 0.8–25.6 for SBR and 0.4–12.8 μg/band for LPV.

The chromatographic procedure described under “Chromatographic Conditions” was then followed. The average of the integrated peak area ratio (peak area of the drug/peak area of an external standard (1.6 μg/band for SBR and 0.8 μg/band for LPV)) was then computed for each concentration of each drug. Two calibration curves were then constructed for SBR and LPV, respectively using the integrated peak area ratios against their corresponding concentrations. The calculation of polynomial regression equations was then performed.

RP HPLC-UV method

The working standard solutions were used to prepare serial dilutions of both drugs. The linearity range was 6.0–100.0 μg/mL for SBR and 4.0–80.0 μg/mL for LPV.

Then, 10 μL were injected in triplicate into the system. The relative peak area ratio for each concentration to that of an external standard (20.0 μg/mL for SBR and 10.0 μg/mL for LPV) was used to construct the calibration graph. Then, the regression equation for each drug was computed.

Laboratory-prepared mixtures assay

For HPTLC-densitometric method, different aliquots of SBR and LPV were transferred from their respective stock standard solutions and completed to volume with ethanol to prepare a series of laboratory-prepared solutions containing different ratios of both drugs. For RP HPLC-UV, the working standard solutions were used to prepare different concentrations of laboratory prepared mixtures. The concentration of each drug in the laboratory prepared mixtures was calculated by the corresponding regression equation.

Application to their combined pharmaceutical preparation

Twenty tablets of Heterosofir Plus® were grounded and then weighed. A portion of the equivalent to one tablet (400 mg SBR and 90 mg LPV) was accurately weighed and transferred to a 100-mL volumetric flask, sonicated for 30 min with 50 mL of ethanol, and then the volume was completed with the same solvent and filtered to prepare a stock solution, possessing a concentration of 4.00 mg/mL SBR + 0.90 mg/mL LPV.

Accurate aliquots from the stock solution already prepared were applied three times on the TLC plates in the form of bands for the HPTLC-densitometric method. As for RP HPLC-UV method, further dilutions were done using the HPLC mobile phase then injected in triplicate. The concentrations and recoveries were then calculated.

Application of standard addition technique

The validity and accuracy of the proposed chromatographic methods were also checked by applying the standard addition technique. Three accurately weighed portions of the previously powdered tablets, each claimed to contain 400 mg SBR/90 mg LPV, were mixed with pure standards of SBR and LPV as follows: 200 mg SBR/45 mg LPV, 400 mg SBR/90 mg LPV and 600 mg SBR/135 mg LPV, respectively. Each spiked sample was then transferred to a 100-mL volumetric flask, sonicated for 20 min in the ultrasonic bath with 20 mL methanol then the volume was adjusted with the same solvent and filtered to prepare three stock solutions of concentrations: 6.00 mg/mL SBR + 1.35 mg/mL LPV, 8.00 mg/mL SBR + 1.80 mg/mL LPV, and 10.00 mg/mL SBR + 2.25 mg/mL LPV.

For HPTLC-densitometric method, 1 μL from each spiked sample was then applied onto TLC plates in triplicate. The procedure described above was followed to determine the concentration of each drug using their respective regression equations.

For RP HPLC-UV method, the three stock solutions were then further diluted with the mobile phase to reach concentrations within the linear range for each drug. Then, the general procedure described before for RP HPLC-UV method was followed to determine the concentration of both SBR and LPV.

Results and discussion

The basic target of this research work was to adopt green analytical chemistry through the development of smart chromatographic methods using green solvents, e.g., ethanol instead of the commonly used toxic acetonitrile and toluene instead of the carcinogenic benzene for the simultaneous estimation of SBR and LPV in their co-formulated tablets.

Development and optimization of the proposed chromatographic methods

The adopted chromatographic procedures were developed and fully optimized with a view to develop eco-friendly reversed-phase HPLC-UV and HPTLC-densitometric methods. The principles, concepts, and fundamentals of green analytical chemistry were considered during trying different solvent systems as mobile phases for the development and optimization of the proposed environmentally green chromatographic methods (Clark and Tavener 2007).

HPTLC-densitometric method

The separation and quantitative determination of several mixtures could be done by the well-established and highly applied HPTLC accompanied by densitometric detection. In this work, the adopted method depends on the difference in the value of retardation factor (Rf) between SBR and LPV.

In the HPTLC technique, it is common and better to replace hexane with heptane and replace the extremely carcinogenic benzene with toluene (Alfonsi et al. 2008). In order to obtain the best separation with sharp symmetric peaks, various mobile phase systems with different ratios were concisely tried as follows: ethyl acetate: heptane (2:8, v/v), acetone: heptane (4:6, v/v), toluene: acetone (4:1, v/v). On using the first mobile phase system, both drugs fail to be eluted from their places on the plate. Using the second system, the separation among the two drugs was not enhanced to a great extent giving two tailed peaks for both of them. When using toluene, the acetone (4:1, v/v), SBR, and LPV were greatly eluted but had very close Rf values. Replacing acetone with ethanol enhanced to high extent the separation between the two drugs but with tailed peaks for SBR. On the addition of ammonia (0.2 by volume) to the mobile phase, symmetric, and sharp peaks were obtained with no effect on the separation of the two drugs under this study. Complete and optimum separation of SBR and LPV was achieved by using the mobile phase of toluene: ethanol: ammonia (4:1:0.2, v/v/v) as a developing system.

In the adopoted HPTLC-densitometric method, toluene proves to be a satisfactory and the best substitute for the carcinogenic benzene (Alfonsi et al. 2008). Scanning wavelength effect on the detection sensitivity of the separation method was also ascertained by testing different scanning wavelengths (254, 260, and 265 nm). Scanning at 265 nm gave the optimum and best detection sensitivity with minimum noise for the drugs under the study. After the developed method had been fully optimized, compact, sharp, and symmetric peaks were obtained for SBR and LPV with Rf values = 0.38 and 0.61, respectively as presented in the densitograms in Figs. 2 and 3.

Fig. 2
figure 2

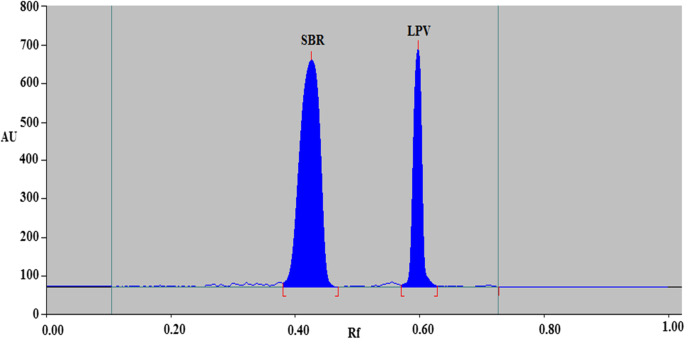

TLC chromatogram of SBR (12.8 μg/band, Rf = 0.38) and LPV (6.4 μg/band, Rf = 0.61)

Fig. 3
figure 3

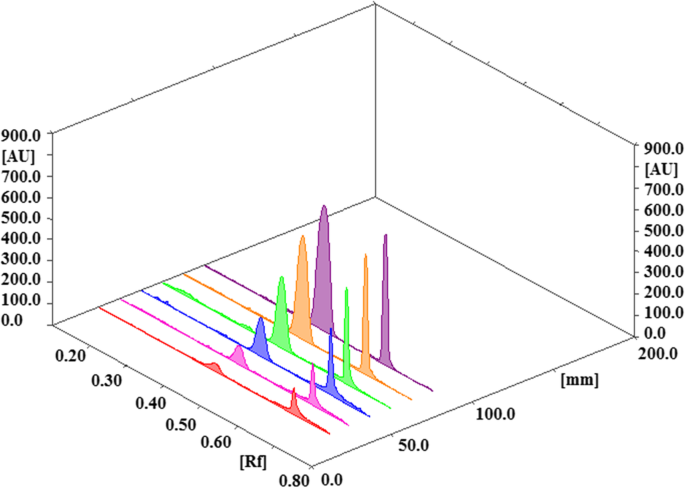

3D densitogram of SBR (Rf = 0.38) in the concentration range of 0.80–25.6 μg/band and LPV (Rf = 0.61) in the concentration range of 0.4–12.8 μg/band at 265 nm using toluene: ethanol: ammonia (4:1:0.2, v/v/v) as a developing system

RP HPLC-UV method

RP-HPLC is the most common separation technique with extensive application used in pharmaceutical industries for drug analysis and quality control. Till today acetonitrile is the most preferred and common organic solvent used in RP-HPLC, and this is due to the optimum physical properties of this organic solvent that are greatly appropriate for HPLC separations (Snyder et al. 1997). Pertaining to the toxic properties of acetonitrile and considering its aqueous waste streams that are typically discarded as chemical waste, it may be the best time to take into account greener replacements for acetonitrile in RP-HPLC. Although methanol is less toxic than acetonitrile, methanol containing streams are also treated as chemical waste. A more easily renewable solvent and ecofriendly such as ethanol (Ribeiro et al. 2004; Capello et al. 2007) could permit for the decrease in the environmental impact of waste solvent removal. Ethanol has been recently adopted for the RP-HPLC analysis of cosmetics as an eco-friendly co-solvent (Salvador and Chisvert 2005). Due to the cost of acetonitrile itself and the resulting cost in its waste elimination continue to increase; the switch to ethanol as a greener alternative (with a reduced cost relative to acetonitrile) becomes greatly compulsory. Another important advantage of the use of ethanol as an HPLC solvent is the worldwide availability of this solvent. The recent increase in the use of ethanol as fuel proposes that the cost and quality of ethanol must continue to get improved in the upcoming years. Finally, the reduced environmental effect of ethanol vs. acetonitrile waste streams is another important consideration arguing in favor of the use of this greener solvent for different HPLC procedures (Welch et al. 2009).

In the present research work, ethanol as a greener solvent was adopted for use in this chromatographic separation which perfectly replaced acetonitrile. Factors which influence the separation had been concisely studied and fully optimized. Different mobile phases as developing systems had been tried several times to reach the best chromatographic separation for the drugs under the study such as potassium dihydrogen orthophosphate (20 mM; pH = 3.5 adjusted by o-phosphoric acid): ethanol (60:40, v/v). This system separated LPV as a very broad peak. When trying potassium dihydrogen orthophosphate (20 mM; pH = 3.5 adjusted by o-phosphoric acid): ethanol (50:50, v/v) as a mobile phase system, it separated SBR peak with tailing. A satisfactory chromatographic separation and resolution was achieved upon using a mobile phase of potassium dihydrogen orthophosphate (20 mM; pH = 3 adjusted by acetic acid): ethanol (60:40, v/v) which had produced symmetric sharp peaks without peak broadening or tailing for both drugs. Detection wavelength effect on method sensitivity was also evaluated by trying different scanning wavelengths (254, 260, and 265 nm). Detection wavelength at 265 nm was found to produce LOD and LOQ of the lowest values. The best chromatographic separation had been developed on Inertsil C18 (4.6 × 150 mm with 5 μm particle size) using 20 mM potassium dihydrogen orthophosphate (adjusted to pH = 3 using acetic acid): ethanol (60:40, v/v) as mobile phase system at a flow rate of 1.0 mL min− 1 and the effluent was monitored at 265 nm. Two peaks were produced at Rt: 3.03 and 4.07 min for SBR and LPV, respectively, as illustrated in Fig. 4.

Fig. 4
figure 4

HPLC chromatogram of 40 μg/mL of SBR and 30 μg/mL of LPV

Validation of the developed chromatographic methods

ICH guidelines for method validation (ICH 2005) were followed for the adopted methods.

System suitability testing

System suitability testing was conducted to confirm that the whole operating system performed in a proper way during routine analysis. Each chromatographic procedure was repeated six times, and then the average for each result parameter was calculated. Satisfactory results for the chromatographic methods’ performance including capacity factor, resolution, tailing factor, and selectivity were obtained as presented in Table 1.

Table 1 Parameters of system suitability testing of the adopted chromatographic methods for the simultaneous determination of SBR and LPV

Linearity and range

For HPTLC-densitometric method, the relationship between the integrated peak area ratios (using 1.6 μg/band and 0.8 μg/band for SBR and LPV, respectively, as external standard solutions) and different concentrations of each of SBR and LPV was studied with linear and polynomial regression functions. Fitting with polynomial function gave the best correlation with the lowest standard deviation values and was therefore used for the quantitative estimation of SBR and LPV in the range between 0.8–25.6 and 0.4–12.8 μg/band for SBR and LPV, respectively. The polynomial regression of second-order was computed then the regression equations were calculated and found to be:

$$ {\mathrm{A}}_1=-0.0223\ {{\mathrm{C}}_1}^2+1.0976\ {\mathrm{C}}_1+0.3402\kern1em {\mathrm{r}}_1=0.9998\kern1em \mathrm{For}\ \mathrm{SBR} $$
$$ {\mathrm{A}}_2=-0.0248\ {{\mathrm{C}}_2}^2+0.6093\ {\mathrm{C}}_2+0.5385\kern1em {\mathrm{r}}_2=0.9998\kern1em \mathrm{For}\ \mathrm{LPV} $$

Where A1 and A2 are the integrated peak area ratios, C1 and C2 are the concentrations in μg/band, and r1, r2 are the correlation coefficients of SBR and LPV, respectively.

For RP HPLC-UV method, calibration graphs were constructed by plotting the integrating peak area ratios (using 20.0 μg/mL for SBR and 10.0 μg/mL for LPV as external standard solutions) versus their corresponding concentrations in the range of 10.0–100.0 μg/mL for SBR and 5.0–80.0 μg/mL for LPV. Then the linear regression equations were computed for each of SBR and LPV and were found to be:

$$ {\mathrm{A}}_1=0.0454\ {\mathrm{C}}_1+0.0283\kern1em {\mathrm{r}}_1=0.9996\kern1em \mathrm{For}\ \mathrm{SBR} $$
$$ {\mathrm{A}}_2=0.1031\ {\mathrm{C}}_2-0.0257\kern1em {\mathrm{r}}_2=0.9998\kern1em \mathrm{For}\ \mathrm{LPV} $$

Where A1 and A2 are the integrated peak area ratios, C1 and C2 are the concentrations in μg/mL, and r1 and r2 are the correlation coefficients of SBR and LPV, respectively.

Regression data analysis was computed for both HPTLC-densitometric and RP HPLC-UV methods data sets of SBR and LPV using residual data plots, line fit data plots and normal probability plots as shown in Figs. 5 and 6. The regression equations characteristic parameters of the adopted chromatographic methods are presented in Table 2.

Fig. 5
figure 5

Residual data plot, line fit data plot, and normal probability plot for SBR (a) and LPV (b) in HPTLC-densitometric method

Fig. 6
figure 6

Residual data plot, line fit data plot, and normal probability plot for SBR (a) and LPV (b) in RP HPLC-UV method

Table 2 Validation parameters of the regression equations and assay results of the proposed chromatographic methods for the simultaneous quantitation of SBR and LPV

Limit of detection and limit of quantitation

As per ICH recommendations, various approaches for determining the lower limits of detection and quantitation are applicable. The calculation approach using standard deviation value of the intercept and the slope value was conducted to compute limits of detection and quantitation, in which:

$$ \mathrm{LOD}=3.3\times \mathrm{SD}\ \mathrm{of}\ \mathrm{intercept}/\mathrm{slope}\ \mathrm{coefficient} $$
$$ \mathrm{LOQ}=10\times \mathrm{SD}\ \mathrm{of}\ \mathrm{intercept}/\mathrm{slope}\ \mathrm{coefficient} $$

Low values for limit of detection (LOD) and limit of quantitation (LOQ) presented in Table 2 indicated the high sensitivity of the adopted chromatographic methods.

Accuracy

Accuracy of the proposed chromatographic methods was checked by testing different samples of pure SBR and LPV. The respective regression equation computed in each of the adopted methods for each drug was used to calculate their concentrations and the data results are presented in Table 2.

Precision

Intra-day

Three concentrations (1.6, 6.4, and 12.8 μg/band) of SBR and (0.8, 3.2, and 6.4 μg/band) of LPV for HPTLC-densitometric method and (20.0, 40.0, and 80.0 μg/mL) of SBR and (10.0, 20.0, and 60.0 μg/mL) of LPV for RP HPLC-UV method were tested in the same day three times using the developed chromatographic methods. Satisfactory % RSD values were obtained which confirmed the repeatability of the adopted methods as presented in Table 2.

Inter-day

The chromatographic procedures mentioned above were conducted on three different days for the quantification of the three chosen concentrations of SBR and LPV. Satisfactory values for % RSD were obtained as illustrated in Table 2.

Specificity

Method specificity was tested by how accurately, precisely, and specifically the drug of interest is estimated in presence of other components (e.g., co-formulated drugs, impurities, related substances, or possible degradation products). This is assured from HPTLC 2D and 3D densitograms presented in Figs. 2 and 3, respectively, and HPLC chromatogram shown in Fig. 4 which gives the evidence of the optimum specificity of the adopted methods. Accepted results presented in Table 3 indicate the good specificity of the adopted chromatographic methods for the simultaneous determination of SBR and LPV in different proportions.

Table 3 Simultaneous determination of SBR and LPV in laboratory prepared mixtures by the developed chromatographic methods

Robustness

Analytical method robustness is its capability to remain uninfluenced with small deliberate changes in method parameters which gives an adequate indication of the reliability of the proposed chromatographic method during routine work, e.g., changing mobile phase ratio (± 0.2 mL) for HPTLC-densitometric method and changing mobile phase ratio (± 2.0 mL) and pH of the mobile phase (± 0.1 unit) in RP HPLC-UV method. The low % RSD values show that the adopted chromatographic methods are robust and that the deliberate minor changes in the chromatographic factors mentioned above produced no significant changes in Rt or Rf values, T, N, and Rs of the chromatographed peaks as presented in Table 4.

Table 4 Robustness testinga of the adopted chromatographic methods for the simultaneous estimation of SBR and LPV

Application to their combined pharmaceutical preparation

The adopted chromatographic methods were then applied for the determination of SBR and LPV in their combined tablet dosage form. The obtained results were acceptable and satisfactory with low values of % RSD as shown in Table 5.

Table 5 Simultaneous estimation of SBR and LPV in Heterosofir Plus® tablets using the adopted chromatographic methods

Moreover, validity and accuracy of the proposed chromatographic methods were also confirmed by standard addition technique application where satisfactory recoveries were obtained which assured that there was not any interference due to added excipients in the tablet matrix, as illustrated in Table 6.

Table 6 Results of standard addition technique application on Heterosofir Plus® tablets to the simultaneous analysis of SBR and LPV using the proposed chromatographic methods

Statistical comparison to an in-house method

The statistical comparison of the data results obtained from the application of the suggested chromatographic methods with those obtained from the application of a reported RP-HPLC method (Rote et al. 2017) presented no significant statistical difference with confidence limit of 95% in concern of both accuracy and precision as described in Table 7.

Table 7 Results of statistical comparisona between the developed chromatographic methods and reported HPLC method (Rote et al. 2017) used for the simultaneous determination of SBR and LPV

Conclusion

The plan for the replacement of the traditional widely-used toxic solvents and chemicals with less toxic and inert ones presents environmentally benign alternatives to the most toxic ones in the pharmaceutical analysis field. This study demonstrates that the developed chromatographic methods using green solvents are found to be quite specific, sensitive, accurate, reproducible, and precise. Satisfactory results for method validation parameters can encourage the use of greener analytical approaches in quality control field. The proposed HPTLC-densitometric and RP HPLC-UV methods can be used in quality control laboratories for the routine analysis and the simultaneous quantitative determination of SBR and LPV in their combined dosage form (Hetersofir Plus®). The well-known advantages of the HPTLC-densitometric method is that different samples can be run simultaneously using a small volume of the mobile phase system with short run time while RP HPLC-UV method offers optimum resolution, good specificity, higher sensitivity and wider range of quantitation over previously published and reported HPLC methods with the desired accuracy and reproducibility through reasonable analysis time. An important conclusion of this study is that these green eluents have the ability to be used for different analyses in chromatographic science and thus making the separation process more ecofriendly to the surrounding environment. Safer alternatives should be studied on the basis of their safety, health, life cycle, and environmental assessment to replace the traditional hazardous solvent adopting green separation science because developing green analytical methods to replace the traditional ones becomes a very important requirement. The use of a greener solvent such as ethanol would be strongly preferred for such applications.
