Design of experiment avenue for development and validation of RP-HPLC-PDA method for determination of apremilast in bulk and in in-house tablet formulation



Apremilast is phosphodiesterase-4 and an immunomodulating agent used for treatment of refractory psoriatic arthritis.


The reversed-phase high-performance liquid-chromatography method for analysis of apremilast was developed and validated as per ICH guidelines. The separation of apremilast was performed on PrincetonSPHERE Ultima C18 column (250 mm × 4.6 mm, i.d., 5 μm particle size) with photodiode array detection carried out at 231 nm. A Box–Behnken design with response surface methodology was executed out for optimization of chromatographic conditions of reversed-phase high-performance liquid-chromatography for finished desired chromatographic separation of apremilast from its formulation with less number of experimental trials. Three independent factors, namely methanol composition in the mobile phase, pH of an aqueous phase, and flow rate, were used to construct a mathematical model and study the effects of these independent factors on responses such as retention time, theoretical plates, and tailing factor.


Optimized experimental conditions for proposed work consists of methanol and water, pH 3.50 adjusted with ortho-phosphoric acid (70:30 % v/v) as a mobile phase at a flow rate 1 ml/min with a retention time was found to be 5.15 min. Accuracy study was completed at three different levels and was found in the range of 99.44–101.49%.


The 3D response surface graphs revealed that the methanol composition and pH of an aqueous phase were both most stringent factors affecting the responses. Thus, a new, precise, and accurate HPLC method was developed and validated and can be used for regular analysis of apremilast.


Apremilast (APL) is a new therapeutic medicinal agent accepted for the management of psoriasis and psoriasis arthritis (Baumer et al. 2007; Keating 2017). APL is used as orally administered medicine and acts by inhibiting phosphodiesterase 4, which is inhibited intracellularly and responsible for inflammation by lowering the proportion of cAMP; needful for producing the pro- and anti-inflammatory mediators (Rajiv 2004; Michalek et al. 2017). APL structurally is (Fig. 1) [N-[2-[(1S)-1-(3-ethoxy-4-methoxyphenyl)-2-methylsulfonylethyl]-1, 3 dioxoisoindol-4-yl] acetamide] (Man et al. 2009). APL is a yellowish white amorphous powder which is insoluble in water and quickly soluble in methanol and acetonitrile. Design of experiments (DOE) has been often executed to optimize analytical methods because of its application, like a decrease in the total number of attempts that need be carried out bringing about less reagent utilization and extensively lower laboratory task. Moreover, DOE permits the buildup of a statistical model that allows appraisal of the significance and also statistical acceptation of the various factor effects on the responses being examined and in addition assess the mutual interactions between them (Ferreira et al. 2007). Literature survey acknowledged that several analytical methods have been reported for optimization of chromatographic conditions in high-performance liquid-chromatography (HPLC) methods using Box–Behnken design (Gumustas et al. 2018; De Almeida Borges et al. 2013; Zacharis and Vastardi 2018; Dragomiroiu et al. 2015; Awotwe-Otoo et al. 2012; Bai et al. 2010; Beg et al. 2012; Gomes et al. 2017; Ihssane et al. 2011; Jovanov et al. 2015; Mirza and Tan 2001 and Patel et al. 2017).

Fig. 1
figure 1

Chemical structure of apremilast

Several analytical methods have been developed to estimate APL in pharmaceutical dosage form as well as in biological samples. These methods include HPLC, stability-indicating HPLC, UPLC-MS/MS, and UV-spectrophotometry (Xiong et al. 2016; Lonkar et al. 2017a; Chen et al. 2016; Lonkar et al. 2017b; Landge et al. 2017; Ravisankar et al. 2017; Chaudhari and Shirkhedkar 2018; Chaudhari et al. 2018; Lu et al. 2017; Iqbal et al. 2016). Prior art search regarding analytical method for APL depicts that high-performance thin-layer chromatography method (Chaudhari and Shirkhedkar 2018) has been performed using DOE approach for determination of robustness of method as HPLC is more specific and sensitive. The proposed study focuses on development of HPLC method using design of experiment (DOE) approach, followed by validation.

Material and methods

Chemical and reagents

Pharmaceutical grade APL was purchased from Sigma-Aldrich (India); HPLC grade methanol, ortho phosphoric acid and double-distilled water were purchased from Merck (Mumbai, India).


The UFLC HPLC system (Shimadzu Corporation, Japan) consisted of model LC-20 AD binary pump, rehodyne injector with 20 μl capacity per injection, CTO-10AS VP column oven compartment, and photodiode array detector (SPD-M20A). The HPLC system was controlled by LC solution software version 1.25. All weighing operations for the proposed analysis were carried out with the help of SHIMADZU AUX-120 analytical balance. Separation of APL was performed on PrincetonSPHERE Ultima (250 mm × 4.6 mm × 5 μm) C18 column from Princeton Chromatography INC, Cranbury South River Road, Cranbury, NJ. The column temperature was maintained at 30 °C. The binary mobile phase consisted of methanol:water (pH 3.50) 70:30% v/v. The mobile phase flow rate was maintained at 1 ml/min. The total analysis run time was less than 7 min with photodiode array detector (PDA) wavelength set to 231 nm.

Statistical engine

Design Expert® (Version 10.0.7), Stat-Ease Inc., Minneapolis, MN, USA statistical software was utilized for optimization of the method. The remaining calculations for the analysis were performed by Microsoft excel 2010 software (Microsoft, USA).

Preparation of stock solution

The stock standard solution of APL (0.1 mg/ml) was prepared by dissolving 10 mg of APL in 100 ml of mobile phase.

Preparation of sample

As the pharmaceutical formulation of APL is not obtainable in the local Indian market, hence in-house tablets were prepared with 30 mg of APL and frequent excipients. The sample solution was prepared from in-house formulated APL tablets. Accurately weighed power drug equivalent to 30 mg, APL was quantitatively transferred into 100 ml volumetric flask dissolved and diluted volume with methanol. The solution was filtered through a 0.45 μm filter (Millifilter, Milford, MA, USA). From the filtrate, an appropriate volume of solution was diluted to get a final concentration 6 μg/ml using mobile phase.

Chromatographic conditions

Chromatographic separation of APL was carried out on PrincetonSPHERE Ultima (250 mm × 4.6 mm × 5 μm) C18 analytical column at ambient temperature; mobile phase consisted of methanol:water (70:30% v/v, pH 3.5) and the pH of aqueous phase were adjusted with orthophosphoric acid. Before the analysis, mobile phase was filtered through a 0.2 μm Ultipor N66 Nylon 6, 6 membrane and sonicated mobile phase for 25 min. A constant volume of 20 μl was an injected and the chromatogram was monitored at a detection wavelength of 231 nm.

Optimization of RP-HPLC-PDA method

Initially, trial and error method was applied to gain knowledge about the method performance and recognition of various vital independent parameters and its effect on dependent variables. The prime importance of developing RP-HPLC method mainly separates the APL from its degradants and recommended that the resolution is greater than 2.0. Further, the Box–Behnken design with response surface was employed for optimization of experimental conditions of the method. In the present investigation, experiments were planned and conducted according to the Box–Behnken design. The independent factors used in the present investigation had three levels resulting in total 17 experimental runs was shown in Table 1. The stated value for all three factors, namely (A) methanol composition, pH of aq. mobile phase, and flow rate, were 70%, 3.5 pH, and 1 ml/min. A Box–Behnken statistical screening design was used to optimize the compositional parameters and to evaluate quadratic effects of the methanol composition in the mobile phase, pH of aq. mobile phase, and flow rate on the retention time (Rt), theoretical plates, and tailing factor. The linear polynomial equations are generated from ANOVA, depicted below.

$$ Y={b}_{\mathrm{o}}+{b}_1{x}_1+{b}_2{x}_2+{b}_3{x}_3+{b}_{12}{x}_1{x}_2+{b}_{13}{x}_1{x}_3+{b}_{23}{x}_2{x}_3+{b}_{11}{x^2}_2+{b}_{22}{x^2}_2+{b}_{33}{x^2}_3 $$
Table 1 Box–Behnken design experimental runs

Where ‘y’ is the measured response (dependent variable) connected with each factor level combination; ‘b0’ symbolizes the polynomial equation intercept representing average arithmetic mean of all quantitative outcomes of 17 runs and ‘b1–b33’ is regression coefficients computed from the observed experimental values of ‘y,’ ‘y1,’ ‘y2,’ ‘x1,’ ‘x2,’ and ‘x3’ represent the coded levels of independent variables. Where x1: methanol composition in mobile phase, x2: pH of mobile phase, x3: flow rate respectively, for x1, x2, and x3. The considered responses were retention time (y1), theoretical plates (y2), and tailing factor (y3). In this situation, methanol volume was selected as 60% to 80%. While pH of mobile phase was fixed between 3 and 4 appropriately, similarly flow rate was put up between 0.8 to 1.2 ml/min respectively. The statistical analysis was performed using Design Expert® (Version 10.0.7), Stat-Ease, Inc. 2021 East Hennepin Ave., Suite 480 Minneapolis, MN 55413, USA.

Validation of method

The proposed method was validated in accordance with the International Conference of Harmonisation (2005), for various parameters like system suitability, % recovery, precision, detection and quantification limit, robustness, ruggedness specificity, and force degradation study.

System suitability

In order to perform system suitability studies, six replicate injections of 10 μg/ml standard solution of APL was injected and analyzed with HPLC. The results of system suitability parameters were studied for capacity factor, tailing factor, theoretical plate, and peak area.

Linearity study

The linearity study of the proposed method was examined as per the International Conference on Harmonization (ICH) guidelines. The calibration curve for APL was obtained in the concentration range of 2–12 μg/ml; further, the calibration curve was constructed within peak area versus concentration. The regression equation was Y = 10,304x + 13,583 and regression coefficient r2 = 0.998.


The accuracy of a commenced investigation was appraised by standard addition methods, where a known amount of the standard was added in three different levels, i.e., 80, 100, and 120% to in-house tablet formulation of APL and analyzed by the commenced method in a set of three. The % recovery studies for APL were carried out by spiking three different amount of APL standard (80, 100, and 120%) to the in-house tablet formulation. The % recovery of APL was estimated for each level.


The precision of the commenced analysis was evaluated by carrying out by intra-day and inter-day precision. The three sets of three different concentrations, i.e., 4, 8, and 10 μg/ml, of APL was analyzed on the same for repeatability and continuous 3 days for intermediate precision.

Detection limit and quantification limit

The detection limit and quantification limit of the present study were assessed from the standard deviation of the peak area and the slope of the linearity curve of APL. The detection limit was communicated as a signal-to-noise ratio of 3:1, while quantification limit was indicated as signal-to-noise ratio 10:1; as a result of the detector response. The different concentrations of 2–4 μg/ml were prepared and tested. The % RSD was calculated.


Chromatogram of in-house tablet mixture was compared with the standard as well as with blank to revel obstruction of excipients. But the chromatogram of the mixture was not showing any eloquent interference at the retention time of APL.


Robustness can be interpreted as the capability to reproduce the (analytical) method in diverse laboratories or under different conditions without the occurrence of unexpected differences in the obtained results, and a robustness test as an experimental set-up to evaluate the robustness of a method. To check the capability of the proposed method, different factors were knowingly changed like a change in column oven temperature (25–35 °C), detection wavelength (228–232 nm), and injection volume (15–25 μl).

Results and discussion

Optimization and development of RP-HPLC-PDA method using Box–Behnken design

In proposed investigation, 17 experimental runs were performed and analyzed for obtained results of retention time, theoretical plates, and tailing factors in accord with the Box–Behnken design. Further investigation was performed using response surface methodology (RSM) to evaluate the relationship between the dependent responses and independent variables (factors) using obtained data was reported in Table 1. The model was also validated by analysis of variance (ANOVA) using design expert software, and the results are as presented in Table 2. Based on press value, a quadratic model was selected for responses such as retention time, theoretical plates, and tailing factor of APL. The significant effects showed p value less than 0.05, while the low standard deviation (% C.V) and a high adjusted R-square value indicated a good relationship between the experimental data and those of the fitted model. The predicted R-square value was in acceptable concordance with the adjusted R-square value for all responses.

Table 2 ANOVA results

The final equation in terms of actual components and factors which can be used to make predictions about the response for given levels of each factor,

$$ \mathrm{Retention}\ \mathrm{time}=+5.19-1.18{x}_1+0.071{x}_2+0.065{x}_3-0.023{x}_1{x}_2+0.17{x}_1{x}_3-0.31{x}_2{x}_3+0.75{x^2}_1-0.089{x^2}_2+0.69{x^2}_3 $$
$$ \mathrm{Theoretical}\ \mathrm{plates}=+2245.80+8.75{x}_1+170.62{x}_2-0.13{x}_3+9.25{x}_1{x}_2+24.25{x}_1{x}_3+9.00{x}_2{x}_3+8.60{x^2}_1+74.35{x^2}_2-8.65{x^2}_3 $$
$$ \mathrm{Tailing}\ \mathrm{factor}=1.04-0.012{x}_1+0.25{x}_2+0.020{x}_3-0.015{x}_1{x}_2-0.020{x}_1{x}_3-0.040{x}_2{x}_2-3.000\mathrm{E}-003{x^2}_1+0.092{x^2}_2+0.612{x^2}_3 $$

A positive value represents an effect that favors optimization while a negative value indicates an inverse relationship between the factors and the responses. 3-D response surface plots revealed the effect of factors such as methanol composition in a mobile phase, pH of aq. mobile phase, and flow rate of HPLC system on the responses retention time, theoretical plates, and tailing factor. The representative plots for responses are presented in Fig. 2, in which the interaction between variables factors A and B and their mutual dependence is clearly observed, while factor C is kept constant. Figure 2a indicates that methanol composition in mobile phase showed a prominent effect on retention time. The retention time is increased with decreased in methanol composition in the mobile phase and increased or decreased in pH of aqueous mobile phase; there is not show any effect on retention time. The retention time decreased with increased in methanol composition and increased with decreased in methanol composition in mobile phase while flow rate showed the irrelevant effect on retention time showed in Fig. 2b. The increased flow rate with increased retention time, while pH of aqueous mobile phase showed the inappropriate effect on retention time showed in Fig. 2c–e confirmed that the theoretical plates of column increased with increased in pH of aqueous mobile phase, while methanol composition in the mobile phase and flow rate showed an insignificant effect on theoretical plates of the column. The increased in tailing factor with increased in pH of aqueous mobile phase and the increased in flow rate with increased in tailing factor, while methanol composition did not show any significant effect on tailing factor was shown in Fig. 2f, g.

Fig. 2
figure 2

3D RSM plots for retention time, theoretical plates, and tailing factor

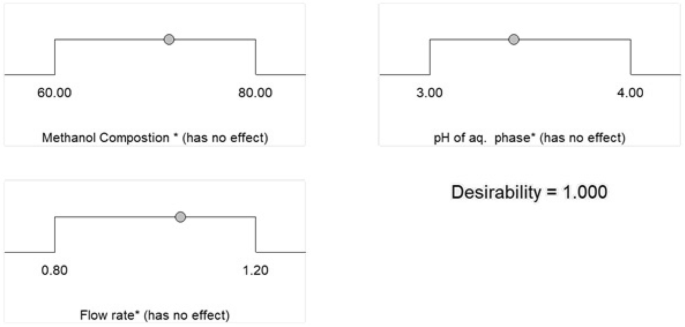

During numerical optimization shown in Fig. 3, the Box–Behnken design presented 30 solutions for optimized chromatographic conditions, but the solutions were reduced by setting the goals. Different limitations for factors and responses were sets and one solution was selected for optimization of chromatographic conditions. It was clearly shown that the experiential value of chromatographic condition was very nearer to the anticipated value. Hence the optimized chromatographic conditions, methanol composition (70%), flow rate (1 ml/min), and pH of aqueous mobile phase (3.5), respectively the chromatogram of APL were shown in Fig. 4.

Fig. 3
figure 3

Numerical optimization for chromatographic conditions

Fig. 4
figure 4

Chromatogram of apremilast


The optimized chromatographic conditions were aggrandized applied to validation of assertion for the system suitability, linearity, accuracy, precision, sensitivity, selectivity and robustness.

System suitability

System suitability tests are referred for assessing chromatographic system before the sample analysis can start. The system suitability estimated by six represents analysis of 10 μg/ml concentration of APL. The system suitability testing was evaluated and % RSD (percent relative standard deviation) was commencing less than 2% confine demonstrating appropriateness of strategy advancement. The results were shown in Table 3.

Table 3 System suitability results


The calibration curve for APL was constructed and the linearity was obeyed in the given concentration range of 2–12 μg/ml of APL which depicts excellent correlation coefficient r2 = 0.998.


The accuracy study was examined by the standard addition method testing the three unequal concentrations 3.2, 4, and 4.8 μg/ml of APL. The % recovery was found in the range of 99.44–101. Then, 49% with % RSD values were within the range 0.71–0.88 and fulfilling the acknowledgment criteria for the examination.


For the assessment of precision of the method, three distinct concentrations of APL were determined by assay at distinctive time period on the same day and by alteration for the three successive days (intra-day and inter-day precision) according to the ICH guidelines. The proposed developed method displayed the % RSD for intra-day and inter-day precision were in the range of 0.15–0.77 and 0.17–0.78%. The results of precision study were epitomized in Table 4.

Table 4 Precision study


Sensitivity of proposed method was determined using the formulas DL = 3.3 α/S and QL = 10 α/S. The detection limit and quantification limit (DL and QL) were found to be 0.015 and 0.416 μg, respectively for APL.


The robustness of the present analysis was performed by executing small intended modification in chromatographic circumstances. The robustness study of commenced method were evaluated using different factors such as column oven temperature (25–35 °C), detection wavelength (228–232 nm), and injection volume (15–25 μl). The influence of each of the factors was predicated and none of the factors go beyond the utmost and in this way demonstrated the studied independent variables did not influence the results. Besides, the commence method was found to be specific as the excipients did not show a bit of interference at a retention time of APL. The summary of the proposed method was shown in Table 5.

Table 5 Summary of regression, validation, and in-house tablet assay parameters for proposed RP-HPLC-PDA method

Analysis of in-house tablet formulation

The proposed RP-HPLC-PDA method was used to estimate APL in prepared in-house tablet formulation. The % amount of drug found in triplicate analysis for APL was found to be 98.85 ± 0.13%, respectively. In the future, the developed method can be frequently used for analysis of APL.

Comparison of proposed method with reported method

The assay and % recovery studies of APL using proposed method was compared with reported RP-HPLC method (Lonkar et al. 2017b). On the basis of results obtained for assay and % recovery studies, proposed method is comparable with the existing reported method (Table 6).

Table 6 Comparison of proposed method with the reported methods for analysis of APL (Lonkar et al. 2017a, 2017b)


A precise, accurate, rugged, cost-effective, and robust RP-HPLC method using Box–Behnken principles has been developed for estimation of APL in bulk and in in-house tablet dosage form. By employing the DOE approach, Box–Behnken design permitted assessment of the independent factors simultaneously with addition of mutual interactions between the factors in order to optimize experimental conditions. According to the response surface plots, the methanol composition was found to be the most inflexible factor for retention time. The pH of aqueous mobile phase was found to be a more deliberate factor for tailing factor as well as for theoretical plates. It is understood that the utilization of design of experiment approach is an adaptable practice to decrease the total experimental runs required for the optimization and development of RP-HPLC method can create most extreme data within a short duration of time. The excellent % recovery of a drug shows that the excipients present in the tablet formulation have no obstruction in the determination of APL. The optimized chromatographic conditions of the proposed method confirmed that the proposed study was accurate, precise, rugged, and robust. Therefore, the developed method can be used for the regular analysis of APL in bulk and in a pharmaceutical formulation. The proposed method was also compared with the reported method and found comparable.





Box–Behnken design

DL and QL:

Detection limit and quantification limit


Design of experiments


High-performance liquid-chromatography


International Conference on Harmonization


Photodiode array detector


Response surface methodology


Retention time
