Microscopic and chemical analysis of room temperature UV laser annealing of solution-based zinc-tin-oxide thin films

Abstract

As a promising transparent semiconducting oxide (TSO) candidate, zinc-tin-oxide (ZTO) thin films were fabricated by combining solution coating and ultraviolet (UV) laser annealing. Instead of external heating, an intense UV laser was applied to transform sol-gel coatings via surface heating and photoexcited dissociation into oxide films. The laser-induced phase transformation was extensively investigated with synchrotron-based X-ray photoelectron spectroscopy (XPS), transmission electron microscopy (TEM), and electron energy loss spectroscopy (EELS). The chemical states and microscopic distributions of oxygen, zinc, and tin were significantly modified during the laser irradiation. Relative oxidation and surface migration between zinc and tin gradually evolved toward a combination of ZnO1−x host and SnO2−y grains. Our results present deeper insight into the use of UV laser annealing for developing a room temperature (RT) fabrication method of TSO thin films and other relevant solution coatings.

Introduction

Transparent flexible electronics highly demand compatible new materials, such as transparent conductors and semiconductors. Indium-tin oxide (ITO) is the most widely used for transparent conducting oxides (TCOs) or semiconducting oxides (TSOs) (Minami, 2008; Noh et al., 2016; Hong et al., 2017). However, the high cost of indium has led to extensive efforts to find alternative materials, such as zinc oxide (ZnO) (Banerjee, 2006; Kim et al., 2012), BaSnO3 (Seo et al., 2014), or graphene (Bae et al., 2010; Kang et al., 2016; Choi et al., 2015). Metal oxide candidates require a new kind of low-temperature oxidation process for application to the thermally unstable flexible substrates. Therefore, low-temperature oxidation for solution-based oxide thin film fabrication is one of the highly demanded process technologies for flexible electronic device applications (Banerjee, 2006; Kim et al., 2012; Fernandes et al., 2018).

Among many TCO/TSO candidates, ZnO is one of the most studied materials, along with its other applications in photocatalysis (Kang et al., 2016; Lee et al., 2017) and photovoltaics (Izaki et al., 2007), due to its semiconducting properties, such as direct bandgap and photoluminescence (Oh et al., 2018). All these applications rely on the band structure and defect properties in the solution-derived ZnO thin films, which are typically fabricated at low temperature. In addition, chemical doping, such as Sn or In, gives rise to the carrier injection and electrical conductivity even in the amorphous phase. Local distribution of dopant in the film geometry further influences the interfacial electrical contact properties or electrical mobility due to charge scattering (Sandu et al., 2003). Thus, it is important to investigate the electronic structure, chemical distribution, and defect characteristics of zinc-tin-oxide (ZTO) during low-temperature synthesis (Lim et al., 2012).

Sol-gel film synthesis requires high-temperature annealing above 400 °C for both chemical bond dissolution and densification. Different approaches have been taken to reduce the annealing temperature, including ultraviolet (UV) lamp, or UV laser irradiation. UV light has enough energy to stimulate the chemical bonds to break apart so that UV lamp annealing reduces the annealing temperature down to 150 °C. Unfortunately, UV lamp annealing is only applicable to a few kinds of solution, of which optical absorption is significant at the given UV wavelength. Overcoming this limitation requires more intense UV light, such as UV laser. The intense laser light can stimulate the solution coating with even small absorption coefficient due to multiple light scattering. The absorbed laser light is then transformed into heat inside the coated layer without damaging the underlying substrates.

During the UV laser annealing, the short pulses (20 ns) of the excimer laser rapidly dissociate the molecular bondings followed by surface heating. Such rapid chemical and physical transformation requires precise chemical and physical analysis. Previous works have identified the chemical dissociation and inorganic bond formation by using X-ray photoemission spectroscopy (XPS) (Kim et al., 2012; Kim et al., 2019). Unfortunately, high-resolution chemical and microstructure analyses have not been performed for precisely monitoring the chemical states of oxygen and cations. Especially, core levels of Zn and Sn change very little in energy (0.8 and 0.65 eV, respectively) during oxidation. Comprehensive understanding of the laser-induced process necessitates research into such chemical and morphology changes for both the surface and interior regions.

Herein, we report the chemical and morphological changes of the ZTO thin films during the UV laser annealing. We prepared the ZTO thin films via UV laser irradiation, varying the number of laser pulses at room temperature (RT). We investigated the bonding and microstructural structural properties of the surface and the interior region of the ZTO thin film by using high-resolution XPS measurements and transmission electron microscopy (TEM), along with electron energy loss spectroscopy (EELS) and energy dispersive X-ray spectroscopy (EDS). The UV laser pulses modified the bonding characteristic of zinc, tin, and oxygen, effectively converting the sol-gel coating to oxide films for a short period of time without external heating.

Methods/experimental

We prepared sol-gel films on SiO2/Si wafer by the following steps. We spin coated the ZTO solution, in which ZnCl2 and SnCl2 salts are dissolved in 2-ME solvent, with 3000 rpm for 1 min to fabricate coated films with a uniform thickness of ~ 100 nm. Then, we applied the UV laser pulse using an excimer laser (COMPEXPro 201, KrF, λ = 248 nm) on the samples kept in a vacuum chamber with a controlled oxygen pressure of 100 mTorr. During the UV laser irradiation, we only changed the number of pulses, but the power of the UV laser and the repetition rate were fixed at 20 Hz and 0.8 W, respectively. No external heating was applied. The overall procedure of fabrication of the ZTO films using the excimer laser is illustrated in Fig. 1a.

Fig. 1
figure1

a Schematic figure of excimer laser annealing of sol-gel thin films at room temperature. b Optical absorption spectra (α) of the ZTO (ZnSnOx) films with variation of laser annealing duration. The red lines represent the linear extrapolation of (αhν)2 to the x-axis, for estimating the bandgap values

We analyzed the physical properties of the films using optical spectroscopy, synchrotron-based XPS, and TEM. To study the optical properties, we performed spectroscopic ellipsometry (V-VASE (J, A. Wollam Co., Inc.)) in the range of 0.74–5.5 eV at RT. To examine the changes of the chemical bonding and the stoichiometry, we performed XPS measurements at beamline 4A1 of Pohang Light Source. In the XPS experiment, we introduced the samples into an ultra-high vacuum analysis chamber, with a base pressure of under 5 × 10−10 Torr, without any prior surface treatments. The energy resolution was 100 meV for the synchrotron XPS data. The position of the Fermi level (EF) was calibrated by measuring the photoemission spectra of the sputter-cleaned polycrystalline gold surface, which was in electrical contact with the sample. For TEM measurements, the cross-sectional TEM samples were prepared by mechanical polishing and ion beam milling. The ion beam milling was done using a Gatan model 691 precision Ion Polishing System. To minimize ion beam damages from the milling, a fine milling at 2.0 kV was performed after typical ion milling operation. The conventional high-resolution TEM experiment was performed using JEOL-3000F operated at 300 kV, and the scanning transmission electron microscopy (STEM) and EELS/EDS were performed using JEOL-2200FS operated at 200 kV. The inner cutoff angle for HAADF detector was 100 mrad for STEM imaging.

Results

Optical property

To investigate the electronic structure change during the UV laser annealing process, we analyzed the optical absorption spectra, as shown in Fig. 1b. We plotted the Tauc plot with the squared optical absorption coefficient multiplied by the photon energy under the assumption of being an indirect bandgap semiconductor, i.e., indirect bandgap in SnO2 and direct bandgap in ZnO (Lim et al., 2012; Mishra et al., 1995). The as-coated ZTO sol-gel film and the 1p sample did not show an inter-band absorption edge near 4 eV, whereas the 30p and 20,000p samples showed bandgap absorption edges at 4.0 and 3.9 eV, respectively. These observations indicate that only a few laser pulses (~ 30 pulses) were needed to convert the sol-gel film into crystallized bonding states with bandgap formation. Between the 30p and 20,000p samples, the extended laser annealing may have increased the fraction of laser annealed crystalline phases, which is discussed below in detail.

Chemical state changes of oxygen, zinc, and tin

Figure 2 shows the relative composition of the ZTO films measured by XPS over the number of excimer laser pulses. The relative stoichiometry changes of the ZTO films were estimated by normalizing the integrated intensities of the Zn 3d, Sn 3d, O 2p, and Cl 2p peaks with atomic sensitivity factors. In addition to the typical XPS measurement geometry with photoelectron emission angle of 0°, i.e., surface normal direction, the photoelectron emission with 60° to surface normal was used to obtain more surface sensitive signals. Since this low-angle emission contains more surface sensitive signals compared to the typical emission angle, we refer to the emission angle of 0° (surface normal) as the “near-surface” spectrum and to the emission angle of 60° as the “top-surface” spectrum. Comparing these two emission angles enabled us to compare the chemical information between the near-surface and top-surface regions.

Fig. 2
figure2

Relative composition of ZTO films for a the near-surface region (photoelectron emission angle of 0°) and b the top-surface region (60°). As the number of laser pulse increases, oxygen content increases and chlorine content decreases for both measurement geometries.

The composition ratio of the ZTO film was significantly changed after the long (20,000 pulses) UV laser annealing. The oxygen content showed the most significant increase in both photoelectron emission angles. Comparably, the top-surface region showed a more drastic increase of oxygen content from 43 to 75%, as shown in Fig. 2b, implying that the UV laser annealing process effectively dissociates the molecular bonding with the chlorine and promotes the oxidation of metals from the top-surface region. Due to the increase of oxygen, the relative concentrations of Zn and Sn were decreased, as expected, at the top-surface, as shown in Fig. 2b (Sn 24% ➔ 8% and Zn 27% ➔ 14%). In contrast, at the near-surface region in Fig. 2a, the Zn concentration slightly increased (Zn 17% ➔ 20%), whereas the Sn concentration decreased (Sn 15% ➔ 10%) after long UV laser annealing. The Zn/Sn ratio increased both at the near-surface and top-surface regions, which is attributed to the significant decrease of Sn concentration. Overall, the ZTO films showed dramatic variation of surface stoichiometry after the pulsed laser irradiation.

We investigated the chemical state of each element in the ZTO film via detailed analysis of XPS spectra (Wencka et al., 2018). Figure 3 shows the XPS spectra (emission angle of 0°) of O 1 s, Zn 3d, and Sn 3d, which changed over the number of pulsed laser irradiation. The O 1 s core-level spectrum contained three different forms of oxygen: M–Ov(531.4 eV), M–O(530.2 eV), and M–OH(532.7 eV). The peak labeled M–Ov was assigned to the bonding between metal and the oxygen vacancy, whereas the peaks M–O and M–OH originated from the metal-oxygen and metal-hydroxy bonding, respectively (Kim et al., 2012; Kwoka et al., 2005). In the case of Zn and Sn, the Zn 3d and Sn 3d spectra were deconvoluted into two peaks by peak fitting. For Zn, the metal Zn and ZnO phases were found for the Zn 3d peak, whereas two forms of oxide were observed for the Sn 3d peak: SnO and SnO2 phase. Interestingly, the metal Sn phase was not observed in the XPS result; however, cross-sectional TEM and EELS results revealed the metal Sn phase in the form of a nanocrystalline phase that is distributed inhomogeneously near the bottom of the ZTO film, which is discussed below.

Fig. 3
figure3

The changes of XPS core-level spectra of a O 1 s, b Zn 3d, and c Sn 3d in ZTO thin films over the number of laser pulses (photoelectron emission angle of 0°)

After peak fitting, we analyzed the changes of chemical state quantitatively for both near-surface and top-surface regions, as displayed in Fig. 4. As the number of laser pulse was increased, the amounts of M–OH and M–O bondings decreased, whereas that of M–Ov bonding increased. The decrease of M–OH bonding is attributed to the decrease of moisture and residue in the ZTO film, which is due to the heating and dissolving effect of UV. The M–O bonding decreased despite the increase in the oxygen content after laser irradiation on the ZTO film, suggesting that the ZnO and SnO formed by laser irradiation mostly contained M–Ov bonding in their oxide form. In case of Zn, the relative concentration of ZnO decreased from 83 to 59%, while that of Zn metal increased from 17 to 41% in the near-surface region after 30 pulses. Further irradiation caused no noticeable changes, resulting in a final composition of ZnO:Zn = 61:39. In the top-surface region, however, the concentration of ZnO continued increasing during UV laser annealing, so the mostly ZnO phase was formed on the top surface (ZnO:Zn = 98:2). We note that the intensity difference of ZnO and Zn between the top surface and the near surface is significantly larger than that of O and Sn in Fig. 4. We speculate that Zn at the top surface can easily change its oxidation state sensitively to the exposed atmosphere during the given temperature rise. Contrast of ZnO ratios between the top surface and near-surface regions can be understood with lack of enough oxygen supply in the deeper region, where metal-oxygen bonding is also reduced for SnO and M–Ov components. We also note that such enhanced oxidation at the top surface provides significant implication for understanding the electrical properties at the oxide-metal junctions, such as complex heterostructures in display devices.

Fig. 4
figure4

The changes of chemical state of a O, b Zn, and c Sn in ZTO as a function of the number of laser pulses

Finally, Sn showed very different behavior from Zn. After long UV laser annealing, the relative intensity of SnO increased from 49 to 77%, while that of SnO2 decreased from 51 to 23% in the near surface. In the top-surface region, Sn showed similar behavior: more SnO phase was formed than SnO2 phase after long UV laser annealing. The decrease of SnO2 concentration over the laser irradiation is attributed to the reduction environment for SnO2, which is caused by the laser heating effect at the surface (for example, surface temperature range of 600 K~1700 K for laser density of 0.1~0.5 J/cm2, respectively) (Grigoropoulos et al., 1996; Lee et al., 2016a; Nakajima et al., 2010). Indeed, it has been shown that SnO2 can be reduced into SnO at high temperature, which is part of the well-known thermochemical cycle reaction for producing hydrogen fuel for solar energy applications (Charvin et al., 2008). We believe that the reduced SnO could then be transformed into metallic Sn, leaving nanocrystalline metallic Sn phases found in the bottom of the ZTO film, which is shown in the TEM images below.

Microscopic morphology change and chemical redistribution

In order to observe the overall morphology of the ZTO film, TEM was performed. The ZTO sample irradiated by the excimer laser with 20,000 pulses was chosen for the TEM observation. Figure 5 a shows a low magnification cross sectional TEM image of the ZTO thin films on SiO2/Si substrate. The ZTO film was grown with a uniform thickness of ~ 40 nm on the SiO2/Si substrate. However, a higher magnification image revealed that the contrast of the ZTO film was not uniform: the contrast appears brighter near the surface of the ZTO film, whereas the bottom of the ZTO film shows a relatively dark contrast, as displayed in Fig. 5b. In addition, some secondary phases appearing as dark particles are observed near the film/substrate interface region, as indicated by the arrows in Fig. 5b. The secondary phases appear as oval shapes, a few tens of nanometer wide and ~ 10 nm high, and are distributed irregularly near the film/substrate interface. The high magnification image in Fig. 5c shows nanocrystalline phases in the dark region of the ZTO film.

Fig. 5

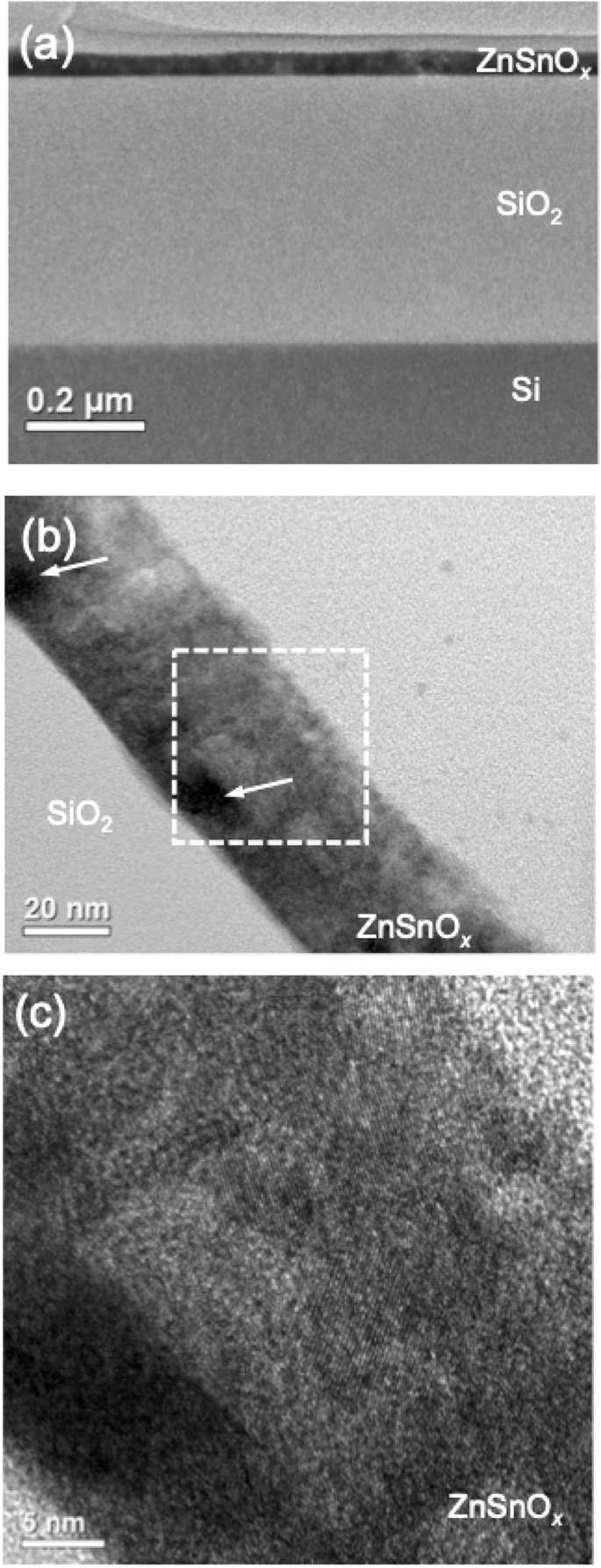

figure5

a Low magnification TEM image of ZTO thin films on SiO2/Si substrate. The film is grown in uniform thickness of 40 nm. b TEM image of ZTO film. Some dark contrast regions are observed near the film/substrate interface. c High magnification image of ZTO film, showing some nanocrystalline phases

Figure 6a shows a STEM image of the ZTO film. The STEM image shows some dark spots with a diameter of ~ 4 nm, which are mostly found near the film surface. The dark spots extend into the bottom of the ZTO film in some areas. The contrast of the ZTO films appears not uniform, as shown in the TEM image (see Fig. 5b), which is attributed to the inhomogeneous distributions of ZnOx and SnOx with different densities due to nanoscale aggregation during the pulsed laser irradiation. On the other hand, the bright contrast region was observed in some areas of the bottom of the ZTO film. Since the contrast of the STEM image was proportional to ~ Z2 (Pennycook, 2002; Pennycook et al., 2018), this bright contrast region in the STEM image is ascribed to the higher atomic number of Sn, i.e., Sn-rich phase (atomic numbers of Sn and Zn are 50 and 30, respectively). This bright contrast region in STEM image was consistent with the secondary phases observed in TEM mode.

Fig. 6
figure6

a STEM image of the ZTO thin films on SiO2/Si substrate after excimer laser irradiation. b Low-loss EEL spectrum image across the ZTO thin film along the line scan in a. The ZTO film is composed of two distinctive regions: upper (region A) and lower (region B) region. The region B contains additional plasmon peak at ~ 14 eV. c Low-loss spectrum from region A and region B, respectively. d STEM image of ZTO thin films where EDS line scan was performed. e EDS results: Zn, Sn, and oxygen profiles along the line scan drawn in d

In order to identify the secondary phases, low-loss EELS experiments were performed across the ZTO film containing the bright contrast region in the bottom, as shown in Fig. 6a. Figure 6 b shows a low-loss EEL spectral map of the ZTO film. The low-loss EEL spectral map revealed the ZTO film to be composed of two distinctive regions: an upper region (region A) with a plasmon peak at 21 eV and a lower region (region B) with a peak at ~ 14 eV in addition to the peak at 21 eV. Although the upper region (region A) exhibited a contrast variation in the STEM image, no discernible change was found in the low-loss spectrum within the upper region, suggesting that the contrast variation in the STEM image was caused by the different film density rather than the different phases. The plasmon peak at ~ 14 eV is consistent with metallic Sn or Zn (Seiler et al., 1991; Widder et al., 1997), supporting the presence of metallic nanosized grains at the bottom. Furthermore, in Fig. 6 d and e, the EDS measurements showed that the Sn signal was distributed more in the bottom while the Zn signal dominated near the surface region. To address more about the complicated polycrystalline phases in the ZTO film, we performed structural analyses using high-resolution TEM image and its fast Fourier transform (FFT). In Fig. 7, we found that the ZTO film is composed of many different phases, such as metals (Zn and Sn) and oxides (ZnO, SnO, SnO2, ZnSnO3, and Zn2SnO4). Each of the measured d-spacings in the regions A and B of Fig. 7a could be found in one of the candidate phases, which confirms that the regions A and B contain many different phases. Based on the EELS, EDS, and structural analysis results, we concluded that the secondary phases observed in the STEM image were metallic Sn phase located in the bottom of the ZTO films, while supporting a higher Zn concentration in the surface region, as observed in the XPS analysis.

Fig. 7

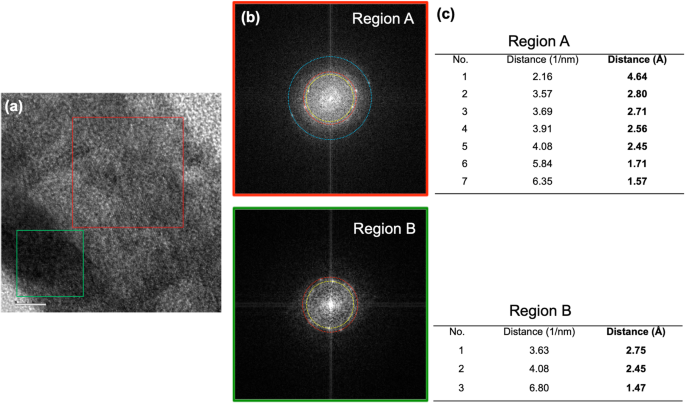

figure7

a High-resolution image of a ZTO film. b Fast Fourier transform (FFT) of the region A (red) and region B (green). c List of d-spacing values in the regions A and B

Discussion

We extensively analyzed TSO films during the RT UV laser annealing process, which effectively and quickly transformed sol-gel coatings into oxide films. Extensive XPS analysis revealed not only surface depletion of Sn, but also oxygen-reduced phase formation at the top surface, and thus provided important information on this electrical conducting surface layer for developing heterostructure devices with similar characteristics of TSO materials (Kim et al., 2012; Kim et al., 2019; Chang, 2018; Lutz et al., 2018). As complementary approaches, detailed cross-sectional TEM analysis provided microscopic evidence of a gradient density distribution from the surface to the bottom of the films. The STEM and EELS/EDS analyses clearly showed chemical migration to form Zn-rich surface and Sn-rich bottom regions, which was consistent with the XPS results. Based on the observation of inhomogeneous distribution of Zn and Sn in the films, we can relate the compositional difference to temperature profile during the UV laser annealing. The top surface temperature rises up much higher than the deeper region, and such thermal gradient may redistribute more Zn near surface regions and more Sn toward bottom regions. In addition, such Zn-rich phases at the top surface should play an important role for determining the interfacial electrical contact properties, such as contact resistance or work function (Sandu et al., 2003). Hence, our extensive XPS and TEM analyses demonstrated both chemical and microscopic understanding of the UV laser annealing process and provided valuable insights for understanding the resulting electrical performance, which are applicable to the relevant fabrication processes on such TSO films (Hasan et al., 2012; Lee & Cho, 2016b).

Conclusions

In summary, we utilized UV laser pulses to anneal a sol-gel ZTO coating into transparent oxide films at RT. After UV pulsed laser irradiation, ZTO thin films were successfully fabricated. The synchrotron-based XPS and detailed TEM measurements showed that the chemical state of oxygen, Zn, and Sn was significantly changed, along with their redistribution, after laser irradiation. Our results demonstrated that RT UV laser annealing is applicable for sol-gel-derived fabrication of oxide films due to both fast metal-oxide formation by changing oxygen stoichiometry and chemical redistribution among different metals. Such detailed microscopic and chemical information will enhance our understanding of the resulting electrical properties of such relevant TSO films.

Availability of data and materials

Data sharing is not applicable to this article as no datasets were generated or analyzed during the current study.

Abbreviations

TSO:

Transparent semiconducting oxide

ZTO:

Zinc-tin-oxide

UV:

Ultraviolet

TCO:

Transparent conducting oxides

ZnO:

Zinc oxide

XPS:

X-ray photoemission spectroscopy

RT:

Room temperature

TEM:

Transmission electron microscopy

EELS:

Electron energy loss spectroscopy

EDS:

Energy dispersive X-ray spectroscopy

EF :

Fermi level

STEM:

Scanning transmission electron microscopy
