Simultaneous removals of cadmium(II) ions and reactive yellow 4 dye from aqueous solution by bone meal-derived apatite: kinetics, equilibrium and thermodynamic evaluations


The simultaneous removal of Cadmium ions and reactive yellow 4 dye (RY4 dye) by bone meal-derived apatite (BMDA) were investigated in a batch process. The structural elucidation of the prepared BMDA was done using TEM, XRD, FT-IR and EDX to evaluate the structures of the adsorbent. Different experimental features such as the agitation time, BMDA dosage, temperature, initial adsorbate concentration and pH of the solution were examined on the uptake pattern of the pollutants. The mechanism of adsorption was examined with Elovich, pseudo-first-order, intraparticle diffusion and pseudo-second-order kinetic models, while Langmuir, Dubinin-Radushkevich (D-R), Freundlich and Tempkin isotherms were exploited in order to describe the behaviour of the equilibrium process. Analysis from XRD revealed peaks corresponding to single phase apatite powder, while the various forces responsible for the interactions between the BMDA surface and the pollutants were obtained to CO32−, OH and PO43− as observed by FT-IR analysis. SEM and TEM investigations confirmed a round-like morphology which agglomerated together upon the adsorption of pollutants.

The kinetic modelling of the adsorption data were well illustrated with the pseudo-first-order model with correlation coefficient (R2) values ranging from 0.997 to 0.999. Isotherms studies revealed that best fit was achieved with Langmuir isotherm with adsorption capacities of 94.85 and 116.16 mg/g for RY4 dye and Cd(II) ions respectively. Thermodynamic study signified the uptake of the pollutants to be spontaneous, feasible and endothermic in nature. The values of entropy change (ΔS) for the sorption processes calculated are 86.57 and 60.16 J/mol/K for Cd(II) and RY4 dye, respectively.


Contamination of water body by heavy metals ions and dyes contained in discharged wastewater from various human and industrial activities had caused severe threats to the environment (Yang et al. 2012). Generated effluents from industrial activities among which are mining, battery manufacturing, metallurgical and chemical industry often contain toxic heavy metal ions which cannot be degradable biologically and could amass in the tissue of living organisms, resulting into various health issues (Cheng et al. 2016; Zhao et al. 2011). Cadmium is a known toxic metal that can be readily available in some industrial workplaces, it is a major constituent of electronics components and also widely used in batteries, electroplating and in some industrial paints. It is a highly toxic and has been classified as the sixth most poisonous substance (Janeggitz et al. 2011). Cadmium even at low concentration may lead to bone degeneration, liver damage, kidney and respiratory tract problems and hypertension (Janeggitz et al. 2011).

The toxicity effects of water contaminations by dye pollutants are undesirable and can even be carcinogenic at very absurdly low concentrations (Shappur et al. 2017). Effluents from textile, food, plastics, paper and leather industries are laden with dye, which not only is toxic to aquatic life, but also can destroy the aesthetic nature of the water system by reducing photosynthesis activities and decreasing recreation activities of the stream (Allen et al. 2004; Shappur et al. 2017). Due to the fact that wastewater-containing dyes are stable to light, heat and oxidation, their treatments using the conventional methods, is a major challenge in the wastewater treatment. They display resistance to aerobic digestion and sometimes not biodegradable, and even when digested or degraded, hazardous and toxic by-products are produced due to the presence of aromatic ring structures in most of the dyes molecules (Shawabkeh and Tutunji, 2004; Sun and Yang, 2003).

Various conventional technologies have been developed for remediation of contaminated wastewater and they are filtration, ion exchange, adsorption, electrodeposition, chemical precipitation and membrane systems (Barakat, 2011; Ngah et al. 2011; Schmuhl et al. 2001; Shukla and Pai, 2005; Wang et al. 2005). Although many of these technologies have various advantages, their applications had been limited by the high cost of operations, generation of secondary waste and ineffective complete removal of contaminants (Adeogun et al. 2013; Rengaraj et al. 2004; Shukla and Pai, 2005; Wang et al. 2005; Xiaoqin et al. 2017). Comparatively, adsorption had been adjudged the best technology in the treatment of wastewater owing to its easy handling and it does not produce toxic substances as by-products and is effective for the removal of different types of pollutants. In the wastewater treatment process, activated carbon has been used in a good number of times as an adsorbent due to its large specific surface area; however, its application is reduced owing to its high cost of production (Shappur et al. 2017). Hence, continued research towards alternative adsorbents (which are inexpensive with excellent sorption efficiencies) is justified.

The potentials of several varieties of adsorbents for the elimination of different pollutants have been explored in the remediation of wastewater with good results (Ngah et al. 2011; Shukla and Pai, 2005; Wang et al. 2005). Calcined bone contains apatite which is a stable form of the calcium phosphates with good biocompatibility and widely used in biomedical applications (Nasser et al. 2009). Apatite has been utilized for the uptake of contaminants in soil and purification of waste waters (Chen et al. 1997; Feng et al. 2010; Nzihou and Sharrock, 2010; Smiciklas et al. 2006).

In this study, a cheap adsorbent from calcined animal bones was prepared and then characterized with the use of XRD, SEM, energy-dispersive X-ray (EDX), FT-IR and TEM. The prepared adsorbent was thereafter used in a batch process for simultaneous uptake of Cd(II) ions and reactive yellow 4 dye (RY4 dye) from aqueous solutions. The roles of different experimental conditions such as initial contaminants concentration, contact time, pH and adsorbent dosage were looked into. Also, the kinetics, equilibrium and thermodynamics of the adsorption process were evaluated.


Synthesis of adsorbent

Waste animal bones were collected from an Abattoir at Abeokuta, Nigeria. Collected bone samples were steam washed to remove sand, fat, marrow and attached flesh. The raw materials were treated with 0.1 M solution of NaOH, washed with distilled water and thereafter dried in an oven at a temperature of 110 °C overnight and milled into smaller pieces and calcined at a temperature of 1000 °C using a heating rate of 5 °C/min in air box furnace. The residue was ground into fine powder, sieved and designated as bone meal-derived apatite (BMDA) and stored in an airtight container before use. The schematic representation for the synthesis of the adsorbent and its subsequent use for the adsorption of pollutants is represented in Fig. 1.

Fig. 1

Schematic representation for the synthesis of the adsorbent


The evaluation of the chemical composition of BMDA was done using a scanning electron microscope (Hitachi, Japan, S-3000H) with EDX incorporated. Information about the phase purity and crystallinity was done using X-ray diffractometer (PANalytical, X’Pert PRO, Netherland) in a step size of 0.02 using CuKα (γ = 1.54178 Å) radiation over the range of 10 to 60o. Fourier-transform infrared (FT-IR) spectroscopic analysis was performed between 400 and 4000 cm−1 with the aid of TENSOR 27 spectrometer (Bruker, Germany) and by adopting the KBr pellet method. Transmission electron microscope (TEM) analysis was done on (TEM; Tecnai 20 G2 FEI, the Netherland). A Zetasizer Nano ZS instrument (Malvern, UK) was used to evaluate the value of the zeta potential of the fish scale-derived hydroxylapatite powder. 0.1 g of the apatite powder was dissolved in 25 mL of pollutant solution, while pH adjustment was achieved with 0.1 M HCl and NaOH solution. The thermal stability of the prepared BMDA was performed with the aid of Thermogravimetric analysis (TGA) using SDT Q600 V8.3 Build 101simultaneous DSC-TGA instrument.

Preparations of aqueous solution of Cd(II) ions and RY4 dye

A stock solution containing Cd(II) and reactive yellow 4 dye were prepared from Cd (NO3)2. 4H2O (99%) (Aldrich, Germany) and reactive yellow 4 dye (BDH, London), the structural formula of which is shown in Fig. 2. Solutes were accurately weighed such that the solution contained 1 g equivalent each of the metal ion and dye in 1 L de-ionised water, working solutions of the pollutants were then made using the stock by dilution method. Before the addition of the adsorbent, pH adjustment to a desired value was achieved with the addition of HCl or NaOH (1.0 mol L−1).

Fig. 2

Reactive yellow 4, 12226-45-8

Equilibrium studies

The batch equilibrium experiment was done in 250-ml Erlenmeyer flasks which contain 100 ml solution of initial concentrations of Cd(II) ions and RY4 dye ranging from 40 to 240 mg/L with BMDA of 1.4 g/L. A thermostat shaker set at 150 rpm and 30 ± 1 °C was utilized to equilibrate the contents for 120 min. The Cd(II) and RY4 dye concentrations in the solutions at initial stage and after the adsorption process were evaluated using Atomic Absorption Spectrophotometer (Varian Model SPECTRA 220) and UV-vis spectrophotometer (UV-VIS-NIR VARIAN 500 Scan CARY), respectively. The differences between initial concentration added to the adsorbent and that of the supernatant concentration was estimated using:

$$ {Q}_e=\frac{C_o-{C}_e}{m}\times V $$

where the amount of adsorbate adsorbed (mg/g), the initial and equilibrium concentrations (mg/L) are given as Qe, Co, and Ce, respectively, V stands for volume (L) of the pollutant taken and the adsorbent mass (g) is denoted as m.

Kinetics studies

In the evaluation of the kinetics study, samples were collected at preset time intervals (0, 5, 10, 15, 30, 60, 120, and 240) and analysed for the metal ions and RY4 dye contents. The contents of the contaminants sorbed at a particular time t, which is represented as Qt (mg g−1), was estimated using the expression below:

$$ {Q}_t=\frac{\left({C}_o-{C}_t\right)V}{W} $$

given that the concentrations of the metal ions and dye at time t is Ct (mg L−1), respectively, Co (mg L−1) and V (L) are as previously defined, while W is the mass (g) of dry adsorbent used.

Adsorption isotherms

Freundlich, Dubinin-Radushkevich, Langmuir and Tempkin isotherms were used for the analysis of the equilibrium studies. Micro Math Scientist software was used to evaluate the correlation coefficients, R2 which was estimated from the least square fit statistic and was used to determine the suitability and acceptability of the isotherms.

Langmuir isotherm

Langmuir isotherm is given by Eq. 3 based on assumptions that interactions do not exist between molecules adsorbed and that the whole surface for the adsorption process has the same sorption activity (Adeogun and Babu, 2015; Langmuir, 1918):

$$ {Q}_{eq}=\frac{Q_{\mathrm{max}}b{C}_e}{1+b{C}_e} $$

where Qmax and Ce (mg g−1) stand for the maximum amount of solute sorbed and the adsorbate concentration remaining in the solution at equilibrium and the equilibrium constant is given as b (dm3 mg−1). The separation factor (RL) was described in the relationship below (Adeogun et al. 2018):

$$ {R}_L=\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\left(1+b{C}_0\right)$}\right. $$

b stands for the Langmuir equilibrium constant (L mg−1) and Co has been previously defined. The RL value of 0 < RL < 1 indicates favourable adsorption process, and linear when RL = 1, unfavourable when RL > 1, and when RL = 0, it is irreversible.

Freundlich isotherm

Freundlich isotherm which is used to explain adsorption taking place on a heterogeneous surface and can be presented as (Adeogun et al. 2013; Chen et al. 1997; Nzihou and Sharrock, 2010; Smiciklas et al., 2006):

$$ {Q}_{eq}={K}_F{C}_e^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$n$}\right.} $$

given that the adsorption capacity and the adsorbent intensity are represented as KF and n, respectively.

Tempkin adsorption isotherm

Tempkin isotherm assumed that the surface coverage determined the free energy of adsorption and it takes into considerations, the interface between sorbent and adsorbate (Adeogun et al. 2018; Chen et al. 1997; Shappur et al. 2017). The model is as presented in Eq. 6:

$$ {Q}_e=\frac{RT}{b_T}\ln {a}_T{C}_e $$

where aT and bT are the Tempkin constants relating to binding constant (Lmg−1) at equilibrium and the heat of adsorption, respectively, T is the temperature (K) and the ideal molar gas constant (8.314 J mol−1 K−1) is given as R.

Dubinin-Radushkevich isotherm

The D-R equation which is normally used in explaining the adsorption behaviour which occurs in microporous materials and is based on the supposition that alteration in the potential energy between the sorbed molecules and gas substance and also the surface homogeneity on microscopic behaviour (Adeogun and Babu, 2015). It is more general when compared with that of the Langmuir isotherm and can be used to classify adsorption processes into physisorption or chemisorption and can be equally used to determine the surface energy heterogeneity and is given as:

$$ {Q}_e={Q}_s{e}^{-\beta {\varepsilon}^2} $$

where Qs represents the saturation capacity (mol g−1), the Polanyi potential (ε) is given by the relation, \( \varepsilon =\ln \left(1+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$C{}_e$}\right.\right) \), where R (J mol−1 K−1), Ce (mg L−1) and T (K) are as previously described. The values of the constant β (mol2 J− 2) can be used to determine the mean free energy E (kJ mol−1) of the adsorption process per molecule of the pollutants as the solid is transferred from the solution onto the surface of the adsorbent (Adeogun and Babu, 2015; Adeogun et al. 2018). The expression in Eq. 8 relates β to the mean free energy of adsorption of the adsorbate.

$$ E={\left(2\beta \right)}^{-0.5} $$

The process of adsorption is described as chemisorption if the values of E are between 8 and 16 kJ mol−1, but if the magnitudes of E are less than 8 kJ mol−1, it suggests a physisorption process.

Adsorption kinetics studies

In order to examine the mechanisms of the adsorption process, pseudo-first-order and pseudo-second-order, intraparticle diffusion and Elovich kinetic models were utilized to explain the data obtained from the time-dependent adsorption studies of Cd(II) and RY4 by BMDA. The least square fit was also used to obtain various the parameters.

The pseudo-first-order kinetics model

The pseudo-first-order kinetic model is represented in Eq. 9 below (Lin and Brusick, 1992):

$$ \frac{dQ}{dt}={k}_1\left({Q}_e-{Q}_t\right) $$

where Qe and Qt are as previously defined, respectively; k1 stands for the adsorption rate constant (min−1); and t represents the contact time (min). Upon integration and rearrangement, within the limit of Qt = 0 at t = 0, and Qt = Qt at t = t, eq. 9 can be transformed to:

$$ {Q}_t={Q}_e\left(1-{e}^{-{k}_1t}\right) $$

The least square fit of Qt versus t at various solutes concentrations was used to estimate the parameters Qe and k1 of the model (Adeogun and Babu, 2015).

The pseudo-second-order kinetics model

The pseudo-second-order kinetics model can be described using Eq. 11 below (Adeogun et al. 2012):

$$ \raisebox{1ex}{$t$}\!\left/ \!\raisebox{-1ex}{${Q}_t$}\right.=\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${k}_2{Q_e}^2$}\right.+\left(\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${Q}_t$}\right.\right)t $$

The expression above can also be rearranged to give Eq. 12 below:

$$ {Q}_t=\frac{k_2{Q_e}^2t}{1+{k}_2{Q}_et} $$

where rate constant of pseudo-second-order process is given as k2 (g mg−1 min−1). The physical parameter values were obtained using the least square fit of Qt versus t at various solutes concentrations.

Elovich model

The Elovich kinetic model proposed that the rate of adsorption of adsorbate onto the adsorbent surface decreases exponentially with an increase in the adsorbed molecules (Shappur et al., 2017). It is a kinetic model dedicated to chemisorption process and generally expressed as shown in Eq. 13 (Shappur et al. 2017):

$$ {Q}_t=\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\beta $}\right.\ln \left(\alpha \beta \ast t\right) $$

where α (mg g−1 min−1) denotes the initial adsorption rate and the desorption constant is given by β (g mg−1). The reciprocal of β shows the quantity of available empty adsorption sites of pollutants and the expression \( \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\beta $}\right.\ln \left(\alpha \beta \right) \) gives the value of adsorbed molecules when t is equal to zero.

Intraparticle diffusion model

Information from the kinetic models alone cannot provide sufficient explanation about the diffusion mechanism of the sorption process; hence, the application of the intraparticle diffusion model (eq. 14). The model shows that the initial diffusion rate is a function of time and surface resistance created by the concentration gradient across the surface (Adeogun and Babu, 2015; Ofudje et al. 2017).

$$ {Q}_t={K}_{id}{t}^{0.5}+ Ci $$

where Kid (mg g−1 min−0.5) and Ci stand for the intraparticle diffusion rate constant and the measurement of the surface thickness of the adsorbent, respectively.

Thermodynamics of adsorption process

The distribution of the solutes particles between the adsorbent and solution at equilibrium is written as (Adeogun et al. 2012; Ofudje et al. 2017):

The equilibrium constant, Kd can be expressed according to the concentrations in each of the media:

$$ {K}_d=\frac{{\mathrm{Solute}}_{\mathrm{adsorbed}}}{{\mathrm{Solute}}_{\mathrm{solution}}} $$
$$ {K}_d=\frac{Q_e}{C_e} $$

The equilibrium constant Kd can be used to determine the thermodynamic such as standards entropy change (ΔSo), enthalpy change (ΔHo) and free energy change (ΔGo) since it is a temperature-dependent constant using the following relation:

$$ \varDelta {G}^o=- RT\ln {K}_D $$
$$ \varDelta {G}^o=\varDelta {H}^o- T\varDelta S $$
$$ \ln {K}_d=\raisebox{1ex}{$\varDelta {S}^o$}\!\left/ \!\raisebox{-1ex}{$R$}\right.-\raisebox{1ex}{$\varDelta {H}^o$}\!\left/ \!\raisebox{-1ex}{$ RT$}\right. $$

The linear plots of ln Kd versus the inverse of temperature (1/T) which should produce a straight line with slope as ∆So and intercept of ∆Ho and respectively. Spontaneity, heat change and randomness at interphase during adsorption can be estimated from the values of ∆G°, ∆Ho and ∆S°.

Statistical test

The need to compare error distribution becomes imperative since least square fit was use to evaluate the kinetic parameters. Generally, the acceptability or otherwise of the models are based on the values of the correlation coefficients, R2. To this end, three error functions, namely the sum of square error function (SSE), root mean square error (RMSE) and composite fractional error (HYBRID), (Eqs. 20–22) were used to validate the fitness of kinetic models tested in this present studies (Shappur et al. 2017).

$$ \mathrm{SSE}=\sum \limits_{i=1}^N{\left({Q}_{\left(\exp \right)}-{Q}_{(cal)}\right)}^2 $$
$$ \mathrm{RMSE}=\sqrt{\frac{\sum \limits_i^N{\left({Q}_{\left(\exp \right)}-{Q}_{(cal)}\right)}^2}{N}} $$
$$ \mathrm{HYBRD}=\frac{100}{N-P}\sum \limits_i^N\frac{\left({Q}_{\left(\exp \right)}-{Q}_{(cal)}\right)}{Q_{\left(\exp \right)}} $$

N denotes the data points, P stands for the numbers of the parameters in the model. The lower the values of SSE, RMSE and HYBRID errors and higher the value of R2, the more the suitability of the model.

Results and discussions

Characterization of BMDA

Surface morphological analyses of the BMDA by SEM and TEM before and after adsorption are presented in Fig. 3. The SEM results showed a round-like morphology which agglomerated together after adsorption of pollutant as depicted in Fig. 3 a and b, respectively. This was equally confirmed by TEM analysis with an agglomerated round particle with length varying in the range of 20 to 60 nm and width of 3–9 nm as shown in Fig. 3 c and d. However, upon adsorption (Fig. 3d), the morphology appeared bigger when compared with Fig. 3 c. The SAED (as inserted in Fig. 3c & d) patterns showed that the polycrystalline structure was transformed into amorphous apatite after the incorporation of the solutes with the disappearance of a sharp spotted continuous ring suggesting an amorphous apatite which is in good agreement with the FT-IR and XRD results as shown in Figs. 4 and 7 below, respectively.

Fig. 3

SEM and TEM images of BMDA before sorption and after pollutants sorption

Fig. 4

FT-IR analysis of BMDA before adsorption and after adsorption

The FT-IR spectra of BMDA before and after pollutants adsorption are represented in Fig. 4, the fundamental vibration modes of PO4 groups of the apatite structure are shown by the band at 560 and 1030–1100 cm−1. Bands appearing at 865 and 1465 cm−1 were assigned to residual carbonate arising from the precursor’s bone, while broad bands at 1650 and 3450 cm−1 were ascribed to H-O-H bands and OH signals, respectively. A shift in band position and broadening of peaks were prominent after the adsorption, suggesting a further interaction between the adsorbate and the synthesized apatite powder.

EDX analysis of the fabricated BMDA is as indicated in Fig. 5 suggesting the presence of Ca, P, C, O, Mg, Si, K and Na in the apatite lattice. The trace elements in the adsorbent could be traced to those inherent in the precursor (bone); hence, EDX result suggested a non-stoichiometric apatite with Ca/P of 2.02. The loss of water, removal of organic portion and the decomposition of BMDA were evaluated with the aids of TGA and DTA analysis as presented in Fig. 6. The three successive behaviours indicating weight loss in the raw material were observed. Weight loss of 4.77% was noticed at 85.56 °C and this could be ascribed to removal of surface water from the biomass and was confirmed by DTA with an endothermic loss at 131 °C. The weight loss of 9.55% noticed at 315.15 °C could be attributed to the elimination of the organic contents from the biowaste with DTA exothermic confirmation at 325 °C. The final weight loss of 13.54% observed at 579.32 °C is as a result of the decomposition of carbonate with an exothermic loss at 595 °C as confirmed by DTA, thus leaving a residual weight of 72.14% of the prepared adsorbent.

Fig. 5

EDX analysis of BMDA

Fig. 6

TGA and DTA analysis of the BMDA

X-ray diffraction spectra of BMDA before and after pollutants adsorption are presented in Fig. 7. It was observed that peaks of synthesized powders correspond to characteristic peaks of pure HAp powder using the standard JCPDS (09-432). Well-resolved characteristic peaks of HAp powder were obtained at 2θ value of 25.99° and 31.87° corresponding to (002) and (211) planes, respectively, with the peak at the 2θ value of 31.87° having the highest intensity. The phase formed was pure as there were no traces of other phases. Other standard planes observed in the XRD analysis by the JCPDS card are (202), (210), (222), (213), (300), (322), (004, 410) corresponding to pure or single HAp powder. The synthesized powder showed highly polycrystalline phase with the appearance of many sharp peaks. However, with the incorporation of the adsorbate onto the apatite, although no new phase was observed; however, these sharp peaks became less, broad and with reducing intensity indicating an amorphous apatite. Amorphous substances do not possess long range of Bragg peaks in X-ray diffraction order. So the diffraction from them do not show sharp Bragg peaks as observed in the XRD spectrum of the apatite after the adsorption of the pollutant. The crystallite sizes of the adsorbent were estimated using the Debye-Scherrer equation (Fumiaki et al. 2005):

$$ D\left({}_{hkl}\right)=\frac{K\lambda}{\beta \cos \theta } $$
Fig. 7

XRD spectra of BMDA before adsorption and after adsorption

where D represents the crystallite size in nanometres, maximum of the peak at half of the maximum intensity, FWHM (in degree) is given as β, λ is the diffraction wavelength (0.154 nm) and θ is the diffraction angle; K stands for constant related to the crystallite shape and is approximately 0.94. The hexagonal crystal parameters were equally computed from the following equation:

$$ \frac{1}{d\left({}_{hkl}\right)}={\left\{\frac{4\left({h}^2+{k}^2+ kh\right)}{3{a}^2}+\frac{i^2}{c^2}\right\}}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.} $$

where the distance between adjacent planes in the set of Miller indices (h k l) in nanometres is given as d and a, b and c represent the lattice parameters. The unit cell volume (V) of the apatite was computed from the equation below:

$$ V=2.589\left({a}^2\right).c $$

Table 1 shows the values of the lattice parameters and the crystallite size before and after adsorbate sorption. As indicated, the crystallite size increases after adsorption which is due to the incorporation of the respective adsorbate onto the apatite. Lattice parameter ‘a’ increases after the incorporation of the adsorbate, while lattice parameter ‘c’ and ‘v’ decrease.

Table 1 Lattice parameters and crystallite sizes of BMDA powders before and after adsorption

Effects of agitation time and initial pollutants concentrations on sorption capacities

The roles of contact time and initial pollutants concentrations on the removal of Cd(II) ion and RY4 by BMDA are presented in Fig. 8. There was rapid uptake of the cadmium ions and reactive yellow 4 dye in the first 15 min for all the concentrations, followed by a gradual increase for the next 120 min after which there was no appreciable change in the amount adsorbed, inferring a dynamic equilibrium (120 to 240 min). The adsorption capacity at equilibrium increases from 23.1 to 134.3 mg/g and 22.1 to 88.1 mg/g for Cd(II) and RY4 respectively as the initial concentrations increases from 40 to 240 mg/ L. The rapid uptake of the pollutant as observed at the early stage of the reaction is due to (i) availability of unoccupied active sites on the surface of the adsorbent and (ii) large driving force provided by the concentrations of the adsorbates at the initial stage of the adsorption process. However, as the reaction progresses, these active sites become saturated, thus leading to uniform adsorption at a contact time higher than 120 min. Similar reports had been documented in literature (Adeogun et al. 2013; Adeogun et al. 2013; Ofudje et al. 2017; Shappur et al. 2017). For this study, maximum uptake was attained at an agitation time of 120 min and initial adsorbate concentration of 240 mg/L.

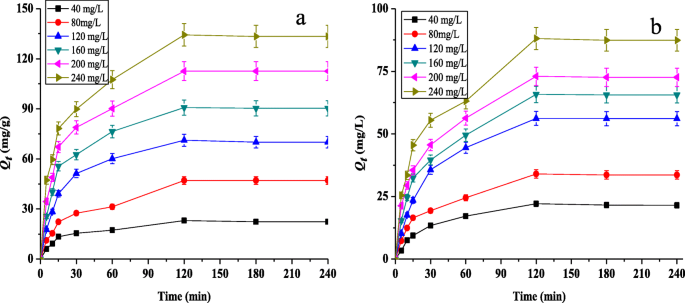

Fig. 8

Effects of agitation time and adsorbates initial concentrations a RY4, b Cd(II) ions (BMDA dosage (0.04 g/L), agitation speed (150 rpm), temperature (30 °C) and pH (4.5 and 6.0 for RY4 and Cd(II) ions, respectively))

Effect of pH on removal efficiency of the adsorbent

Chemistry of both the pollutants and adsorbent in aqueous solution depends on pH of the medium to a certain extent, invariably; therefore, solution pH is one of the significant factors upon which adsorption depends. The effects of pH on the uptake of Cd(II) ion and RY4 dye were examined by varying the solution pH between pH of 3.5 to 9.5 and the results are as presented in Fig. 9. The uptake of Cd2+ increased drastically from 60.3 to 84.3% as the solution pH was raised from 3.5 to 6, while that of RY4 dye increases from 46.7 to 71.5% as pH increases from 3.5 to 4.5. At lower pH, contest arising from metal ions and hydrogen ions for the empty sites coupled with the positive density charge on the adsorbent sites which are both responsible for the lower removal efficiency as observed in the case of the metal ions. But as the solution pH increases, there is less competition by the hydrogen ions for the adsorption sites due to deprotonation and this gives rise to better uptake of the metal ions (Adeogun et al. 2013; Adeogun et al. 2013; Ofudje et al. 2017; Shappur et al. 2017). However, the reduced uptake of Cd(II) observed at solution pH greater than 6 could be as a result of the formation of hydroxide or precipitation of oxide at higher solution pH (Adeogun et al. 2012; Han et al. 2012). On the contrary, since the RY 4 dye is anionic, lower solution pH in acidic medium favoured its adsorption owning to the positive electrostatic interaction between the BMDA and pollutants. On the other hand, the repulsive forces which existed between the RY4 dye and the surface of the BMDA which is negatively charged could be the reason for the decline in the efficiency of the adsorption of the dye as observed at greater pH values (Adeogun and Babu, 2015; Shappur et al. 2017).

Fig. 9

a Effects of pH on the uptake of RY4 dye and Cd(II) ions (BMDA dosage (0.04 g/L), agitation time (120 min), agitation speed (150 rpm), initial adsorbate concentrations (240 mg/L) and temperature (30 °C)) and b Zeta Potential of BMDA

The impact of solution pH on the removal ability of the BMDA adsorbent can be further explained better using the principle of iso-electric point on the surface of the adsorbent. The functional groups on the surface of the adsorbent at the pH of zero point of charge (pHzpc) will have no contribution to the solution pH neither in acidic nor basic (Ofudje et al. 2017). For this present study, the zero point charge of BMDA (Fig. 9b) was obtained to be 5.3. At a solution pH less than the pHzpc, the surface of the BMDA will be positively charged and is good for attracting anions (RY4 dye) from the solution. On the contrary, with a solution pH above the pHzpc value, the surface of the BMDA is negatively charged and is good for attracting cations (Cd2+). This further provides illumination on why the uptake of RY4 dye was favourable at a lower solution pH of 4.5 (less than 5.3 for pHzpc) and this increase in the uptake of dye is due to the electrostatic force of attraction between the positively charged surface of the BMDA and the negatively charged dye ions, while an increase in the uptake of Cd2+ is enhanced at a solution pH of 6 (greater than 5.3 for pHzpc) is due to the electrostatic force of attraction between the negatively charged surface of the BMDA and the positively charged cadmium ions (Limei et al. 2015; Ofudje et al. 2017).

Effect of BMDA dosage on removal efficiency

The relationships between adsorbent dosage and the amount of pollutants adsorbed are presented in Fig. 10. The results indicated that the quantity adsorbed (milligrammes per gramme of adsorbent) decreases with increase in the dosage, which is as a result of aggregation leading to a decrease surface area. However, as BMDA dosage increases, the adsorption efficiency of Cd(II) ions and RY4 dye also increases. The maximum percentage removal was observed at BMDA dosage of 0.04 g and above this, no appreciable increase in the uptake of the pollutants was observed.

Fig. 10

Effects of BMDA dosage on the uptake of the adsorption process (BMDA dosage (agitation time (120 min), agitation speed (150 rpm), solution pH (4.5 and 6 for dye and Cd(II) ions, respectively), initial adsorbate concentrations (240 mg/L) and temperature (30 °C))

Adsorption isotherms

The four different isotherms used in the analysis of the adsorption behaviour of the pollutants unto the BMDA are as presented in Fig. 11 a and b. It is apparent from the parameters as deduced from the plots of the least square fits of the models that the adsorption capacity (see Table 2) raises momentarily as a result of the accessibility of active unoccupied sites on the BMDA surface and this got saturated as the adsorbate concentrations increase. From the Langmuir isotherm, the maximum adsorption capacities (Qmax) of 94.85 and 116.16 mg g−1 were achieved for the uptake of RY4 and Cd(II), respectively. The values of separation factor (RL) and that of n from the Freundlich isotherm were observed to be above unity for all the adsorption and thus indicate favourable adsorption processes. The binding constants 138.99 and 117.76 mg L−1 obtained from Tempkin isotherm parameters for RY4 and Cd(II), respectively, showed that BMDA has the higher affinity for the dye than Cd(II) ions. The values of Qs as obtained from D-R are 65.95 and 103.43 mg g−1, respectively, for RY4 and Cd(II) ions adsorption. The values of E as obtained are 0.26 and 0.41 kJ mol−1 for RY4 and Cd(II) ions, respectively, thus suggesting physisorption as the adsorption process (Ofudje et al. 2017). Using the average values of correlation coefficient (R2) as basis for comparison, the isotherm fit can be arranged as Langmuir > Dubinin-Radushkevich > Tempkin > Freundlich. This is in accordance with literature reported that experimental data for the adsorption processes exhibited best fitting with the Langmuir isotherm model (Shappur et al. 2017).

Fig. 11

Isotherm fits for the uptake of a RY4 dye and b Cd(II) onto BMDA (Initial metal/dye conc, 40–240 mg L−1; pH, 4.5 and 6.0; BMDA dosage, 0.04 g/L; and Temp, 30 °C).

Table 2 Isotherm constants for the adsorption of Cd(II) ions and RY4 dye onto BMDA

Mechanism and kinetics of adsorption

The kinetics of Cd(II) ions and RY4 dye adsorption on BMDA were studied to understand optimum operational conditions, which are a significant criterion in describing the mechanism and the adsorption efficiency. Figures 12 and 13 give the plots of pseudo-first-order, pseudo-second-order, and Elovich and intraparticle diffusion models for the analysis of the time-dependent adsorption of Cd(II) ions and RY4 dye, respectively, by BMDA while the parameters for these fits are presented in Table 3. From the analysis of the kinetic data as presented in Table 3, although the values of correlation coefficient R2 for both pseudo-first-order and pseudo-second-order kinetic models are close to unity, the pseudo-first-order model was deemed as the best fit due to the consistency observed in the values of the calculated adsorption capacity (Qe calc) with that of the experimental values (Qe exp). Furthermore, it was noted that the error margins from the first-order model are lower than those obtained for second-order. Careful analysis of the Elovich model’s parameters as listed in Table 3 indicated a rise in rate of adsorption just as the pollutants concentration increases as inferred by α and the reduction in rate of desorption (β) with increased pollutants concentrations which suggest the existence of chemical bond interactions between the various functional groups present on the BMDA and pollutants (Shappur et al. 2017).

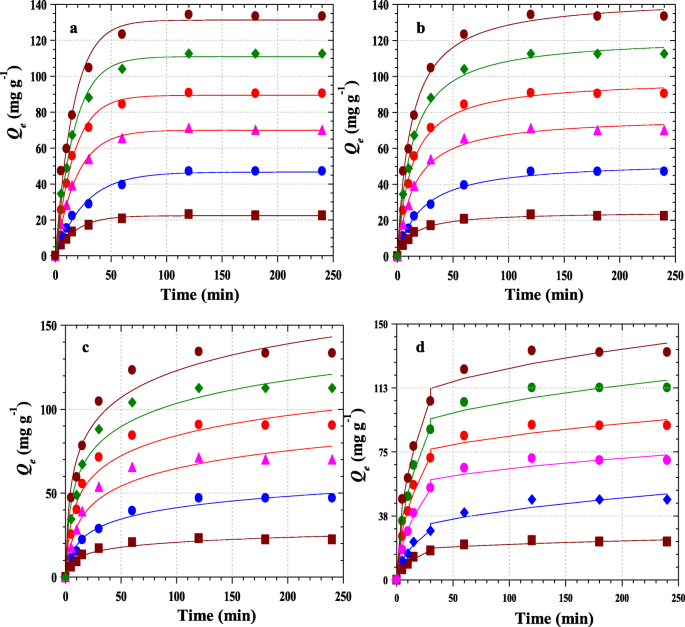

Fig. 12

Least square fit of Qt versus t of kinetic plots for the removal of Cd(II) ions on BMDA a first-order, b second-order, c Elovich fits, and d intraparticle diffusion models (adsorbent dosage, 0.04 g/L; pH, 6.0; and temp, 30 °C)

Fig. 13

Least square fit of Qt versus t of kinetic plots for the uptake of Cd(II) ions on BMDA (a) first-order (b) second-order (c) Elovich fits and (d) Intraparticle diffusion models. (Adsorbent dosage: 0.04 g/L, Temp: 30 °C, pH: 4.5 for RY4 dye adsorption)

Table 3 Kinetic parameters for the adsorption of Cd(II) ions and RY4 by BMDA

The intraparticle diffusion model was investigated in order to further understand the mechanisms of the adsorption processes. Two diffusion stages were observed for the process; the first stage is rapid and occurs in the first 30 min of the adsorption, while the second which is a relaxed stage proceeds till equilibrium. The increase intraparticle diffusion rate constant Kid) with contaminant concentration may be as a result of the opposition of the surface boundary of BMDA to the rise in the driving force with the gradient concentration as these solutes access the available sites on the adsorbent (Shappur et al. 2017). When compared, the values of Kid suggested that Cd(II) ions diffused faster than the RY4 dye molecule at an initial stage, while the reverse was observed at the second stage. It was also observed that the beginning of the adsorption process was made up of intraparticle diffusion as evident from the values of the intercepts Ci obtained and more significantly by the external mass transfer (Adeogun and Babu, 2015).

Thermodynamic study

van’t Hoff plot In K against the inverse of temperature for Cd(II) ion and RY4 dye adsorptions are shown in Fig. 14 with the thermodynamic parameters as listed Table 4.

Fig. 14

Thermodynamics fit for adsorption of Cd(II) ion and RY4 dye by BMDA

Table 4 Thermodynamic values for uptake of RY4 dye and Cd(II) ion by BMDA

It was observed that the values of ∆G° were negative which is are indication of the spontaneous process and as such, thermodynamically favoured. The increase in the negative values of standard energy change (ΔGo) with temperature is an indication that the process is favoured. Since values of standard enthalpy change (ΔHo) obtained were positive, it is an indication that the process is endothermic. Similarly, the positive values of standards entropy change (ΔSo) obtained imply an increase in the randomness of the adsorption process (Adeogun and Babu, 2015; Shappur et al. 2017).


This study shows the possibility of obtaining apatite material from bone meal and its subsequent use for adsorption removal of RY 4 dye and Cd(II) ion simultaneously via batch process. The adsorption process depended on agitation time, solution pH, initial RY 4 dye and Cd(II) concentration, BMDA dosage and temperature of the reaction medium. The isotherm studies suggest that all the tested isotherms fit well with data of the Langmuir isotherm as the maximum monolayer adsorption capacities of for RY4 dye and Cd(II) ions were obtained to be 94.85 and 116.16 mg/g, respectively. Kinetic analysis revealed that the pseudo-first-order model was most suitable to explain the behaviour of the adsorption process thus suggesting the adsorption mechanism to be physisorption. The thermodynamic parameters of enthalpy change, free energy change and entropy changes proved that the adsorption of RY4 dye and Cd(II) ions is endothermic, spontaneous, feasible which is also random in nature. It is therefore apparent that the applicability of bone-derived hydroxyapatite adsorbent for the adsorption of pollutants as discussed here is helpful in adsorption engineering application.

Availability of data and materials

Data sharing not applicable to this article
