An approach to select linear regression model in bioanalytical method validation



The accuracy of any bioanalytical method depends on the selection of an appropriate calibration model. The most commonly used calibration model is the unweighted linear regression, where the response (y-axis) is plotted against the corresponding concentration (x-axis). The degree of association between these two variables is expressed in terms of correlation coefficient (r2). However, the satisfactory r2 alone is not adequate to accept the calibration model. The wide calibration curve range used in the bioanalytical methods is susceptible to the heteroscedasticity of the calibration curve data. The use of weighted linear regression with an appropriate weighting factor reduces the heteroscedasticity and improves the accuracy over the selected concentration range.


The present work describes a rapid and simple RP-HPLC method for the estimation of chlorthalidone in spiked human plasma. The calibration curve standards were studied in the concentration range of 100–3200 ng/mL. The chromatography was performed on a C18 column (250 × 4.6 mm, 5 μm) in an isocratic mode at a flow rate of 1 mL/min using methanol:water (60:40%, v/v) as a mobile phase. The detection was carried out at 276 nm. Both the unweighted regression model and weighted regression models with different weighting factors (1/x, 1/√x, and 1/x2) were evaluated for heteroscedasticity. The statistical approach for the selection of a suitable regression model with appropriate weighting factors was discussed and the developed bioanalytical method was further validated, as per US-FDA guidelines.


In calibration curve experiments, although the acceptable r2 of 0.998 was obtained, the % residual plot showed that the data were susceptible to heteroscedasticity. When the weighted linear regression was applied to the same calibration curve data set, no significant difference between % relative residual (% RR) was observed. Furthermore, when % relative error (% RE) was calculated for different weighting factors, it was observed that the regression model with 1/x weighting factor gave a minimum % RE. The calibration curve was found to be linear in the range of 100 to 3200 ng/mL. The validation experiments proved good accuracy, and intra- and inter-day variability and acceptable recovery. Stability studies proved that the drug was stable under tested stability cycles.


From the statistical reports obtained from the present work, it was observed that the calibration curve in bioanalytical experiments was susceptible to heteroscedasticity using the unweighted linear regression model. Hence, to obtain homoscedasticity in the calibration curve experiments, there is a need for a weighted linear regression model. The appropriate regression model was further selected by evaluating the % RE for different weighting factors.


While performing any bioanalytical method, the concentration of drug present in a biological matrix is determined by extracting the drug, either by solid-phase extraction (SPE), liquid-liquid extraction (LLE), or protein precipitation (PP). The selection of calibration model in bioanalysis should be done as part of the method development prior to the method validation (Nagaraja et al. 1999). The response obtained (peak area ratio or peak height ratio) (y-value: dependent variable) is plotted against the corresponding concentration (x-value: independent variable). The relationship is established as y = bx + a for the obtained calibration curve, where b is the slope and a is the intercept. This simple method is called the method of least squares and is the most commonly used regression model (Kimanani 1998).

The concentrations used to generate a calibration curve are the calibration curve standards with known concentrations. The degree of association between y and x variables is expressed in terms of correlation coefficient (r2) and is considered acceptable for an r2 greater than 0.99. The unknown samples are typically evaluated using the regression results obtained from the calibration curve. However, the correlation coefficient value is not always sufficient to accept the linear regression model. Usually, in bioanalytical experiments, when drug concentrations are evaluated in a wide concentration range, the heteroscedasticity of the data is expected, where the variance increases with rising concentrations. Therefore, despite the acceptable correlation coefficient, the use of unweighted linear regression for the calibration curve experiment with heteroscedasticity will generate inaccurate analytical results, especially at a lower concentration range (Boulanger et al. 2003).

To handle this situation, two approaches were used; the use of weighted linear regression and the use of polynomial equations (Nakov et al. 2014, Korany et al. 2013). The latter is only applied in the case of non-linear or curved data sets, where the quadratic regression y = a + bx + cx2 is the most preferable. However, higher order polynomial equations greater than quadratic are generally not preferred (Singtoroj et al. 2006). The data set generated in the bioanalytical method is linear and, therefore, the most commonly used method is the weighted linear regression. The choice of weighting factor in the weighted linear regression evaluated in the pre-validation stage is based on evaluating the % relative error (% RE) and the calibration model on the test of homoscedasticity (Almeida et al. 2002).

The % RE is calculated for each calibration standard as follows:

$$ \%\mathrm{RE}=\frac{C\left(\mathrm{found}\right)-C\ (nom)\Big)}{C\ (nom)}\times 100 $$

where C (found) is the back-calculated concentration and C (nom) is the nominal concentration of the calibration standard. The most suitable weighting factor is the one that gives the minimum total % RE.

The test of homoscedasticity was performed by plotting % relative residual (% RR) vs. concentration and by applying the F test as follows:

$$ F\left(\mathit{\exp}\right)=\frac{s{2}^2}{s{1}^2} $$

where F (exp) is the experimental F value expressed as a ratio of variance obtained at the lowest concentration level (s12) and at the highest concentration level (s22) of the working range. The F (exp) is compared with the F (tab), which is obtained from the F-table at a confidence level of 99% for f1 = f2 = (n1) degrees of freedom. The test of homoscedasticity is accepted for F (exp) < F (tab). In this case, the variance is constant over the entire calibration range and the residual will fall randomly around the x-axis.

The objective of this work was to discuss a statistical approach for the selection of linear regression model during bioanalytical method development. The proposed approach was based on the study of heteroscedasticity for the calibration data by using the unweighted regression model and to suggest the need for a weighted regression model to reduce heteroscedasticity. The proposed work also elaborates the selection of weighting factor in weighted linear regression, the choice of optimum regression model using total % RE, and a test of homoscedasticity for the given calibration data set. Chlorthalidone was used as a model drug in this study. The drug was extracted from spiked human plasma using a liquid-liquid extraction technique and estimated using the RP-HPLC method.

Chemically, chlorthalidone is 2-chloro-5-(2,3-dihydro-1-hydroxy-3-oxo-1H-isoindol-1-yl) benzene sulfonamide (O’Neil et al. 2006), a diuretic agent used in the treatment of hypertension and renal disorders. Several analytical methods have been described for the estimation of chlorthalidone in biological fluids (Dadgar and Kelly 1988) and chlorthalidone in combination with other antihypertensive agents (Giachetti et al. 1997; Khuroo et al. 2008; El-Gindy et al. 2008; Gonzalez et al. 2010; Elgawish et al. 2011; Mhaske et al. 2012; Belal et al. 2012; Ramakrishna et al. 2015; Shah et al. 2016; Patel et al. 2017; Aruna et al. 2017).


Materials and methods

The working standards of chlorthalidone and guaifenesin (used as an internal measure) were obtained as a gift sample from Glenmark Pharmaceuticals Ltd., Nashik. Human plasma samples were procured as a gift sample from NDMVP’s Dr. Vasantrao Pawar Medical College, Hospital and Research Centre, Nashik and pooled plasma was prepared by thoroughly mixing plasma from six different sources. HPLC grade methanol was purchased from s d fine-chem Ltd., Mumbai. Double-distilled water used was prepared freshly using the All Glass Double Distillation Assembly, purchased from Borosil India Pvt. Ltd., Mumbai and filtered through a Durapore membrane filter (0.45 μm × 47 mm), purchased from Axiva Scichem Biotech, New Delhi.

The HPLC system consisted of two pumps PU-2080 plus (JASCO Corporation, Japan) fitted with a 100 μL Rheodyne Loop injector (7725i) and LC-Net II/ADC system control. Detection was carried out on a UV-2075 detector (JASCO Corporation, Japan) and the data acquisition was performed using BORWIN chromatography software (Version 1.50).

All chromatographic separations were carried out on a Phenomenex Kinetex C18 column (250 × 4.6 mm, 5 μm) using a mobile phase consisting of methanol:water (60:40%, v/v) in an isocratic mode at a flow rate of 1 mL/min. All eluents were detected at 276 nm.

Preparation of standard stock solution and working standard solutions

The standard stock solution of 1000 μg/mL of chlorthalidone and guaifenesin (internal standard) was prepared by dissolving 10 mg of chlorthalidone and guaifenesin in separate 10 mL volumetric flasks using methanol.

Furthermore, the above-prepared standard stock solution of chlorthalidone was appropriately diluted with a methanol to get working standard solutions of concentrations of 1, 2, 4, 8, 16, and 32 μg/mL. Likewise, the standard stock solution of the internal standard was appropriately diluted with methanol to obtain a working standard solution of 20 μg/mL.

Sample preparation and data analysis

Aliquots of 1 mL of pooled blank plasma were taken in stoppered glass tubes of 20 mL capacity. To these tubes, 125 μL of working standard solutions was added appropriately to get a six-point calibration curve (CC) of standards of chlorthalidone with concentrations of 0.1, 0.2, 0.4, 0.8, 1.6, and 3.2 μg/mL, respectively. In each calibration curve standard solution, 125 μL of 20 μg/mL working standard solution of internal standard was added and vortex-mixed for 5 min.

Similarly, the quality control (QC) samples were prepared, which consist of a lower limit of quantitation (LLOQ), lower quality control concentration (LQC), middle quality control concentration (MQC), and higher quality control sample (HQC). All QC samples were analyzed in five replicates for each QC level.

Liquid-liquid extraction experiments

An aliquot of 1 mL of blank human plasma was removed in a 20 mL stoppered glass tube and spiked with 125 μL of 100 μg/mL methanolic solution of chlorthalidone and 125 μL of 20 μg/mL methanolic solution internal standard. This mixture was vortex-mixed for 5 min. Furthermore, 5 mL aliquots of liquid-liquid extraction (LLE) solvent were added to each stoppered tube which were vortex-mixed for 5 min; then, the tubes were centrifuged at 3000 rpm for 10 min at 4 °C in a cooling centrifuge to achieve phase separation. From this solution, 2 mL of the organic layer was transferred to another tube and the organic solvent was evaporated under the nitrogen stream.

The residue obtained upon evaporation to dryness was reconstituted with 500 μL of the mobile phase and 100 μL was injected into the chromatographic system under optimal chromatographic conditions.

Calibration curve and selection of calibration model

In calibration runs, all CC standards were analyzed in six replicates using an optimized LLE experiment and chromatographic conditions.

At the end of calibration runs, the chromatograms of CC standards were processed to obtain the peak areas for chlorthalidone and the internal standard. For each CC standard, the area ratio of chlorthalidone to internal standard was calculated and the six-point calibration curve was constructed from the peak area ratio vs. respective concentration of CC standard.

The CC standard data were studied using unweighted linear regression and weighted linear regression with a weighting factor of 1/x, 1/√x, and1/x2. The data analysis was carried out using Microsoft ® Excel ® 2016 MSO (64-bit).


The developed method was validated as per the Guidance for Industry: Bioanalytical Method Validation (FDA and Food and Drug Administration, May 2018). Selectivity was studied at the lower limit of quantification (LLOQ) of 100 ng/mL by comparing blank responses of plasma from six different sources with peak areas afforded by the LLOQ samples. Accuracy was estimated as the mean % RE while the precision was measured in terms of % relative standard deviation (% RSD). The recovery of the extraction procedure was calculated by comparing the peak areas of the processed QC samples to those of corresponding standard dilutions. The stability of chlorthalidone in human plasma samples was evaluated under various conditions viz. three freeze–thaw cycles, stability at − 20 °C for 30 days, and stability at room temperature. The amount of drug in the stability samples was determined and the % nominal and % RSD in each case was calculated.

Results and discussion

Selection of optimum chromatographic conditions

Different mobile phases were attempted to find an adequate retention and resolution of chlorthalidone from plasma interferents and from the internal standard. Acceptable system suitability with respect to the tailing, number of theoretical plates, and resolution was obtained on a C18 column (250 × 4.6 mm, 5 μm) when a mobile phase consisting of methanol:water (60:40, %v/v) was used at a flow rate of 1 mL/min. Chlorthalidone was eluted at 6.825 min which was adequately resolved from the guaifenesin (internal standard) (RT = 7.875 min) and from the plasma interferents. All eluents were detected at a wavelength of 276 nm.

Selection of calibration curve standard and QC sample concentrations

The calibration curve (CC) standard range and the concentrations of QC samples (LLOQ, LQC, MQC, and HQC) were selected as per the Guidance for Industry: Bioanalytical Method Validation (FDA and Food and Drug Administration 2018). The CC standards were chosen to determine the calibration curve range and were prepared by spiking the pooled blank plasma with increasing concentrations of drugs. Generally, the calibration curve range should cover 10% of the Cmax to twice the Cmax of the drug. Considering the 25 mg tablet of chlorthalidone with a Cmax of 1.5 μg/mL (Hygriton Chlorthalidone 25 mg tablets, n.d.), the CC standard range was selected to be 0.1 μg/mL to 32 μg/mL.

The LLOQ is the lower amount of an analyte in a sample that can be quantitatively determined with suitable precision and accuracy. The concentration of LLOQ should be 10% of the Cmax of the drug and is the first level of the CC standard. Hence, for the present work, 100 ng/mL was selected.

The QC samples were prepared at three levels by spiking the drug in plasma to get the LQC (three times of LLOQ: 400 ng/mL), MQC (50% of the CC range: 1600 ng/mL), and HQC (near to the upper boundary of the calibration curve: 3200 ng/mL).

Optimization of liquid-liquid extraction experiments

The LLE solvents investigated were ethyl acetate, ter-butyl methyl ether, diethyl ether, chloroform, and tetrahydrofuran. Good recovery was obtained in ethyl acetate and thus selected for use as an extraction solvent in LLE. The % recovery for chlorthalidone and the internal standard in different organic solvents is shown in Table 1.

Table 1 % Recovery of chlorthalidone and internal standard in different LLE solvents

Calibration curve study and selection of optimal regression model

When the data obtained from the CC standards (Table 2) were subjected to unweighted linear regression, it was found that the % RR for the lowest concentration was 31.20%, compared with 0.18% of the highest concentration (Fig. 1). The % RR was calculated as:

$$ \%\mathrm{RR}=\frac{Y\left(\mathrm{found}\right)-Y\ (nom)\Big)}{Y\ (nom)}\times 100 $$
Table 2 Area ratios from calibration experiments
Fig. 1
figure 1

Calibration curve and residual plot of chlorthalidone, make the correction of x-axis title of linearity Conc (ug/mL) (symbolic microgram per mL)

This proved that inaccurate results may be generated when unweighted linear regression is used, even with an acceptable r2. Also, when the CC standard data of unweighted regression were subjected to the test of homoscedasticity, the F (exp) value found 272.95 which was significantly higher than F (tab) = 5.05 (F5, 5). This revealed that the variance was not evenly distributed over the CC standard range and resulted in heteroscedasticity. Therefore, from the % RR and from the test of homoscedasticity, it can be reasoned that there is a need to apply a weighted regression model for the given calibration data set.

The weighted regression models with a weighting factor of 1/x, 1/√x, and 1/x2 were further constructed on the same calibration data set.

Furthermore, for the selection of the optimal calibration model, the weighted linear calibration model with the minimum % RE and F (exp) was selected. The regression parameters for unweighted and weighted regressions with % RE and F value are presented in Table 3.

Table 3 Regression parameters for unweighted and weighted regression with different weighting factors

It was noted that the weighted regression model with a weighting factor of 1/x has the lowest % RE and is suitable to homogenize the variance of the residual. Thus, it was decided to adopt a calibration model of weighted linear regression with a weighting factor of 1/x in the calibration range of 100 ng/mL to 3200 ng/mL.


From Table 4, it was observed that the peak areas for LLOQ samples were five times higher than blank responses from the plasma. Thus, it was concluded that the method was selective at an LLOQ of 100 ng/mL.

Table 4 Blank responses and LLOQ peak areas for chlorthalidone

The chromatogram of blank plasma extract is shown in Fig. 2, which revealed the lack of significant interference at the retention times of chlorthalidone and the internal standard. The representative chromatogram of MQC sample is presented in Fig. 3.

Fig. 2
figure 2

Representative chromatogram of blank plasma extract

Fig. 3
figure 3

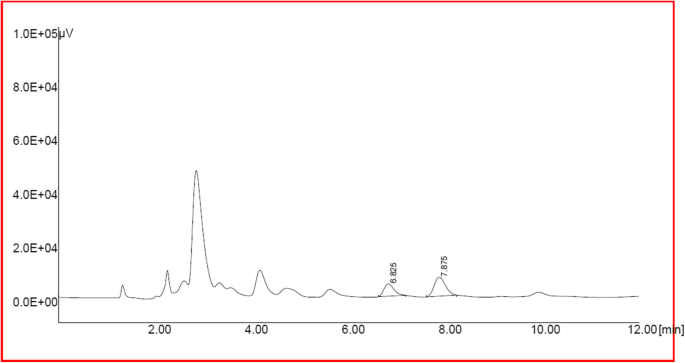

Representative chromatogram of MCQ sample of chlorthalidone (RT = 6.825 min) and internal standard (RT = 7.785 min)

The results of accuracy, precision, and the extraction recovery are shown in Table 5. It was found that the intra-day and inter-day % RE was between ± 15% and the % RSD was less than 15%. Hence, this proved the acceptable recovery of chlorthalidone and of the internal standard.

Table 5 Results of accuracy and precision studies

The results of stability studies are shown in Table 6, which showed that the % nominal concentration was between 90 and 98.84% with a % RSD less than 15%. This concluded that the drug remained stable after stability cycles.

Table 6 Stability studies for chlorthalidone (n = 5)


In the present work a simple, rapid and accurate RP-HPLC method was described for the estimation of chlorthalidone in spiked human plasma using liquid-liquid extraction. Also, it was demonstrated that in the calibration curve experiments using bioanalytical methods, the calibration data suffered from heteroscedasticity due to the broad concentration range. The heteroscedasticity can be minimized by using the weighted linear regression model. The weighted regression model with appropriate weighting factors can be selected by studying the % RE and testing for homoscedasticity. The developed method performed well with selectivity, precision, accuracy, and linearity in the chlorthalidone concentration range from 100 to 3200 ng/mL and the heteroscedasticity was minimized by using a weighted regression model with a weighting factor of 1/x.


% RE:

% Relative error

% RR:

% Relative residual

% RSD:

% Relative standard deviation


Calibration curve


Higher quality control concentration




Lower limit of quantitation


Lower quality control concentration


Middle quality control concentration


Protein precipitation


Quality control


Solid-phase extraction
