U–Th isotopic microanalysis of zircon reference materials and KBSI working standards



The 238U–230Th disequilibrium dating of the mineral zircon (ZrSiO4) provides an efficient tool for investigating the time scales of Quaternary magmatic processes. In situ mass spectrometric U–Th microanalysis of zircon requires careful calibration and correction of the measured isotope data, particularly for the instrumental fractionation of U and Th isotopes.


For the selection of suitable calibration materials for U–Th isotopic analysis using a laser ablation multiple collector inductively coupled plasma mass spectrometer (LA-MCICPMS), we estimated the homogeneity of four reference zircons (91500, TEMORA 2, FC1, and Plešovice) and two zircon working standards (LKZ-1 and BRZ-1) in terms of their 232Th/238U ratios, based on the Pb isotopic compositions measured by a sensitive high-resolution ion microprobe (SHRIMP). The measured LA-MCICPMS 232Th/238U ratios of the zircons were calibrated externally using the SHRIMP 208Pb/206Pb-based average value of the 91500 zircon, 232Th/238U = 0.351 ± 0.035 (error corresponds to 1 standard deviation). The molecular interference-corrected 230Th/232Th ratios of the zircons were calibrated based on the assumption that the Plešovice zircon is in 238U–230Th secular equilibrium. After the calibration and correction, the activity ratios of 230Th/232Th and 238U/232Th for all reference zircons and working standards were plotted on the equiline.


This study confirms that the 91500 zircon is relatively homogeneous in terms of U/Th ratios (relative standard deviation = ~ 10%) and does not support a recent claim that the Plešovice zircon is not in 238U–230Th radioactive equilibrium. The working standards LKZ-1 and BRZ-1 can be used to check the reliability of U–Th isotopic analyses for Quaternary zircons.


Geochronological methods using parent–daughter isotope pairs with long half-lives, such as 87Rb–87Sr (half-life = 48.8 Gy), 147Sm–143Nd (106 Gy), 238U–206Pb (4.47 Gy), and 40K–39Ar (1.25 Gy) systems, pose many challenges for the dating of Quaternary rocks and minerals, mainly because the amounts of daughter isotopes accumulated are extremely small. Also, in the case of 40K (or 40Ar)–39Ar dating, problems associated with excess argon cannot always be avoided (e.g., Esser et al. 1997). On the other hand, the widely used radiocarbon dating method is only applicable to the last ca. 50,000 years because of the short half-life of 14C (= 5730 years). The geochronological gaps between the ranges of these dating methods are filled by uranium-series geochronometers using short-lived radionuclides in the decay chains, such as 230Th (half-life = 75,600 years) and 231Pa (32,500 years).

The mineral zircon (ZrSiO4) presents many advantages as a 238U–230Th geochronometer. It has a relatively high uranium content (ca. 100–1000 ppm) and is strongly resistant to physicochemical breakdown. Furthermore, the intracrystalline diffusion of its constituent cations is relatively slow (Cherniak and Watson 2003). Therefore, Quaternary zircons have been a prime target for 238U–230Th disequilibrium dating since the advent of in situ microanalytical techniques that employ secondary ion mass spectrometry or laser ablation-assisted inductively coupled plasma mass spectrometry (LA-ICPMS) (Reid et al. 1997; Zou et al. 2010; Ito et al. 2013). These techniques have made it possible to investigate the sub-grain time records in single crystals but require careful calibration and correction of the measured isotope data. The zircon reference material plays a critical role in the calibration of LA-ICPMS data (Guillong et al. 2016).

For the selection of suitable reference materials for calibration of laser ablation data, we estimated the homogeneity of four reference zircons (91500, TEMORA 2, FC1, and Plešovice) and two zircon working standards (LKZ-1 and BRZ-1) in terms of their 232Th/238U ratios, based on Pb isotopic compositions measured with a sensitive high-resolution ion microprobe (SHRIMP). Then, we assessed the reliability of the calibration for LA-multiple collector (MC) ICPMS zircon U–Th isotope data using the 208Pb/206Pb-based average 232Th/238U ratio in the most homogeneous zircon reference material (the 91500 zircon), in addition to the 238U–230Th radioactive equilibrium assumed for the Plešovice zircon.


According to Wiedenbeck et al. (1995), the 91500 zircon specimen stored at the Harvard Mineralogical Museum originally consisted of a single crystal presumably collected from a porphyroblastic syenite gneiss in Ontario, Canada. The authors reported its chemical composition and isotope dilution-thermal ionization mass spectrometric (ID-TIMS) 207Pb/206Pb age of 1065.4 ± 0.3 Ma. Its average U concentration and Th/U ratio were estimated to be 81.2 ppm and 0.3444 ± 0.0009, respectively. The sub-grain distributions of trace elements in this reference zircon were investigated by Wiedenbeck et al. (2004). The 91500 zircon is a widely used reference material for O (δ18OV-SMOW = 10.07 ± 0.03‰; Valley 2003) and Hf isotopes (176Hf/177Hf = 0.282308 ± 0.000006; Blichert-Toft 2008).

The TEMORA 2 zircon, introduced by Black et al. (2004), was collected from a gabbroic diorite stock in the Lachlan Orogen of Eastern Australia. The ID-TIMS analyses for this zircon yielded a 206Pb/238U age of 416.78 ± 0.33 Ma, moderate U concentrations of 320–82 ppm, and Th/U ratios of 0.51–0.33 (Black et al. 2004).

The FC1 zircon was collected from an olivine gabbroic anorthosite in northeastern Minnesota. Paces and Miller Jr (1993) reported its ID-TIMS 207Pb/206Pb age as 1099.0 ± 0.6 Ma, with U concentrations ranging from 1510 to 218 ppm and Th/U ratios of 0.604–0.519.

The Plešovice zircon came from a potassic granulite in the southern Bohemian Massif, Czech Republic. The ID-TIMS analyses of this zircon by Sláma et al. (2008) yielded a weighted mean 206Pb/238U age of 337.13 ± 0.37 Ma and relatively low Th/U ratios of 0.16–0.04. The U concentrations of the pristine domains in the Plešovice zircon, determined by LA-ICPMS, range from 1106 to 465 ppm (Sláma et al. 2008).

The Korea Basic Science Institute (KBSI) is developing zircon working standards, namely LKZ-1 and BRZ-1. The former, from Sri Lanka, is a single transparent pale yellow crystal (length to width = ~ 1.7:1) with dark cathodoluminescence (CL) emissions, and the latter, from Brazil, consists of translucent dark brown crystals and exhibits a symmetric CL banding (Fig. 1). The SHRIMP analyses by Kim et al. (2015) yielded a weighted mean 206Pb/238U age of 591.1 ± 2.7 Ma (n = 29, mean square of weighted deviates [MSWD] = 2.1) for LKZ-1 and 572.2 ± 4.9 Ma (n = 30, MSWD = 4.1) for BRZ-1. The LKZ-1 is fairly high in U content, at 646 ± 45 ppm (hereinafter, errors correspond to 1 standard deviation (SD) unless otherwise stated), whereas the BRZ-1 has a significantly lower U content (90 ± 32 ppm) (Kim et al. 2015).

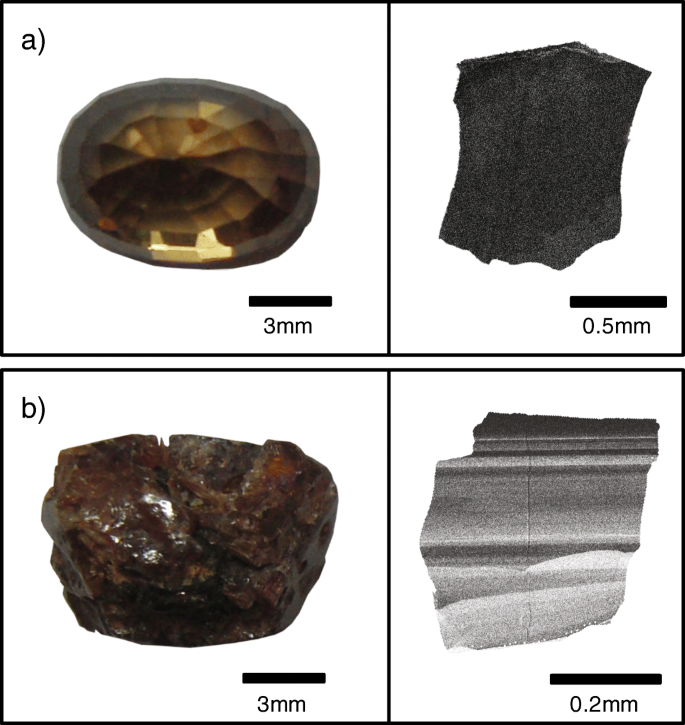

Fig. 1

Photographs of KBSI working standards (a) LKZ-1 and (b) BRZ-1 and their representative cathodoluminescence images


For Pb isotopic measurements using the KBSI SHRIMP, the primary O2 beam was focused into a ~ 25-μm-diameter spot at an accelerating voltage of 10 kV. The collector slit width was fixed at 100 μm, achieving a mass resolution of ~ 5000 at 1% peak height. The common Pb was removed by 204Pb correction method (Williams 1998) using the model of Stacey and Kramers (1975). Data processing was conducted using the SQUID 2.50 program (Ludwig 2009).

Zircon U–Th isotopic analyses were carried out at the KBSI using a Plasma II MCICPMS (Nu Instruments) equipped with an NWR193-nm ArF excimer laser ablation system (ESI). Typical laser ablation and ICPMS parameters are summarized in Table 1. Signal intensities were measured with Faraday collectors (for 238U and 232Th) and ion counters (for 230Th and 228 mass) simultaneously. The raw data were processed using Iolite 2.5 running within Igor Pro software (Paton et al. 2011). The activity ratios were calculated using the decay constants proposed by Steiger and Jäger (1977) (for 238U and 232Th) and Cheng et al. (2013) (for 230Th).

Table 1 LA-MCICPMS instrument and operational parameters

Results and discussion

SHRIMP analysis

Generally, the mass fractionation of Pb in the SHRIMP analysis occurs within the limits of analytical precision (Williams 1998 and references therein), and thus, no correction was applied to the measured 208Pb/206Pb ratios. The common Pb-corrected 208Pb/206Pb ratios of the zircon reference materials and KBSI working standards are listed in Additional file 1: Table S1. The 232Th/238U ratios were calculated by assuming that the U–Pb and Th–Pb isotopic systems in the zircons were concordant (Eq. 1):

$$ {}^{208}\mathrm{Pb}{/}^{206}{\mathrm{Pb}}_{\mathrm{SHRIMP}}{=}^{232}\mathrm{Th}{/}^{238}{\mathrm{U}}_{\mathrm{CONCORDANCE}}\left[\left({e}^{\lambda_{232}\cdot t}-1\right)/\left({e}^{\lambda_{238}\cdot t}-1\right)\right] $$

where λ232, λ238, and t are the 232Th decay constant (4.9475 × 10−11 y−1), the 238U decay constant (1.55125 × 10−10 y−1) (Steiger and Jäger 1977), and zircon crystallization age, respectively. The 232Th/238U ratios were also calculated by the SQUID program, using the experimental relationship proposed by Williams et al. (1996) (Eq. 2):

$$ {}^{232}\mathrm{Th}{/}^{238}{\mathrm{U}}_{\mathrm{SQUID}}=\left[0.03446\left({}^{238}{\mathrm{U}\mathrm{O}}^{+}{/}^{238}{\mathrm{U}}^{+}\right)+0.868\right]\left({}^{232}{\mathrm{ThO}}^{+}{/}^{238}{\mathrm{U}\mathrm{O}}^{+}\right) $$

The average 232Th/238UCONCORDANCE of the 91500 zircon (0.352 ± 0.035, relative standard deviation [RSD] = 10%, n = 48) is in agreement with the previous ID-TIMS (0.356 ± 0.001; Wiedenbeck et al. 1995) and LA-ICPMS ([Th] = 29.9 ppm (RSD = 7%), [U] = 80.0 ppm (RSD = 10%), 232Th/238U = 0.386 ± 0.047; Wiedenbeck et al. 2004) values within the measurement uncertainties. The other reference zircon materials and working standards were less homogeneous in terms of Th/U ratios (Fig. 2). However, the average 232Th/238UCONCORDANCE ratios of TEMORA 2 (0.451 ± 0.080, RSD = 18%, n = 47), FC1 (0.577 ± 0.125, RSD = 22%, n = 149), and Plešovice zircons (0.181 ± 0.157, RSD = 87%, n = 31) are consistent with the previous ID-TIMS and LA-ICPMS results (Paces and Miller Jr 1993; Black et al. 2004; Sláma et al. 2008). The Plešovice zircon showed the widest variation in 232Th/238U (0.52–0.07). The LKZ-1 and BRZ-1zircons yielded an average 232Th/238UCONCORDANCE of 0.139 ± 0.015 (RSD = 11%, n = 6) and 0.381 ± 0.092 (RSD = 24%, n = 23), respectively. As shown in Fig. 3a, the 232Th/238U ratios calculated by the two equations (i.e., 232Th/238UCONCORDANCE and 232Th/238USQUID) agree well with each other. The 232Th/238USQUID ratios with > 1% standard error (SE) are not displayed in this figure. It should also be noted that the 208Pb/206Pb ratios with poor internal precision (defined here as SE > 5%) were not considered in the calculation of 232Th/238UCONCORDANCE. The 232Th/238UCONCORDANCE ratios calculated for the 91500 zircon follow a normal distribution (Fig. 3b).

Fig. 2

The SHRIMP 208Pb/206Pb and calculated 232Th/238UCONCORDANCE for the zircons. Each analytical session is marked in shaded and unshaded areas

Fig. 3

a Comparison between 232Th/238U ratios calculated using SHRIMP 208Pb/206Pb data and the assumption that the U–Pb and Th–Pb isotopic systems in the zircons are concordant (232Th/238UCONCORDANCE) and those calculated by the SQUID program (232Th/238USQUID). b The frequency histogram of 232Th/238UCONCORDANCE ratios for the 91500 zircon

LA-MCICPMS analysis

Essentially, correction of inter-elemental isotope ratios measured by the LA-ICPMS is unavoidable because the sensitivity varies between elements due to mass bias and differences in the vaporization and ionization efficiency of the aerosol introduced into the plasma. Matrix-matched and homogeneous standard materials are required for the external calibration of inter-elemental LA-ICPMS data. Our SHRIMP analyses confirm that the 91500 zircon is the most homogeneous in terms of the Th/U ratio among the analyzed reference materials. We employed its 238U/232ThCONCORDANCE (= 2.85 ± 0.29) for the calibration of LA-MCICPMS 238U/232Th data. The relative sensitivity factor (RSF = 2.85 over 238U/232Thmeasured) was fairly constant during single analytical tests (RSD < 3%) but varied significantly from run to run (Fig. 4a); this means that the RSF value needs to be checked before and after the sample analysis.

Fig. 4

Variation of a the relative sensitivity factor (RSF) measured for the 91500 zircon (= 2.85 over 238U/232Thmeasured), b the count rate at mass 228, and c the correction factor (CF) measured for the Plešovice zircon [= (238U/232Th)corrected/(230Th/232Th)measured] in the LA-MCICPMS analysis. Symbols are the same as in Fig. 3

Of all the reference zircons analyzed in this study, the Plešovice zircon showed the widest variation in 232Th/238U. Ito (2014) argued that the Plešovice zircon is not in secular equilibrium, but this hypothesis may have been skewed by biased corrections for abundance sensitivity and molecular interferences (Guillong et al. 2015). During our LA-MC-ICP-MS analyses, the count rate at mass 228 was relatively constant (Fig. 4b), supporting the interpretation of Guillong et al. (2015) that mass 230 contains contributions from molecular zirconium sesquioxide ions. We removed these contributions using the isotopic abundance ratio proposed for 90Zr2 and (90Zr92Zr + 91Zr2) (= 0.7142; Guillong et al. 2015). Following this, the 238U–230Th radioactive equilibrium assumed for the Plešovice zircon was used for the correction and calibration of the peak tail of 232Th and the Faraday–ion counter efficiency. The correction factor measured for the Plešovice zircon [= (238U/232Th)corrected/(230Th/232Th)measured] also varied significantly from run to run (Fig. 4c). After calibration and correction, we confirmed that the activity ratios of 230Th/232Th and 238U/232Th for all zircons were plotted on the equiline as displayed in Fig. 5 and listed in Additional file 2: Table S2.

Fig. 5

230Th/232Th vs. 238U/232Th activity ratios for the reference zircon materials and KBSI working standards. Note that all zircons demonstrate secular equilibrium and plot along the equiline. Symbols are the same as in Fig. 3


This study confirms that the 91500 zircon is relatively homogeneous in terms of U/Th ratios (RSD = ~ 10%). After calibration and correction using the SHRIMP 208Pb/206Pb-based average 232Th/238U ratio for the 91500 zircon (= 0.351 ± 0.035), and the 238U–230Th radioactive equilibrium assumed for the Plešovice zircon, the activity ratios of 230Th/232Th and 238U/232Th were plotted on the equiline for all zircon reference materials and KBSI working standards. The LKZ-1 and BRZ-1 employed by the KBSI can be used to check the reliability of U–Th isotopic analyses for Quaternary zircons.


  1. Black LP, Kamo SL, Allen CM, Davis DW, Aleinikoff JN, Valley JW, Mundil R, Campbell IH, Korsch RJ, Williams IS, Foudoulis C. Improved 206Pb/238U microprobe geochronology by the monitoring of a trace-element-related matrix effect: SHRIMP, ID-TIMS, ELA-ICP-MS and oxygen isotope documentation for a series of zircon standards. Chem Geol. 2004;205:115–40.

    Article  CAS  Google Scholar

  2. Blichert-Toft J. The Hf isotopic composition of zircon reference material 91500. Chem Geol. 2008;253:252–7.

    Article  CAS  Google Scholar

  3. Cheng H, Edwards RL, Shen CC, Polyak VJ, Asmerom Y, Woodhead J, Hellstrom J, Wang Y, Kong X, Spötl C, Wang X, Alexander EC Jr. Improvements in 230Th dating, 230Th and 234U half-life values, and U–Th isotopic measurements by multi-collector inductively coupled plasma mass spectrometry. Earth Planet Sci Lett. 2013;371–372:82–91.

    Article  CAS  Google Scholar

  4. Cherniak DJ, Watson EB. Diffusion in zircon. Rev Mineral Geochem. 2003;53:113–43.

    Article  CAS  Google Scholar

  5. Esser RP, McIntosh WC, Heizler MT, Kyle PR. Excess argon in melt inclusions in zero-age anorthoclase feldspar from Mt. Erebus, Antarctica, as revealed by the 40Ar/39Ar method. Geochim Cosmochim Acta. 1997;61:3789–801.

    Article  CAS  Google Scholar

  6. Guillong M, Schmitt AK, Bachmann O. Comment on “zircon U-Th-Pb dating using LA-ICP-MS: simultaneous U-Pb and U-Th dating on 0.1 Ma Toya Tephra, Japan” by Hisatoshi Ito. J Volcanol Geotherm Res. 2015;296:101–3.

    Article  CAS  Google Scholar

  7. Guillong M, Sliwinski JT, Schmitt A, Forni F, Bachmann O. U-Th zircon dating by laser ablation single collector inductively coupled plasma-mass spectrometry (LA-ICP-MS). Geostand Geoanal Res. 2016;40:377–87.

    Article  CAS  Google Scholar

  8. Ito H. Zircon U–Th–Pb dating using LA-ICP-MS: simultaneous U-Pb and U-Th dating on the 0.1 Ma Toya Tephra, Japan. J Volcanol Geotherm Res. 2014;289:210–23.

    Article  CAS  Google Scholar

  9. Ito H, Tamura A, Morishita T, Arai S, Arai F, Kato O. Quaternary plutonic magma activities in the southern Hachimantai geothermal area (Japan) inferred from zircon LA-ICP-MS U-Th-Pb dating method. J Volcanol Geotherm Res. 2013;265:1–8.

    Article  CAS  Google Scholar

  10. Kim SJ, Lee TH, Yi K, Jeong YJ, Cheong CS. Characterization of new zircon and monazite working standards LKZ-1, BRZ-1, COM-1 and BRM-1. Paper presented at the 1st Japan-Korea SHRIMP meeting, Hiroshima University, Higashi-Hiroshima, 14–16 September 2015; 2015.

  11. Ludwig KR. User’s manual for Squid 2.50. Berkeley Geochronology Center Special Publication 5; 2009. p. 110.

    Google Scholar

  12. Paces JB, Miller JD Jr. Precise U–Pb ages of Duluth complex and related mafic intrusions, northeastern Minnesota: geochronological insights to physical, petrogenic, paleomagnetic, and tectonomagmatic processes associated with the 1.1 Ga midcontinent rift system. J Geophys Res. 1993;98:13997–4013.

    Article  CAS  Google Scholar

  13. Paton C, Hellstrom J, Paul B, Woodhead J, Hergt J. Iolite: freeware for the visualisation and processing of mass spectrometric data. J Anal At Spectrom. 2011;26:2508–18.

    Article  CAS  Google Scholar

  14. Reid MR, Coath CD, Harrison M, McKeegan KD. Prolonged residence times for the youngest rhyolites associated with Long Valley Caldera: 230Th-238U ion microprobe dating of young zircons. Earth Planet Sci Lett. 1997;150:27–39.

    Article  CAS  Google Scholar

  15. Sláma J, Košler J, Condon DJ, Crowley JL, Gerdes A, Hanchar JM, Horstwood MSA, Morris GA, Nasdala L, Norberg N, Schaltegger U, Schoene B, Tubrett MN, Whitehouse MJ. Plešovice zircon-a new natural reference material for U-Pb and Hf isotopic microanalysis. Chem Geol. 2008;249:1–35.

    Article  CAS  Google Scholar

  16. Stacey JS, Kramers JD. Approximation of terrestrial lead isotope evolution by a two-stage model. Earth Planet Sci Lett. 1975;26:207–21.

    Article  CAS  Google Scholar

  17. Steiger RH, Jäger E. Subcommission on geochronology: convention on the use of decay constants in geo- and cosmochronology. Earth Planet Sci Lett. 1977;36:359–62.

    Article  CAS  Google Scholar

  18. Valley JW. Oxygen isotopes in zircon. Rev Mineral Geochem. 2003;53:343–85.

    Article  CAS  Google Scholar

  19. Wiedenbeck M, Allé P, Corfu F, Griffin WL, Meier M, Oberli F, von Quadt A, Roddick JC, Speigel W. Three natural zircon standards for U-Th-Pb, Lu-Hf, trace element and REE analyses. Geostand Newslett. 1995;19:1–23.

    Article  CAS  Google Scholar

  20. Wiedenbeck M, Hanchar JM, Peck WH, Sylvester P, Valley J, Whitehouse M, Kronz A, Morishita Y, Nasdala L, Fiebig J, Franchi I, Girard JP, Greenwood RC, Hinton R, Kita N, Mason PRD, Norman M, Ogasawara M, Piccoli PM, Rhede D, Satoh H, Schulz-Dobrick B, Skår Ø, Spicuzza MJ, Terada K, Tindle A, Togashi S, Vennemann T, Xie Q, Zheng YF. Further characterisation of the 91500 zircon crystal. Geostand Geoanal Res. 2004;28:9–39.

    Article  CAS  Google Scholar

  21. Williams IS. U-Th-Pb geochronology by ion microprobe. In: McKibben MA, Shanks III WC, Rindley WI, editors. Applications of microanalytical techniques to understanding mineralizing processes, Reviews in economic geology, vol. 7; 1998. p. 1–35.

    Google Scholar

  22. Williams IS, Buick IS, Cartwright I. An extended episode of early mesoproterozoic metamorphic fluid flow in the Reynolds range, Central Australia. J Metamorph Geol. 1996;14:29–47.

    Article  CAS  Google Scholar

  23. Zou H, Fan Q, Zhang H. Rapid development of the great millennium eruption of Changbaishan (Tianchi) Volcano: evidence from U-Th zircon dating. Lithos. 2010;119:289–96.

    Article  CAS  Google Scholar

Download references


This study was supported by a KBSI grant (C38709) awarded to Albert Chang-sik Cheong.

Author information




ACSC designed the research and wrote the manuscript. YJJ, SL, SJK, HJJ, and KY analyzed the data. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Albert Chang-sik Cheong.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Additional files

Additional file 1:

Table S1. SHRIMP Pb isotope data with calculated 232Th/238U ratios. (XLSX 50 kb)

Additional file 2:

Table S2. U–Th isotopic composition of the zircons. (XLSX 87 kb)
