A multi-responsive coumarin–benzothiazole fluorescent probe for selective detection of biological thiols and hydrazine

Abstract

Biothiols play important roles in various physiological and biological processes, which closely related to many diseases. Hydrazine is widely used in the chemical industry, but it is harmful to humans and animals. Therefore, it is very important to develop a fluorescent probe that can simultaneously detect biological thiols and hydrazine. In this work, a new fluorescent probe (2E,4Z)-2-(benzo[d]thiazol-2-yl)-5-chloro-5-(7-(diethylamino)-2-oxo-2H-chromen-3-yl)penta-2,4-dienenitrile (BCD) was synthesized by integrating coumarin and benzothiazole acetonitrile. Featured with four binding sites and different bonding mechanism between probe with biothiols and hydrazine, this probe exhibited fluorescent turn-on for distinguishing Cys, Hcy, GSH and hydrazine with 760-, 8-, 6- and 637-fold fluorescent intensity increase at 502, 479, 476 and 458 nm, respectively, through different excitation wavelengths. Research on the effect of pH on the fluorescent performance of BCD shows that the probe exhibits superior stability in a weakly alkaline to weakly acidic environment, which will facilitate the detection of biological thiols or hydrazine hydrate by BCD. Selectivity studies have shown that the probe has high specificity to biological thiols and hydrazine, which is of great significance to the application of BCD.

Introduction

Cysteine (Cys), homocysteine (Hcy) and glutathione (GSH) are three very important biological thiols, which play important roles in various physiological and biological processes. Therefore, they are closely related to many diseases. Cys participates in the regulation of human intestinal function, lipid metabolism and other processes (Jung et al. 2013). Cys deficiency can cause slow growth in children, hair loss, edema, lethargy, liver damage, muscle and fat loss, skin lesions and weakness (Shahrokhian 2001; Sachdev 2004). The lack of Hcy will increase the risk of vascular disease, and it will directly lead to brain atrophy, cognitive impairment and Alzheimer’s disease (Yeun 1998). It has been proven to be an independent risk factor for cardiovascular disease in the general population (Wu et al. 2012). GSH is the redox center of the cell. GSH is also directly involved in the production of signal molecules (such as H2S), the process of protein functionalization and some other processes, and it is a key part of gene regulation and signal transduction in the cell (Franco et al. 2007; Townsend et al. 2003). There is a causal relationship between GSH metabolism and diseases such as cancer, neurodegenerative diseases, cystic fibrosis, human immunodeficiency diseases and aging (Seshadri et al. 2002). GSH levels in patients with AIDS and Alzheimer's disease are low (Borges-Santos et al. 2012; Puertas et al. 2012), and GSH levels in patients with neurodegenerative diseases are on the rise (Baillet et al. 2010). The imbalance of GSH synthesis is the cause of many pathological conditions, including diabetes, pulmonary fibrosis, and endotoxemia (Townsend et al. 2003; Lu 2009). Therefore, the detection of these three biological thiols in cells, tissues and living bodies is of great significance to their physiology and pathology research.

Hydrazine (N2H4) is an important biochemical reagent, which can be used as a metal corrosion inhibitor (Cruz Vieira et al. 2002), antibacterial drugs (Balsamo et al. 1983), plant growth regulators (Huffman et al. 1968), hydrazine fuel cell (Serov and Kwak 2010), and be used in rocket propulsion Propellant system (Zelnick Sanford et al. 2003; Mo et al. 2000). It is widely used in various chemical industries. However, as a volatile and toxic compound, hydrazine can cause serious damage to human bodies and animal organs (such as the central nervous system and respiratory system) (Garrod et al. 2005). The US Environmental Protection Agency stipulates that the concentration of hydrazine hydrate in drinking water shall not be higher than 10 ppb (Virji et al. 2005). Therefore, the specific detection of trace hydrazine hydrate is of great significance. Fluorescent probes are currently the preferred choice for the detection of biological thiols due to their simple structure, high sensitivity and real-time visualization of physiological processes. At present, there are a large number of fluorescent probes that can specifically recognize Cys/Hcy or GSH. Based on an improved aromatic substitution rearrangement strategy, He et al. developed a new proportional fluorescence probe (Cou-SBD-Cl) is based on the coumarin–sulfonylbenzoxadiazole platform. It can specifically detect Cys. However, 4-chloro-7-chlorosulfonyl-2,1,3-benzoxadiazole, the raw material for synthetic probes, is relatively expensive (He et al. 2017). Zou et al. designed a two-photon fluorescent probe Cou-Br based on coumarin derivatives to detect GSH in living cells, mouse models, and clinical specimens. However, the maximum absorption wavelength of the probe is very small before and after adding GSH, and the existence of Cys/Hcy has some influence on the detection (Zou et al. 2020). Due to the similarity in the nature and structure of Cys/Hcy and GSH, it is still a big challenge to distinguish these three biothiols. Therefore, there is an urgent need to develop new fluorescent probes to simultaneously detect these three biological thiols. Due to the difference in their spatial structure, they may combine with different reaction sites to generate different products, resulting in changes in the color and fluorescence signal of the system. Nowadays, the use of multi-site fluorescent probes to detect and distinguish biological thiols has become a trend. The multi-site fluorescent probe designed by Xiong et al. can detect Cys, Hcy and GSH at the same time, and the changes before and after the reaction are obvious, which can better distinguish Cys, Hcy and GSH, but the presence of HSO3 and S2− will significantly affect its detection Therefore, the specificity of the probe is not high enough, which affects its practical application (Xiong et al. 2019). Therefore, it is particularly important to design and synthesize a new type of multi-site fluorescent probe with high sensitivity, strong specificity, and capable of simultaneously detecting and distinguishing Cys, Hcy and GSH. Wu et al. reported a dual analyte-responsive fluorescent probe CMCA, which can detect hydrazine and bisulfite in different fluorescence emission channels, and was successfully applied to the quantitative determination of hydrazine and subsulfite in living cells and environmental water samples (Wu et al. 2018).

In this work, a multi-site fluorescent probe (2E,4Z)-2-(benzo[d]thiazol-2-yl)-5-chloro-5-(7-(diethylamino)-2-oxo-2H-chromen-3-yl)penta-2,4-dienenitrile (BCD) based on coumarin derivatives was constructed and synthesized (Scheme 1). The synthesis steps are simple, the raw materials are easily available, and the purpose of simultaneously detecting and distinguishing Cys, Hcy and GSH can be achieved. At the same time, it can detect trace amounts of hydrazine hydrate in different fluorescence channels.

Scheme 1
scheme1

Synthesis of BCD

Materials

Unless otherwise stated, all reagents used were purchased from commercial suppliers without further purification. The corresponding chemical reagents were purchased from Macleans or Aladdin, USA; the corresponding solvents were purchased from Shanghai Titan Technology Co., Ltd. The water used throughout the study was deionized water. Dissolve a certain amount of probe BCD in DMF to obtain a 2 mM probe stock solution. Prepare amino acids with deionized water: threonine (Thr), isoleucine (Ile), histidine (His), glutamine acid (Glu), alanine (Ala), glycine (Gly), serine (Ser), methionine (Met), phenylalanine (Phe), proline (Pro), leucine (Leu), aspartic acid (Asn), lysine (Lys), valine (Val); anions: HSO3, SO42−, ClO, I, NO3; cations: Na+, Mg2+, Ca2+, Ag+, Al3+, K+, Mn2+, Zn2+, Ni2+, Cd2+, Ba2+, Co2+; triethylamine, piperidine aqueous solution (10 mM). For fluorescence testing, the excitation and emission wavelength slits are both set to 2.5 nm.

Instrumentation

Ultraviolet absorption spectrum (UV–Vis) was measured with an ultraviolet–visible spectrophotometer (TU-1901, Beijing). F-7000 fluorescence spectrophotometer (Hitachi, Japan) was used to record the fluorescence emission spectrum. Using TMS as an internal reference, 1HNMR and 13CNMR spectra were recorded on a Varian INOVA-400 nuclear magnetic resonance spectrometer. High-resolution spectral analysis (HRMS) was performed on the LTQ Orbitrap XL mass spectrometer. Use Mettler-Toledo Delta320 pH meter to measure the pH value. Other instruments include vertical rotary steamer, SHB-III water circulation multi-purpose vacuum pump.

Synthesis

Synthesis of compound 1: The target compound was synthesized according to the known literature (Debnath et al. 2015). 4-(Diethylamino)-2-hydroxybenzaldehyde (2.90 g, 15.01 mmol) was dissolved in 40 mL of absolute ethanol, then add ethyl acetoacetate (2.30 mL, 2.34 g, 17.98 mmol) and three drops piperidine. The mixed solution was stirred and refluxed for 12 h. After the reaction was completed, it was cooled to room temperature and vacuum-filtered to obtain a filter cake. The filter cake was recrystallized with absolute ethanol to obtain 2.93 g of yellow powder with a yield of 75.22%.

Synthesis of compound 2: Synthesized according to references (Chen et al. 2018; El-Kazak et al. 2019) and made appropriate improvements. In a 100-mL round-bottom flask, cool an anhydrous N,N-dimethylformamide (5.00 mL, 4.75 g, 65.00 mmol) solution to 0 °C. Then, POCl3 (2.00 mL, 3.29 g, 21.50 mmol) was added dropwise with stirring in an ice bath (keeping the temperature at 0–5 °C) to form a light red solution. After stirring the mixture for 2 h, Compound 1 (0.50 g, 1.90 mmol) was slowly added under the protection of argon and stirred for two hours. The mixture was moved to room temperature and stirred overnight. After the reaction was completed, the solution was stirred and poured into an appropriate amount of crushed ice. The solution was neutralized to pH = 7–8 with sodium carbonate, and a reddish brown solid was formed. The product was filtered, washed with ice-cold water, and dried to obtain 0.47 g of brick red powder with a yield of 80.00%.

Synthesis of compound 3: Synthesized according to reference (Li et al. 2014) and made minor improvements. In a 25-mL round-bottom flask, dissolve o-aminothiophenol (1.10 mL, 1.25 g, 10.00 mmol) and malononitrile (0.66 g, 10.00 mmol) in 5 mL methanol. Dissolve 0.57 mL of glacial acetic acid in 10 mL of methanol and slowly add dropwise to the round-bottom flask. The mixed solution was stirred at room temperature for 2.5 h, and a large amount of yellow precipitate was deposited, which was filtered and dried to obtain 0.8266 g of light yellow powder with a yield of 47.50%.

Synthesis of probe BCD: Compound 2 (0.47 g, 15.40 mmol) and compound 3 (0.30 g, 17.20 mmol) were dissolved in 20 mL CH2Cl2 and heated to reflux for 12 h. After the reaction was completed, it was cooled to room temperature, then vacuum-filtered, washed with CH2Cl2 three times, and dried to obtain 0.21 g of dark purple powder with a yield of 28.90%: 1H NMR (Additional file 1: Fig. S1) (400 MHz, CDCl3) δ 1.25 (d, J = 7.1 Hz, 6H), 3.47 (t, J = 7.1 Hz, 4H), 6.50 (d, J = 2.3 Hz, 1H), 6.63 (dd, J = 8.9, 2.5 Hz, 1H), 7.35–7.53 (m, 3H), 7.81–7.90 (m, 1H), 8.07 (d, J = 7.4 Hz, 1H), 8.27(s, 1H), 8.43 (d, J = 11.6 Hz, 1H), 8.54 (d, J = 11.6 Hz, 1H). 13C NMR (Additional file 1: Fig. S2) (101 MHz, CDCl3) δ 12.56, 45.23, 96.73, 97.15, 107.78, 108.50, 109.78, 115.27, 121.67, 123.81, 126.17, 126.97, 127.29, 130.42, 130.80, 135.11, 141.41, 142.26, 142.91, 145.86, 152.40, 153.99, 161.51. HRMS (Additional file 1: Fig. S3): calc. for C25H20ClN3O2S: 461.9640, found: 462.1034.

Results and discussion

Spectral response of probe BCD to N 2 H 4

In order to evaluate the spectral response of BCD to N2H4, an optical response experiment was performed on N2H4 in DMF/Hepes (v/v = 7:3, pH = 7.4). From the ultraviolet–visible spectrum in Fig. 1, it can be seen that the probe BCD has the maximum absorption wavelength at 517 nm. After adding hydrazine hydrate, the maximum absorption peak at 517 nm disappears, and a new one appears at 407 nm. The strong absorption peak indicates that the addition of hydrazine hydrate reacts with the probe BCD to destroy the original conjugation structure of the probe molecule.

Fig. 1
figure1

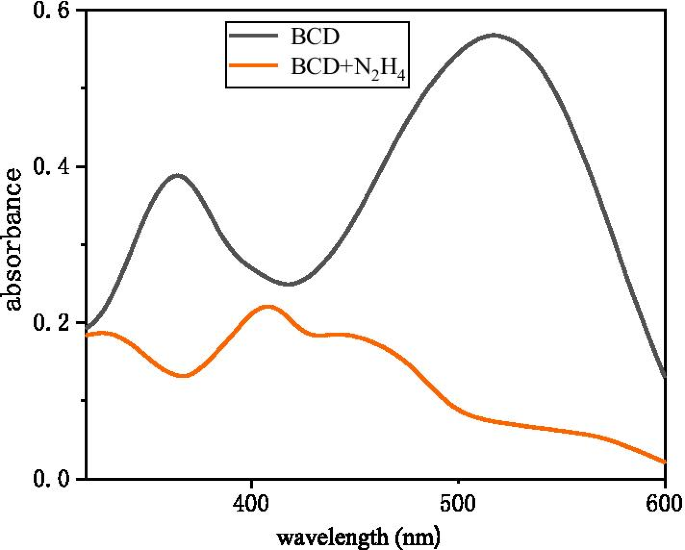

UV–Vis absorbance spectra of probe BCD (60 μM) in the absence and presence of N2H4 (10 mM) in the DMF-Hepes buffer (7/3, v/v, pH = 7.4)

It can be seen from Fig. 2a that after adding hydrazine hydrate, the fluorescent intensity of BCD is significantly enhanced, and the fluorescent intensity of the solution reaches an equilibrium state in about 2 h. In order to explore the pH stability of BCD and its applicable pH range, the fluorescent intensity of BCD (60 μM) in the absence and presence of N2H4 (100 μM) was measured under different pH conditions. In the absence of N2H4, the fluorescent intensity of BCD varies slightly from pH 1.0 to 11.0, indicating that the probe is stable over a wide pH range (Fig. 2b).

Fig. 2
figure2

a Time-dependent fluorescence spectral changes of probe BCD (60 μM) after treatment with N2H4 (100 μM) in the DMF-Hepes buffer (7/3, v/v, pH = 7.4), λex = 407 nm; b Fluorescent intensity at 458 nm of BCD (60 μM) at various pH values in DMF-Hepes buffer (7/3, v/v, pH = 7.4) medium in the absence and presence of N2H4 (100 μM), λex = 407 nm

When N2H4 is not added, the maximum absorption peak of BCD is at 517 nm. Within 3 min, the absorbance of the solution at 517 nm gradually increases and a slight red shift (3 nm) occurs; from 3 to 38 min, the absorbance at 517 nm gradually decreases, and a new strong absorption peak appears at 450 nm; from 38 to 120 min, the intensity of the strong absorption peak at 450 nm gradually decreases, and finally a strong absorption peak appears at 407 nm. The time-varying UV–Vis spectra of the BCD solution after the addition of N2H4 also indirectly proves that hydrazine hydrate and BCD are not completely reacted in one step, but have substitution reactions with cyano groups and active chlorine atoms (Fig. 3).

Fig. 3
figure3

Time-dependent absorption spectra of probe BCD (60 µM) at different time scales upon addition of N2H4 (100 µM) in DMF-Hepes buffer (7/3, v/v, pH = 7.4)

The fluorescence spectrum of BCD is shown in Fig. 4a. The probe BCD has almost no fluorescence in Hepes buffer. As the concentration of hydrazine increases, the fluorescent intensity of BCD at 458 nm (λex = 407 nm) increases by about 637 times. The concentration of N2H4 and the fluorescent intensity of BCD at 458 nm showed a good linear relationship in the range of 100–1500 μM. The calculation found that the limit of detection (LOD) was 9.98125 μM (based on 3 s/k, where s is the standard deviation of the blank measurement and k is the slope of the linearity of the fluorescent intensity and the sample concentration curve).

Fig. 4
figure4

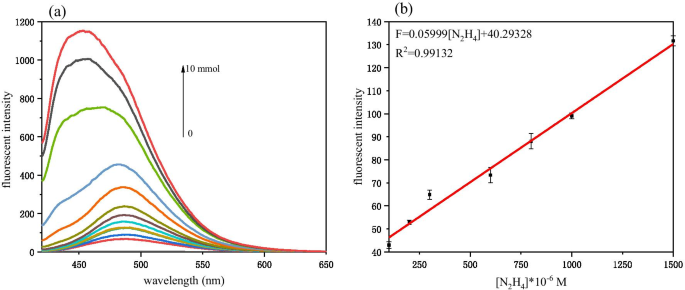

a Fluorescence spectral changes of BCD (60 µM) toward different concentrations of N2H4 in the DMF-Hepes buffer (7/3, v/v, pH = 7.4). b Linear responses of fluorescent intensity at 458 nm to varying N2H4 concentration

Spectral response of probe BCD to biothiol

Homocysteine(Hcy) is a heterogeneous amino acid cysteine (Cys), which contains an extra methylene group (-CH2-) before the thiol group (-SH) in the side chain. In order to study the spectral response of BCD to biological thiols, the sensing characteristics of biological thiols were tested in DMF/Hepes (v/v = 8:2, pH = 7.4) aqueous solution. After Cys was added, the strong absorption peak of BCD at 516 nm was blue-shifted, while the strong absorption peak at 365 nm was red-shifted (Fig. 5a). Compared with the addition of Cys, the strong absorption peak at 516 nm did not undergo a significant blue shift after adding Hcy to the BCD solution, but the strong absorption peak at 365 nm also exhibited a red shift (Fig. 5b). After the BCD solution was added to GSH, there was no obvious red-shift or blue-shift in the strong absorption peak at 516 nm or 365 nm (Fig. 5c). It can be seen from the UV–Vis spectra of the concentration of biological thiols that the conjugation of the final product of the reaction between BCD and different biological thiols is different.

Fig. 5
figure5

a UV–Vis absorbance spectra of probe BCD (60 μM) in the absence and presence of Cys (1.4 mM) in the DMF-Hepes buffer (8/2, v/v, pH = 7.4). b UV–Vis absorbance spectra of probe BCD (60 μM) in the absence and presence of Hcy (1.4 mM) in the DMF-Hepes buffer (8/2, v/v, pH = 7.4). c UV–Vis absorbance spectra of probe BCD (60 μM) in the absence and presence of GSH (1.4 mM) in the DMF-Hepes buffer (8/2, v/v, pH = 7.4)

Similarly, in order to explore the stability of the probe in the buffer solution (DMF/Hepes = 8:2), the fluorescent intensity of BCD under different pH environments was measured. It can be seen from Fig. 6 that the probe is hardly affected by the environmental pH. After adding biothiol, the fluorescent intensity of the solution changed. In general, the monitoring effect of BCD on biological thiols is very good in a neutral environment.

Fig. 6
figure6

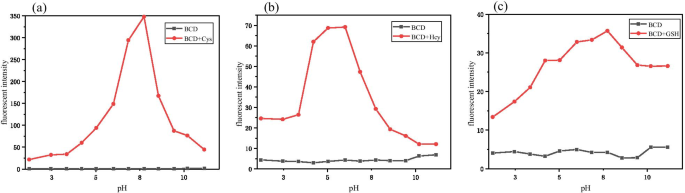

a Fluorescent intensity at 502 nm of BCD (60 μM) at various pH values in DMF-Hepes buffer (8/2, v/v, pH = 7.4) medium in the absence and presence of Cys (1 mM), λex = 463 nm. b Fluorescent intensity at 479 nm of BCD (60 μM) at various pH values in DMF-Hepes buffer (8/2, v/v, pH = 7.4) medium in the absence and presence of Hcy (1 mM), λex = 396 nm. c Fluorescent intensity at 476 nm of BCD (60 μM) at various pH values in DMF-Hepes buffer (8/2, v/v, pH = 7.4) medium in the absence and presence of GSH (1 mM), λex = 365 nm

When Cys is not added, BCD has two strong absorption peaks: 516 nm and 365 nm. Within 10 min, the absorbance of the solution at 516 nm gradually increased and a red shift (20 nm) occurred. From 10 to 40 min, the absorbance at 516 nm does not change much, while the absorbance at 365 nm gradually increases; from 40 to 360 min, the intensity of the strong absorption peak at 365 nm gradually increases and gradually red-shifts, forming a new strong absorption peak at 399 nm, while the intensity of the strong absorption peak at 516 nm gradually weakens and appears at 497 nm isoabsorbent point; after 360–600 min, the intensity of the strong absorption peak at 365 nm gradually increased, and the BCD solution finally formed new absorption peaks at 463 nm and 399 nm. It can be seen from the time-ultraviolet diagram of the BCD solution after adding Cys that Cys and BCD have undergone a series of reactions, which can also support the speculation of the detection mechanism of BCD for biothiols later.

Within 15 min, the absorbance of the solution at 516 nm gradually increased and a slight red shift occurred; from 15 to 65 min, the strong absorption peak at 516 nm gradually weakened, while the absorbance at 365 nm increased; from 65 to 150 min, the intensity of the strong absorption peak at 365 nm gradually weakened and gradually red-shifted, while the intensity of the strong absorption peak at 516 nm gradually increased; from 150 to 540 min, the intensity of the strong absorption peak at 365 nm gradually increased and red-shifted to 396 nm, the absorbance at 516 nm gradually decreased, and an isosbestic point appeared at 490 nm. The comparison between Fig. 7 and Fig. 8 can prove indirectly that the reaction of Cys and BCD to form a cyclic compound is much easier than the reaction of Hcy and BCD to form a cyclic compound.

Fig. 7
figure7

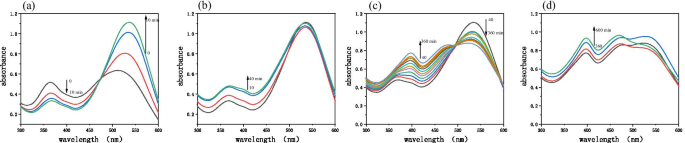

Time-dependent absorption spectra of probe BCD (60 µM) at different time scales upon addition of Cys (1 mM) in DMF-Hepes buffer (8/2, v/v, pH = 7.4)

Fig. 8
figure8

Time-dependent absorption spectra of probe BCD (60 µM) at different time scales upon addition of Hcy (1 mM) in DMF-Hepes buffer (8/2, v/v, pH = 7.4)

Within 15 min, the absorbance of the solution at 516 nm gradually increased, and a slight red shift (12 nm) occurred; from 15 to 360 min, the strong absorption peak at 516 nm gradually weakened, while the absorbance at 365 nm increased. Comparing Fig. 9 with Figs. 7 and 8, we can find that GSH and BCD hardly generate cyclic compounds.

Fig. 9
figure9

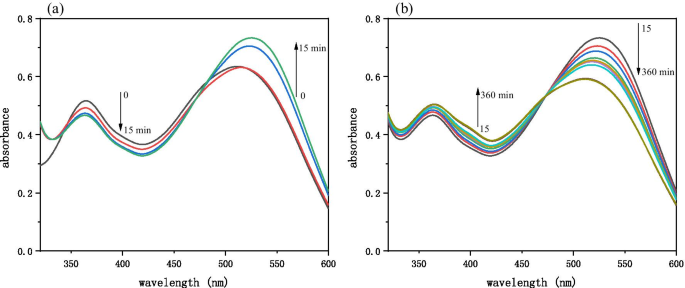

Time-dependent absorption spectra of probe BCD (60 µM) at different time scales upon addition of GSH (1 mM) in DMF-Hepes buffer (8/2, v/v, pH = 7.4)

It can be found from Fig. 10 that after adding biothiol, the fluorescent intensity of the BCD solution has increased to varying degrees. As the concentration of Cys increases, the fluorescent intensity of the solution at 502 nm (λex = 463 nm) increases significantly, approximately 760 times (Fig. 10a). After adding Hcy, the fluorescent intensity of the BCD solution at 479 nm (λex = 396 nm) increased approximately 8 times (Fig. 10c). After adding GSH to the BCD solution, the fluorescent intensity at 476 nm (λex = 365 nm) was slightly increased (Fig. 10e). Calculations found that the limits of detection (LOD) for Cys, Hcy, and GSH were 0.9825 μM, 135.6225 μM, and 243.9945 μM, respectively.

Fig. 10
figure10

a Fluorescence spectral changes of BCD (60 µM) toward different concentrations of Cys in the DMF-Hepes buffer (8/2, v/v, pH = 7.4). b Linear responses of fluorescent intensity at 502 nm to varying Hcy concentration. c Fluorescence spectral changes of BCD (60 µM) toward different concentrations of Hcy in the DMF-Hepes buffer (8/2, v/v, pH = 7.4). d Linear responses of fluorescent intensity at 479 nm to varying Cys concentration. e Fluorescence spectral changes of BCD (60 µM) toward different concentrations of GSH in the DMF-Hepes buffer (8/2, v/v, pH = 7.4). f Linear responses of fluorescent intensity at 476 nm to varying GSH concentration

Study on the selectivity of BCD

In order to evaluate the selectivity of BCD to N2H4 and biothiols and other small biomolecules, various related species were studied, including common amino acids (Thr, Ile, His, Glu, Ala, Gly, Ser, Met, Phe, Pro, Leu, Asn, Lys, Val) anions (HSO3, SO42−, ClO, I, NO3), metal ions (Na+, Mg2+, Ca2+, Ag+, Al3+, K+, Mn2+, Zn2+, Ni2+, Cd2+, Ba2+, Co2+), triethylamine and piperidine. As shown in Fig. 11a, after adding N2H4, the fluorescence of the BCD solution was greatly enhanced, and the fluorescence color was blue. Unlike N2H4, BCD emits green fluorescence with the addition of Cys. In contrast, the changes in fluorescent intensity caused by other small molecules are negligible, and no obvious changes in fluorescence color are observed. These results indicate that BCD is more selective for N2H4 and biothiols than other species. Therefore, BCD has specific detection for N2H4 and biothiols in aqueous solution.

Fig. 11
figure11

a Fluorescence spectra of probe BCD (60 µM) in the presence of other species (1 mM) in the DMF-Hepes buffer (8/2, v/v, pH = 7.4), λex = 463 nm. Inset: color of the solution containing BCD (60 µM) before and after the addition of Cys(1.4 mM), Hcy(1.4 mM), GSH (1.4 mM) in the DMF-Hepes buffer (8/2, v/v, pH = 7.4) under 365 nm UV light. b Fluorescence spectra of probe BCD (60 µM) in the presence of other species (400 µM) in the DMF-Hepes buffer (7/3, v/v, pH = 7.4), λex = 407 nm. Inset: color of the solution containing BCD (60 µM) before and after the addition of N2H4 (10 mM) in the DMF-Hepes buffer (7/3, v/v, pH = 7.4) under 365 nm UV light

Research on sensing mechanism

By analyzing the reaction time diagrams of BCD with biological mercaptans and hydrazine hydrate (as shown in Figs. 3, 7, 8 and 9), the reaction mechanism is inferred as shown in Scheme 2. The probe BCD is composed of coumarin dye and benzothiazole acetonitrile and has four potential reaction sites. The chlorine atom (site 1) in the probe can be used as a leaving group to undergo SNAr nucleophilic substitution with a sulfhydryl group; α,β-unsaturated bond (site 2) can be used as acceptor for Michael addition reaction; Cyano group (site 3) can be used as electrophile; under the action of the cyano group, the unsaturated bond in the benzothiazole moiety (position 4) can be used as another reaction site to distinguish biological thiols. The reaction site of the probe BCD is the same as that in reference (Yin et al. 2018), so it is speculated that the reaction mechanism of BCD and biothiol is consistent with the reference. Utilizing the nucleophilicity of biological thiol sulfhydryl groups, the chlorine atom is first substituted (site 1) and then intramolecular rearrangement occurs, achieving an intramolecular cyclization reaction (attack site 2 or 3). Due to the different chain lengths of Cys, Hcy, and GSH, it is easiest to attack site 2 to generate a seven-membered ring intermediate product when the probe reacts with Cys to undergo intramolecular cyclization (see Additional file 1: Fig. S5); when intramolecular cyclization occurs with Hcy, the offensive site 3 will generate a ten-membered ring intermediate product. From a kinetic point of view, it is far more difficult to form a seven-membered ring compound; when it reacts with GSH to undergo intramolecular cyclization, it will attack position 4, which will generate a fourteen-membered ring compound, which is extremely difficult in terms of kinetics. Due to the difference in their spatial structure, they will combine with different reaction sites to generate different products, which will cause the color and fluorescence signal of the system to change, so as to achieve the purpose of detecting and distinguishing these three biological thiols. The strong electron-withdrawing group cyano group is used as the recognition site of hydrazine, and it reacts with hydrazine hydrate to form a hydrazone, which changes the push–pull structure and blue shifts in ultraviolet light. The active chlorine atom and hydrazine hydrate also undergo substitution reactions. The reaction mechanism is supported by HRMS (see Additional file 1: Fig. S6) and 1H NMR spectra (see Additional file 1: Fig. S7).

Scheme 2
scheme2

Possible sensing mechanism of probe BCD: (1) proposed mechanisms of probe BCD with Cys; (2) proposed mechanisms of probe BCD with Hcy; (3) proposed mechanisms of probe BCD with GSH; (4) proposed mechanisms of probe BCD with N2H4

Conclusion

In conclusion, in this work, a new type of open fluorescent probe BCD was designed and synthesized, which can simultaneously detect biological thiols and hydrazine. The structure of the probe BCD was confirmed by nuclear magnetic (NMR) and high-resolution mass spectrometry (HRMS). According to the literature, the reaction mechanism of BCD and biological mercaptan or hydrazine hydrate was speculated, and the reaction mechanism of BCD and hydrazine hydrate was supported by mass spectrometry data. Further research results on BCD show that the probe has excellent performance such as high sensitivity and strong specificity, and the probe BCD has strong stability in weak acid and weak base environments, which is conducive to the detection of biological thiols or hydrazine hydrate.
