Kinetics of DPPH scavenging by bacterioruberin from Haloferax alexandrinus GUSF-1 (KF796625)

Abstract

This is the first account of the kinetics of free radical scavenging by bacterioruberin obtained from cells of Haloferax alexandrinus GUSF-1(KF796625), grown at optimum conditions of 25% NaCl, pH 7, 42 °C, 150 rpm in NaCl Tryptone yeast extract medium and light. Bacterioruberin separated from methanolic extract displayed characteristics absorption peaks at 368, 386, 463, 492 and 525 nm and gave an m/z value of 740.4 (C50H76O4) in Liquid Chromatography-Mass Spectroscopy validating its purity. Bacterioruberin (13 µM) decolorized and decayed 0.2 mM 1,1-diphenyl-2-picrylhydrazyl radicals (DPPH) monitored at 517 nm and reached a steady state within 30 min. An EC50 of 6.50 µM ± 0.27 (4.81 µg/mL ± 0.2) was deduced for the 0.2 mM DPPH-bacterioruberin reaction using the GraphPad Prism 9 statistical software and employing the right-angled triangle technique. The study also revealed a comprehensive information of the total kinetic activity of bacterioruberin with DPPH: the antioxidant activity index was 16.38 ± 0.67; time needed to reach the steady state with the added EC50—30 min; the antiradical power 30.77 ± 1.27 and the antiradical efficiency of 54.7 × 10–3 ± 2.24, thus reflecting the strong antioxidant nature of bacterioruberin. Scavenging of DPPH by bacterioruberin was a pseudo-first-order reaction with a rate constant k2 of 2.76 × 10–5 ± 0.001 µM−1 s−1 calculated at t = 0 or initial time and t = 30 min. The knowledge of the kinetics of bacterioruberin to scavenge DPPH adds to its effective application as an antioxidant in medicinal use, pharmaceutical products and others. Additionally, the use of simple conventional method of DPPH free radical scavenging, monitored using  an easily available laboratory spectrophotometer, will certainly help in the effective use of any antioxidant compound.

Introduction

Oxidative stress in a biological system is the inability of the body to eliminate the free radical reactive species through the use of endogenous antioxidants (Yusuff et al. 2019). Natural antioxidants are gaining importance as nutraceuticals, dietary supplements (Guerin et al. 2003) and as therapeutic medicines (Firuzi et al. 2011). They are preferred over synthetic antioxidants because of their inability to accumulate in the human body and cause harm (Deng et al. 2011).

Antioxidants relieve oxidative stress via: hydrogen atom transfer (HAT), proton coupled electron transfer (PCET), single electron transfer followed by proton transfer (SET-PT), sequential proton loss electron transfer (SPLET), radical adduct formation (RAF) and sequential proton loss through hydrogen atom transfer (SPLHAT) (Marković 2016).

Free radical scavenging of 1,1-diphenyl-2-picrylhydrazyl (DPPH) at fixed endpoint has been widely used to evaluate the antioxidant properties of natural compounds capable of scavenging free radicals (Brand-Williams et al. 1995) and is preferred since it simulates reactive oxygen and nitrogen-free radical species, which affects the biological systems (Arnao 2000). The use of DPPH provides an easy and rapid method to evaluate the potential of an antioxidant molecule scavenging free radicals which can be measured as a change in optical density/absorbance and referred to as the strength of the antioxidant. (Brand-Williams et al. 1995).

Knowledge of kinetic parameters such as antiradical efficiency and time required to reach steady-state provides additional information about antioxidant behavior. Hence, they are more informative than mere total antioxidant capacity determinations at fixed endpoint even if carried out by different methods (Sánchez-Moreno et al. 1998).

Bacterioruberin of C50 carotenoid is reported in members from different genera of haloarchaea such as Haloterrigena, Haloarcula, Halobacterium, Halococcus, Halogeometricum, Haladaptatus, Haloplanus, Halopelagius and Halogranum (Squillaci et al. 2017; Yatsunami et al. 2014; Abbes et al. 2013; Mandelli et al. 2012; Hou and Cui 2018); in Haloferax volcanii (Ronnekleiv and Liaaen-Jensen 1995; Hou and Cui 2018), in genetically modified Haloferax volcanii strain (HVLON3) by Zalazar et al. (2019), Haloferax alexandrinus strain TMT (Asker et al. 2002) and in Haloferax alexandrinus GUSF-1 (KF796625) (Alvares and Furtado 2021), respectively.

Bacterioruberin, of Halobacterium salinarium, is reported to protect cells in vitro against oxidative damage of UV light and hydrogen peroxide (Shahmohammadi et al. 1998); of Haloferax alexandrinus GUSF-1 (KF796625) to scavenge free radicals (Alvares and Furtado 2018) and of genetically modified Haloferax volcanii strain (HVLON3) in scavenging free radicals and enhancing ram sperm velocity (Zalazar et al. 2019).

Recently, through separation and chemical profiling of the hexanolic cell extracts of Haloferax alexandrinus GUSF-1 (KF796625), the antioxidant property of bacterioruberin and other C30, C40, and C50 isoprenoids has been confirmed (Alvares and Furtado 2021). Although the authors Zalazar et al. 2019 investigated the antioxidant activity of bacterioruberin obtained from genetically modified Haloferax volcanii strain (HVLON3) and arrived at EC50 value using the decolorization of DPPH monitored through electron paramagnetic resonance analysis, they did not investigate other kinetic parameters or delve into the kinetics of the DPPH-bacterioruberin interaction.

Therefore, the present study used bacterioruberin from cells of Haloferax alexandrinus GUSF-1 (KF796625), studied the kinetic parameters and behavior of this bacterioruberin to scavenge the 1,1-diphenyl-2-picrylhydrazyl (DPPH) free radicals using the conventional spectrophotometric method which is simple, reproducible, reliable, can be carried out routinely and does not require sophisticated instrumentation.

Experimental

Chemicals and reagents

Analytical grade chemicals and reagents from Himedia laboratories-India, 1,1-diphenyl-2-picrylhydrazyl (DPPH) from Sigma, USA and silica gel GF254 plates from Merck, Darmstadt, Germany, were used for thin-layer chromatography (TLC). A 0.2 mM solution of (DPPH) was prepared in methanol (97% purity) and used in the study, further dilutions were done with methanol, as and when required.

Standard curve of DPPH solution

The linearity range of the DPPH solution was determined. Varying concentrations of DPPH (0- 0.2 mM) were prepared from 0.2 mM stock solution in methanol and incubated at room temperature (28 °C) in the dark for 30 min. A linear regression was obtained from the curve by plotting the concentrations v/s absorbance obtained at 517 nm (Additional file 1: Fig. S1).

Culturing of Haloferax alexandrinus GUSF-1 (KF796625) for bacterioruberin

Haloferax alexandrinus GUSF-1 with accession number KF796625, an isolate from a salt pan (Sequeira 1992), was cultured in Tryptone Yeast Extract containing 25% (w/v) NaCl (NTYE) (Raghavan and Furtado 2004) and as indicated in results, at different concentrations of NaCl, temperatures, pH and in the presence of light. Culture broth was withdrawn daily and cells separated out using the centrifuge (Biofuge-Heraeus Stratos; 8000 rpm, 4 °C, 10 min) were washed with 15% (w/v) NaCl. Growth was monitored as dry weight of washed cells. The cells were then extracted in methanol and clear methanolic extracts were obtained on centrifugation. The culture was also grown under conditions yielding optimum growth, and 100 mg of wet washed cells was used to prepare the methanolic extract which was stored at − 20 °C till further use. All experiments were carried out in triplicates.

Estimation of antioxidant potential of methanolic extracts

The methanolic extract was checked for DPPH free radical scavenging, according to Alvares and Furtado (2021). Here, methanolic extract was mixed with 1 ml of 0.2 mM methanolic DPPH (1:2 v/v) and incubated in the dark (28 °C) for 30 min; thereafter, the absorbance was read at 517 nm. The antioxidant capacity, expressed as the % DPPH radical scavenging activity (%DPPH RSA), was calculated using the following equation:

$$\% {\text{DPPH}}^{ \cdot } {\text{RSA}} = \frac{{A_{{\text{B}}} {-}A_{{\text{S}}} }}{{A_{{\text{B}}} }} \times 100$$
(1)

where AB is the absorbance of 1 mL of 0.2 mM DPPH + 0.5 mL of methanol and AS is the absorbance of 1 mL of 0.2 mM DPPH + 0.5 mL of methanolic extract after incubation for 30 min.

Preparation of bacterioruberin

The wet pellet obtained by growing culture under physicochemical parameters yielding maximum antioxidant was treated with methanol, and the cell debris were then separated by centrifuging to obtain a clear cell-free methanolic extract of cells. Components from this were then fractionated with distilled hexane and distilled water according to the method of Asker et al. (2002). The pigment was recovered in the hexane layer, washed several times with distilled water and dried over anhydrous sodium sulfate and other impurities were removed using acetone precipitation. The resulting pigmented residue was re-dissolved in hexane. The orange-colored hexanolic extract, containing bacterioruberin, was purified by preparative TLC using a developing system of methanol-chloroform (7: 93, v/v) in minimum light (Asker et al. 2002). Bacterioruberin was checked for purity by scanning between 300 and 800 nm using the UV–Vis dual-beam spectrophotometer (UV-1601, Shimadzu, Kyoto, Japan) in quartz cuvettes of 1 mL volume and 1 cm path length and methanol as the reference solution. The identity and purity were further re-confirmed and validated using Applied Biosystems API 2000 Liquid Chromatography–Mass Spectroscopy (LC–MS) system with Ion spray Voltage (IS) – 45,000 V; Ion source gas (GS1) – 20.0 psi, 1 ppm lowest sensitivity and analyst software Q1/MS (A1).

Free radical scavenging activity of bacterioruberin by steady-state measurement

Bacterioruberin in methanol corresponding to 13 µM and 1 mL of 0.2 mM DPPH reagent was mixed in the spectrophotometric quartz cuvette and incubated in the dark at 28 °C. The decrease in absorbance of DPPH radical was spectrophotometrically monitored at 517 nm, at initial 1 min and then every 5 min (1–35 min) until the reaction reached a plateau/steady state. The reaction mixture was also scanned at appropriate intervals using the UV-Probe 2.42 software. The percentage of DPPH remaining at different intervals was determined according to Mishra et al. 2012 by using Eq. (2)

$${\text{\% DPPH}}^{ \cdot } {\text{ Remaining}} = { }\frac{{A_{{\text{f}}} }}{{A_{{0}} }} \times 100$$
(2)

where A0 is the absorbance of mixture at 517 nm containing 1 mL of 0.2 mM DPPH + 0.5 mL of methanol and Af is the absorbance of the reaction mixture at 517 nm containing 1 mL of DPPH + 0.5 mL of bacterioruberin.

Potency and kinetics of DPPH-bacterioruberin interaction

(i) The effective concentration (EC50)

GraphPad Prism 9 (San Diego, CA) statistical program with the built-in equation for nonlinear regression, i.e. Asymmetric (five-parameter, 5P) was the statistical model used to derive the plot of scavenging of 0.2 mM DPPH by bacterioruberin by plotting log concentration of bacterioruberin on the X-axis and % DPPHRSA on the Y-axis (Chen et al. 2013). The EC50 was then calculated from this log concentration–response curve by using a mathematical method based upon the principle of a right-angled triangle (Alexander et al. 1999). The theoretical value was calculated by using the concentration–effect curve shown in Fig. 4a, wherein the maximum response chosen is a true representation of the Emax and by selecting the two concentrations corresponding to two recorded points on either side of the 50% maximal response. From the raw data/curve, the values of A, B, C, and D are known, and the 50% maximal response is calculated from minimum (baseline) and maximum responses selected from the raw data.

The EC50 was derived according to Alexander et al. 1999, using Eq. (3) and compared with EC50 of beta-carotene;

$${\text{EC}}_{50} = D - \frac{{\left( {A{ }{-}{ }50{\text{\% }}\,{\text{maximal}}\,{\text{ response}}} \right) \cdot { }x}}{y}$$
(3)

Further, the time needed to reach the steady state (TEC50) at which no further scavenging of DPPH takes place at the added EC50 concentration of bacterioruberin was also calculated graphically from the plot of % DPPH remaining v/s time.

(ii) Antioxidant activity index (AAI) (Scherer and Godoy 2009)

Furthermore, the antioxidant activity index (AAI) was calculated as:

$${\text{AAI}} = \frac{{{\text{Final}}\,{\text{concentration}}\,{\text{of}}\,{\text{DPPH}}^{ \cdot } { }\,\left( {{\upmu {\text{g}}}/{\text{mL}}} \right)}}{{{\text{EC}}_{50}\,\left( {{\upmu {\text{g}}}/{\text{mL}}} \right)}}$$
(4)

(iii) Antiradical efficiency (ARE) (Sánchez-Moreno et al. 1998)

Moreover, the antiradical efficiency (ARE) of bacterioruberin was deduced from EC50 value converted to µg/mL and expressed as g BR/kg DPPH and TEC50 at 30 min, as under:

$${\text{ARE}} = \frac{1}{{\text{EC}}_{50}}{ } \times { }\frac{1}{\text{TEC}_{50}}$$
(5)

(iv) Antiradical power (ARP) (Mishra et al. 2012)

Additionally, antiradical power (ARP), the antioxidant action was calculated as reciprocal of ratio of EC50 (µmoles/µmole of DPPH)

$${\text{ARP}} = \frac{1}{\text{EC}}_{50}$$
(6)

(v) Reaction stoichiometry (Brand-Williams et al. 1995)

This was expressed as the amount of EC50 ratio (µmoles/µmole of DPPH) of bacterioruberin required to reduce 100% DPPH radicals and was deduced and calculated from EC50 value × 2. From this, the number of DPPH molecules reduced by one mole of bacterioruberin was further calculated thereof.

(vi) Rate constant (Mishra et al. 2012).

The formation of DPPH-H on addition of different µM concentrations of bacterioruberin to fixed 0.2 mM DPPH was checked, and the rate constant was calculated from the slope of this plot. All reactions were carried out as five independent experiments and expressed as a mean ± standard deviation (n = 5) derived using Microsoft Excel 2019.

Results and discussion

Large scale preparation and separation of bacterioruberin

Earlier, Alvares and Furtado (2018) demonstrated the decolorization of the deep purple color of DPPH by colonies of Haloferax alexandrinus GUSF-1 and also of their methanolic extracts as a consequence of free radicals scavenging activity. In a recent report, Alvares and Furtado (2021) attributed this antioxidant activity to the several compounds present in the cells of Haloferax alexandrinus GUSF-1 among which, the C50 isoprenoid bacterioruberin was most dominant.

As seen in Fig. 1a–d, maximum antioxidant produced by Haloferax alexandrinus GUSF-1 grown, separately at 150 rpm for over a period of 6 days in TYE medium with different concentrations of NaCl, temperature, pH, light and dark gave a maximum of 34.21% by cells grown in 25% NaCl, 36.04% at 42ºC, 33.15% in pH 7 and 41.66% by cells grown in the presence of light and amount of 25 µg of bacterioruberin was easily separated at Rf 0.24 and purified by preparative thin-layer chromatography (PTLC). The recovered bacterioruberin in methanol exhibited characteristic spectral peaks at 368, 386, 463, 492 and 525 nm; and the m/z 740.4 (C50H76O4) of the molecular ion (M+) detected in LC–MS (Fig. 2a, b) validated its purity. These features were consistent with those reported by Asker et al. (2002) and Alvares and Furtado (2021).

Fig. 1
figure1

Biomass and free radical scavenging activity % DPPH RSA in cells extracts of Haloferax alexandrinus GUSF-1 (KF796625) grown in different a NaCl concentration, b temperature of incubation, c pH of growth medium, d growth under light and dark conditions. Each value is mean of three replicates ± SD, (n = 3)

Fig. 2
figure2

a Mass spectrum of purified bacterioruberin obtained by Applied Biosystems API 2000 LC–MS system, b visible absorption spectrum of purified bacterioruberin

Free radical scavenging activity of bacterioruberin

The two characteristics absorption peaks of 0.2 mM DPPH in methanol were observed at 517 nm and 325 nm, while purified bacterioruberin displayed peaks at 368, 386, 463, 492 and 525 nm. Spectrophotometric monitoring was employed to decipher the interaction of bacterioruberin with DPPH at 517 nm. The addition of bacterioruberin in methanol with one of the absorption peaks at 525 nm when in contact with the chromogen DPPH in a 1:2 ratio instantly reduced the absorption peak of DPPH at 517 nm as displayed in Fig. 3a(i–v). Further the peaks at 463, 492 and 525 nm corresponding to bacterioruberin were completely abolished thus indicating that the interaction of bacterioruberin had no interference in the measurement of DPPH at 517 nm. The incremental decrease of the DPPH peak at 517 nm on the addition of bacterioruberin reflected receipt of H+ by DPPH from the added bacterioruberin and highlighted the free radical scavenging property of bacterioruberin carried out using similar method of DPPH, as reported by Biswas et al. (2016), Squillaci et al. (2017) and Hou and Chi (2018). The extent of change in color corresponded to the H+ received from the donor bacterioruberin molecule.

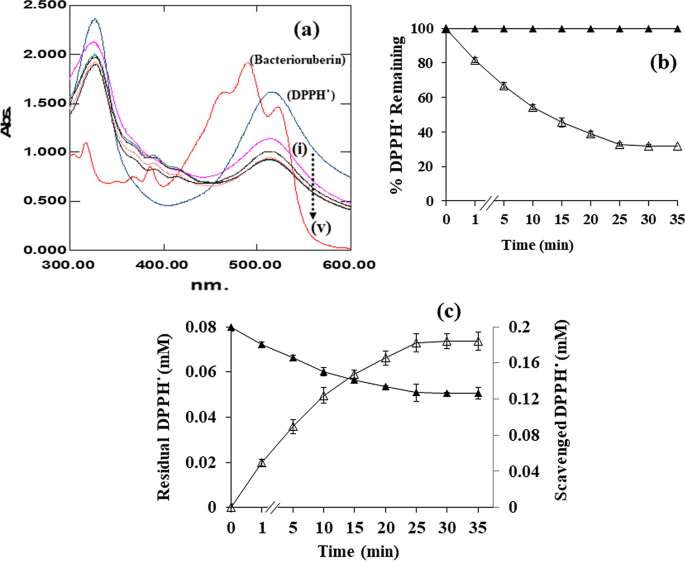

Fig. 3
figure3

a Visible absorption spectrum of 13 µM bacterioruberin in methanol, 0.2 mM methanolic DPPH and (i–iv) bacterioruberin-DPPH· interaction; b 0.2 mM DPPH remains steady at 517 nm in the absence of bacterioruberin (filled triangle) and 0.2 mM DPPH in the presence of 13 µM of bacterioruberin at 517 nm (open triangle); c residual concentration of DPPH (mM) monitored at A517 in the presence of bacterioruberin: residual DPPH (filled triangle) and scavenged DPPH (open triangle). Data are expressed as mean ± SD of three independent experiments

Free radical scavenging activity of bacterioruberin was monitored as a function of time. The addition of 13 µM of bacterioruberin to 0.2 mM DPPH decreased its absorbance at 517 nm, in the dark at 28 °C. In contrast, the absorbance of control DPPH at 517 nm remained unchanged for over 30 min (Fig. 3b) and indicated that it did not undergo auto-oxidation nor was affected by the environment in which the reaction was carried out. The purple color of DPPH changed to yellow with time, as DPPH received an electron or a H+ from bacterioruberin, the donor molecule. The simultaneous decrease in % DPPH remaining was noted; 81% on addition of bacterioruberin (13 µM/0.013 mM) within 1 min, 66% at 5 min, 54% at 10 min, 45% at 15 min, 38% at 20 min, 32% at 25 min and remained steady at 31% from 30 min onwards (Fig. 3b).

Further, as seen in Fig. 3c, the DPPH was converted to DPPH-H molecule inversely proportional to the decay of radical till steady state. At 30 min, an amount of 0.073 mM DPPH was converted to DPPH-H.

The subsequent slower rate pointed to the role of slow secondary reactions, possibly involving dimerization of phenol-derived radicals. The dependence of absorbance of AB (517 nm) and AS (517 nm) (t=x) is therefore exponential and a power function, obtained by nonlinear regression analysis. The reaction occurs via the HAT radical mechanism wherein H+ is donated by bacterioruberin as in ArOH +  DPPH = ArO + DPPH-H and is possibly similar to the reactivity of the antioxidant present in Corchorus olitorius (C.olitorius) and Vernonia amygdalina (V. amygdalina) towards DPPH (Yusuff et al. 2019).

Free radical scavenging kinetics at different concentrations of bacterioruberin

Data at column 1 under experiment no in Table 1 was used to construct a concentration-effect curve (Fig. 4a) using the GraphPad Prism 9 statistical model with the built-in equation; Asymmetric (five-parameter, 5P), as also employed by Chen et al. (2013). From the minimum and maximum response, the amount required to scavenge 50% of the original concentration or 50% maximal response was calculated. The 50% maximal response was interpolated to the x-axis. Also, A and B were selected on the y-axis as two closest points on either side of the 50% maximal response from the raw data. These points were then interpolated as D and C values on the x-axis.

Table 1  Evaluation of EC50 from bacterioruberin-DPPH interaction
Fig. 4
figure4

a The concentration–response curve of bacterioruberin obtained GraphPad Prism 9 (San Diego, CA) statistical program with the built-in equation for nonlinear regression, i.e. Asymmetric (five-parameter, 5P) statistical model. The nearest recorded responses (A and B) of each experimental concentration (D and C), nearly equidistant on either side of the EC50 and forming a right-angled triangle as in method of Alexander et al. (1999); b graphic magnification of right-angled triangle of data from experiment No. 1 (Table 1) for calculation of the EC50 of bacterioruberin using the right-angled triangle method; c time to reach steady state TEC50 with the EC50 concentration of bacterioruberin. Data are expressed as mean ± SD of five independent experiments

From Fig. 4a, b and Table 1, the following values were obtained:

100% response calculated from the baseline (minimum) and maximum data was 87.37% and hence the 50% maximal response was fixed at 43.68%; A = 58.33%; B = 36.67%; C = − 5.25 log [M]; D = − 4.97 log [M].

Equation (3) was applied to experimental data from column 1 of Table 1, and the following values were calculated:

Response interval (y) between responses A and B = 21.66%; the interval between 50% maximal response and the next highest concentration (y′) = 14.65%; x = 5.25 − 4.97 = 0.28

$$\begin{aligned} & {\text{EC}}_{50} = D - \frac{{\left( {A{ }{-}{ }50{\text{\% }}\,{\text{max }}\,{\text{response}}} \right) \cdot { }x}}{y} \\ & {\text{EC}}_{50} = - 4.97 - \frac{{{ }\left( {58.33 - 43.68} \right).{ }0.28}}{21.66} \\ & {\text{EC}}_{50} = - 4.97 - 0.189\;\log \,{\text{moles}} \\ & {\text{EC}}_{50} = - 5.15\;{\text{log}}\,{\text{moles}} \\ \end{aligned}$$

The effectiveness of EC50 of bacterioruberin in scavenging 50% of 0.2 mM DPPH free radicals, calculated using the right-angled triangle method of Alexander et al. 1999, was therefore taken as 6.50 µM ± 0.27 (4.81 µg/mL ± 0.2) (Fig. 4a; Table 1) and that reported for beta-carotene was 18 µM ± 0.2 (10 µg/mL ± 0.2) which was three times lower than bacterioruberin. This is a very simple, precise and rapid method for the calculation of the EC50, (Ralevic et al. 1995) and does not require expensive computational aids, thus making the technique particularly useful for laboratory calculations (Alexander et al. 1999).

A number of reports on EC50 of bacterioruberin from haloarchaea are available in literature, but they do not match the concentration of 0.2 mM DPPH which is employed in this study even though the fixed time of 30 min was used. However, from reported EC50 values in µg/mL, we equated the EC50 required to scavenge 0.2 mM DPPH so as to compare the results obtained in this study. Extract from the cells of Haloterrigena turkmenica with C50 bacterioruberin (Squillaci et al. 2017) displayed an IC50 value of 8.98 µg/mL. Hou and Chi (2018), found that 2.22 µg/mL of bacterioruberin from Haloferax volcanii and 160 µg/mL of bacterioruberin also obtained from Haloferax sp. BKW301 (Biswas et al. 2016) was required to scavenge 50% of 0.2 mM DPPH. Comparing the EC50 value of bacterioruberin obtained in this study, the order of effectiveness of  bacterioruberin was from Haloferax volcanii > Haloferax alexandrinus GUSF-1 > Haloterrigena turkmenica. In another study involving the antioxidant activity of bacterioruberin rich extracts, which was assessed using DPPH assay combined with electron paramagnetic resonance analysis, it was reported that  33.3 µg/mL scavenged 50% of 0.2 mM of DPPH) (Zalazar et al. 2019), eight times than 4.81 µg/mL of bacterioruberin from this study.

Figure 4c depicts the DPPH decolorization the EC50 (6.50 µM/4.81 µg/mL) of bacterioruberin, which progressed steadily at 517 nm, till it reached a steady-state saturation i.e., maximum decrease in DPPH in 30 min; therefore, the TEC50 for bacterioruberin was fixed at 30 min.

The antiradical efficiency is the reflection of a combination of kinetic and static approaches to characterize the antioxidant efficiency of a molecule (Huang et al. 2005). The antiradical efficiency of bacterioruberin deduced according to Sánchez-Moreno et al. 1998 (EC50 calculated as: g Bacterioruberin/Kg DPPH = 61.04 ± 2.58) was 54.7 × 10–3 ± 2.24, which with TEC50 of 30 min, fitted with an intermediate decay similar to that reported for gallic acid, tannic acid and α-tocopherol and showed a very high efficiency as characterized by Sánchez-Moreno et al. 1998.

Bacterioruberin had an antiradical power (ARP) of 30.77 ± 1.27 calculated from the EC50 (µmoles of bacterioruberin/µmole of DPPH = 0.03 ± 0.017) using the equation according to Mishra et al. 2012, higher than that reported for all compounds tested in their study. Further the stoichiometry deduced was found to be 0.06 ± 0.002 and reduced 15.38 ± 0.63 molecules of DPPH. It is pertinent to note that the stoichiometry and number of reduced DPPH for bacterioruberin have not been reported earlier.

Additionally, the antioxidant activity index (AAI) for bacterioruberin was calculated from Cf/EC50, (taken as µg/mL) as 16.38 ± 0.67, which is > 2, hence a strong antioxidant as per Scherer and Godoy (2009) antioxidant categories. Furthermore, comparing the AAI of bacterioruberin with AAI values of different standard antioxidants given by Scherer and Godoy 2009, the antioxidant activity index would be between protochatechuic acid 20.17 > bacterioruberin (this study) 16.38 > quercetin 15.92.

Many attempts to explain the structure–activity relationship of some polyphenols are reported in the literature. It is known that the monophenols are less efficient than the polyphenols and that the number of hydroxyl groups is an important factor that enhances activity (Cuvelier et al. 1992; Shahidi et al. 1992; Salah et al. 1995). The accessibility of the radical center of DPPH to each polyphenol also contributes to the antioxidant power obtained (Yoshida et al. 1989). Another important parameter of antioxidant action is the stoichiometry of reactants which is the amount of antioxidant required theoretically to reduce 100% of DPPH radicals. Bacterioruberin has an extensive system of 13 conjugated double bond, two acyclic phi φ end groups, four OH at positions C-1, C-1′, C-3′′, C-3′′′. The length, conjugated double bonds and functional groups of a molecule are reported to contribute to the antioxidant capacity (Mandelli et al. 2012) and this explains the lower EC50 values and corresponding kinetic parameters.

The conversion of DPPH to DPPH-H was carried out at fixed 0.2 mM concentration of DPPH and different concentrations of bacterioruberin, and hence represented by the equation ln[DPPHC]t = ln[DPPHC]0-kobst, where [DPPHC]t=0 is the concentration of radical at the t = 0; (DPPHC)t=30 is the concentration of the radical at steady time t = 30, kobs is therefore the pseudo-first-order rate constant obtained for the fixed reaction time of 30 min. The second-order rate constant k2 deduced from slope of the plot of kobs v/s concentration of DPPH (Fig. 5) was 2.76 × 10–5 ± 0.001 µM−1 s−1 for the bacterioruberin-DPPH interaction at a steady state of 30 min. In the absence of studies reporting rate constant for bacterioruberin, the rate constant value of 2.76 × 10–5 ± 0.001 µM−1 s−1 obtained in this study was found to be greater than that of curcumin (2 × 10−5 ± 0.12    µM−1 s−1) but lower than the value reported for gallic acid 4  × 10–5 ± 0.4 µM−1 s−1 by Mishra et al. 2012, although both of these molecules being unrelated to bacterioruberin in molecular weight.

Fig. 5
figure5

Plot of pseudo-first-order rate constant (kobs) versus bacterioruberin concentration. All measurements were carried out in methanol medium. Data are expressed as mean ± SD of five independent experiments. The second-order constant k2 was calculated from the slope of this plot

Expression of results in terms of the kinetic approach does not take into account only the activity of an antioxidant but also provides information on how quickly the antioxidant acts (Squillaci et al. 2017). Hence, it is pertinent to note that results of antioxidant activity based on kinetic data and on the measurement at a fixed endpoint should be combined so as to provide comprehensive information of the total antioxidant activity of a compound. This is the first study reporting the kinetics of free radical scavenging by bacterioruberin from a genetically unmodified Haloferax alexandrinus GUSF-1 investigated by the simple, conventional colorimetric assay for DPPH chromogen and monitored using an easily available spectrophotometer and highlighting its unique antioxidant potential.

Conclusions

In summary, this study on the kinetic behavior of antioxidant, bacterioruberin, from cells of Haloferax alexandrinus GUSF-1(KF796625) on decay of 0.2 mM DPPH enabled us to fix EC50 at 6.50 µM ± 0.27 (4.81 µg/mL ± 0.2) and TEC50 of 30 min and also the other kinetic parameters such as AAI at 16.38 ± 0.67, ARP at 30.77 ± 1.27 and the ARE of bacterioruberin was 54.7 × 10–3 ± 2.24, showed a stoichiometric value of 0.06 ± 0.002 and reduced 15.38 ± 0.63 molecules of DPPH. These kinetic parameters are not yet reported for bacterioruberin interacting with DPPH. Further, the scavenging reaction of DPPH by bacterioruberin was pseudo-first order with a second- order rate constant k2 2.76 × 10–5 ± 0.001 µM−1 s−1 fixed at a fixed time of 30 min.

Additionally, the production of C50 carotenoid bacterioruberin by cells of Haloferax alexandrinus GUSF-1(KF796625) is economical, easy to extract, purify and is expected to be helpful for use in the food production industry, antioxidant supplements and cosmetics. Besides, the application of the simple conventional method of DPPH free radical scavenging, monitored using easily available instruments and methodology will certainly help in the effective use of any antioxidant compound.

Availability of data and materials

Haloferax alexandrinus GUSF-1 (GenBank accession number KF796625). Gen bank: http://www.ncbi.nlm.nih.gov.

Abbreviations

DPPH :

1,1-Diphenyl-2-picrylhydrazyl

TLC:

Thin-layer chromatography

NTYE:

Tryptone Yeast Extract containing 25% (w/v) NaCl

% DPPHRSA:

% 1,1-Diphenyl-2-picrylhydrazyl radical scavenging activity

LC-MS:

Liquid Chromatography–Mass Spectroscopy

EC50 :

Effective concentration

TEC50 :

Time required to attain the steady state with EC50 concentration of bacterioruberin

ARP:

Antiradical power

ARE:

Antiradical efficiency

AAI:

Antioxidant activity index
