Interaction between phloretin and insulin: a spectroscopic study


Diabetes is among the top ten deadly diseases in the world. It occurs either when the pancreas does not produce enough insulin (INS) or when the body cannot effectively use the insulin it produces. Phloretin (PHL) has a biological effect that can treat diabetes. A spectroscopic study was carried out to explore the interaction between phloretin and insulin. UV/Vis spectroscopy, fluorescence spectroscopy, and circular dichroism spectropolarimeter were used in the study. UV/Vis spectra showed that the interaction between PHL and INS produced strong absorption at a wavelength of 282 nm. The fluorescence analysis results showed that the excitation and emission occurred at 280-nm and 305-nm wavelengths, respectively. Temperature changes did not affect INS emissions. However, the interaction of PHL–INS caused a redshift at 305 to 317 nm. Temperature affected the binding constant (Ka) and the binding site (n). Ka decreased with increasing temperature and increased the binding site. The thermodynamic parameters such as enthalpy (ΔH0) and entropy (ΔS0) each had a value of − 16,514 kJ/mol and 22.65 J/mol·K. PHL and INS interaction formed hydrogen bonds and hydrophobic interaction. The free energy (ΔG0) recorded was negative. PHL and INS interactions took place spontaneously. The quenching effect was dynamic and static. KD values were greater than KS. The higher the temperature, the less was KD and KS. The appearance of two negative signals on circular dichroism (CD) spectropolarimeter implies that phloretin could induce regional configuration changes in insulin. The addition of PHL has revealed that the proportion of α-helix in the insulin stabilizes its structure. Phloretin’s stabilization and enhancement of the α-helix structural configuration in insulin indicate that phloretin can improve insulin resistance.


Diabetes is among the top ten deadly diseases in the world. It occurs when the pancreas does not produce enough insulin or when the body cannot effectively use the insulin it produces. According to an estimate, nearly 500 million people live with diabetes worldwide, and the number is projected to increase every year. Insulin that enters the blood can reach glucose transport, increase glycogen synthesis, and inhibit sugar regeneration in the liver and skeletal muscles (Brown and Walker 2016). The biological effect of the hormone begins with the binding of insulin to its target cell membrane receptors. Once bound to tyrosine kinase receptor (RTK), the configuration insulin changes, causing autophosphorylation. Also, it can catalyze the phosphorylation of specific tyrosine residues while interacting with other proteins (Rodelo et al. 2017). Insulin is composed of unstable monomers and tends to form aggregations in solution (Chiti and Dobson 2006; Dunn 2005; Grasso et al. 2016). Also, insulin forms dimer crystals when it loses divalent metal ions. These crystals can be divided into cubic crystals at neutral pH and orthorhombic at acidic pH (Whittingham et al. 2002; Yao et al. 1998).

Spectroscopic methods have been used to study the interaction of human serum albumin with various types of ligands (Al-Mehizia et al. 2019; Alanazi et al. 2019; Alsaif et al. 2020b; Kandagal et al. 2006; Meti et al. 2015; Wani et al. 2021a; Zargar et al. 2020). The interaction of protein molecules in Thymus DNA with abiraterone was also studied using spectroscopic methods (Alsaif et al. 2020a; Wani et al. 2020a). Insulin has interacted with vitamin E (Soleymani et al. 2016). There are three types of chromophore groups in proteins, which have different electron absorption band characteristics. The first chromophore is a peptide bond that connects one amino acid to another. The absorption is weak and can be detected at a wavelength of 220 nm. The second type of chromophore constitutes aromatic amino acids such as phenylalanine, tyrosine, tryptophan, and histidine. The chromophore peaks are located at 230 nm and 300 nm wavelengths. The third chromophore comes from the presence of metal ions and π (phi) electrons. The strong absorption in the visible region is due to the influence of the prosthetic group. Proteins usually have absorption at wavelengths of 275 nm and 280 nm. It is due to tryptophan, tyrosine, and aromatic amino acids at these wavelengths and possibly due to cysteine, which is composed of disulfide bonds. Changes in structure occur due to changes in the environment of amino acids. Observations were made on the conditions before and after complex bond formation (Nienhaus and Nienhaus 2005; Zhang et al. 2008). The wavelength and intensity of absorption depend on the chemical properties and physical condition of the molecule.

Analysis using absorption spectroscopy has been carried out by dissolving organic and inorganic molecules in a transparent solvent medium. Ultraviolet/visible light spectroscopy has been used to study the ligand binding of proteins and their effects on their structures. Ultraviolet/visible light spectroscopy is a powerful tool in measuring protein–ligand interactions (Le Han et al. 2009). The absorbance was proportional to the solution’s concentration and was used as a quantitative measurement (Alsanea et al. 2017).

Competitive reactions can occur between proteins with proteins and proteins with ligands. The interaction of the protein with protein causes polymerization and is characterized by increasing n (binding site) and K (binding constant) values. Polymerization occurs when the albumin concentration is increased (Fernandez et al. 1993). High flavonoid concentration as a ligand causes competition between them and even moves from the protein site (Wani et al. 2021b). Interaction occurs between proteins as donors and ligands as acceptors. Donors can produce fluorescent light. The fluorescence emission spectra overlap with the absorbance spectra of acceptor molecules so that the binding sites of Try with small molecules can be predicted through fluorescence observations. The Try can be the center of the binding regions or close to the binding regions if it experiences a quenching effect. This quenching effect can be a reference for studying the configuration of protein molecules in the solution. Changes in the microenvironment around fluorescent clusters may be relevant evidence for binding proteins to small molecules (Ding et al. 2009). Fluorescence microscopy can provide information about the excitation spectrum, emission, fluorescence intensity, quantum yield, fluorescence lifetime, etc.. This value can reflect the behavior of the molecule at various angles. Many researchers have observed molecular configurations and analyzed these parameters (Iannuzzi et al. 2017a; Lakowicz and Weber 1973; Seedher and Bhatia 2006; Wang et al. 2001). Circular dichroism (CD) spectropolarimeter is a rapid spectroscopic technique in determining protein molecules’ secondary structure and fold characteristics. This technique is widely used to study protein stability and whether configuration changes can form folds or mutations. Several researchers have used a CD spectropolarimeter (Gilg et al. 1996; Kachooei et al. 2014; Matsuo et al. 2005). The secondary structure of different proteins produces a CD spectropolarimeter spectrum with different characteristics. The combination of fluorescent and CD data shows that there is induction of polypeptide bonds, changes in protein conformation, and exposure in hydrophobic regions (Le Han et al. 2009).

Substitution of water molecules by ligands inside and outside the enzyme molecule can cause stability problems and reduce the strength of important covalent bonds so that the enzyme becomes inactive. Enzyme function will be lost if its orientation and proximity to the substrate molecule are lost. This can be detected through the reduced amino acid binding site (Hashemi-Shahraki et al. 2020). Molecular docking can predict ligand-binding sites on proteins to the atomic level. Non-covalent interactions between proteins and drugs are divided into four types: hydrogen bond interactions, van der Walls interactions, hydrophobic interactions, and electrostatic interactions (Shi et al. 2013). The distance of 2.264 nm causes Van der Waals interactions and hydrogen bond interactions on Trp (donor) and prednisolone (acceptor) (Shi et al. 2013). Van der Waals interactions and hydrogen bonding also occur in pepsin, and naphthol yellow decease the affinity of pepsin to the substrate (Hashemi-Shahraki et al. 2020).

Flavonoids are natural compounds used for the treatment of chronic diseases such as obesity and diabetes. Phloretin is a type of flavonoid found in the skins of apples and pears. Phloretin has biological activities such as antioxidant, antitumor, anti-inflammatory, liver damage repair, and insulin resistance (Shen et al. 2017). The present study aims (i) to explore the interaction between insulin and phloretin by spectroscopy, (ii) to observe the change of insulin absorbance by UV/visible spectrometer after adding phloretin, (iii) to study the interaction between insulin and small molecules affecting the fluorescence quenching, and (iv) to observe the changes in the secondary structure of insulin by the circular dichroism spectroscopy and explore whether the addition of phloretin can stabilize the secondary structure of insulin. The study’s outcome has potential application in medical research and the treatment of diabetic patients.

Materials and methods

The materials used in this study included insulin (99%) CAS 30003-72-6, L-tyrosine (98%) CAS 60-18-4, and phloretin (99%) CAS 60-82-2 (purchased from Sigma Aldrich), hydrochloric acid (pH = 2.0) CAS 7722-84-1, methanol 99.5% (Merck), and distilled water. The instruments utilized were ultrasonic vibration machine, UV/visible spectrometer (PerkinElmer Lambda 265), fluorescence spectrometer (Jasco FP-750 with Xenon as a fluorescent light source), constant temperature water tank (FIRSTEK Model-B403H), fluorescent holder (Jasco STR-312), circular dichroism (CD) spectropolarimeter (Jasco J-815 with a 150-W Xenon lamp as a light source), and a 1-mL quartz cuvette for sample measurement.

Spectroscopy UV/Vis analysis

Samples of PHL and INS were diluted using HCl (pH = 2.0) and methanol as a solvent. Stock solutions of INS, PHL, and Tyr were made with the following concentrations: 2.9 mg INS with 5 mL HCl, 1.37 mg PHL with 5 mL MeOH, and 0.18 mg Tyr 10 mL HCl. The PHL concentration was maintained constantly at 5.0 × 10−5M, while the INS concentration was gradually increased from 2.5 × 10−6 to 5.0 × 10−5 M. The INS and PHL mixed solutions were made by mixing solutions in various mole ratios of 1:0.05, 1:0.1, 1:0.5, and 1:1 (PHL: INS). The mixture was put into an ultrasonic vibrator for 30 min and transferred to a 1-mL quartz cuvette to record UV/Vis spectrometer measurements. Homogenization was carried out so that the solutions get mixed. In this study, ultrasonic vibrations were used because their energy is lower than the peptide bonds’ breaking energy, composed of strong covalent bonds (Gong et al. 2019). The binding free energy of insulin was − 8.97 ± 1.41 kcal/mol or 9.60692 × 1016 kHz. The frequency of ultrasonic vibrations was 18 − 40 kHz.

Fluorescence spectroscopy analysis

The INS and PHL mixed solutions were prepared with different molar ratios of INS: PHL (1:0; 1:0.25; 1:0.5; 1:0.75; 1:1; 1:1.25; 1:1.5; 1:1.75; 1:2; 1:2.25) and put in the ultrasonic vibrator for 30 min to make it homogeneous. The INS concentration was fixed at 5.0 × 10−5 M and PHL concentration was increased from 1.25 × 10−5 to 1.25 × 10−4 M. The samples were analyzed using a fluorescence spectrometer that was set at emission condition mode, excitation, and emission bandwidth at 5 nm, medium sensitivity mode, data pitch of 1 nm, scanning speed at 250 nm /min, excitation wavelength increased to 280 nm, and scanning range from 190 to 500 nm.

Circular dichroism spectropolarimeter analysis

In the circular dichroism (CD) spectropolarimeter experiment, the INS-PHL mixed solutions were prepared at the molar ratios of 1:0, 1:2, 1:4, 1:6, 1:8, 1:10, and 1:12 (INS: PHL). The mixed solutions were homogenized using an ultrasonic vibrator for 30 min before the CD spectrometer analysis. The INS concentration was prepared at 5.0 × 10−1M, and the PHL concentration was made at the range of 1.0 × 10−5 to 6.0 × 10−5 M. The mixed solutions in the respected ratio were inserted into a 1-mm quartz cuvette case and measured in a CD spectropolarimeter. The CD spectropolarimeter was set in a bandwidth of 1 nm, standard sensitivity mode, data pitch of 0.5 nm, scanning speed at 50 nm/min, continuous scan mode, immediate start mode, and scanning range 190 to 260 nm.

Results and discussion

Spectroscopy UV/Vis studies of the interaction between INS and PHL

Electrons in the INS residue serve absorption, excitation, emission, and fluorescence. Fluoresce molecules have absorption at 200–700 nm (Day and Underwood 1991). The electrons transition occurring from π,π * (Suhartati 2017). The transition π,π * of the carbonyl group absorption in the protein was found at 210 nm (Hashemi-Shahraki et al. 2020). Proteins have a chromophore in the form of peptide bonds that appears at 220 nm (Nienhaus and Nienhaus 2005). INS has an optimum absorption at 275 nm (Fig. 1a,b). In a previous study, wavelengths of 250–300 nm have been used to determine insulin absorption in different solvents, and insulin could be detected at a wavelength of 275 nm (Liefeng et al. 2008). Wavelengths 220–340 nm have been used, measuring the absorption of insulin interactions with its aptamer (Verdian-Doghaei and Housaindokht 2015). While wavelength at 260–400 nm is used by Correia et al. (2012). INS has two peaks at 275 nm and 282 nm (Fig. 1a,b). The presence of the two peaks in INS is probably due to the absorption of an amine group having a lone electron pair (275 nm) and an aromatic ring group (282 nm). Lone pair electrons own by NH bonds was a componen of protamine. Protamine is composed of arginine, which is rich in NH bonds. Protamine is a protein that can protect insulin from being degraded by enzymes. The uptake of proteins such as protamine was detected at a wavelength of 275 nm (Nienhaus and Nienhaus 2005). The aromatic ring is owned by tyrosine, tryptophan, and phenylalanine also have a signals. It was seen at a wavelength of 280 nm (Hashemi-Shahraki et al. 2020; Kierdaszuk et al. 1995). Amino acid aromatic chromophore has an absorption range of 230–300 nm (Nienhaus and Nienhaus 2005).

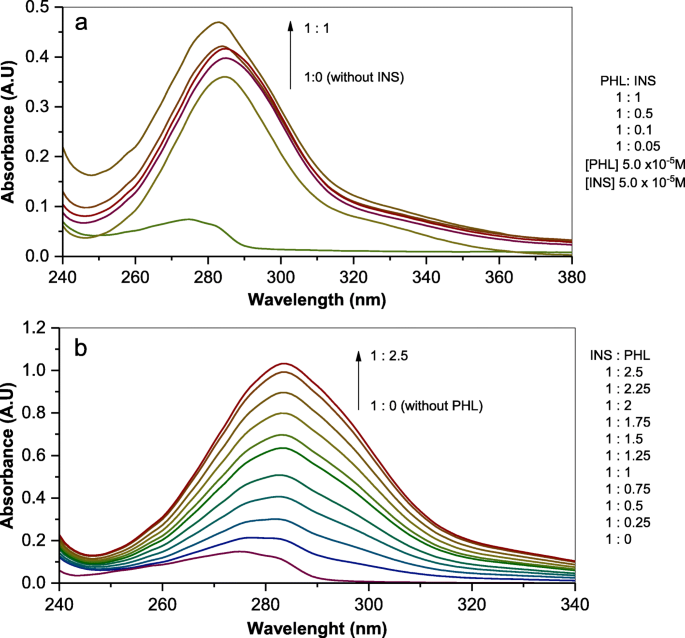

Fig. 1
figure 1

Absorption Spectrum of PHL after variation of INS (a), INS after variation of PHL (b)

When binding occurs, the electrons in the INS residue release energy (fluorescence). At the same time, the electrons in the ligand absorb energy, and the spectra overlap. PHL is a flavonoid compound composed of benzene rings. Prosthetic groups with phi electrons such as chlorophyll, carotenoid, flavin, heme, and retinal are sensitive to the polypeptide environment and can even change the protein structure. The benzene group absorption of PHL overlaps with the aromatic ring absorption of INS. The INS–PHL mixture has an overlapping peak at a wavelength of 283 nm, indicating that INS has shifted the PHL peak from 285 to 283 nm (hyperchromic effect). The INS and PHL’s interaction absorbs a large amount of energy at a lower wavelength than PHL. It has been reported that molecular overlap can occur against small molecules with nitrogenous base groups in the DNA chain (Farajzadeh-Dehkordi et al. 2020). The fluorescence emission spectra overlap with the absorbance spectra of the acceptor molecule. Possibility of energy transfer when the donor–acceptor distance is less than 8 nm or 80 Å (Hu and Liu 2015).

Ligands have higher transition energy than protein which is read as a higher molar absorption coefficient (ε) value of PHL, each PHL and INS have the ε value 7092 and 1389·M-1·cm-1 (Table 1). An interaction between INS and PHL can be proposed based on spectrum and the ε value. The largest ε value was obtained at the mole ratio of 1:0.05 (PHL: INS), which was 159,040·M-1·cm-1. The lowest ε value was found in the ratio 1:1 is 9396·M-1·cm-1. The higher the mole ratio of INS, the higher the absorbance, but the weaker the ability to capture light or the smaller the molar absorption coefficient. In this study, the maximum absorbance of PHL was 285 nm (Fig. 1a). Similarly, the optimum PHL absorption was detected at a wavelength of 285 nm (Chen et al. 2020). The optimum absorption peak followed the PHL trend than INS, an indication that the increase in absorbance of the INS–PHL mixture is dominantly influenced by PHL even though the PHL mole ratio is constant. Albumin binding with ligands was conditioned with low ligand concentration but a high ligand–albumin ratio. Ligand molecules can associate with low affinity (Tang et al. 2006). Figure 1b showed that INS–PHL absorption increased with increasing PHL concentration. The higher the PHL ratio, the larger the wavelength shift of the shape of peak and maximum absorbency of INS.

Table 1 The molar absorption coefficients (ε) of PHL and INS

Protein absorbance measurements have been carried out at room temperature conditions and normal pH to mimic protein’s normal condition (Nienhaus and Nienhaus 2005). In two separate studies, it was found that insulin does not dissolve at normal pH but dissolves in the pH range 2–3 using HCl as a solvent (Gooch 2004; Sigma-Aldrich Co. 2014). The intrinsic fluorescence in insulin fibrils was recorded at pH 1.8 and pH 7, which was different from normal protein. This study used HCl pH 2 as a solvent. The morphological review of insulin using TEM showed that insulin fluorescence was not entirely related to the morphological features of amyloid fibrils (Iannuzzi et al. 2017b).

Fluorescence spectroscopy studies of the interaction between INS and PHL

INS excitation observations have been carried out at a wavelength range of 200–500 nm, and the optimum was at 276 nm (Correia et al. 2012). Excitation observations were carried out in the range of 400–500 nm, and the optimum was at a wavelength of 440 nm (Iannuzzi et al. 2017b). In the present study, the strongest INS fluorescence signal was detected at a wavelength of 280 nm (Fig. 2) similar to Kierdaszuk’s results (Kierdaszuk et al. 1995). Furthermore, the fluorescence spectrum was recorded at 298K conditions with a scanning range of 290 to 340 nm at a constant INS concentration and PHL as a quenching agent. INS fluorophore emissions were regulated in the range of 300–400 nm, with a maximum emission at 340 nm (Iannuzzi et al. 2017b). The fluorescent intensity of insulin at a wavelength of about 303 nm decreased, widened, and produced a redshift (Soleymani et al. 2016). This phenomenon was found in the interaction of vitamin E with human insulin. The increase in vanillin concentration decreased the fluorescence intensity indicating that vanillin and INS had interactions (Iannuzzi et al. 2017b). In the present study, the same pattern was found (i.e., the addition of PHL caused a redshift from 305 to 317 nm).

Fig. 2
figure 2

The fluorescence intensity of INS in different excitation wavelength

Three types of amino acids, namely tryptophan (Trp), tyrosine (Tyr), and phenylalanine (Phe), have different chromophores and can emit fluorescence in protein molecules (Yang et al. 2015). Trp has the strongest fluorescence intensity than Tyr, and Phe is the weakest. INS is composed of 51 amino acids, including 4 Tyr residues (A14, A19, B16, B26) and 3 Phe. This composition makes the two amino acid functional groups act as the main fluorescent in the INS molecule. Phe quantum is relatively low and has no Trp residue, making the Tyr residue responsible for INS’s fluorescence properties. The binding of proteins with ligands can change amino acids through fluorophore interactions or quencher effects. The most noticeable changes observed were a reduction in fluorescent intensity and a shift in the spectrum (Soleymani et al. 2016). In the present study, PHL was used as a quenching agent and interacted at different ratios. Measurements were set with a wavelength of 280 nm at three temperatures, namely 288 K, 298 K, and 308 K (Figs. 3, 4, 5). Figures 3, 4, and 5 show that the maximum INS emission signal was observed at a wavelength of 305 nm, indicating that temperature changes did not affect the INS emission signal.

Fig. 3
figure 3

The fluorescence intensity of INS and PHL in 288 K

Fig. 4
figure 4

The fluorescence intensity of INS and PHL in 298 K

Fig. 5
figure 5

The fluorescence intensity of INS and PHL in 308 K

Internal fluorescence effects (IFE) has been corrected by equations (Farajzadeh-Dehkordi et al. 2020; Hashemi-Shahraki et al. 2020; Wani et al. 2020b).

$$ {F}_{\mathrm{corr}}={F}_{\mathrm{obs}}\times {e}^{\frac{A_{\mathrm{ex}}+{A}_{\mathrm{em}}}{2}} $$

Fcorr and Fobs are the correction and observation of fluorescence intensities, respectively. Aex and Aem are the wavelengths of excitation and emission, respectively. The Aex and Aem were 280 nm and 305 nm. The fluorescence intensity ratio (\( \raisebox{1ex}{${F}_0$}\!\left/ \!\raisebox{-1ex}{$F$}\right. \)) at different temperatures was also calculated. F0 and F are ascribed as the fluorescence intensity of INS before and after the addition of quencher (PHL), respectively. The highest ratio of 8.24 was obtained at 288 K, followed by 7.78 at 298 K. When the temperature increased to 308 K, it resulted in the lowest ratio of 7.52. These results suggest that the fluorescence intensity ratio \( \raisebox{1ex}{${F}_0$}\!\left/ \!\raisebox{-1ex}{$F$}\right. \) decreases with the increased temperature.

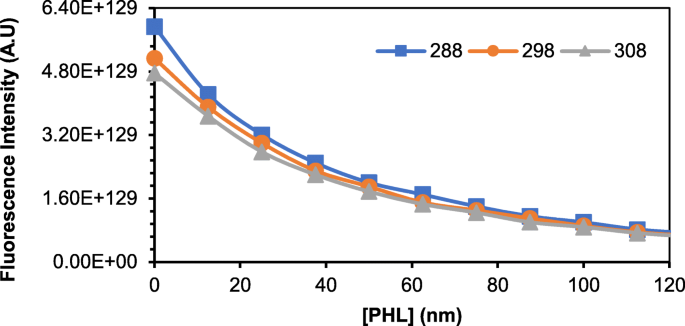

Figure 6 shows the plotting curve of the concentration of PHL against the fluorescence intensity. It can be observed that the quenching effect occurs at the three temperatures. The addition of PHL causes changes in the microenvironment surrounding the INS’s amino acid residues, resulting in a decrease in INS’s fluorescence intensity, which indicates an interaction between INS and PHL. The mechanism of action from these interactions can be further judged through the Stern-Volmer equation.

Fig. 6
figure 6

The fluorescence intensity plotted of PHL at different temperatures

The influence of PHL on the fluorescence intensity of Tyr

It has been proposed that the fluorescence properties of INS mainly come from Tyr residues (A14, A19, B16, B26). Therefore, the fluorescence properties of Tyr were also studied in the absence and presence of PHL (Fig. 7). The spectrum was recorded at an excitation wavelength ranging from 280 to 400 nm and a temperature of 298 K, while the Tyr residues were measured at 305 nm. Figure 7 shows that the addition of different PHL concentrations can change the fluorescence intensity of Tyr significantly. As the concentration of PHL increases, the fluorescence intensity of Tyr weakens and produces a redshift. This result is similar to the fluorescence quenching experiment of INS by PHL. It confirms that PHL can change Tyr residues’ surrounding environment and decrease fluorescence intensity.

Fig. 7
figure 7

The fluorescence intensity of Tyr by PHL in 298K

Determination of binding constant of INS–PHL interaction

INS’s quenching effect by PHL has been known as static quenching and accompanied by dynamic quenching, indicating interactions and the formation of complexes between INS and PHL. Static quenching takes into account the formation of INS–PHL interaction. The researchers (Lakowicz 1999; Zhang et al. 2008; Gentili et al. 2008; Shi et al. 2013; Shi et al. 2015; Hashemi-Shahraki et al. 2020) explained that the binding constant (Ka) value and the number of binding sites (n) between biomacromolecules and small molecules can be determined by Eq. 1.

$$ \log \left[\frac{F_0-F}{F}\right]=\log {K}_a+n\log \left[Q\right] $$

F0: Fluorescence intensity without adding quencher

F: Fluorescence intensity with a particular concentration of quenching agent

Ka: Binding constant of two molecules (M-1)

n: Binding site of two molecules

[Q]:The concentration of quenching agent (μM)

The Ka values of the INS–PHL interaction were found to be 1.53 × 104, 1.16 × 104, and 9.80 × 103 M−1 at 288, 298, and 308 K, respectively (Eq. 2). The calculated Ka values indicate that INS and PHL are mutually binding, and the binding effect is relatively significant. Based on Table 2, the Ka values decreased with the increase of temperature. It means that INS and PHL’s stability reduces at a higher temperature, similar to the observation by Lakowicz and Weber (1973). An increase in the temperature can decrease the binding constant and binding sites. This phenomenon occurred with NYS–pepsin binding. The reactions involved in its binding were exothermic (Hashemi-Shahraki et al. 2020). The binding sites n were 1.2542, 1.295, and 1.3295 at the three measured temperatures. A binding site value of approximately 1 means that the binding site or region is single, usually located in a hydrophobic and low-affinity region (Le Han et al. 2009). These values confirm that there are binding regions between INS and PHL. The binding constant value was 103 to 104 in the temperature range of 298–310 K. This value was a binding constant range of DNA pathways with small molecules. Based on this, the gefitinib bonds in ct-DNA have groove bonds (Shi et al. 2015). The same magnitude was also found in INS and PHL, which ranged from 103 to 104. Also, it was observed that the n values decrease as the temperature decreases, which also proves that higher temperatures increased the INS–PHL interaction stability. Storing insulin at high temperatures can reduce its biological activity (Werdinius 1962).

Table 2 The binding constant Ka value and the number of binding sites n between PHL and INS

Thermodynamic parameters and interaction force of PHL and INS

Fluorescence spectroscopy has been used to explore macromolecules’ thermodynamics, including proteins and nucleic acids (Eftink 2000). There are four main interaction forces between macromolecules and small organic molecules: hydrogen bonds, dispersion forces, hydrophobic force, and electrostatic attraction. The binding and interaction of the related proteins are usually caused by hydrophobic interaction and Van der Waals force (Ross and Subramanian 1981). The thermodynamic parameters of the reaction, such as enthalpy (∆H0) and entropy (∆S0), were calculated to determine the intermolecular force and the interaction between molecules (Ross and Subramanian 1981; Zhang et al. 2010; Hu and Liu 2015; Gummadi 2003). Both of these parameters can be calculated by the Van't Hoff equation (Eq. 3).

$$ \ln {K}_a=-\frac{\Delta {H}^0}{RT}+\frac{\Delta {S}^0}{R} $$

Ka: Binding constant of two molecules (M-1)

T: Reaction temperature (K)

R: Ideal gas constant (8.314 J/mol·K)

H0: Enthalpy change of chemical reaction (J/mol)

S0: Entropy change of chemical reaction (J/mol·K)

The calculated binding constant Ka at three temperatures (Table 2) was used to calculate the thermodynamic parameters by plotting 1000/T against lnKa (Fig. 8). The slope and intercept of the graph ascribed as the thermodynamic parameters ∆H0 and ∆S0, respectively. According to Eq. 2, it can be determined that −(∆H0)/R) is attributed to the slope and (∆S0)/R as the intercept. Free energy (∆G0) in the reaction process can be calculated through Eq. 4 (Hashemi-Shahraki et al. 2020; Shi et al. 2013; Shi et al. 2015):

$$ \Delta {G}^0=\Delta {H}^0-T\Delta {S}^0=- RT\ln\ {K}_b $$
Fig. 8
figure 8

Ka values of INS–PHL Interaction at three temperatures

G0: Effective experiment produced when a system changes (kJ/mol)

T: Reaction temperature (K)

H0: The enthalpy changes of the chemical reaction (kJ/mol)

S0: Entropy change of chemical reaction (kJ/mol·K)

The relationship and the forces forming between two molecules can be explored when the thermodynamic parameters are obtained (Ross and Subramanian 1981; Gummadi 2003). The thermodynamic parameters (∆H0 and ∆S0) values can determine the type of interactions between molecules, and it is mainly divided into three types:

When ∆H0 > 0, ∆S0 > 0 is the hydrophobic force;

When ∆H0 < 0, ∆S0 < 0 is hydrogen bond and dispersion forces.

When ∆H0 0, ∆S0 < 0 is electrostatic gravity.

Through the summary in Table 3, it can be observed that both of the thermodynamic parameters ∆H0 were negative, ∆S0 were obtained positive (− 16.514 kJ/mol and 22.65 J/mol·K). Based on three types of molecular interactions, INS and PHL intrigue can occur by hydrophobic force, hydrogen bond, and disperse forces at temperatures of 288 K, 298 K, and 308 K. ∆H0 and ∆S0 can affect protein denaturation (Soleymani et al. 2016). Soleymani et al. reported the results of the differential analysis calorimetric scanning (DSC) of human insulin. Denaturation occurred at a temperature of 73.1 °C at ∆G0 8.89 kcal/mol. A positive ∆S0 indicates a hydrophobic interaction between celecoxib and human albumin, while a negative ∆H0 is ascribed to the interaction dominated by hydrogen bonds (Seedher and Bhatia 2006). Positive entropy is evidence of hydrophobic interactions; electrostatic interactions are also indicated by positive entropy and negative enthalpy (Tang et al. 2006). Hydrophobic interactions occur due to water molecules’ presence around the ligands and proteins (Ding et al. 2009). A significant contribution to the ∆H0 and ∆S0 proteins comes from electrons’ delocalization in their aromatic rings (Ross and Subramanian 1980). The free energy between the two molecules at three different temperatures (288 K, 298 K, and 308 K) was calculated and was − 23.04, − 23.26, and − 23.49 kJ/mol. It can be found that ∆G0at three different temperatures were also negative, indicating the interaction between INS and PHL occurred in a spontaneous reaction (Ross and Subramanian 1981).

Table 3 The thermodynamic parameters of INS and PHL reaction

Quenching effect of PHL on INS

The reduction in fluorescence intensity is called the quenching effect. This effect can occur through dynamic quenching mechanisms, static quenching, or both methods. Dynamic quenching fluorescence occurs when light collides with other molecules in a solution. High temperatures increase collisions among molecules so that the dynamic quenching constant increases with the increase in temperature. A static quenching mechanism occurs. When fluorescent and quenching agents form complexes, the closer the molecules’ distance becomes, causing the fluorescence intensity to decrease. Static quenching occurs in the ground state, independent of the effects of collision or diffusion. Complex stability and quenching strength weaken with increased temperature (Dangkoob et al. 2015; Lakowicz and Weber 1973; Ma et al. 2019). The Stern-Volmer equation can be used to calculate static and dynamic quenching parameters. KD is used in the dynamic quenching mechanism (Eq. 5) and KS in static quenching (Eq. 6). If the quenching mechanism is sweetened, and static coincides, a modification (Eq. 7) of the Stern-Volmer equation (Eq. 8) is used to get the quenching constant. When the quenching agent’s concentration increases, the fluorophore is quenched both statically and dynamically (Lakowicz and Weber 1973). Generally, the higher temperature causes a faster diffusion, which leads to a large amount of collision quenching. This condition can dissociate a weaker binding among molecules and indirectly cause a weak static quenching.

$$ \frac{F_0}{F}=1+{k}_q{\tau}_0\left[Q\right]=1+{K}_{\mathrm{D}}\left[Q\right] $$
$$ \frac{F_0}{F}=1+{K}_s\left[Q\right]=1+{k}_q{\tau}_0\left[Q\right] $$
$$ {K}_s={k}_q{\tau}_0 $$
$$ \frac{F_0}{F}=\left(1+{K}_D\left[Q\right]\right){e}^{K_s\left[Q\right]} $$

F0: Fluorescence intensity without adding quencher

F: Fluorescence intensity with a specific concentration of quenching agent

KD: Stern-Volmer fluorescence dynamic quenching constant (M-1)

Ks: Stern-Volmer fluorescence static quenching constant (M-1)

kq: Stern-Volmer fluorescence quenching rate constant (M-1·s-1)

τ0: The average lifetime of fluorescent molecules without adding quencher (s)

[Q]: Concentration of quenching agent (μM)

The Stern-Volmer linear relationship can be obtained by plotting the concentration of quencher [Q] versus the ratio of the fluorescence intensity before and after addition of quencher (\( \raisebox{1ex}{${F}_0$}\!\left/ \!\raisebox{-1ex}{$F$}\right. \)). The linear curve indicates the occurrence of dynamic quenching (Kathiravan et al. 2009). In this study, the Stern-Volmer linear relationship was determined from three temperatures of 288, 298, and 308 K (Fig. 9). Figure 9 shows a nonlinear curve between the concentration of PHL [Q] and fluorescence intensity ratio (\( \raisebox{1ex}{${F}_0$}\!\left/ \!\raisebox{-1ex}{$F$}\right. \)), indicating the quenching mechanisms are both dynamic and static quenching. This result suggests that PHL’s quenching effect to INS refers to the intermolecular collision and the static quenching around the tyrosine residue with the fluorescent emitting group. It is also observed that a higher temperature affects the strength of the complexes’ binding and leads to the weakening of the static quenching. Figure 9 also depicts the relatively linear relationship between the fluorescence intensity ratio (\( \raisebox{1ex}{${F}_0$}\!\left/ \!\raisebox{-1ex}{$F$}\right. \)) and increased temperature. Since the reaction between PHL and INS involves both static and dynamic quenching, the Stern-Volmer curve can be corrected with Eq. 7 and both the dynamic (KD) and static (Ks) quenching constants can be calculated.

Fig. 9
figure 9

The Stern-Volmer linear of PHL vs. INS under three different temperature conditions

Table 4 displays dynamic quenching constant KD of INS–PHL complexes at three temperatures 1.18 × 106, 1.13 × 106, and 1.12 × 106 M-1. It can be noted that the KD value decreases with the increase in temperature, signifying that PHL’s quenching effect to INS is related to temperature. This result is the opposite of the static quenching constant KS that increases as the temperature increases. The quenching rate constant kq can be calculated by substituting the KD and τ0 value to Eq. 7. The τ0 is described as the average fluorescence of biomolecules without a quenching agent. The τ0 value of INS has been reported to be 1.4 × 10-9 s (Zhang et al. 2008).

Table 4 the fluorescence quenching constant (KD) and the fluorescence quenching rate constant kqof PHL and INS complex at three different temperatures

The maximum dynamic quenching rate constant caused by a dynamic quenching from macromolecules and quenching agent was 2.0 × 1010 M-1·s-1 (Blatt et al. 1986; Gentili et al. 2008). In the present study, the quenching rate constants at the three temperatures of 288 K, 298 K, and 308 K were found to be 1.17 × 1013, 1.16 × 1013, and 1.14 × 1013 M-1·s-1, respectively (Table 4). This result is greater than the maximum dynamic quenching rate constant caused by dynamic quenching. Thus, it can be proposed that the quenching effect of PHL on INS is mainly a static quenching accompanied by a dynamic quenching, and there is also an interaction between the two molecules. The formation of a complex shows the possibility of phloretin inducing the regional configuration changes in insulin.

Circular dichroism (CD) spectropolarimeter to study the protein secondary structure changes

The configuration of protein is considered significantly important to its therapeutic effect, and it is also applied to the secondary structure of insulin that can also explain its efficacy (Li et al. 2012). CD spectropolarimeter is one of the best methods to explore the secondary structure of proteins (Greenfield 2007). Many studies have used this method to explore the secondary structure of insulin. In the present study, a CD spectropolarimeter was used to investigate the interaction between PHL and INS. It can be observed that before the addition of PHL, INS has two negative signals approximately at wavelengths of 210 and 220 nm (Fig. 10). These two negative signal peaks can be read as the characteristic peaks of α-helix in the protein’s secondary structure.

Fig. 10
figure 10

The circular dichroic spectrum of INS with different concentrations of PHL, T = 298 K

In observing insulin interaction with the surfactant, α-helix polarization was detected at 209 and 222 nm (Pirhaghghi et al. 2015). The α-helix content increased after the addition of surfactants, while the β-structure and random coil content decreased. It shows that the surfactants changed the second insulin level structure (Wang et al. 2009). A negative signal trough appeared at a wavelength of 209 nm, and the shoulder peak occurred at about 225 nm. The ratio of α-helix was 20–21%, and the ratio of β-sheet was 26–28%. This result confirms the nano-coating made of alginate and chitosan (Li et al. 2012). The negative signal’s intensity was a slight decrease at 200 to 230 nm on the interaction between vitamin D3 and human insulin. It suggests that the structural compactness and stability of protein α-helix were reduced. Simultaneously, the interaction of vitamin E and human insulin leads to a significant increase in this wave range’s negative signal intensity. It also reflects the structural compactness and stability of protein α-helix (Soleymani et al. 2016).

The signal intensity of INS increased in the presence of PHL without any displacement. It indicates that INS interacted with PHL to form a complex and changed the INS’s secondary structure. This condition increased the α-helix content and enhanced its structural stability (Derewenda et al. 1989; Soleymani et al. 2016; Li et al. 2012). Interaction between protein and ligand can slow down proteins’ aggregation to stabilize the protein structure (Gancar et al. 2020). This result has been used in N SELCON 3 software designed by Sreerama and Woody to confirm the protein’s secondary structure content.

Table 5 shows that when PHL concentration increases, the proportion of α-helix content in INS also increases. This result also proves that the addition of PHL can change the secondary structure of INS and enhance its structural stability. The induction of phloretin increased Peroxisome Proliferator’s activity activated Receptor-γ (PPAR-γ), which reduced and enhanced blood sugar. Insulin sensitivity can indirectly improve insulin resistance and reduce the possibility of suffering from metabolic diseases. The author studied oral phloretin therapy on diabetic mice to observe whether phloretin therapy would affect the mice’s glucose balance (Shu et al. 2014). It was found that food consumption increased significantly within 2 to 5 weeks and significantly reduced blood sugar levels, improved glucose tolerance, and reduced serum cholesterol by 20%. Alsanea et al. (2017) used phloretin injections to treat rats fed on a high-fat diet. The author analyzed the serum concentration and found that glucose concentration, glucose tolerance, insulin resistance test, and fasting serum insulin concentration are better than those of untreated mice. This result also confirms that phloretin does improve the glucose content and insulin resistance of mice fed a high-fat diet.

Table 5 The ratio of secondary structure between INS and different concentrations of PHL

Molecular docking analysis

Molecular docking is a computational method used to describe the interaction of protein molecules with their ligands. The interaction of proteins with ligands can only occur if the protein’s binding site with these ligands is suitable. The ligand molecule’s functional groups may be in an adequate position from their partners’ amino acids. Regions that have low energy can be predicted as binding sites. Binding site prediction can show the possible structure configurations, or poses of protein subunits, how these subunits can be docked (Guo et al. 2012). Figure 11a shows the binding site of the interaction of phloretin and insulin in three-dimensional. The electrostatic quantization of insulin surfaces shows the interaction with PHL occurs in the contour range of +4.87 kT/e to − 4.87 kT/e, equivalent to 2.885 kcal/mol to − 2.885 kcal/mol. The aliphatic carbon interaction has an energy level contour of 5 kcal/mol, and the hydrogen bond interaction level contour is − 0.5 kcal/mol (Seeliger and De Groot 2010). The affinity energy of INS–PHL is − 6.2 kcal/mol. Based on this, the interactions that occur are hydrogen bond interactions. This is supported by Fig. 11b, which shows the hydrogen bond interaction between PHL and INS chain A, the binding residues on Tyr14 (tyrosine) and Glu17 (glutamic acid). Hydrophobic interactions occur in Tyr14 and Leu13 (leucine). The presence of water molecules in the environment affected the INS–PHL interaction. The study results on thermal, molecular dynamic simulation showed that curcumin interaction with trypsin was unstable and flexible. It can be seen from the hydrophobic interaction more than hydrogen bonding. The Ligplot plot shows the binding site of the α-Chy bound to L-Cys, its energy affinity − 4.32 kcal/mol so that the interaction takes place spontaneously (Rajabi et al. 2019).

Fig. 11
figure 11

PHL and INS interaction by molecular docking. a the surface of INS. b LigPlot diagram

Thus, the molecular docking illustration can strengthen the previous data. In the study of PHL–INS interactions, ∆H0 value showed a negative value, meaning that the two molecules’ interaction was exothermic (released energy). The bonds formed between INS–PHL are hydrogen bonds. The amount of gibs energy is correlated with the interaction events that occur. PHL interaction on INS has a negative ∆G0. It shows that INS interaction as a protein and PHL molecules (as ligands) occurs spontaneously, and the two molecules are close together. When ∆G0 is negative, observations show that the distance between curcumin and some trypsin residues is close (Rajabi et al. 2019). The close interaction between the ligand and the protein, which occurs when ∆G0 is negative. Molecule L-Met is bound to the enzyme through hydrogen bonds, Van der Waals, and partially electrostatic interactions (Asgharzadeh et al. 2019). The CD spectropolarimeter results on the PHL–INS interaction showed that the intensity and stability of the α-helix increased with increasing the PHL mole ratio. PHL interacts with α-helix INS chain A compared with sheets; the main role of α-helix was to improve conformational order. The percent of β-turn, the random coil that has been known to increase, and the binding site in the fluorescent analysis was equal to 1; thermodynamic parameters such as ∆H0, ∆S0, and ∆G0 have been calculated, and the type of interaction that occurred between chymotrypsin after binding to curcumin was Van der Waals (Farhadian et al. 2019). Based on thermodynamic studies, bovine trypsin interaction with curcumin was hydrogen bonds and Van der Waals (Rajabi et al. 2019). The Van der Waals bond is an electrostatic interaction, a strong Van der Waals bond between two molecules can prevent desorption (Keil and Mayer 2013). One of the insulin monomers interacts with other insulin monomers in Van der Waals force. Many amino acids are involved in the dimerization process (Correia et al. 2012). Perform molecular docking using AutoDock MGL Tools, AutoDock Vina, Pymol visualization tool, and LigPlot+ version V.2.2.4. Simulations were performed on human insulin 3i40 obtained from the protein databank and phloretin molecules were drawn using ACD ChemSketch 2019.1.2.


UV/Vis spectra showed that the interaction between PHL and INS produced strong absorption at a wavelength of 282 nm. The chromophore group of the aromatic amino acid ring has an absorption overlap with the PHL chromophore group. PHL and INS interactions occur at lower wavelengths with higher energies (blue shift and hyperchromic). The fluorescence analysis results showed that the excitation and emission occurred at a wavelength of 280 nm and 305 nm. Temperature changes did not affect INS emissions. However, the interactions of PHL and INS caused a 305–317-nm redshift. Temperature affected the binding constant (Ka) and the binding site (n). Ka decreased with increasing temperature and vice versa, but the binding site value increased. An indication that the stability of PHL and INS interactions is temperature dependent. The thermodynamic parameters such as enthalpy (ΔH0) and entropy (ΔS0) each have a value of − 16,514 kJ/mol and 22.65 J/mol·K. PHL and INS interaction formed hydrogen bonds and were hydrophobic. The free energy (ΔG0) values at all temperatures (288 K, 298 K, and 308 K) were − 23.04, − 23.26, and − 23.49 kJ/mol, respectively. PHL and INS interactions took place spontaneously. The quenching effect was dynamic and static. KD values (1.18 × 106, 1.13 × 106, and 1.12 × 106 M-1) were greater than those of KS (1.64 × 104, 1.62 × 104, and 1.60 × 104 M-1). The higher the temperature, the less KD and KS. The appearance of two negative signals on circular dichroism (CD) spectropolarimeter indicates the α-helix structure. The addition of PHL has revealed the proportion of α-helix in the insulin structure. PHL could stabilize the structure of insulin, indicating that phloretin induced regional configuration changes in insulin. Phloretin and insulin interacted and formed a complex. Furthermore, the stabilization of phloretin and enhancement of the α-helix structural configuration in insulin could be related to the phenomenon that phloretin can improve insulin resistance.
