Evaluation of fatty acids in groomed fingerprint by gas chromatographic analysis using various extraction solvents and treatment methods

Article metrics

  • 245 Accesses

Abstract

Extremely small amounts of fatty acids detected in latent fingerprints are important for studying fingerprint visualization and age determination through changes in composition over time. However, methods for efficiently extracting or recovering fatty acids from fingerprints have not been extensively studied. If accurate and stable quantitative estimations are established, age estimates will be possible through a better understanding of the fatty acid composition. The extraction solvent and treatment method are essential factors for achieving a reliable analysis of fatty acids. There have been few previous studies that efficiently compared fatty acids. In this study, fatty acids from sebaceous fingerprint residues were quantified with various extraction solvents and treatment methods and were evaluated with gas chromatography flame ionization detection (GC-FID). All data were analyzed using a statistical method.

Introduction

Intrinsic components detected in latent fingerprints have already been identified through numerous forensic studies as an important index for the development of fingerprints (Gird et al. 2012; Bailey et al. 2016; Ramotowski et al. 2001; Rohatgi and Kapoor 2016; Bohanan 1998; Asano et al. 2002; Croxton et al. 2010; Stewart et al. 1989; Antoine et al. 2010; Michalski et al. 2013a; Archer et al. 2005; Cadd et al. 2015a; Cadd et al. 2015b). These studies showed that the components of a fingerprint are 95–99% water and organic (protein, amino acids, urea, and lipids) and inorganic (sodium, potassium, chloride, and phosphate) compounds secreted from eccrine, apocrine, and sebaceous glands. Among these components, lipids, included glycerides (33%), fatty acids (30%), wax esters (22%), cholesterol esters (2%), cholesterol (2%), and squalene (10%), make up a large portion of the latent fingerprint in organic compounds (Gird et al. 2012; Bailey et al. 2016; Ramotowski et al. 2001). These compounds originate from the sebum secreted by the sebaceous glands and are very useful ingredients to visualize fingerprints (Rohatgi and Kapoor 2016). Fatty acids are used as a particular target ingredient, which is important for aging studies due to its oxidation over time and the fact that it can be used to identify donor gender, age, eating habits, and race (Bohanan 1998; Asano et al. 2002; Croxton et al. 2010; Stewart et al. 1989; Antoine et al. 2010; Michalski et al. 2013a; Archer et al. 2005; Cadd et al. 2015a). A better understanding of the composition changes over time is required to improve detection and visualization of the latent fingerprint and can also be useful in providing clues to criminal investigations (Cadd et al. 2015b; Girod et al. 2016).

In previous studies, analysis of fatty acids in fingerprints varied depending on the researcher, including sampling protocol, type of fingerprint deposition substrate, extraction solvent, treatment methods, and derivatization. Furthermore, some methods showed unavoidable limitations due to their complexity, not using actual fingerprints, low recovery ratio, high loss, uneven samples, time-consuming methods, need for toxic solvents, and use of expensive materials (Bohanan 1998; Asano et al. 2002; Cadd et al. 2015a; Mong et al. 1999; Weyermann et al. 2011; Mink et al. 2013; Croxton et al. 2006; Koenig et al. 2011; Girod and Weyermann 2014).

Mong et al. (1999) used micro filter paper extracted in a serological pipette with 1:1 hexane:chloroform (1 mL) followed by acetone (1 mL). The sample was analyzed by gas chromatography mass spectrometry (GC-MS) after being derivatized with diazomethane. This method showed 19 components of fatty acids with cholesterol and squalene in young and adult donors.

Asano et al. (2002) used chloroform (CHCl3) as an extraction solvent and performed analysis by GC-MS without any derivatization. This method showed 6 components of fatty acids in 10 males and 10 females with fatty acid esters and cholesterol. However, one of the drawbacks was that samples deposited on glass beads were not similar to actual fingerprints.

Archer et al. (2005) employed dichloromethane (CH2Cl2) with chlorononane (CN) in hexane and analyzed the samples using GC-MS after they were derivatized with N-methyl-N-(trimethylsilyl)-tri-fluoroacetamide (MSTFA). In this method, fingerprints were deposited on small pieces of glass fiber filter paper and were collected into vials. The result showed 5 components of fatty acids from 5 males. However, one of the limitations was that considerable variation was observed due to uneven distribution of fingerprints, uneven pressure application, and uneven splitting of fingerprint sample.

Seth et al. (2013a) used a glass microfiber filter to remove fingerprints from glass slides soaked in 2:1 chloroform/methanol and analyzed by GC-MS. This method showed 12 fatty acids in 37 donors. However, the average percentage recovery from the seven trials was low, 37.6 %. The reason for this is that the evaporation of extraction solvent caused high loss and low recovery.

Cadd et al. (2015a) investigated the differences between reported extraction and separation methods. To determine the extraction efficiency, they used a glass coverslip and 7 solvent methods for preliminary extraction. The result showed that fatty acids were most successfully extracted from samples deposited on the glass coverslip with MeOH/TMSCL. However, the calculated extraction efficiency was determined for the three fatty acids (45% for dodecanoic acid, 69% for stearic acid, 69% for nonanoic acid). The most important factors were the solvent, which must completely dissolve the fatty acids, and a treatment method that does not result in maximum loss.

Thus, to efficiently recover fatty acids, an appropriate extraction solvent and an optimal treatment method must be selected depending on the characteristics of the substrate on which the fingerprint is transferred (Michalski et al. 2013b). So far, there has not been much research on the recovery ratio of components in fingerprints.

In this study, methods for efficiently recovering fatty acids by using five extraction solvents and four treatment methods were evaluated. Qualitative and quantitative results were analyzed using GC-FID after methylation process. In general, the analysis of fatty acids in fingerprint was performed by GC-MS, which has the ability to confirm the identity of fatty acids based on spectral information and retention time. However, GC-FID was chosen in this research. The reason is that it has a quantitative performance similar to GC-MS as well as lots of advantages including cheaper, easier to operate, and time saving (Dodds et al. 2005; Young et al. 2012). Most fatty acids analyses by GC require derivatization due to the high boiling points of fatty acids (Laakso et al. 2002; Godswill et al. 2014).

According to the International Fingerprint Research Group (IFRG) guideline, this study is recommended to be performed in natural fingerprints. However, since the amount of fatty acid detected in natural fingerprints is too small, it is difficult to perform recovery and quantification (Guidelines for the assessment of fingermark detection techniques, International Fingerprint Research Group (IFGR) 2014). So, we analyzed the fingerprints after touching face to get enough amount to analyze. First, evaluation of the recovery ratio by the five extraction solvents was carried out onto cover glass deposited fingerprint residues with undecanoic acid (C11) and they were then collected using a cotton swab. The cotton swab method is commonly employed for DNA and protein collection (Zhang et al. 2015; Bobev 1995; Steadman et al. 2015). Secondly, a study of the recovery ratio of four treatment methods was conducted using a solvent that had a high recovery efficiency, as determined in the previous experiment. Third, the calculated recovery ratio was compared with the amount recovered from the groomed fingerprint.

Materials and methods

Materials

Capric acid (C10, ≥ 98%), undecanoic acid (C11, ≥ 98%), lauric acid (C12, ≥ 98%), myristic acid (C14, ≥ 99.5 %), pentadecaonic acid (C15, ≥ 99%), palmitic acid (C16, ≥ 99%), stearic acid (C18, ≥ 98.5%), oleic acid (C18:1n9c, ≥ 99%), arachidic acid (C20, ≥ 99%), behenic acid (C22, ≥ 99%), and lignoceric acid (C24, ≥ 99%) were obtained from Sigma-Aldrich. Ethyl alcohol (anhydrous, ≥ 99.9%, methanol (≥ 99.8%), hexane (≥ 99.9%), 2-propanol (isopropanol ≥ 99.5%), acetone, heptane, and chloroform were of analytical-reagent or GC grade and were obtained from Fisher Scientific UK Limited and Sigma-Aldrich. Benzene (≥ 99.8%), dimethoxylpropane (≥ 99.8%), and sulfuric acid (≥ 99%) were volumetric analysis grade and were also obtained from Sigma-Aldrich. Fatty acid standards (Supelco 37 Component FAME Mix) were obtained from Supelco (USA). Deckgläser, microscope cover glasses, 24 ×24 mm was purchased from Paul Marienfeld GmbH & Co.KG (Lauda-Königshofen, Germany) and were utilized for sample collection. Scotch tape (18 mm ×2 m) and cotton swabs were obtained from 3M (Seoul, Korea) and were used for sample collection. A 4-mL amber glass vial with a Teflon-lined cap was purchased from Wheaton® and was utilized for sample collection.

Methods

Sample preparation

Six male and four female donors between 26 and 50 years old were selected for this study. All donors were Asian and were omnivores who had no diagnosed metabolic disease (Table 1). Two donors were smokers and there were no reported illnesses. Informed consent from all donors (IRB No. 1610-009-795) was obtained, and they were anonymized with an alphanumeric code. First, the cover glasses were cleaned using acetone and dried at room temperature. Then, the fingerprint sample was obtained. The donors were asked to follow the three steps listed as follows.

  1. 1.

    The donors were requested to washed their hands with soap and wiped them thoroughly with a tissue (KIMTECH, Wiper, Yuhan-Kimberly, Korea) soaked in ethanol (70%).

  2. 2.

    The donors gently rubbed all their fingers across the cheek, nose, and forehead regions of their face for approximately 5 s and then rubbed them against each other to evenly distribute the lipid ingredients. This activity was intended to distribute the sebaceous secretions of the face onto the fingertips.

  3. 3.

    Fingerprints were deposited on each microscope cover glass (24×24 mm diameter), which is a non-porous flat surface. From each donor, 10 fingerprint samples were collected. The time of deposition was maintained at approximately 5 s and the same touch angle. The fingerprint samples were stored in the dark at room temperature until extraction. The extraction was conducted the following day.

Table 1 Characteristics of the fingerprint donors

Sampling: choice of extraction solvents

Prior to the extraction process, 20 μL of solution of C11 fatty acid (2 mg/mL hexane) as a recovery standard was dropped onto all fingerprint samples, and the solvent was removed by standing in the air for 10 s. Here, the treatment method was executed using a cotton swab. The cotton swab was completely immersed in a 4-mL amber vial with 2 mL of the chosen solvent (Table 2), and then, the fingerprint on the glass surface was swabbed twice. The cotton swab end was cut with a cleaned scalpel and placed into the amber glass vial. The amber vial was immediately sealed with a Teflon-lined cap and sonicated in an ultrasonic bath to extract fatty acids from the cotton swab for 10 min. After 10 min, the cotton swab in the vial was removed using a cleaned tweezers, and then, the amber vial without the cap was evaporated to dryness using a freeze dryer (HyperVAC, BSM, Korea) for 1 h at 2000 rpm and 28 °C under vacuum. Dried amber vials containing extract were sealed with a cap and stored at – 80 °C until the next derivatization process. A cover glass without deposited fingerprint residue was also processed to serve as blanks. Sample classification methods (Table 3) showed that five fingers per donor were deposited on the cover glass, and a different extraction solvent was applied to each fingerprint with sequential rotation for every donor.

Table 2 Five extraction solvents
Table 3 Sample classification method using different extraction solvents

Sampling: choice of extraction treatment

Four types of treatment methods were used in this study (Table 4). Chloroform:ethanol (1:1, v/v) was selected as the extraction solvent. The first type of method used a rotator (shaking). In this process, the cover glass deposited fingerprint was cut into small pieces using a scalpel and was placed in a 4-mL amber glass vial. A 2-mL extraction solvent was added to the amber glass vial and was shaken using a rotator (200 cycles/min). After 10 min, small pieces of glass were removed. The second type of method employed cotton swab (swabbing). The cotton swab was placed in the amber vial containing the chosen solvent and was completely immersed. After the fingerprint in the sample was thoroughly wiped twice, the cotton swab end was cut off with a cleaned scalpel, placed into the amber vial, and sonicated for 10 min. After 10 min, the cotton swab in the vial was removed using a tweezers. The third type of method used a pipette (handling). Specifically, 200 μl of extraction solvent was dropped on the fingerprint sample, and the surface was rubbed with a carefully handled pipette. Extra extraction solvent on the surface was repeatedly collected in the amber vial (five times). The last type of method utilized tape (lifting). The fingerprint samples on the cover glass surface were collected with scotch tape (18 mm ×2 m) five times, put into an amber vial containing 2-mL extraction solvent, and sonicated for 10 min. The drying process and preparation of blank samples were carried out in the same manner as described earlier. Sample classification methods were also conducted using the same process as described earlier.

Table 4 Four treatment methods

Sampling: preparation of fatty acid methyl ester (FAME)

For methylation of fatty acid for GC analysis, dried amber vial containing extract was filled with 1 mL of the mixture MeOH:benzene:dimethoxypropane: H2SO4 = 39:20:5:2 (v/v/v/v), 0.5 mL heptane, and 20 μL of an internal standard solution C15 (5.0 mg/mL); the mixture was shaken for 5 s and heated on a hot plate at 85 °C for 2 h with shaking at 1 h interval (Garcés & Mancha, 1993). When the reaction was completed, vial was cooled to room temperature over approximately 30 min. Then, the upper layer (heptane layer) containing the FAMEs and the internal standard was transferred into a 2-ml auto-sampler glass and stored at – 80 °C until GC-FID analysis (Table 5).

Table 5 Sample classification method using different treatment methods

GC-FID analysis

Methylated fatty acid analysis was quantitatively performed on an Agilent 7890A (Agilent, USA) gas chromatography equipped with a flame ionization detector (GC-FID), using a J&W DB-23 capillary column (60 m × 0.25 mm × 0.25 μm, Agilent, USA). The injection and detector temperatures were set to 250 °C and 280 °C, respectively. Helium was used as a carrier gas with a flow rate of 1.0 ml/min. The split ratio was 10:1 in duplicate, and 1 μL of the sample solution was injected. The column was held at 50 °C for 1 min and then ramped to 130 °C at 15 °C/min. It was then ramped at 8 °C/min to 170 °C, ramped at 2 °C/min to 215 °C, and held for 10 min. Finally, it was ramped at 5 °C/min to 250 °C and held for 5 min.

FAME was identified by comparison of their retention times to those of authentic standards analyzed under the same conditions as shown in Table 6 and Fig. 1. The compositions of fatty acid correlated FAMEs in sample were calculated on the basis of the percentage of total fatty acid and according to the peak attained from analyzing. The identification of a peak was made from its retention time (Dodds et al. 2005).

Table 6 List of targeted fatty acids in GC-FID analysis
Fig. 1
figure1

GC-FID chromatogram of 37 fatty acid methyl esters

Statistical analysis

All statistical analyses were performed by GraphPad Prism statistical software (version 5.0 for windows, GraphPad software, La Jolla, CA, USA). All data from extraction solvents and collection methods were conducted using a one-way ANOVA for comparing groups, and Tukey’s multiple comparison tests was used to determine the statistical difference. All graph bars are presented as the means ± SEM (standard error of the mean). The degree of statistical difference is indicated by the p value and by ****, ***, **, and * for p ≤ 0.0001, 0.0001 ≤ p < 0.001, 0.001 ≤ p < 0.01, and 0.01 ≤ p < 0.05, respectively. “No SD” means no significant difference.

Results

Determination of fatty acids

Groomed fingerprint samples were successfully collected from 10 donors and were extracted from the cover glass using each of the five extraction solvents and four treatment methods. GC analysis of FAMEs was carried out using two internal standards. Specifically, undecanoic acid (C11:0) (for calculating % recovery) was added prior to the transesterification and pentadecanoic acid (C15:0) was also added directly before the analysis to determine concentration of samples. Analysis of fatty acids from fingerprints generally involves three steps: extraction of fatty acids from fingerprints on the cover glass, conversion of the extracted fatty acids methyl esters (FAME), and analysis of the FAME using gas chromatography with a flame ionization detector (GC-FID) for fatty acid identification. Table 7 and Fig. 2 show fatty acid compounds detected in groomed fingerprint residue and a GC-FID chromatogram from donor A.

Table 7 Fatty acid compounds detected in latent fingerprint residue from donor A by GC analysis
Fig. 2
figure2

A GC-FID chromatogram of fingerprint residue from donor A

Fatty acid recovery ratio and quantification by five extraction solvents

To determine the accuracy of the method, standard solutions were employed. The accuracy was expressed as a percent recovery ratio determined by calculation of the mean recoveries ±SD of several levels of concentrations. The recovery percentage for each solvent was calculated from Eq. (1).

$$ Rj\ \left(\%\right)=\frac{{\overline{x}}_{{\mathrm{obs}}_j}}{{\overline{x}}_{{\mathrm{ref}}_j}}\times 100 $$
(1)

Here, Rj is the recovery of sample j, \( {\overline{x}}_{\mathrm{obs}} \) is the average concentration of compound j determined from GC analysis and \( {\overline{x}}_{\mathrm{ref}} \) is the actual concentration of j in the standard samples (Godswill et al. 2014).

The results of fatty acid recovery ratios using five organic solvents were obtained and showed variation among the solvent systems. The highest recovery ratio for C11 was obtained with chloroform:ethanol (1:1, v/v, 87%), followed by hexane:isopropanol (3:2, v/v, 82%), acetone:chloroform:hexane (1:1:1, v/v/v, 79%), chloroform (75%), and chloroform:methanol (3:1, v/v, 69%), (Fig. 3). All recovery trials were conducted in 10 repetitions. Recoveries (100%) are calculated using standards that do not require extraction or treatment for comparison with treated samples. A significant difference was exhibited in two comparisons: chloroform:methanol (3:1) vs. hexane:isopropanol (3:2) and chloroform:methanol (3:1) vs. chloroform:ethanol (1:1). The largest amount of fatty acids collected from donors was obtained in chloroform:ethanol (1:1) groups. A significant difference was observed for the chloroform vs. chloroform:ethanol (1:1) and hexane: isopropanol (3:2) vs. chloroform:ethanol (1:1) group (Fig. 4). From the 10 donors, eight fatty acids were obtained with total amounts of 16.1–62.8 μg per print. The detected saturated fatty acids were C14, C16, C18, C20, and C22, and unsaturated fatty acids were C18:2n6c, C18:3n3, and C22:1n9. Saturated fatty acids (C16, C18, C20, and C22) were common factors in all fingerprint deposits. However, a few saturated fatty acids (C14) and all unsaturated fatty acids showed donor dependence. Despite the variability in saturated and unsaturated fatty acids, the saturated fatty acids from donors showed significant differences between chloroform vs. chloroform:ethanol (1:1) and hexane:isopropanol (3:2) vs. chloroform:ethanol (1:1) (Fig. 5). No significant differences were found for unsaturated fatty acids. However, the largest amount of unsaturated fatty acids was obtained with chloroform:ethanol (1:1) (Fig. 6). Among the saturated fatty acids detected in all donors, C16 (8.8–22 μg) was obtained in the highest relative amounts, followed by C18 (3.1–9.4 μg), C22 (1.4–9.4 μg), and C20 (0.8–5.8 μg). The quantity recovered from extraction solvents showed that chloroform:ethanol (1:1) best extracted the remaining saturated fatty acids at statistically significant levels (Fig. 7). GC-FID chromatograms of fingerprint residue from donor E showed variations in the quantity of recovered fatty acids based on extraction solvent (Fig. 8).

Fig. 3
figure3

Recovery ratio of C11 by using different organic solvents (% of total fatty acids). Data are represented as means ± SEM. The p value is 0.0027 (n = 10). The two asterisks and one asterisk indicate 0.001≤p < 0.01 and 0.01≤p < 0.05, respectively

Fig. 4
figure4

Total quantity of fatty acids by using different organic solvents (μg of total fatty acids). Data are represented as means ± SEM. The p value is 0.011 (n = 10, all donors). The one asterisk indicates 0.01≤p < 0.05

Fig. 5
figure5

Total quantity of saturated fatty acids by using different organic solvents (μg of total fatty acids). Data are represented as means ± SEM. The p value is 0.0044 (n = 10, all donors). The two asterisks and one asterisk indicate 0.001≤p < 0.01 and 0.01≤p < 0.05, respectively

Fig. 6
figure6

Total quantity of unsaturated fatty acids by using different organic solvents (μg of total fatty acids). “No SD” means there is no significant difference (n = 10, all donors)

Fig. 7
figure7

Total quantity of C16, C18, C20, and C22 by using different organic solvents (μg of total fatty acids, n = 10, all donors). Data are represented as means ± SEM. The three asterisks, two asterisks, and one asterisk indicate 0.0001≤p < 0.001, 0.001≤p < 0.01, and 0.01≤p < 0.05, respectively. “No SD” means there is no significant difference

Fig. 8
figure8

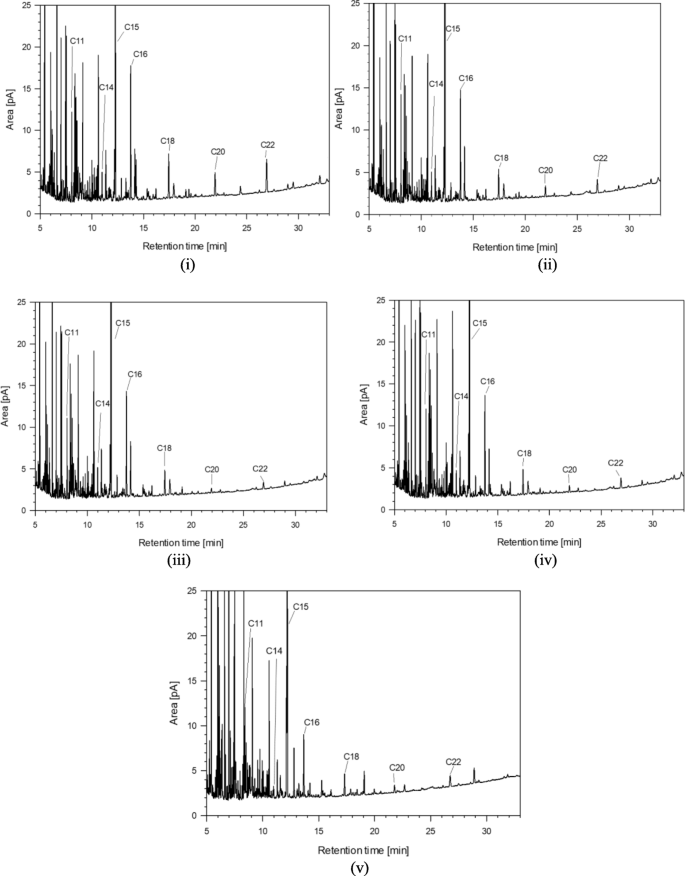

Representative GC-FID chromatograms of fingerprint residue from donor E, i chloroform:ethanol (1:1), ii acetone:chloroform:hexane (1:1:1), iii hexane:isopropanol (3:2), iv chloroform:methanol (3:1), and v chloroform

Fatty acid recovery ratio by extraction treatment

Fatty acids were most successfully extracted from deposited glass surface using chloroform:ethanol (1:1). The recovery ratios of different treatment methods showed that the cotton swab method (80.2 %) was relatively more successful than other collection methods. There was variation in the recovery ratio among treatment methods. However, there was no significant difference between the four treatment methods. The next highest recovery ratio was obtained with pipette handing (77.7 %), followed by rotator shaking (74.8 %), and tape lifting (67.6 %) for C11 (Fig. 9). All treatment trials involved 10 repetitions. The total quantity of fatty acids (FA) from donors collected using different treatment methods showed high recovery (Fig. 10). Significant differences were observed between cotton swabbing and all other treatment methods. From the eight donors, eight fatty acids were obtained with total amounts of 4.6–26.6 μg per print. The detected saturated fatty acids were C14, C16, C18, C20, and C22, and unsaturated fatty acids were C18:1n9c, C22:1n9, and C22:6n3. Commonly detected fatty acids from all donors were C16 and C18. The quantity recovered from the treatment methods showed that cotton swab best extracted the remaining saturated fatty acids at statistically significant levels (Fig. 11). The result for unsaturated fatty acids showed large donor dependence. In addition, detected fatty acids also showed large dependence on treatment methods.

Fig. 9
figure9

Recovery ratio of C11 using different treatment methods (% of total fatty acids n = 8). “No SD” means there is no significant difference

Fig. 10
figure10

Total quantity of fatty acids by using different treatment methods (μg of total fatty acid). Data are represented as means ± SEM. The p value is < 0.0295 (n = 8, eight donors). The two asterisks indicate 0.0001≤p < 0.001

Fig. 11
figure11

Total quantity of C16 and C18 by using different treatment methods (μg of total fatty acids, n = 8, all donors). Data are represented as means ± SEM. The three asterisks, two asterisks, and one asterisk indicate 0.0001≤p < 0.001, 0.001≤p < 0.01, and 0.01≤p < 0.05. “No SD” means there is no significant difference

Discussion

In a review paper by Girod et al., 23 fatty acid components were identified in fingerprint residue, including even carbon numbers (C8~C24), odd carbon numbers (C9, C13~23), and unsaturated carbons (C14:1, C15:1, C16:1, C17:1, C18:1, C18:2) (Gird et al. 2012). The purpose of our research is to compare the difference of efficiency associated with the extraction solvents and treatment methods of fatty acids detected in groomed fingerprints. According to the results of the Croxton study, very small amounts of each fatty acid are detected in natural fingerprints (20~200 ng). In the authors’ preliminary study, not shown, C12–C24 were not well detected in natural fingerprints. Considering the sensitivity of GC-FID, the minimum amounts of fatty acid are more than hundreds of nanograms. Thus, it is impossible to compare extraction efficiency of natural fingerprints. Therefore, even though fatty acids are overrepresented in them, we used groomed fingerprints. In this study, a high recovery ratio and various amounts of fatty acids were obtained from chloroform:ethanol (1:1) and cotton swab. These results showed that solvent solubility had an important effect on recovery ratio and amount of fatty acids. Solubility data showed that normal saturated fatty acids are generally more soluble in chloroform and less soluble than in any of the organic solvents investigated (Table 8) (http://cyberlipid.gerli.com/lipids/fatty-acids/.). Fatty acids are carboxylic acids with long aliphatic chains that are easily extracted with non-polar solvents due to their non-polar characteristics. Methanol and ethanol have high polarity, and hexane is non-polar. According to Widjaja et al., hexane is not a suitable solvent to extract lipid. However, in a study on Botryccous, Chlorella vulgaris, and Scenedesmos, hexane, and iso-propanol mixtures showed better results at different temperatures and pressures (Widjaja et al. 2009). McNichol et al. showed that polar solvents like chloroform/methanol, ethanol, and acetone had higher lipid recoveries than non-polar solvents like hexane (McNichol et al. 2012). In addition, Seth et al. showed that low recoveries and large loss can be due to evaporation of solvents like chloroform and dichloromethane. Thus, we suppose that the combination of chloroform and ethanol (1:1) can result in high recovery of fatty acids due to their complementary characteristics like solubility and high volatility.

Table 8 Solubility data of fatty acids in organic solvents [g/L]

Cotton swabbing and tape lifting methods are usually used to collect DNA samples. However, tape lifting did not remove all adhesive material. Rather, the recovery ratio using a pipette was higher than that of tape lifting. The pipette handling method was simpler than the other three methods and saved a significant amount of time. However, meticulous attention was required.

Wiping was necessary because solvent rinsing was not sufficient to remove material for acceptable instrumental analysis. It is possible that other substrates (e.g., paper) might allow for mere rinsing of the fingerprint from the substrate. However, wiping was necessary for glass. Additionally, glass materials provided the lowest background because impurities can easily be removed through a cleaning process, so glass surfaces were chosen for this work.

Fatty acids are a group of lipids that are most commonly analyzed by GC. This method is used for biological samples containing compounds with chain lengths in the range C4 to C24. GC analysis of fatty acids was performed following conversion to apolar methyl ester derivatives. The GC can be used to analyze fatty acids either as free fatty acids or as fatty acid methyl esters. Methyl esters are favorite derivatives for GC analysis of fatty acids. GC-FID with a methylation process allows polar compounds to be analyzed more readily, and the results can be quantified more generally, economically, and simply than the GC-MS method (Young et al. 2012; Zhang et al. 2015). After fatty acid extraction, it is necessary to transform the constituents into specific derivatives to render them more volatile. In fingerprints, free fatty acids appear in the form of triglycerides composed of glycerol and three fatty acids. Thus, polar solvents and non-polar solvents can be effective in degrading non-polar fatty acids and polar glycerol (Emerson et al. 2011).

Conclusions

In this study, we tried to find stable and reproducible methods to quantify fatty acids in a fingerprint. The GC-FID method was employed for direct quantitative analysis. The experimental result showed that the extraction efficiency of fatty acids in fingerprints differed significantly for different solvents and treatment methods. The most efficient extraction solvent and treatment methods for fatty acids detected in latent fingerprints were chloroform:ethanol (1:1, v/v) and cotton swab, respectively. Therefore, in a non-porous substrate, solvent combinations with cotton swab methods will decrease extraction loss related to fatty acid compositions in fingerprints. Although we used groomed fingerprints, we found a reliable methodology. This method can be used to efficiently extract fatty acids from a latent fingerprint. Further work will involve the application of this method to analyze fatty acids detected in latent fingerprints based on external conditions such as temperature or age.
