Development of a method for the determination of SCCPs (short-chain chlorinated paraffins) in bivalve mollusk using Soxtec device followed by gas chromatography-triple quadrupole tandem mass spectrometry

Abstract

Background

Organochlorinated compounds are major environmental concern due to their persistence, long-range transportability and bio-accumulation. Chlorinated paraffin (CP) mixtures, especially short-chain CPs (SCCPs), are found in environmental samples at very high levels. However, information about their levels is still insufficient, mainly in marine biota.

Methods

This study aimed to optimize and validate a method for the determination of SCCPs (short-chain chlorinated paraffins) in bivalve mollusk using a Soxtec extractor and Gas Chromatography coupled with Mass Spectrometry in tandem GC-QqQ-MS/MS (EI). A Plackett-Burman (2^7*3/16) type III resolution factorial design was used to optimize the extraction and purification procedures, sample amount, extractant volume, boiling and rinsing times as extraction variables and alumina, acid silica gel amounts and elution volume as purification variables.

Results

The most influent factors were sample amount, rinsing time, extractant volume and acid silica gel amount. Further experiments were performed in order to attain the optimal values of these factors (4 g sample amount, 50 mL n-hexane-dichloromethane as extractant volume, 2 and 1.5 h boiling and rinsing times, 8 g alumina, 4 g acid silica gel (15%) and 50 mL n-hexane-dichloromethane as elution solvent). Validation of the optimized method presented recoveries higher than 90% with RSD below 10%, showing good accuracy and precision. The whole method limits of detection and quantification were 46.13 mg Kg^{- 1} and 153.75 mg Kg^{- 1}, respectively. This method was successfully applied to the analysis of wild mussel samples coming from two Galician Rías. The found levels were very low compared to other marine systems, below parts per million.

Conclusions

The main advantages of the optimized method lie in the rapidity and the low amount of sorbents and volume of solvent used, as well as the selectivity and sensitivity of triple quadrupole MS/MS.

Background

Short-chain chlorinated paraffins (SCCPs) are complex technical mixtures of halogenated contaminants with linear carbon chain lengths from 10 to 13. The chlorine content ranges from 30 to 70% (calculated by weight). Technical mixtures are used as extreme pressure additives in lubricants, flame retardants in plastics and paints, plasticizers in coatings, sealants and adhesives, and in leather fat liquors. They have replaced the PCBs uses in industrial mixtures (De Boer et al. 2010). SCCPs are of great interest due to their persistence, toxicological properties, and high octanol-water partition coefficient (K_ow) that make them tend to bioaccumulate in lipid tissues of marine organisms and can be transferred and magnified along the food chain (Feo et al. 2009; Yuan et al. 2012). Besides, SCCPs have been found in remote areas. In consequence, it is possible to think about their long-range atmospheric transport (Tomy et al. 2000). Chlorinated paraffins (CPs) have similar properties to other persistent organic pollutants (POPs) and already subject to assessment by Stockholm Convention (UNEP/POPS/POPRC.11/4 2015). The western countries have begun to restrict the usage and production of CPs (van Mourik et al. 2016).

The quantification of CPs, like POPs, includes the extraction, purification, fractionation, and chromatographic determination. Soxhlet device is a conventional liquid-solid extraction technique that uses high solvent volumes and extraction times in the range 6–24 h; it has been extensively used in CPs applications (Parera et al. 2004; Basconcillo et al. 2015). More recent extraction techniques, such as accelerated solvent extraction (ASE), ultrasonic-assisted extraction (USE), microwave-assisted extraction (MAE), and supercritical fluid extraction (SFE), use reduced solvent volumes in shorter time and allow high levels of automation. These techniques have also employed in the CPs extraction by several authors (Tomy and Stern 1999; Parera et al. 2004; Ma et al. 2014). In 1982, Foss commercialized the Soxtec device with the aim of reducing the Soxhlet parameters (Randall 1974). The main difference with the conventional Soxhlet is the incorporation of a previous step in which the sample is completely submerged in the extraction solvent in order to facilitate the rapid solubilization of analyte in boiling solvent (the boiling step); it allows a more efficient extraction and reduces the extraction time and solvent volume. Soxtec devices consist of three more steps. In the rinsing step, the sample thimble is hung above the surface of the solvent; the sample is rinsing by condensed solvent. In the recovery step, the distilled solvent is automatically collected. In the pre-drying step, there is an elimination of boil dry maintaining the temperature of the hot plate.

In relation to purification and fractionation steps, they would have to be very specific given that large amounts of compounds are co-extracted with CPs. In biota analysis, besides the separation of CPs from interfering organochlorine compounds, the lipid elimination is necessary. The multi-layer columns with different combinations of inorganic adsorbents (neutral, acid, and basic silica; Florisil; alumina) are the most used (Borgen et al. 2003; Parera et al. 2004; Reth et al. 2005; Marvin et al. 2003). GPC (gel permeation chromatography) is another widespread purification technique (Coelhan et al. 2000). Some authors use the photolytic cleanup of biota samples, and interfering compounds are destroyed immediately (Friden et al. 2004).

Although gas chromatography (GC) is the most widely used technique, it is impossible to separate CP mixtures into single compounds, so the use of GCxGC should be more appropriate (Korytar et al. 2005). The GC coupled to ECD (electronic capture detector) has also been used in CPs determination, but this detector is little selective in organochorine-rich extracts. However, the GC coupled to mass spectrometry with electron capture negative ionization (GC-ECNI-MS) is today the more frequently used approach (Tomy et al. 1997; Reth and Oehme 2004; Gandolfi et al. 2015). Nowadays, the GC coupled to triple quadrupole mass spectrometry in mode Mass/Mass (GC-QqQ-MS/MS) is beginning to be used for analysis of CCPs in environmental samples using fragments of low m/z (Zencak et al. 2005; Tölgyessy et al. 2017). The further fragmentations carried out by tandem mass spectrometry GC-QqQ-MS/MS open a world of possibilities to achieve good selectivity and sensitivity, in relation to low-resolution devices. The strong fragmentation of paraffins under EI conditions gives weak compound-specific information (number of chlorine atoms and chain length); however, this disadvantage can be useful for total SCCPs analysis because some fragments are present in all or most CPs mass spectra, and then, the response factors of different CP mixtures are independent from their degree of chlorinations.

Several studies have shown the extensive presence of SCCPs in several marine compartments (Reth et al. 2006; Zeng et al. 2012). However, there is little information regarding SCCPs concentration in mollusk limited to bivalves from coastal waters in the Chinese Bohai Sea (Yuan et al. 2012; Ma et al. 2014). Most of the developed method have been tested and applied for the determination of CPs in marine sediments and fish samples (Beaume et al. 2006; Coelhan et al. 2000; Reth et al. 2005; Castells et al. 2008; Zeng et al. 2012; Zeng et al. 2013; Ma et al. 2014; Basconcillo et al. 2015).

The aim of this work was to optimize a simple method for the determination of SCCPs in samples of bivalve mollusk. The extraction of analytes is performed by using a Soxtec device and its purification by means of multilayer columns. Because of the high number of variables that potentially affect paraffins determination, a Plackett-Burman 2⁷ factorial design (Minitab 16 statistical package), which consists of seven factors with two levels for each factor, has been applied on a freeze-dried mussel spiked with a mixture of SCCPs. Seven experimental variables of extraction and purification have been optimized (sample amount, extractant volume, boiling and rinsing times, alumina amount, acid silica gel amount, and elution volume). Extracts have been analyzed by gas chromatography coupled to tandem mass spectrometry GC-QqQ-MS/MS (EI). The optimized and validated method has been applied to real samples from Galician Rías.

Methods

Material and apparatus

N-hexane for pesticide residue analysis was supplied by Carlo Erba (Milan, Italy). Dichloromethane for organic residue analysis was purchased from J.T. Baker (New Jersey, USA). Aluminum oxide, anhydrous sodium sulphate, and silica gel were supplied by Merck (Darmstadt, Germany). Sulfuric acid (purify 95%) was acquired by Panreac (Barcelona, Spain). Alumina and silica gel were dried at 800 °C for 4 h and 210 °C for 24 h, respectively. Alumina was hydrated at 6%, and silica gel acidified at 15 or 30% according to experiments. Reference SCCPs technical mixture with chlorine content of 55.5% (100 ng/μL in cyclohexane) was purchased by Dr. Ehrenstorfer GmbH (Augsburg, Germany). The internal standard, ε-HCH (10 ng/μL in cyclohexane), was also obtained from Dr. Ehrenstorfer GmbH. SCCPs mixture was used to fortify the samples of freeze-dried mussel used during the optimization of the sample preparation conditions. Further dilutions were prepared in n-hexane to optimize GC-MS determination conditions (calibration standards).

Extractions were performed in an extractor, Soxtec™ 2055 System (FOSS Analytical AB, Höganäs, Sweden), with a refrigerator (Julabo F250). The cellulose thimbles were provided by FOSS (diameter 33 mm, length 80 mm).

Extract concentration was carried out by using heating and evaporating units, Reacti-Therm supplied by Pierce (Rockford, USA).

SCCPs were determined using a GC-MS/MS system consisting of an Agilent 7890B gas chromatograph equipped with a split/splitless injector (Agilent 7693 Autosampler) and connected to a triple quadrupole type mass spectrometer (Agilent MS 7000D). The separations were carried out by using an Optima 5 MS (Machery-Nagel, German) 5% diphenyldimethyl siloxane capillary column (50 m × 0.20 mm i.d. × 0.35 μm phase thickness).

Samples and sample procedure

The optimization of the sample preparation conditions was carried out on a freeze-dried pooled of mussel matrix (Mytilus galloprovincialis) from raft polygons in the Galician coast (northwest of Spain). The spiking procedure consisted of the addition of a given volume of standard in an accurately weighed sample fraction. The resulting slurry was homogenized periodically and kept in a hood until complete elimination of solvent. All spiked samples (5 mg/kg) were aged for a week before extraction.

Under working conditions, cellulose thimbles were filled with 4 g anhydrous sodium sulphate and 2–5 g spiked sample, according to the experimental conditions. The thimble holder was used to support the thimbles and to attach them to the magnets of the extraction unit. Analytes were extracted with 30–80 mL n-hexane:dichloromethane (1:1) after 1–2 h boiling time and 0.5–1.5 h rinsing time, according to the values dictated by the factorial design or by further experiments. Soxtec extracts were evaporated, ca. 1 mL, and additionally purified with a multilayered column previously conditioned with n-hexane (50 mL). The multilayer column (glass column, 2 cm inner diameter and 45 cm long) was packed from bottom to top with glass wool, 4–8 g hydrated basic alumina (6%), 2 g activated silica gel, 4–8 g acid silica gel, and 4 g anhydrous sodium sulphate. After loading the concentrated extract, the sorbent was rinsed with 80 mL n-hexane and the target analytes were further recovered with 50–130 mL n-hexane:dichloromethane (1:1). Elution of sample was carried out at a rate of about 1 mL/min.

The n-hexane:dichloromethane extract was concentrated to dryness, using firstly a rotary evaporator and then a gentle stream of nitrogen (heating and evaporating units). Finally, the residue was re-dissolved with 0.2 mL of n-hexane. Internal standard (5 μL) was added to each sample as injection standard. A 2 μL volume was injected into the GC-MS/MS system.

The proposed method was applied to several Galician mussel (Mytilus galloprovincialis) samples.

Instrumental analysis

Experimental conditions in the GC-MS/MS triple quadrupole system were an aliquot of 2 μL of the final extract was injected using the splitless mode (splitless time, 0.75 min). The injector temperature was set at 280 °C. Helium was used as carrier gas at a constant flow rate of 1.0 mL/min. The temperature program was as follows: 1 min isothermal program at 50 °C, increased to 320 °C at 30 °C/min and held for 15 min. The transfer line temperature was set at 280 °C, the ion source and Q1 and Q3 temperatures at 280, 180, and 180 °C, respectively. The electron energy was set at 70 eV, the emission current at 35 μA, and dwell time at 75 ms. Nitrogen was used as CID gas. SCCPs were detected using the m/z 103 to 65, the m/z 102 to 67, the m/z 91 to 53, and the m/z 89 to 53 transitions with collision energy of 10 V. The precursor ion m/z 219 and the product ion m/z 109 were chosen for ε-HCH (collision energy of 40 V).

Data processing

Data analysis of the experimental design was performed by means of the statistical package Minitab 16.

The standardized effect of each factor was calculated using the statistical package. The magnitude of the standardized effect of the tested factor indicates its significance in affecting the response, while the positive and the negative signs are indicative of its positive and negative influence on the responses, respectively.

Results and discussion

Experimental design

Since the number of variables potentially affecting the efficiency of the extraction and purification is very large (sample amount, extractant volume, and boiling and rinsing times as extraction variables and alumina amount, acid silica gel amount, and elution volume as purification variables), a screening factorial design Plackett-Burman (2^7*3/16) type III resolution at two levels has been applied. If a two-level full factorial design 2^7 is applied, 128 experiments need to be carried out, in addition to the replicates needed for statistical evaluation of the coefficients for the fitted model and the degree of coincidence of the hyperplane obtained with the true response surface. Plackett-Burman designs allow to fractionate the full factorial design, giving numbers of factor combinations that are a multiple of four. Our particular Plackett-Burman (2^7*3/16) type III resolution design with two center points and one replicate involved 14 randomized runs. The type III resolution designs can estimate only the main effects. They are typically used to identify a few significant factors out of a large set.

Table 1 shows the upper and lower levels given to each factor. Such values were selected from experience gathered in previous screening experiments. Table 2 summarizes the design matrix for these experiments and the area counts obtained in each one for total SCCPs.

Table 1 Experimental parameters of extraction and purification steps, factor levels tested in the factorial design, and optimum values for SCCP determination

Table 2 Design matrix and response values (area counts) for Plackett-Burman factorial design

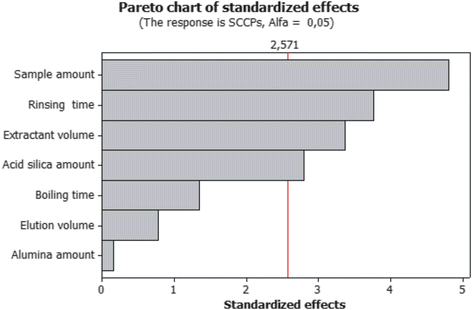

The numerical analysis of the results in the factorial design leads to Pareto chart of the standardized main effects shown in Fig. 1. The conclusions are that the sample amount, the rinsing time, the extractant volume (extraction variables), and the acid silica gel amount (purification variable) were statistically significant. The other factors had no statistical significance. Table 3 summarizes the value of estimated effects for total SCCPs. The most significant factor was the sample amount followed by the rinsing time and extractant volume; these factors had positive sign. The acid silica gel amount was the least significant factor and had a negative effect. With regard to the factor interactions, more sample amount, higher extractant volume, and longer rinsing time were necessary to achieve the best recoveries (see Fig. 2). If the rinsing time was set at the highest level, the boiling time hardly affected on the recovery of SCCPs. The best recoveries were found at the highest level of the boiling time. In Fig. 3, it can be seen that when a greater alumina amount was used, a higher elution volume was necessary during the purification step. However, with regard to the acid silica gel, the highest recoveries were obtained at the lowest value of this factor regardless of the elution volume and the alumina amount.

Fig. 1

Pareto charts of main effects for the factorial design. The vertical lines indicate the statistical significance bound for the effects

Table 3 Value of estimated effects of experimental parameters for SCCP determination

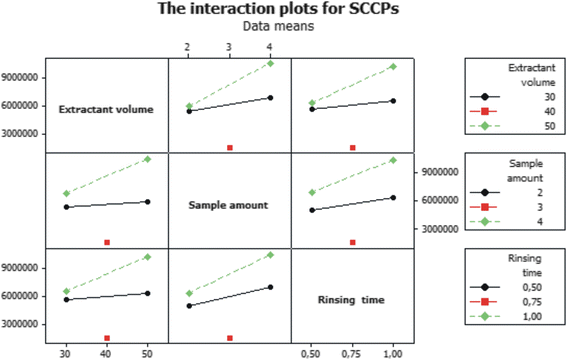

Fig. 2

Interaction plots of the three factors (extractant volume, sample amount, and rinsing time) for SCCP determination

Fig. 3

Interaction plots of the three factors (alumina amount, acid silica amount, and elution volume) for SCCP determination

Further experiments

The results of Plackett-Burman factorial design suggested that the high level, 8 g, can be considered as the optimal value of the amount of hydrated basic alumina for the total SCCPs determination. According to this factorial design, new experiments shifted in the direction of higher values of factors, such as sample amount and extractant volume would be desirable. With this aim, four experiments were performed fixing the other factors according to the design results, the boiling and rinsing times at 2 and 1 h (high levels), acid silica gel amount at 4 g (low level), elution volume at 80 mL (high level), and varying the values of sample amount between 4 and 5 g and extractant volume between 50 and 80 mL. The results of these experiments showed that both 4 and 5 g of sample amount extracted with 50 ml of solvent volume showed the best recoveries. However, 4 g of sample amount was selected as optimal value with the aim to improve the specifications of method. Larger quantities of mollusk caused blockage in purification columns. Another two experiments were carried out fixing the sample amount (4 g), the extractant volume (50 mL), and the amounts of other adsorbents at their optimal values and varying the amount of acid silica gel between 4 g at 15% sulfuric acid and 2 g at 30% sulfuric acid; the two proofs gave very good extraction efficiencies, 91% respectively. However, when 2 g acid silica gel at 30% sulfuric acid was used, the column was plugged hampering the sample elution, so 4 g silica gel at 15% sulfuric acid was selected as optimal value. The last experiments of optimization have been performed fixing the variables at their optimal value, 4 g sample amount, 50 mL extractant solvent, 8 g hydrated alumina amount, and 4 g acid silica gel (15%) amount, increasing the rinsing time to 1.5 h (positive significant effect) and varying the boiling time between 1.5 and 2 h and the elution volume from 80 to 50 mL. The best results were obtained at 2 h boiling time and 50 mL elution solvent. In Table 1, the optimal values of factors for the total SCCPs determination in bivalve mollusk are shown.

Quality control and method performance

The performance of the optimized method was assessed in terms of linearity, precision (reproducibility), accuracy (recovery), effects of matrix, and limits of detection and quantification.

Signals (peak areas) measured for spiked and non-spiked mussel sample extracts were compared to those obtained for calibration standards in n-hexane, covering the range of concentrations between 10 and 100 ng/μL^− 1. The instrumental linearity was tested at these four levels of concentration. The curves of calibration were obtained injecting each level in duplicate, and the response function was found to be linear with coefficients between 0.998 and 0.999.

The precision of the method was assessed by calculating the relative standard deviation (RSD) among days (n = 6); it was lower than 10%.

The recovery of the method was calculated by dividing the difference between the measured concentrations for the spiked samples and non-spiked samples. It was expressed as percentage. The obtained recoveries were satisfactory with values higher than 90%.

The effect of matrix was estimated by comparison of two replicates of an extract of a sample spiked with a standard at the same concentration level. A value of matrix effect of 100% would indicate no matrix effect; lower values would indicate signal suppression and higher value signal enhancement. For this method, the value of matrix effect was around 100% (98%).

The limits of detection (LODs) and quantification (LOQs) of the overall method were calculated as the concentration giving a signal to noise ratio of three and ten, respectively. For this method, LODs and LOQs were 46.1 and 153.6 μg kg^− 1, respectively.

Potential contamination problems were evaluated with procedural blanks which mimic the whole sample preparation method (extraction plus purification) without sample. At least one blank was processed with each batch of extractions.

Application to real samples

The optimized and validated method was applied to the analysis of three real samples of wild mussel coming from two estuarine bays in Galicia (NW, Spain), Rías of Ares-Betanzos (Are 1) and Ferrol (Fer 1 and Fer 2). Two extractions were carried out for each sample. Levels of concentration expressed in dry wet were 561.7 ± 50.7 μg kg^− 1 d.w. for Are 1, and 524.8 ± 47.2 and 919.4 ± 82.8 μg kg^− 1 d.w., for Fer 1 and Fer 2, respectively. The two first samples had lower levels than the third sample. This later came from an industrial and populated city in Galicia. The concentration levels found were low compared to the levels of other organisms coming from different marine systems (Coelhan et al. 2000; Ma et al. 2014). In Fig. 4, it can be seen the extracted ion chromatogram (EIC) obtained from three MRM modes (103 to 65, the m/z 102 to 67, the m/z 91 to 53) of total SCCPs for an extract of Galician mussel sample and a blank procedure.

Fig. 4

EIC (extracted ion chromatograms) of SCCPs of an extract of Galician mussel sample (ions 65, 67, and 53) (a) and analytical blank (ion 67) (b)

Conclusions

A method for analysis of SCCPs in bivalve mollusk samples by using Soxtec device followed by purification in multilayer column and determination in GC-QqQ-MS/MS (EI) was optimized and validated. The optimization was performed by using a Plackett-Burman factorial design. The statistically significant variables were sample amount, rinsing time, extractant volume, and acid silica amount. The main advantages of the optimized method lie in the rapidity and the low amount of sorbents and volume of solvent used, as well as the selectivity and sensitivity of triple quadrupole MS/MS. The suitability of the optimized method was demonstrated by the validation, providing a good trueness, recoveries higher than 90%, successful precision, RSD below 10%, and LOQs around 150 μg kg^− 1. The validated method was applied to real samples from the Galician Rías.
