  • Research article
  • Open Access

Green synthesis, characterization of biomaterial-supported zero-valent iron nanoparticles for contaminated water treatment

Journal of Analytical Science and Technology20189:3

https://doi.org/10.1186/s40543-017-0134-9

Received: 29 June 2017

Accepted: 26 December 2017

Published: 17 January 2018

Abstract

Background

In this present work, we synthesized zero-valent iron nanoparticles (ZVIN) using reproducible Calotropis gigantea (CG) flower extract served as both reducing and stabilizing agent by completely green approach. ZVIN are widely used in contaminated water treatment and can be prepared by several different methods.

Method

Iron nanoparticles formed in this method are mainly ZVIN and were characterized by the various physicochemical techniques, viz, ultraviolet-visible absorption spectroscopy (UV-vis), Fourier transform-infrared spectroscopy (FT-IR), X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDX).

Results

FT-IR and UV-vis absorption spectra reveal that the polyphenols present in the CG flower extract may be responsible for the reduction and stabilization of the ZVIN. SEM images show some agglomeration among the particles and the average size of the particles in the range of 50–90 nm. ZVIN tend to agglomerate, resulting in a significant loss of reactivity. To overcome this problem, we have synthesized ZVIN that are immobilized on biomaterial with the help of chitosan. This low-cost sorbent was used to remove organic pollutants from waste water.

Conclusions

Herein, we report the percentage of removal of methylene blue (MB) and aniline by synthesized sorbent from contaminated water. The adsorption isotherms of Langmuir and Freundlich models have been used to explain experimental equilibrium adsorption data. The adsorption of MB and aniline on sorbent follows pseudo-second order kinetics.

Keywords

  • Green synthesis
  • Zero-valent iron nanoparticles
  • Calotropis gigantea flower extract
  • Chitosan
  • Methylene blue
  • Aniline

Background

Nowadays, environmental pollution is the perilous problem of all over the world. Especially contamination of water originates from different paths and causes great damage to the biosphere (Wang et al. 2014a, b). Industrial effluents from textile, printing, glass, paint, food, ceramic, pharmaceutical, paper, polymers, etc. preponderantly contain organic waste such as synthetic dyes (Wanyonyi et al. 2014; Rebitanim et al. 2012). Trivial amounts of dye residues also bestow their characteristic color to the wastewater, which leads the formation of dazzling contaminants. Moreover, an anaerobic degradation of azo dyes prevails in the production of carcinogenic and highly toxic amines. So there is a conclusive need of destruction of this hazardous waste from industrial effluents before disposal to the environment. Many kinds of chemical, physical, and biological processes have been developed for the remediation of water pollution, including microbial degradation, filtration, coagulation, membrane separation, and others. But all these methods involve some disadvantages and limitations like high cost and poor removal efficiency (Sttle et al. 2015). Earlier reports showed that a lot of research has been done on the photo-catalytic degradation of synthetic dyes. But in the dislodgement process of organic waste, adsorption is supposed to be preferable over photo-catalytic degradation, which sometimes leads toxic intermediates.

Nanotechnology is an immortally patulous area with enormous applications in various fields including food, agriculture, medical, pharmaceutical, catalysis, optical, and pollution control in a broad way (Shukla and Iravani. 2017). In recent times, nanoscale zero-valent iron has received much attention from research areas like remediation of contaminated water and soil due to its high specific surface area, small particle size, and majestic reactivity of surface sites (Lanlan et al. 2014; Mikhak et al. 2017). Apart from that, zero-valent iron nanoparticles (ZVIN) follows the maximal tenets of green chemistry as a non-toxic, inexpensive, and environmentally compatible material (Li et al. 2006; Zhipan et al. 2014). If iron reacts with water, it forms a thin oxide layer known as goethite (FeOOH) and hydrogen gas (Li and Zhang 2006). Goethite has more affinity towards contaminates (Zhang et al. 2014). Thus zero-valent iron core and iron hydroxides have the shells which provide a characteristic core-shell structure to ZVIN with unique redox properties (Yan et al. 2012; Ritu et al. 2011). Because of attractive qualities like electron donating property during the oxidation of Fe2+ to Fe3+ and existence of various mineral forms of iron, the ZVIN have been found to be more important in the adsorption and removal of environmental pollutants (Chicgoua et al. 2012; Kumar et al. 2014). ZVIN are boon especially in alleviating contaminants such as dyes, organic pesticides, halogenated organic compounds, inorganic ions like nitrate, fluoride, and sulfate, viruses, nitro-aromatic compounds, PCBs and heavy metals such as Pb, As, Cr, and Cd (Zheng et al. 2011) from polluted water. Carbon-supported ZVIN are also used in the removal of uranium from natural and synthetic water (Richard and Crane 2014).

Several physical and chemical production methods including mechanical milling (Karimi et al. 2014), sodium borohydride (Satapanajaru et al. 2008; Madhavi et al. 2014), ethylene glycol (Raveendran et al. 2003), solvothermal method (Basavaraju et al. 2011), and carbothermal synthesis (Allabaksh et al. 2010) have been employed for the preparation of ZVIN. But ZVIN, synthesized by above conventional methods, agglomerate rapidly in clusters due to Van der Waals and magnetic forces (Qiangu et al. 2013). Sometimes ZVIN undergo oxidation by oxidants like dissolved oxygen or water (He and Zhao 2005). Agglomeration and oxidation of ZVIN result in the formation of large particles and also reduce the delivery of ZVIN to the targeted contaminant places (Kim et al. 2008). Previously stable ZVIN are synthesized using biodegradable polymers or surfactants such as resin, starch, carboxymethyl cellulose (CMC), citric acid, and chitosan (Madhavi et al. 2013; Morales et al. 2013) as stabilizing or capping agents. Stabilizer molecules prevent attractive Vander Waals and magnetic forces by providing strong inter-particle electrostatic repulsions.

In recent years, ZVIN are widely prepared by plant extract-mediated liquid phase bio-reduction of ferrous or ferric salt solutions. The peculiarity of this liquid phase reduction is that it has been carried out at room temperature and generally completes within few minutes. Furthermore, it involves mixing of aqueous solutions of plant extract and ferric salt in which hazardous materials are neither used nor generated. In general, plant extracts comprised phenols, flavonoids, terpenoids, proteolytic enzymes, etc., which eventually act as reducing and capping agents in the production of ZVIN. Based on the notion of green chemistry, previously ZVIN are synthesized from extracts like tea leaves (Nadagouda et al. 2010), eucalyptus leaves (Wang et al. 2014a, b), vine leaves (Machado et al. 2013), Rosa damascene, Thymus vulgaris, and Urtica dioica (Mehdi et al. 2017). But the recent observations showed that the sorption and dispersion capacity of ZVIN increased by the support of porous materials like clays, resins, and carbon materials (Shu et al. 2010; Sunkara et al. 2010).

In this paper, we report the green synthesis of ZVIN using Calotropis gigantea (CG) flower extract as both reducing and stabilizing agent. In addition, a novel sorbent, which is the composite of as-synthesized ZVIN, biomaterial, and chitosan, was also prepared. Here, the biomaterial was prepared from Pithecellobium dulce seeds, which is used as a good supporting material to ZVIN in dispersion and sorption process (Arshadi et al. 2014). It is well known that chitosan is a second most abundant polysaccharide in the world and can be obtained from natural chitin which is a renewable, biodegradable and nontoxic polysaccharide. Some previous studies showed that chitosan increases removal capacity of biochar to remove heavy metals from contaminated water (Zhou et al. 2013). Here, the major role of chitosan is to attach fine ZVIN onto the biomaterial. According to the principles of green chemistry, here, we developed a new synthetic process for sorbent, which involves eco-friendly, inexpensive, non-hazardous, and renewable materials. The synthesized ZVIN and sorbent were characterized for UV-vis, FT-IR, XRD, SEM, and EDX. Here, we also discussed the effective adsorptive removal of organic waste such as methylene blue (synthetic dye) and aniline (aromatic primary amine) from contaminated water by the synthesized sorbent.

Methods

Ferric nitrate nonahydrate (FeNO3, 9H2O), acetic acid, sodium hydroxide (NaOH), chitosan [MW ≈ 70,000 and more than 80% deacetylated], ethyl alcohol, methylene blue, and aniline chemicals are all AR grade and purchased from Sigma Aldrich chemicals. The fresh flowers of Calotropis gigantea and Pithecellobium dulce seeds were collected and used for the preparation of ZVIN.

Collection of extract and biomaterial

Calotropis gigantea flowers were washed properly and were then cut into small pieces. These finely cut pieces were grind, and 10 mg weight of flowers was mixed with 100 mL double-distilled water. It was boiled for 5 min. After cooling, the solution was filtered thrice by Whatman no.1 filter paper to get clear extract. Dry Pithecellobium dulce seeds were collected and washed with distilled water and were put in the oven for 48 h at 70 °C. After cooling, the biomaterial was finely ground, washed with double-distilled water, and oven dried at 65 °C.

Preparation of ZVIN

0.01 M FeNO3.9H2O was prepared in double distilled water and was mixed with flower extract in 1:1 ratio. For the reduction of Fe+3 ions, equal volume of flower extract was added slowly to aqueous ferric nitrate solution with constant stirring for 15 min on a magnetic stirrer and the reaction was carried out at room temperature. Here, the Calotropis gigantea flower extract used as both reducing and stabilizing agent. The formation of iron nanoparticles were indicated by the color change of solution from light pink to black. The black precipitate was washed several times with 1:1 ethanol and water and then with double distilled water. The obtained nanoparticles were dried at 60 °C in the oven.

Preparation of sorbent

A composite sample was prepared by dissolving chitosan powder first in a 100 mL of 2% acetic acid solution and then synthesized ZVIN were dispersed in the chitosan solution. To the above mixture, biomaterial was added and stirred for 60 min to form a homogeneous mixture. This mixture was added drop-wise into a 500 mL of 1.5% NaOH solution and kept undisturbed for 15 h at room temperature. The solid products were then separated by decantation method and washed with deionized water to remove the excess NaOH and oven dried for 24 h at 70 °C. Here the ratio of chitosan, biomaterial, and ZVIN particles in the sorbent were 1:1:0.5, 1:1:1, and 1:1:2. For comparison, another sorbent in the 1:1 ratio of biomaterial and chitosan was also synthesized without addition of ZVIN.

Characterization of ZVIN and sorbent

UV-vis absorption analysis was carried out using UV-3600 spectrophotometer in the range of 200–800 nm. Scanning electron microscope (SEM) imaging analysis of the samples was conducted using a Zeiss evo 18 instrument. The sample crystallinity was examined using X-ray diffraction (XRD) analysis with a computer-controlled X-ray diffractometer (X’pert pro diffractometer) and equipped with a stepping motor and graphite crystal monochromator. The FT-IR spectra were analyzed by Shimadzu spectrophotometer with KBr pellet.

Batch experiments of decolorization of methylene blue

Decolorization of MB experiments was carried out at room temperature and at its original pH. In this study, 400 mg of sorbent material was mixed with 500 mL of different concentrations (50–400 ppm) of MB solutions. The mixture was stirred for certain period of time (5, 10, 15, 20, 25, 30, 40, 50, 60, 90, 120, 180, 240, 300, and 360 min), using a magnetic stirrer to find out the effect of contact time in the removal of MB. During the adsorption process, about 4 mL of aliquot samples was withdrawn from the reaction mixture by syringe at certain time intervals and the sorbent was removed using 0.45-μm filters. Concentration of MB, remained in solution, was determined spectrophotometrically by measuring absorbance at 665 nm. The change in the concentration of MB was calculated from the difference between the initial and final equilibrium concentrations of MB, and sorption efficiency or removal efficiency of the sorbent was computed from the following equation:
$$ \% of removal=\frac{\left({c}_0-{c}_{\mathrm{e}}\right)}{c_0}\times 100 $$
(1)

where c0 and ce are total dissolved and equilibrium liquid phase concentrations (mg L−1), respectively. For comparative study, the above batch experiments were carried out with adsorbents, viz, synthesized ZVIN, blank, sorbent (1:1:0.5), sorbent (1:1:1), and sorbent (1:1:2) individually at identical reaction conditions.

Batch experiments of aniline removal

The aniline removal experiments were carried out with the initial concentration of aniline between 50 and 400 ppm in distilled water. In this study, the amount of sorbent added to the aniline solution was 1 g L−1. The conditions such as neutral pH and 30 °C temperature were maintained throughout the experiment. Proper care was taken against auto-degradation, photodegradation, and degradation by OH radical. In this typical removal process, the solution was kept shaking at 300 rpm and the amount of aniline removed determined at certain time intervals such as 30, 60, 120, 180, and 360 min to know the effect of contact time. At these time intervals, about 4 mL of liquid sample was withdrawn by syringe and filtered off using 0.45-μm filters. The concentration of aniline, remained in solution, was determined spectrophotometrically by measuring absorbance at 232 nm. The change in amount of aniline was calculated from the difference between the initial and final equilibrium concentrations of aniline. The sorption efficiency or removal efficiency of the sorbent was determined same as that of MB and also the experiment was repeated with each of the sorbent material, blank, and synthesized ZVIN. The amount of adsorbate adsorbed on the surface of sorbent at equilibrium (qe) was calculated as:
$$ {q}_{\mathrm{e}}=\frac{\left({c}_0-{c}_{\mathrm{e}}\right)v}{m{q}_{\mathrm{e}}} $$
(2)

where v (in liter) is the volume of the solution and m (in gram) is the amount of adsorbent.

Results and discussion

UV-vis absorption analysis

UV-vis spectral scanning procedure was carried out from 200 to 800 nm to determine the formation of ZVIN (Fig. 1). Initially, the flower extract had pale pink color and showed higher absorption from 300 to 350 nm. It indicates that the flower extract had free phytochemicals like carbohydrates, amino acids, and lipids. After the addition of flower extract to ferric solution, a black-colored colloidal solution was formed. The spectra of the black-colored colloidal solution show the disappearance of strong absorption peaks at the region 300 to 350 nm and emerge broad absorption at higher wavelengths, suggesting the formation of polydispersed ZVIN. During the synthesis of ZVIN, the reduction of Fe+3 ions to Fe0 is indicated by the change in color due to excitation of electrons. Upon the whole, the formation of noble nanoparticles like silver and gold are indicated by characteristic UV-vis absorption pattern attributed to the surface plasmon resonance (SPM). But with few exceptions, such characteristic UV-vis peaks are not observed for ZVIN due to the high reactivity of iron, when compared to silver and gold. However, the decrease in the intensity of phytochemicals characteristic peak specifies the significance of flower extract in the synthesis of ZVIN.
Figure 1

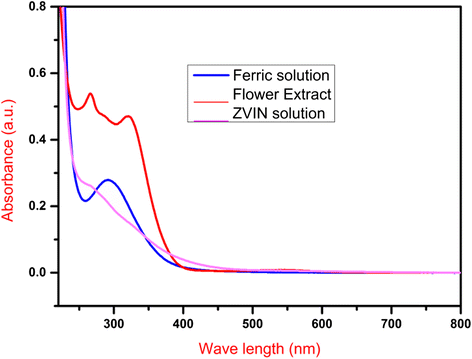

Fig. 1

The UV-vis absorption spectra of flower extract, ferric solution, and ZVIN solution

FT-IR analysis

FT-IR technique provides information about interactions among biomolecules of CG flower extract and metal ions responsible for the formation and stabilization of iron nanoparticles. Figure 2a shows the spectrum of the CG flower extract and the colloidal solution of ZVIN stabilized in flower extract. By the deep observation of FT-IR spectrum, it was noticed that, when moving from CG flower extract to colloidal solution of ZVIN, the peak positioned at 3359 cm−1 (–OH and –NH stretching vibrations) was found to be shifted to 3361 cm−1 and also peak at 1641 cm−1 (amide) was shifted to 1642 cm−1 with increasing intensity. Similarly peaks at 1239 cm−1 (amide), 1083 cm−1 (–OH bending and C–O–C stretching), 976 cm−1, and 923 cm−1 of flower extract were shifted to 1231, 1081, 977, and 922 cm−1 in colloidal solution of ZVIN respectively. Another two bands observed at 873 cm−1 (amine) and 680 cm−1 (aromatic alkanes) in the spectrum of CG flower extract. There was a complete absence of peaks at 873 and 680 cm−1 in FT-IR spectra of ZVIN colloidal solution. The highest peaks present at 3359–3361 cm−1 correspond to polyphenols, indicates the more abundance and prominent of phenolic functional groups for the reduction of Fe+3 to Fe0. Besides that, the more available phenolic groups provide the favorable molecular arrangement for the delocalization of unpaired electrons. So the flower extract enthralled the property of effective scavenging of free radicals. On the other hand, anti-oxidant capacity and anti-radical property increases with the number of phenolic hydroxyl groups. The appearance of a peak at 3359 cm−1 and shifting to 3361 cm−1 suggest that the phenolic or amine groups present in flower extract may be involved in ZVIN formation. The earlier reports (Mystrioti et al. 2015) indicate polyphenols were responsible for the reduction of Fe. From the spectrum, we can conclude that polyphenols present in the flower extract were responsible for reduction and stabilization of ZVIN which also agrees with UV-vis analysis.
Figure 2
Fig. 2

The FT-IR spectra of a ZVIN and flower extract and b blank and sorbent

FT-IR analysis of sorbent without ZVIN and with ZVIN also carried out to find out the effect of immobilization of ZVIN on the chemical composition of biomaterial. The spectrum (Fig. 2b) reveals the presence of –OH and –NH stretching vibrations (3432 cm−1), –CH2 and –CH3 symmetric and asymmetric stretching vibrations (2924 cm−1, 2853 cm−1), amides (1641 cm−1, 1570 cm−1), and C–O stretching vibrations in carboxylate ion (1414 cm−1) in both the sorbent without ZVIN and also in the sorbent with ZVIN. By the addition of ZVIN to the biomaterial, there was no observable change in the basic chemical nature of the biomaterial. These results reveal that the proteins (amide peak) may be responsible for the immobilization of iron nanoparticles.

XRD analysis

The XRD technique was used to determine the material and crystalline structure of iron nanoparticles. The XRD analysis of ZVIN is shown in Fig. 3. The peaks at 2ϴ of 45° and 65° indicate that the presence of zero-valent iron predominantly in the sample and the diffraction peak at 2ϴ of 35.6° indicates the presence of Fe2O3 (Khasim et al. 2011). Along with prominent diffraction peaks of iron nanoparticles, which demonstrate the crystallinity of ZVIN, here also exist some low-intensity peaks in between the 2ϴ value of 20°–25° corresponding to the organic matter coated on the surface of ZVIN (Fazlzadeh et al. 2017). These results show that the CG flower extract is successfully used for the synthesis and stabilization of ZVIN which can be reconciled by FT-IR analysis. Size of ZVIN is calculated from Sherrer’s formula, given below, using peak broadening profile of peak at a 2ϴ value of 45°.
$$ d=\frac{0.94\ \lambda }{\beta \cos \theta } $$
(3)
Figure 3
Fig. 3

The powder XRD pattern of ZVIN, sorbent, and blank

where λ is the wavelength (1.5418 Å) and β is the full-width at half maximum (FWHM) of corresponding peak. The size of synthesized ZVIN calculated from Sherrer’s equation was 30 nm. XRD patterns of both sorbent and blank (Fig. 3) are compared to know the surface modification of sorbent. In the XRD pattern of sorbent (1:1:2), diffraction peak at a 2ϴ value of 45° indicates that nanoparticles contain mostly zero-valent iron which was mainly present on the surface of sorbent. However, by this analysis, it was clear that biomaterial and chitosan were good supporting materials to ZVIN for the preparation of a post grafting composite material due to prevention of oxidation.

SEM and EDX analysis

The SEM analysis was carried out to investigate the shape, crystal growth, and approximate size of ZVIN synthesized using CG flower extract. The SEM micrograph of synthesized ZVIN is shown in Fig. 4a, and it reveals that the ZVIN are spherical in shape and polydispersed with different sizes ranging from 50 to 90 nm. These results show that the importance of CG flower extract in the synthesis of ZVIN but the synthesized ZVIN exhibit some agglomeration which was indicated by spherical shape and also non-uniform particle size with different void space. Hence, ZVIN are dispersed on the surface of the biomaterial to minify the aggregation. To know the surface morphology, the sorbent was characterized by SEM and shown in Fig. 4b. It shows that the surface was smooth with many gorges and ZVIN are well dispersed on the surface of the sorbent. EDX analysis gives the elemental status of synthesized ZVIN using flower extract (Fig. 4c) and revealed the proportion of iron, carbon, and oxygen atoms which were summarized in Table 1. It can also provide qualitative as well as quantitative information about elements that may be involved in the formation of nanoparticles. In the EDX spectrum of ZVIN, the highest peak due to absorption of elemental iron indicates the presence of iron nanoparticles and another peaks corresponding to carbon and oxygen atoms reveal the vital role of organic molecules from flower extract in the stabilization of ZVIN.
Figure 4

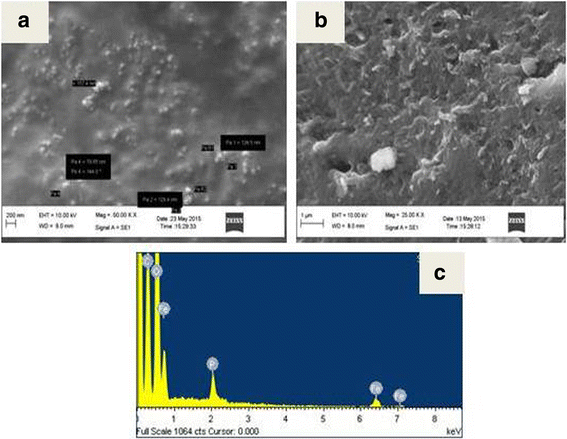

Fig. 4

SEM image of a ZVIN, b sorbent, and c EDX image of ZVIN

Table 1

The elemental compositions and weight percentages of ZVIN

Element

Weight %

Atomic %

C K

29.77

45.48

O K

37.62

43.14

P K

2.49

1.48

Fe L

30.11

9.89

Totals

100.00

100.00

Batch experiments of methylene blue decolorization and aniline removal

Concentrations of MB and aniline remained in solution were determined spectrophotometrically by measuring absorbance at 665 and 232 nm respectively. Figure 5a, b shows the effect of contact time on MB decolorization and aniline removal, respectively, and reveal that all the adsorbent samples (blank, synthesized ZVIN, and sorbent material) showed some MB and aniline removal capacity. Among all the samples, the sorbent material (1:1:2) was found to remove the highest amount whereas lowest amount was removed by blank sample. Percentage of MB removal rates of blank, synthesized ZVIN, and sorbent materials (with different ratios of biomaterial, chitosan, and ZVIN) were 29.4%, 63.1%, 80.5% (1:1:0.5), 83.9% (1:1:1), and 85.5% (1:1:2) respectively within the first 30 min (Fig. 5c). Percentage of aniline removal rates of blank, synthesized ZVIN, and sorbent materials were 17.1%, 49.4%, 56.3% (1:1:0.5), 59.1% (1:1:1), and 74.8% (1:1:2) respectively after 12 h (Fig. 5d). These results showed that MB and aniline removal capacity of synthesized ZVIN enhanced in modified form.
Figure 5
Fig. 5

Effect of contact time on percentages of concentrations (a) MB and (b) aniline and removal of percentage of (c) MB and (d) aniline as a function of composition of material

Adsorption isotherms

To understand the mechanism of adsorption of MB and aniline on sorbent (1:1:2), Langmuir and Freundlich adsorption models were applied to experimental data.

Langmuir model

It was limited to adsorption on homogeneous surface by monolayer formation, with decrease in intermolecular forces among adsorbed molecules and also uniform energies of adsorption with no transmigration of adsorbed molecules (Dey et al. 2015; Eastoe and Dalton 2000). In addition, it is used to determine the maximum adsorption capacity of sorbent. The expression of Langmuir which relates molecules covered on solid surface to equilibrium concentration of liquid phase above the surface of sorbent is given by the following equation:
$$ {q}_{\mathrm{e}}=\frac{X_{\mathrm{m}}b{c}_{\mathrm{e}}}{1+b{c}_{\mathrm{e}}} $$
(4)
where qe (mg g−1) and ce (mg L−1) are the amount adsorbed on the surface of unit mass of sorbent and the concentration of adsorbate in the solution at equilibrium respectively. Xm (mg g−1) is the maximal adsorption capacity, and b (L mg−1) is the empirical constant which gives the affinity of binding sites. The Langmuir expression can be given in the linearized form:
$$ \frac{1}{q_{\mathrm{e}}}=\frac{1}{X_{\mathrm{m}}b{c}_{\mathrm{e}}}+\frac{1}{X_{\mathrm{m}}} $$
(5)
The linear plots of 1/qe against 1/ce show the Langmuir adsorption isotherms of MB and aniline on the surface of synthesized sorbent (1:1:2) (Fig. 6a, b). The values of parameters Xm and b were calculated from slope and intercept of the straight line. The separation factor RL (dimensionless quantity) provides basic information about essential features of Langmuir adsorption isotherm. If 0 < RL < 1, it is considered as favorable adsorption; if RL > 1, it is considered as unfavorable adsorption; if RL = 0, it is considered as irreversible adsorption; if RL = 1, it is considered as linear adsorption (Zheng et al. 2008). The equation for RL is:
$$ {R}_{\mathrm{L}}=\frac{1}{1+b{c}_0} $$
(6)
Figure 6
Fig. 6

(a, b) Langmuir adsorption isotherms and (c, d) Freundlich adsorption isotherms for MB and aniline removal

where b (L/mg) is Langmuir constant and co (mg/L) is the initial concentration of adsorbate. The calculated Langmuir adsorption parameters are tabulated in Table 2. RL values indicate the favorable adsorption of MB and aniline on synthesized sorbent (1:1:2). Based on the value of correlation coefficient (R2), it was clear that the Langmuir model was well fitted to experimental data.
Table 2

Langmuir and Freundlich parameters

Isotherms

Xm(mg/g)

b (L/mg)

Kf(mg g1(L/mg)1/)

n

R L

R 2

Langmuir

 i. MB

500

1.7 × 10−3



0.59

0.98

 ii. aniline

52.63

0.0205



0.33

0.93

Freundlich

 i. MB



1.88

1.29



0.95

 ii. aniline



2.09

1.5



0.98

Freundlich model

Freundlich model assumes that adsorptions occur at heterogeneous binding sites and formation of multilayer takes place due to interactions among adsorbed molecules on the surface of adsorbent (Soon et al. 2016). The expression for Freundlich adsorption isotherm is as follows:
$$ {q}_{\mathrm{e}}={K}_{\mathrm{f}}{c}_{\mathrm{e}}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$n$}\right.} $$
(7)
where qe (mg g−1) and ce (mg L−1) are the amounts adsorbed on the surface of unit mass of sorbent and the concentration of adsorbate in the solution at equilibrium respectively. Kf (mg g−1(L mg−1)1/n) and n are Freundlich constants which indicate sorption capacity and favorability of adsorption respectively. Here, n value gives information about heterogeneity of binding sites, magnitude of driving force of adsorption. The values of n between 1 and 10 (1 < n < 10) indicate favorable adsorption (Vazquez et al. 2007). To calculate the values of Freundlich constants (Kf and n), the equation of linear form of Freundlich isotherm was taken as follows:
$$ \log {q}_{\mathrm{e}}=\log {K}_{\mathrm{f}}+\frac{1}{n}\log {c}_{\mathrm{e}} $$
(8)

The linear plots of log qe against log ce show the Freundlich adsorption isotherms of MB and aniline on the surface of synthesized sorbent (1:1:2) in Fig. 6c, d. Freundlich constants Kf and n were calculated from slope and intercept values of the straight line and all the parameters of Freundlich adsorption isotherm were summarized in Table 2. However, from all these parameters, it was concluded that the Langmuir adsorption model was well fitted than the Freundlich adsorption model to the adsorption of MB and aniline on the surface of sorbent (1:1:2) which confirms homogeneous and monolayer adsorption.

Adsorption kinetics

The experiments of adsorption kinetics of MB and aniline on the surface of sorbent (1:1:2) were carried out at room temperature and the data well fitted to the pseudo-second order kinetic model (Zheng et al. 2008; Simin et al. 2013) which can be expressed as:
$$ {q}_t=\frac{k_2t{q}_t^2}{1+{k}_2t{q}_e} $$
(9)
where q t (mg g−1) is the amount of adsorbate adsorbed at time t (min), qe (mg g−1) is the equilibrium adsorption capacity of sorbent, and k2 (g mg−1 min) is the second-order rate constant. To determine the values of k2 and qe from the linear form of pseudo-second order kinetic model was taken as:
$$ \frac{t}{q_t}=\frac{1}{k_2{q}_{\mathrm{e}}^2}+\frac{t}{q_{\mathrm{e}}} $$
(10)
The values of k2 and qe calculated from slope and intercept values of linear plot of t/q t against t (Fig. 7a, b) are summarized in Table 3.
Figure 7
Fig. 7

(a, b) Pseudo-second order kinetic model for MB and aniline adsorption on sorbent (1:1:2)

Table 3

Pseudo-second order parameters of adsorption data



qe (mg/g)

k2 (g mg−1 min)

R 2

MB

90.9

1 × 10−4

0.94

Aniline

5.05

0.076

0.98

Conclusions

In this paper, we report the green and novel synthesis of ZVIN by renewable and naturally occurring CG flower extract as both reducing and stabilizing agent. UV-vis absorption and FT-IR spectral data confirm that the polyphenols present in the flower extract are responsible for the formation of ZVIN. The crystallinity of as-synthesized ZVIN is confirmed by XRD analysis. The SEM images give the average size of synthesized ZVIN as 50–90 nm. We also report the preparation of low-cost, eco-friendly, and efficient sorbent using synthesized ZVIN, biomaterial, and chitosan for the abatement of aggregation of synthesized ZVIN. Here, the FT-IR analysis of synthesized sorbent reveals the immaculate support of biomaterial to ZVIN in the preparation of sorbent. The SEM analysis showed that ZVIN are well dispersed on the surface of the sorbent. ZVIN immobilized on biomaterial act as an efficient sorbent for the adsorption of water contaminants MB and aniline. Langmuir adsorption model was a well fit to the adsorption of MB and aniline on the surface of sorbent than the Freundlich model, and the adsorption process follows pseudo-second order kinetics.

Abbreviations

CG:

Calotropis gigantea

EDX:

Energy-dispersive X-ray spectroscopy

FTIR:

Fourier transform infrared

MB:

Methylene blue

SEM:

Scanning electron microscope

UV-vis:

Ultra-violet visible

XRD:

X-ray diffraction

ZVIN:

Zero-valent iron nanoparticles

Declarations

Acknowledgements

The authors are thankful to the Head of the Department of Chemistry, Osmania University, for providing necessary facilities.

Authors’ contributions

This work was designed by KS, DA, and PYS. The experimental work and analysis of the results were done by KS, DA, and PYS. This manuscript was written by KS, DA, and PYS. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Chemistry, University College of Science, Osmania University, Hyderabad, India
