Stability determination for cyclized 2,4-dinitrophenyl hydrazone derivative of glucose
© The Author(s). 2017
Received: 4 January 2017
Accepted: 4 April 2017
Published: 28 April 2017
The most well established tactic for the analysis of monosaccharaides, such as glucose, relies on derivatization procedures, using reagents as 2,4-dinitrophenylhydrazine (DNPH). Usually, the instability of the formed imine product deteriorates the detection of trace amounts of the sugar; rendering the spectrophotometric analysis of monosaccharaides extremely challenging.
In this study, we propose a modified derivatization procedure, reliant on the formation of a stable DNPH-glucose derivative, to aid in the spectrophotometric analysis of glucose. The derivatization procedure was customized to perform the product work-up step under acidic conditions.
The proton rich media resulted in direct reduction of the Schiff’s base with concomitant intramolecular rearrangement of the product to yield a stable cyclized DNPH-glucose derivative. The annealed structure of the titled compound was verified by 1NMR, 13C-NMR, HMBC and X-ray crystallography.
The derivative revealed extended stability in spiked plasma samples which suggests a potential to employ the described procedure for glucose analysis and detection in biological samples.
Keywords2,4-Dinitrophenyl hydrazine Glucose HPLC-UV NMR and X-ray
Monosaccharides are difficult to analyze because they have analogous physical and chemical characteristics (Medeiros and Simoneit 2007; Medlicott and Thompson 1985; Masuko et al. 2005). In addition, the lack of an appropriate chromophore makes the detection of monosaccharides via conventional UV-based instruments challenging (Dürr et al. 2004; Cheng and Her 2002). Several HPLC methods using various detection strategies were developed to assist the detection and analysis of monosaccharides (Castellari et al. 2000; Rogatsky et al. 2005). Nonetheless, low sensitivity and inapplicability to gradient elution hindered rapid and accurate determination of monosaccharides using these approaches (Ko et al. 2005).
Recently, the quantitative measurement of monosaccharide glucose has captured a tremendous consideration in clinical laboratories due to its association to diabetes (Clarke et al. 1987; Clarke et al. 2005). The current glucose quantitative tests are generally based on enzymatic reactions that utilize glucose as a substrate (Heinemann 2010). Although such tests provide numerical quantitation of glucose in biological fluids, several studies demonstrated their lack of selectivity due to interactions with endogenous and exogenous substances other than glucose (e.g., maltose, ascorbic acid, acetaminophen, and icodextrin) (Heinemann 2010; Schleis 2007). In addition, temperature, humidity, and hematocrit were all shown to interfere with the precision and reliability of the currently used tests (Heller and Feldman 2008); hence, the demand for a selective, and yet, sensitive analytical procedure for glucose detection and quantitation is clear.
Chemicals and reagents
D6-dimethyl sulfoxide 99.9% D, d4-methanol, (+)-glucose, and glacial acetic acid were purchased from Sigma-Aldrich (St. Louis USA). 2,4-Dinitrophenylhydrazine, from the Laboratory Rasayan s.d.fine-chem LTD (Mumbai), was used in the derivatization reaction. Acetaldehyde, from VWR international Ltd (England), was used as internal standard. Absolute ethanol and ethyl acetate 99.5%, purchased from Acros Organics (UK), was used in the product crystallization. Blank Plasma, used in the analysis, was donated from the University of Jordan Hospital. Methanol, analytical reagent grade, was purchased from lobachemie PVT. LTD (India), whereas HPLC-grade acetonitrile was purchased from the Anhui Fulltime specialized solvents & reagents Co, LTD (China).
Chromatographic analysis was fulfilled by using Shimadzu (Tokyo, Japan) HPLC system, model LC-20AT, with UV-detector SPD-20A, and equipped with LC-20AT pump. The volume of the injector loop was 20 μl. Chromatographic separation was achieved by using C18, Thermo Hypersil-Keystone column, and mobile phase of acetonitrile and distilled water containing 10% glacial acetic acid (75: 25). The mobile phase flow rate was maintained at 0.2 ml/min during the run time. The wavelength of detection was set at 350 nm during the analysis.
Nuclear magnetic resonance instrument
One-dimensional and two-dimensional nuclear magnetic resonance spectra were recorded on Bruker Avance III NMR spectrometer (1H 500.13 MHz, 13C 125.76 MHz) controlled by Topspin 3.1 software. Samples of 20 mg were dissolved in d4-methanol prior the analysis. Four transients of pulse sequence Zg30 were used to acquire 1H spectra, 99 transients of Zgpg30 were used for acquiring 13C data, and acquiring of heteronuclear multiple bond correlation (HMBC) was achieved. Temperature of the probe was maintained at 27 °C during the data acquisition. Chemical shifts were reported in parts per million related to tetramethylsilane (TMS) as internal standard. 1H-NMR of the product dissolved in d6-DMS was carried out by using NMR of Varian Oxford-300 (300 MHz) spectrometer.
Data of nuclear magnetic resonance spectra for the DNPH-glucose
1H-NMR 500 MHz; MeOD: δ 3.27 ppm (t, J = 8.9 Hz, 1H, H3), δ 3.32 ppm (m, 2H, H5 and 6), δ 3.42 ppm (t, J = 8.8 Hz, 1H, H4), δ 3.72 ppm (dd, J = 16.3, 5.5 Hz, 1H, H7a), δ 3.93 ppm (d, J = 11.55 Hz, 1H, H7b), δ 4.07 ppm (d, J = 8.9 Hz, 1H, H2), δ 8.05 ppm (d, J = 9.65 Hz, 1H, H6'), δ 8.29 ppm (dd, J = 9.65, 2.45 Hz, 1H, H5'), and δ 9.01 ppm (d, J = 2.45 Hz, 1H, H3'). Additional peaks (for exchangeable protons) appeared by dissolving the product in DMSO: δ 3.12 ppm (bs, 3H at O3, 4 and 5), δ 6.23 ppm (d, J = 8.3 Hz, 1H at O2), δ 9.35 ppm (bs, 1H at N1), and δ 9.65 ppm (s, 1H at N2).
13C-NMR 125 MHz, MeOD: (δ 61.37 ppm, C7), (δ 70.13 ppm, C6), (δ 71.34 ppm, C3), (δ 77.56 ppm, C5), (δ 77.64 ppm, C4), (δ 90.55 ppm, C2), (δ 116.38 ppm, C6'), (δ 122.71 ppm, C3'), (δ 129.14 ppm, C5'), (δ 129.21 ppm, C2'), (δ 136.51 ppm, C4'), and (δ 149.89 ppm, C1').
X-ray single crystal structure determination
A suitable yellow needle crystal with approximate dimensions 0.4627 × 0.0408 × 0.018 mm3 was Epoxy mounted on a glass fiber and the data collected at room temperature employing enhanced Cu radiation, λ = 1.54184 Å and using Xcalibur/Oxford Diffractometer equipped with Eos CCD detector (Schleis 2007). CrysAlis Pro software was used for data collection, absorption correction, and data reduction (Schleis 2007): 3 ω scan runs, 528 frames collected after optimization, exposure time 2–30 s, 1° frame width, 45-mm detector distance. Experimental absorption correction type is “multi-scan” with empirical absorption correction using spherical harmonics, implemented in SCALE3 ABSPACK scaling algorithm (Nowell et al. 2012) which was employed with min and max transmission factors of 0.946 and 0.980, respectively (Additional file 1).
Cell parameters were retrieved using all observed reflections. The structure was originally solved using Olex2 (Dolomanov et al. 2009) as P21 by direct methods and refined by least squares on F 2 to R 1 = 0.0781 [I ≥ 2σ(I)] with θ = 3.25 to 66.58°. Subsequent re-solution and refinement was done using SHELXTL program package (Xu et al. 2010) which reduced R 1 = 0.0703 with θ full 66.58° and diffraction measurement fraction θmax = 0.982. Goodness-of-fit on F 2 = 1.061. All nonhydrogen atoms were refined anisotropically with the hydrogen atoms placed constrained and assigned isotropic thermal parameters of 1.2 times that of the riding atoms. Largest diff. peak and hole were 0.465 and−0.450 e Å−3.
The final product was prepared by dissolving a gram of glucose in a mixture of acetic acid (3 ml), water (2 ml), and methanol (50 ml). Afterwards, an equimolar amount of 2,4-dnitrophenylhydrazine (1.2 g) was added to the reaction vessel and the mixture was refluxed for an hour. The vessel content was cooled and then poured onto acidified water (200 ml). Subsequently, the product was extracted three times by 10% ethanol in ethyl acetate (100 ml each) and dried by using anhydrous sodium sulfate. The organic layer was filtered and contracted by removing more than two-thirds of the ethyl acetate content with aid of Rotavapor (60 °C). The concentrated solution was left for 24 h to gradually precipitate, and product crystals were then filtered by a suction filter and allowed to stand to be completely dried over the bench. Retention factor (R.f) value was determined on TLC using solvent system of chloroform and methanol (8:2). The R.f value of resultant product was 0.48 compared with 0.88 of 2,4-dinitrophenyl hydrazine reactant. The melting point of product was 116–122° which agrees with the reported melting point of 118–122° (Gerees et al. 1962; Glaser and Zuckermann 1927). Solutions of 20 mg% were prepared from the product crystals in plasma (pH = 7.3), basic (0.1 M NaOH, pH = 13), acidic (0.1 M HCL, pH = 1), and neutral media (water). Samples of 1 ml were withdrawn from each solution each day and up to 10 days to study the stability of the product. Each sample was diluted five times with mobile phase prior to HPLC injection. The structure details of the product were characterized by NMR (1D and 2D) and X-ray analysis.
The derivatization procedure, used for the analysis of sugar content in plasma samples via HPLC, was fulfilled by mixing plasma (50 μl) with the same volume of acetaldehyde solution (25% w/w) as internal standard. The contents were placed into an Eppendorf tube containing 1 ml methanol and then vortex mixed and centrifuged. The liquor was mixed with 1 ml of 2,4-dinitrophenylhydrazine solution (11%) dissolved in acetic acid: methanol (15:100). Subsequently, the sample was heated on a hotplate at 70° for an hour. After cooling and filtration, 20 μl of the sample was injected in HPLC instrument. The procedure was done in triplicate. The glucose solution (100 mg%) was used as the standard and treated in the same manner as the sample.
Results and discussion
Interpretation of 1H-NMR of the DNPH-glucose

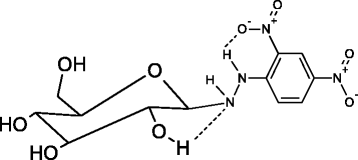

Remarkably, the stability of the product is thought to be related to the imine reduction during the work-up of the reaction under acidic conditions, as depicted in Fig. 3. The reduction of imine bond was established by the appearance of broad singlet peak at 9.35 ppm with integration of a single proton. Peak broadness is suggested to result from the free bond rotation that permits the formation of different sorts of hydrogen bonds and, hence the observed peak broadening, or it might be due to coupling to N dipole. Interestingly, 1H-NMR spectrum in aprotic solvent (DMSO) showed a peak of hydroxyl hydrogen at O2 with a strong coupling to H3 (8.3 Hz), which confirms the rigidity of hydroxyl proton. This might be attributed to its hydrogen bonding with N1. This is also confirmed by the deshielded effect on O2 hydrogen (6.23 ppm) in comparison with other hydroxyl hydrogens. Moreover, hydrogen on nitrogen (2) appears as the most deshielded peak with a sharp character due to a strong single type of hydrogen bonding with oxygen (6), as depicted in Fig. 4. Noteworthy, the chromophoric part of the structure (2,4-dinitrophenyl) remained stable during the reaction as the nitro groups were not reduced to amino groups. The lack of a signal at the aniline region in 1H-NMR of the titled compound, dissolved in DMSO, confirms the stability of nitro groups. Additionally, H3', characterized by its meta-coupling (2.45 Hz), appears as the most deshielded proton in 1H-NMR/MeOD. This cannot be obtained if the nitro group is reduced because amine is an electron-donating group by resonance effect whereas nitro is an electron withdrawing by resonance and inductive effects.
Interpretation of 13C-NMR and HMBC of the DNPH-glucose
X-ray single crystal structure of DNPH-glucose
HPLC method for evaluating stability of DNPH-glucose
where C is the concentration of remained product in the sample at each time point in mg% unit and C o stands for the initial concentration of the product in the sample (mg%), whereas t stands for the reaction time in hours.

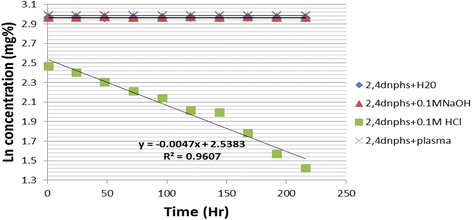

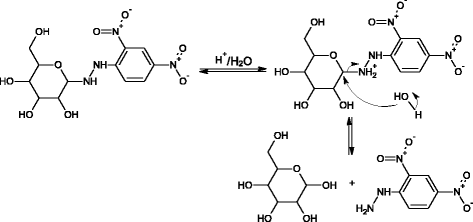

The degradation kinetic of the product under acidic media follows typical first-order reaction kinetics as illustrated in (Fig. 10). Breakup of Schiff base is catalyzed by the presence of an acid and water. This occurs by acidic protonation of imine nitrogen, thus, making nearby carbon suitable for nucleophilic attack. Consequently, water molecule attacks imine carbon followed by proton transfer and elimination of amine (hydrazine) molecule. According to our results, the degradation rate of the derivatized sugar is 0.0047 h−1. i.e., just 1% of the product will be lost after each hour in acidic medium.
The structure of DNPH-glucose was verified with NMR and X-ray crystallography. NMR analysis of the DNPH-glucose derivative confirms its cyclic sugar structure through the observed restriction of rotation for the methylene hydrogens. Besides, strong axial-axial coupling of the sugar hydrogens further fortifies the established cyclic structure of the sugar moiety. In addition, the X-ray structure of the DNPH-glucose derivative falls in good agreement with its NMR analysis in confirming the imine bond reduction and the formation of a stable hydrazine that is engaged in hydrogen bonds formation with the hydroxyl groups of the sugar. An extended stability of the DNPH-glucose derivative in spiked plasma samples was verified via the employed HPLC-UV method. The observed stability of the glucose derivative in the plasma keenly suggests a prospect for the described derivatization procedure to be employed in the spectrophotometric glucose analysis and detection in biological samples.
MA provided guidance, collected, and reviewed the literature and drafted the manuscript. SA performed experimental analytical work and helped in drafting the manuscript. SKB improved the quality of the manuscript. RA interpreted the X-ray data. YMA provided the synthesis chemistry work and helped in designing the manuscript. All authors read and approved final manuscript.
We wish to thank The University of Jordan represented by the Deanship of Academic Research for supporting and funding the project.
