Trace element analysis of whole-rock glass beads of geological reference materials by Nd:YAG UV 213 nm LA-ICP-MS



A trace element composition of rock samples is difficult to determine when they contain refractory minerals that are hardly dissolved with conventional acid digestion techniques. Fused glass beads of rock samples could be an adequate target to circumvent this problem. We here report inductively coupled plasma-mass spectrometry (ICP-MS) results for geological reference materials (GRMs) prepared to normal- (sample/flux = 1:5) and low-dilution (sample/flux = 1:2) glass beads by using Nd:YAG UV 213-nm laser ablation system.


Concentrations of 24 trace elements (Ba, Hf, Nb, Rb, Sr, Ta, Th, U, Y, Zr, and 14 rare earth elements (REEs)) were analyzed for three USGS GRMs (G-3 granite, AGV-2 andesite, and BHVO-2 basalt). Each analysis for the GRM beads was performed as spot (ca. 55 μm diameter) analysis with 120-s ablation time. The depth-to-diameter ratio of the laser spot was low (<4) enough to prevent significant elemental fractionation. The NIST612 glass and 29Si were employed as the external standard and the internal standard element, respectively. When the middle half of time-integrated data was taken to minimize the fractionation effect, the low-dilution fused glasses yielded reproducible and accurate results for all analyzed elements. In the case of normal-dilution fused glasses, comparable precision and accuracy were obtained only for elements with concentrations higher than 1 μg g−1, likely resulting from higher dilution ratios.


Low-dilution glass beads can be an adequate target to analyze trace element composition of rock samples by using the laser ablation ICP-MS. This simple and rapid technique can be applied directly to the same glass beads prepared for major elemental analysis using the XRF.


Trace element data provide an efficient tool to investigate various geologic issues such as the petrogenesis and geotectonic discrimination of igneous rocks (e.g., Rollinson 1993). Inductively coupled plasma-mass spectrometry (ICP-MS) is the most widely accepted analytical technique for rock samples due to its low detection limit and high sample throughput. However, the application of this method requires complete dissolution of rock samples, which is difficult for samples containing refractory minerals that are commonly enriched in Zr, Hf, and rare earth elements (REEs). It is well known that open acid and microwave-assisted digestion methods can not completely dissolve the refractory minerals (Hall and Plant 1992, Totland et al. 1992, 1995, Wu et al. 1996, Fan and Kerrich 1997, Yu et al. 2001, Navarro et al. 2008). Fused glass beads can be an adequate target to overcome this problem (Park et al. 2013 and references therein).

Laser ablation ICP-MS (LA-ICP-MS) has been adopted as a rapid and simple technique for the microanalysis of trace elements (Jackson et al. 1992, Norman et al. 1996, 1998, Horn et al. 1997). The first generation of a widely used laser ablation (i.e., Nd:YAG 266 nm), however, yielded relatively low precision and accuracy (±20 to 30 % errors) on geological samples for both normal- (sample/flux = ca. 1:5) and lower dilution glass beads (Lahaye et al. 1997, Taylor et al. 1997, Norman et al. 1998, Chen et al. 2000, Orihashi and Hirata 2003, Kurosawa et al. 2006). In this note, we adopted Nd:YAG UV 213 nm LA-ICP-MS to determine trace element concentrations of glass beads prepared from a series of geological reference materials (GRMs).

Experimental procedures

All experimental works, including sample preparation and instrumental analysis, were performed at the Korea Basic Science Institute in Ochang.

Samples and sample preparation

The samples analyzed in this study were fused glass beads prepared from igneous silicate rock reference powders provided by the USGS; AGV-2 (andesite), BHVO-2 (basalt), and G-3 (granite). The rock powders were dried overnight at 105 °C and oxidized in an electric muffle furnace at 950 °C for 30 min with a mixed fusion flux consisting of pure-grade (>99.98 %) lithium metaborate (LiBO2) and lithium tetraborate (Li2B4O7) (Claisse, mixing proportion = 65 : 35 %, melting point = 825 °C). The normal-dilution glass beads were prepared by mixing 1.2 g of sample powder with 6.0 g of fusion flux. To prepare the low-dilution glass beads, 2.5 g of sample were mixed with 5.0 g of flux. The sample and flux mixtures were made into glass beads using a furnace-type automatic fusion machine (Katanax K2) at 1020 °C for 10 min. The cooled low-dilution beads were ground in an alumina ball mill and fused again for 10 min to secure the homogeneity of the sample matrices.

Instrumental analysis

The ICP-MS instrument used in this study was an X series 2 quadrupole ICP-MS from Thermo Elemental. The ICP-MS instrument was coupled to a frequency quintuple Nd:YAG UV 213 nm laser. A total of 24 trace elements (Ba, Hf, Nb, Rb, Sr, Ta, Th, U, Y, Zr, and 14 REEs) were analyzed for this study. Laser ablation parameters were as follows: spot diameter, 55 μm; dwell time, 30 ms; pulse energy, 0.54 mJ; and pulse repetition, 10 Hz. One analysis consists of pre-ablation (30 s) for instrumental background, ablation and data reduction (120 s), and wash out (30 s), leading to complete analysis within approximately 3 min. Data reduction was performed using the Glitter software. The NIST612 glass reference material was also analyzed as an external standard.

Table 1 presents trace element composition of the flux by using solution-ICP-MS. Measurable values (>0.1 μg g−1) were detected for six elements. Final concentrations were acquired by subtracting the background values of the flux from the calculated values by the Glitter software.

Table 1 Trace element composition of the flux (μg g−1)

LA-ICP-MS analysis with an area of a micrometer scale may cause a problem with the homogeneity of the glass beads. To check this problem, a total of 10 spot analyses were performed with 500-μm intervals. Operating conditions and instrumental parameters are summarized in Table 2.

Table 2 LA-ICP-MS operating conditions

Results and discussion

Oxide interference

It is well known that oxide interference (e.g., BaO+, LaO+, CeO+, etc.) can cause large analytical errors on middle to heavy REEs in the solution-ICP-MS technique. However, in the case of laser ablation mode, the efficiency of oxide formation is generally one tenth that of conventional solution nebulization. Monitoring the ThO+/Th+ ratio is useful for checking the oxide interference because there is no naturally occurring isotope at the ThO+ mass (248), and the Th–O bond is among the strongest known for oxides (Hu et al. 2008). In this study, the ThO+/Th+ ratio on the NIST612 standard could be controlled below 1 % during the analyses, and thus, the oxide interference was negligible.

Elemental fractionation

For LA-ICP-MS, constant and homogeneous ablation and aerosol transport is essentially required to obtain high precision on elemental concentrations. Although the 266 nm laser is known to reduce fractionation compared with an infrared laser (1064 nm wavelength), the fractionation still remained considerable compared with shorter-wavelength laser systems (Gonzalez et al. 2002, Jochum et al. 2007). Relatively large analytical errors (more than 20 %) reported from a UV 266 nm laser could be attributed mainly to elemental fractionation during laser ablation and to contamination or loss of elements during glass preparation (Norman et al. 1998).

We examined the capability of Nd:YAG UV 213 nm laser to overcome the elemental fractionation. For accurate quantitative analysis, the elemental ratios should be stable over the entire reduction period. This stability was checked using the 238U/232Th ratio in the NIST612 glass. Because the first ionization potentials of U and Th are similar to each other, this isotope ratio should approach to the U/Th ratio of NIST612 (=ca. 1; Guillong et al. 2003). The 238U/232Th, and some other geochemically important elemental ratios such as 139La/172Yb, 93Nb/89Y, 85Rb/89Y, 90Zr/178Hf, and 90Zr/89Y of NIST612 are listed in Table 3. As shown in Fig. 1, relative standard deviations (RSDs) of these ratios were comparatively high during the transient signal interval (the first 30 s), and then the signals became stable. We therefore set the reduction interval for a total of 60 s from 30 to 90 s after ablation to minimize the fractionation effect.

Table 3 Some elemental ratios for NIST 612 glass
Fig. 1
figure 1

238U/232Th, 139La/172Yb, 93Nb/89Y, 85Rb/89Y, 90Zr/178Hf, and 90Zr/89Y ratios acquired during the ablation of NIST612

The depth-to-diameter ratio of the laser spot is also an important parameter governing elemental fractionation (Eggins et al. 1998; Mank and Mason, 1999; Borisov et al. 2000; Horn et al. 2000). Mank and Mason (1999) showed that elemental fractionation becomes significant for some elements when the depth/diameter ratio of the ablation pit is higher than six, which corresponds to a 50 % reduction in analyte response. For the BHVO-2 bead, we confirmed that the depth of laser pit was ca. 220 μm after the total ablation time (120 s). The spot depth to the end of data reduction (90 s) was ca. 165 μm, corresponding to a depth/diameter ratio of ca. 3. Such a low depth/diameter ratio suggests that significant elemental fractionation may not occur during the laser ablation.

Elemental fractionation was calculated by dividing the reduction interval across the time-resolved signal into two equal parts. The difference between independently calculated concentrations for each part (\( {\mathrm{conc}}_1 \) and \( {\mathrm{conc}}_2 \)) was compared with the results obtained using the entire signal (\( {\mathrm{conc}}_{\mathrm{total}} \)):

$$ \mathrm{Fractionation}\ \left(\%\right) = \left(\left({\mathrm{conc}}_1 - {\mathrm{conc}}_2\right)/{\mathrm{conc}}_{\mathrm{total}}\right)\times 100 $$

Assuming that no significant fractionation occurred for a sample run, 99 % of data will plot below three (3 sigma). Figure 2 shows that our results meet this criteria for all analytes in the GRM beads.

Fig. 2
figure 2

Calculated fractionation of elements from the GRM beads. LD low-dilution glass bead; ND normal-dilution glass bead

Precision and accuracy

When the reduction interval is set for the middle half (60 s) of the total integration and the NIST612 glass and 29Si are respectively used as the external standard and the internal standard element, the GRM beads yield trace element compositions listed in Table 4. The NIST612 glass was analyzed in triplicate for each sample analysis to calibrate the variation in signal intensity over time. We employed Si instead of Ca, considering the relatively low concentrations of Ca (<10 %) in the GRMs analyzed here. Table 4 also presents recommended trace element compositions of the GRMs. The minimum detection limits (MDL) at the 99 % confidence level were calculated based on Poisson counting statistics.

Table 4 Mean results ± standard deviation and reference values (μg g−1)
$$ \mathrm{M}\mathrm{D}\mathrm{L} = 2.3\ *\ {(2B)}^{0.5} $$

where B is the total counts in the background interval. Table 5 shows MDL of our LA-ICP-MS analysis.

Table 5 Selected mass number and minimum detection limits (MDL, 99 % confidence)

As listed in Table 6 and graphically displayed in Fig. 3, the RSDs (1 s) for counts per second (cps) normalized to Si were within ± 10 % (mean), and no marked chemical heterogeneity of the matrix composition was observed in low-dilution glass beads. However, in the case of normal-dilution glass beads, a large scatter was shown for AGV-2 and G-3. Such a large scatter (11.6–27.4 % RSD) at less than 50 cps could be ascribed to low elemental concentrations, rather than to real inhomogeneity.

Table 6 Relative standard deviation (RSD) of Si normalized mean cps

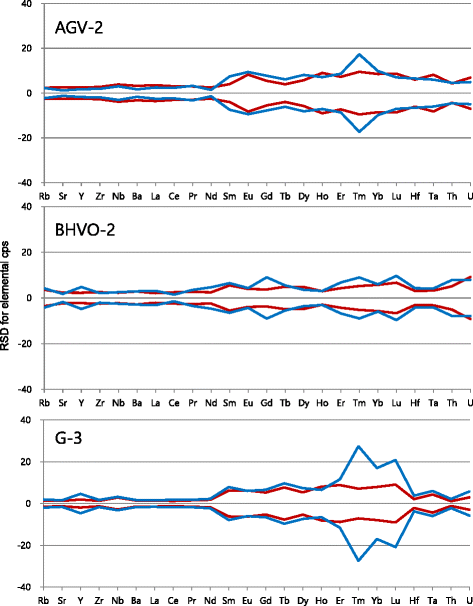

Fig. 3
figure 3

Relative standard deviations (1 s) for counts per second (cps) normalized to 29Si. Red lines, data from low-dilution glass beads; blue lines, data from normal-dilution glass beads

The precision of 10 replicate analyses for the low-dilution glass beads was acceptable, with the RSDs for most elements being <10 %. The mean RSD values were 1.2–8.6 % at concentrations above 1 μg g−1 and 4.4–9.6 % at concentrations below 1 μg g−1. On the other hand, the mean RSD values for the normal-dilution glass beads were 1.0–13.5 and 5.4–20.7 % at concentrations above and below 1 μg g−1, respectively. The large deviations (10.0–20.7 % RSD) observed for heavy REEs in a normal-dilution glass bead of G-3 might be due to their low concentrations resulting from high dilution ratio.

The recoveries and accuracy were assessed by comparing our results with recommended values provided by the supplier and/or literature data. Granite G-3 is the successor of G-2, one of the best analyzed reference materials, but they differ significantly in the content of most elements (Meisel et al. 2002). Our results for G-3 were compared with ICP-MS data reported using low-dilution glass bead digestion (Park et al. 2013). BHVO-2 data were compared with previous results by high-pressure bomb digestion (Cotta and Enzweiler 2012), and AGV-2 results were compared with the USGS recommended values. As shown in Fig. 4, our data for low-dilution glass beads were in good agreement with the recommended values for most elements but showed a slight deviation for Rb in BHVO-2 and Y in G-3. In the case of normal-dilution glass beads, the results for Lu in BHVO-2 and Y and Yb in G-3 were not consistent with the reference values. Overall accuracy is clearly better in the low-dilution glass beads.

Fig. 4
figure 4

Analytical results normalized to average recommended value. The error bar for each measured result represents one standard deviation. Dashed lines correspond to one standard deviation of reference values. Symbols: closed circles, data from low-dilution glass beads; open circles, data from normal-dilution glass beads


In this study, we optimized experimental conditions for minimizing elemental fractionation using a UV 213 nm LA-ICP-MS and obtained improved results compared to previous reports using the longer wavelength lasers. Our trace element data for a series of GRMs show good agreement with reference values, mostly within 10 % relative uncertainty. We confirm that the low-dilution glass bead is a proper target material for trace element analysis of rock samples using the laser ablation technique. It is noted that this technique can be applied directly to the same glass beads prepared for the XRF analysis.


  • Borisov OV, Mao X, Russo RE. Effects of crater development on fractionation and signal intensity during laser ablation inductively coupled plasma mass spectrometry. Spectrochim Acta B. 2000;55:1693–704.

    Article  Google Scholar

  • Chen Z, Canil D, Longerich HP. Automated in situ trace element analysis of silicate materials by laser ablation-inductively coupled plasma mass spectrometry. Fresenius J Anal Chem. 2000;368:73–8.

    CAS  Article  Google Scholar

  • Cotta AJB, Enzweiler J. Classical and new procedures of whole rock dissolution for trace element determination by ICP-MS. Geostand Geoanal Res. 2012;36:27–50.

    CAS  Article  Google Scholar

  • Eggins SM, Kinsley LPJ, Shelley JM. Deposition and element fractionation processes during atmospheric pressure laser sampling for analysis by ICP-MS. Appl Surf Sci. 1998;127:278–86.

    Article  Google Scholar

  • Fan J, Kerrich R. Geochemical characteristics of aluminium depleted and undepleted komatiites and HREE-enriched low-Ti tholeiites, western Abitibi greenstone belt: a heterogeneous mantle plume-convergent margin environment. Geochim Cosmochim Acta. 1997;61:4723–44.

    CAS  Article  Google Scholar

  • Gonzalez J, Mao XL, Roy J, Mao SS, Russo RE. Comparison of 193, 213 and 266 nm laser ablation ICP-MS. J Anal At Spectrom. 2002;17:1108–13.

    CAS  Article  Google Scholar

  • Guillong M, Horn I, Gunther D. A comparison of 266 nm, 213 nm and 193 nm produced from a single solid state Nd:YAG laser for laser ablation ICP-MS. J Anal At Spectrom. 2003;18:1224–30.

    CAS  Article  Google Scholar

  • Hall GEM, Plant JA. Analytical errors in the determination of high field-strength elements and their implications in tectonic interpretation studies. Chem Geol. 1992;95:141–56.

    CAS  Article  Google Scholar

  • Horn I, Hinton RW, Jackson SE, Longerich HP. Ultra-trace element analysis of NIST SRM 616 and 614 using laser-ablation microprobe-inductively coupled plasma- mass spectrometry (LAM-ICP-MS): a comparison with secondary ion mass spectrometry (SIMS). Geostandards Newsletter J Geostand Geoanal. 1997;21:191–203.

    CAS  Article  Google Scholar

  • Horn I, Rudnick RL, McDonough WF. Precise elemental and isotope ratio determination by simultaneous solution nebulization and laser ablation-ICP-MS: application to U–Pb geochronology. Chem Geol. 2000;164:281–301.

    CAS  Article  Google Scholar

  • Hu Z, Gao S, Liu Y, Hu S, Chen H, Yuan H. Signal enhancement in laser ablation ICP-MS by addition of nitrogen in the central channel gas. J Anal At Spectrom. 2008;23:1093–101.

    CAS  Article  Google Scholar

  • Jackson SE, Longerich HP, Dunning GR, Fryer BJ. The application of laser ablation microprobe-inductively coupled plasma-mass spectrometry (LAM-ICP-MS) to in situ trace element determinations in minerals. Can Mineral. 1992;30:1049–64.

    CAS  Google Scholar

  • Jochum KP, Stoll B, Herwig K, Willbold M. Validation of LA-ICP-MS trace element analysis of geological glasses using a new solid-state 193 nm Nd:YAG laser and matrix-matched calibration. J Anal At Spectrom. 2007;22:112–21.

    CAS  Article  Google Scholar

  • Kurosawa M, Shima K, Ishii S, Sasa K. Trace element analysis of fused whole-rock glasses by laser ablation-ICP-MS and PIXE. Geostand Geoanal Res. 2006;30:17–30.

    CAS  Article  Google Scholar

  • Lahaye Y, Lambert D, Walters S. Ultraviolet laser sampling and high resolution inductively coupled plasma-mass spectrometry of NIST and BCR-2G glass reference materials. Geostandard Newslett. 1997;21:205–14.

    CAS  Article  Google Scholar

  • Mank ARJ, Mason PRD. A critical assessment of laser ablation ICP-MS as an analytical tool for depth analysis in silica-based glass samples. J Anal At Spectrom. 1999;14:1143–53.

    CAS  Article  Google Scholar

  • Meisel T, Schoner N, Paliulionyte V, Kahr E. Determination of rare earth elements, Y, Th, Zr, Hf, Nb and Ta in geological reference materials G-2, G-3, SCo-1 and WGB-1 by sodium peroxide sintering and inductively coupled plasma-mass spectrometry. Geostandards Newslett. 2002;26:53–61.

    CAS  Article  Google Scholar

  • Navarro MS, Andrade S, Ulbrich H, Gomes CB, Girardi VAV. The direct determination of rare earth elements in basaltic and related rocks using ICP-MS: testing the efficiency of microwave oven sample decomposition procedures. Geostand Geoanal Res. 2008;32:167–80.

    CAS  Article  Google Scholar

  • Norman MD, Pearson NJ, Sharma A, Griffin WL. Quantitative analysis of trace elements in geological materials by laser ablation ICPMS: instrumental operating conditions and calibration values of NIST glasses. Geostandard Newslett. 1996;20:247–61.

    CAS  Article  Google Scholar

  • Norman MD, Griffin WL, Pearson NJ, Garcia MO, O’Reilly SY. Quantitative analysis of trace element abundances in glasses and minerals: a comparison of laser ablation inductively coupled plasma-mass spectrometry, solution inductively coupled plasma-mass spectrometry, proton microprobe and electron microprobe data. J Anal At Spectrom. 1998;13:477–82.

    CAS  Article  Google Scholar

  • Orihashi Y, Hirata T. Rapid quantitative analysis of Y and REE abundances in XRF glass bead for selected GSJ reference rock standards using Nd-YAG 266 nm UV laser ablation ICP-MS. Geochemical J. 2003;37:401–12.

    CAS  Article  Google Scholar

  • Park CS, Shin HS, Oh H, Moon JH, Cho H, Cheong C. Determination of trace elements in geological reference materials G-3, GSP-2 and SGD-1a by low-dilution glass bead digestion and ICP-MS. Geostand Geoanal Res. 2013;37:361–8.

    CAS  Article  Google Scholar

  • Rollinson H. Using geochemical data. Singapore: Longman Scientific and Technical; 1993.

    Google Scholar

  • Taylor RP, Jackson SE, Webster JL, Longerich HP. In situ trace-element analysis of individual silicate melt inclusions by laser ablation microprobe-inductively coupled plasma-mass spectrometry (LAM-ICP-MS). Geochim Cosmochim Acta. 1997;61:2559–67.

    CAS  Article  Google Scholar

  • Totland M, Jarvis I, Jarvis KE. An assessment of dissolution techniques for the analysis of geological samples by plasma spectrometry. Chem Geol. 1992;95:35–62.

    CAS  Article  Google Scholar

  • Totland M, Jarvis I, Jarvis KE. Microwave digestion and alkali fusion procedures for the determination of the platinum-group elements and gold in geological materials by ICP-MS. Chem Geol. 1995;124:21–36.

    CAS  Article  Google Scholar

  • Wu S, Zhao YH, Feng XB, Wittmeier A. Application of inductively coupled plasma-mass spectrometry for total metal determination in silicon-containing solid samples using the microwave-assisted nitric acidhydrogen peroxide-boric acid digestion system. J Anal At Spectrom. 1996;11:287–96.

    CAS  Article  Google Scholar

  • Yu Z, Robinson P, McGoldrick P. An evaluation of methods for the chemical decomposition of geological materials for trace element determination using ICP-MS. Geostandard Newslett. 2001;25:199–217.

    CAS  Article  Google Scholar
