Electrochemical performance of zirconia/graphene oxide nanocomposites cathode designed for high power density supercapacitor



Carbon-based metal oxide nanocomposites are always been the prime material for study in the field of energy storage due to their rich abundance, low toxicity, high surface area, electrical conductivity and diverse oxidation states.


In this direction, novel zirconia/graphene oxide (ZrO2/GO) nanocomposites are fabricated on the surface of 316 stainless steel for studying their specific capacitance and power performance. ZrO2 and GO in varying mass ratio (1:1, 1:2, and 2:1) were used to fabricate the electroactive material. The physical interaction between the two was determined by Fourier transform-infrared, X-ray diffraction and scanning electron microscopy. TG-DTA-DG informs about the exhibited thermal property by the variants. The cyclic voltammetry was done to study the specific capacitance of the electroactive materials with reference to Ag/AgCl at scan rate (V/s) ranging 0.15–0.001 in 1.0 M KOH. The specific capacitance of ZrO2 was found to be 17.13 Fg−1 at 0.001 Vs−1. The representative (nanocomposite) NC-II shows the maximum specific capacitance of 299.26 Fg−1 at similar rate of scan with power density of 59.40 W/kg.


The nanocomposites show comparable level of charge-discharge behavior with long-term cycleability, suggesting that fabricated ZrO2/GO nanocomposite electrodes are promising candidate for the high-performance energy storage devices.

Decomposition of electroactive material and electrochemical setup


Metal oxides depending upon their structural, geometries, and electronic structure play a very significant role in areas of chemistry, physics, biology and material sciences (Marcos and Rodriguez 2007; Graves 2014). Technical applications of these metal oxides involve the fabrication of electronic circuits, sensors, optical devices, piezoelectric devices, fuel cells, corrosion less surfaces coatings and catalysis, etc. (Sahu and Rao 2000; Wang et al. 2010; Ye et al. 2013; Lee et al. 2010; Mugniery et al. 1999). The proliferation of personal electronics and commercialization of electric and hybrid electric vehicles have popularized the needs for rechargeable and portable power sources and thus had increase the exploration of metal oxide in this direction. Supercapacitors in 21st era had attracted intense research interest as an auxiliary and clean source of power and energy. Due to their low molecular weight and their favorable electrochemical and solid‐state properties, first and second row transition metal oxides seem to be especially attractive as cathode materials in electrochemical energy storage systems. In this perspective, many transition metal oxides alone and with nanostructured carboneous filler had got special attention due to their low price, rich abundance, low toxicity, and diverse oxidation states (Wu et al. 2012; Lee et al. 2011; Zhao et al. 2013; Mai et al. 2014; Chen et al. 2012). In this exploration, a large number of metal oxide-graphene oxide combinations are synthesized to study the supercapacitive behavior (Wu et al. 2012; Lee et al. 2011; Wu et al. 2012). The electronic properties of the metal oxide are effected by particle size of material, the quantum size or confinement effects are produced in nanostructured materials which essentially arise from the presence of discrete, atom-like electronic states (Marcos and Rodriguez 2007), and also nanosized material is observed to have small band gap in its lattice. Thus, metal oxide nanoparticles can exhibit unique physical and chemical properties due to their limited size and a high density of corner or edge surface sites. Apart from this, metal oxide materials exhibit ionic or mixed ionic/electronic conductivity and are influenced by the nanostructure of the material (Tuller 2000).

Nano-phase zirconia (ZrO2) is a widely used heterogeneous catalyst and is an n-type semiconductor with band-gap energy of 5.0 eV (Pouretedal and Hosseini 2010). Zirconium oxide (ZrO2) is a smart material being studied for various applications such as oxygen sensor, solid state electrolytes for fuel cell, and gradient refractive index lenses due to its excellent mechanical, thermal, optical, and electrical characteristics (Pouretedal and Hosseini 2010; Liu et al. 2013). Studies on depositing ZrO2 onto carbon nanotubes (CNTs) (Lu et al. 2008; Shan and Gao 2005; Song et al. 2009; Guo et al. 2009), graphene (Wu et al. 2012, Liu et al. 2013), etc. for fuel cells and transistors as advanced gate dielectrics (Javey et al. 2002) had placed it in the row of promising candidate for high-power energy storage material.

Since its discovery, graphene oxide and graphene have become the key star in research associated with energy production and energy storage because of their sp2 carbon nanoform arrangement in 2D network with remarkable electronic, mechanical properties, and high morphological anisotropy (Stoller et al. 2008; Kim et al. 2009; Yoo et al. 2011; Tian et al. 2012, Yee et al. 2011). Graphene oxide (GO) provided large accessible surface area for effective transportation of ions onto the material surface, thus accomplishing high electric-double-layer capacitance in aqueous electrolytes (Yang et al. 2011). Nanostructured metal oxides can effectually prevent the Van der Waals-induced agglomeration of GO, resulting large accessible electrochemical active surface area for energy storage. Size and morphology affect the performance of metal oxides used as electrode materials. Designing nanostructured semiconducting metal oxide materials with graphene family has been the key to success in developing large-specific capacitive energy storage devices.

Studies based on I/V characteristics reveal very low CS and stability for ZrO2 and other metal oxides (Ye et al. 2013; He et al. 2013). While GO is a well-known material for its implication in the field of energy production and storage, this accounts of higher CS of GO over ZrO2 which prompted to investigate the effect of GO concentration on the CS of ZrO2 in the respective nanocomposites (NCs). In the present study, three variant of ZrO2/GO NCs were synthesized with molar concentrations of ZrO2 and GO (1:1, 1:2, and 2:1). GO dispersed in methanol was sonicated into a solution comprising of tetraethyl ammonium bromide (TEAB). To this, requisite amounts of ZrO2 were supplied and the contents were further sonicated. The resulting suspension was then washed repeatedly with methanol and distilled water (20:80) to obtain nanosized ZrO2/GO composites which shows high level of specific capacitance, energy, and power density along with good capacitive retention of 98.6 %. Along with this, workers had also found out that specific capacitance of ZrO2/GO is comparable to ZrO2/graphene nanocomposite which was found to be 10 F/g at 0.05 V/s by Liu et al. (2013).


Starting materials

ZrO2 (MW 123.22, 99.5 %, APS 45 nm) was purchased from Sisco Research Laboratories Pvt. Ltd., India. Polysulphone (PSO, Mn, 26,000, ρ = 1.24 g/cm3) and chlorosulfonic acid (bp., 152 ± 1 °C/755 mmHg, ρ = 1.753 g/cm3 at 25 °C) were procured from Aldrich Chemical Comp. Inc., USA. Tetraethyl ammonium bromide (TEAB, MW 210.17, 99 %) was procured from Molychem, and graphite (98.0 %, surface area 500 μm) was purchased from Otto Chemicka-Biochemica reagents, India. All other chemicals and solvents were purchased from s.d. fine Chemical, India. All the chemicals and solvents were used without further purifications. The commercially available 316-stainless steel (SS) was used as substrate for the preparation of electrode.

Preparation of ZrO2/GO NCs

Three variant of ZrO2/GO NCs were synthesized with molar concentrations of ZrO2 and GO (Table 1). The requisite amount of GO was dispersed in methanol (20 mL, 99.9 %) and was sonicated into a solution comprising of TEAB (50 mg) for 3 hr at 40 ± 1 °C. To this, requisite amounts of ZrO2 were supplied and the contents were further sonicated for additional 3 hr at 40 ± 1 °C. The resulting suspension was then washed repeatedly with methanol and distilled water (20:80), which was filtered and dried at 50 °C/400 mmHg over 48 hr.

Table 1 Synthetic molar ratio of constituents

Fabrication of working electrode

Prior to use, well-finished 1 cm2 316-SS was supplied as substrate and then de-greased with acetone and subjected to surface oxidation at 50 ± 1 °C over 1 hr under vacuum. The working electrode materials were prepared by mixing the electroactive material, graphite, and sulphonated polysulphone (SPS) in a mass ratio of 65:10:25. After sonicating the mixtures for 1 h in N-methylpyrrolidone (NMP), the resulting slurry was pressed on a stainless steel substrate which acts as a current collector. The treated substrate was dried at room temperature for 4 hr, followed by 100 °C/400 mmHg for 48 hr. The mass of the material deposited on the substrate was determined from the weight difference between the electrode before and after deposition by using a high precision microbalance. This has afforded cathodes with mass thickness of electroactive materials by 1.0 ± 0.1 mg/cm2 over SS substrate. The electrodes were tested after 24 hr of fabrications.

Result and discussion

FT-IR spectra

Fourier transform-infrared (FT-IR) spectra were recorded on Thermo Nicolet FT-IR Spectrophotometer in KBr in the range 4000–400 cm−1 (Fig. 1ae). Graphite has revealed characteristic absorptions (cm−1) at 3447 (v O–H) and 1628.79 (δ O–H) which attributes to the presence of absorbed moisture (Fig. 1a) and characteristic absorptions at ~3333 (v O–H), 1723 (v COOH), 1613 (remaining sp2 character), 1378 (v COC), 1221.20 (C–O for oxirane), and 1033 cm−1 (v COH) indicates conversion of graphite into GO (Fig. 1b) (Reta et al. 2009). Figure 1c shows characteristic absorptions of ZrO2 particularly at 740 and 500 (v as Zr–O–O–Zr and Zr–O stretching modes), respectively, which confirms the ZrO2 phase (Sahu and Rao 2000). The absorptions at 3430 and 1630 correspond to the vibration of stretching and deformation of the O–H bond due to the absorption of water (Sahu and Rao 2000; Chen et al. 2012). The representative of ZrO2/GO nanocomposite, NC-II, illuminates characteristic absorptions 3430–3440 (v O–H), 1710 (v COOH), 1640 (δ O–H), 1600 (sp2 character), 1390 (v COC), 1190 (v C–O epoxy), 1040 (v COH), 748 (v Zr–O–O–Zr), and 503 (v Zr–O). The absorption corresponding to (v COOH) shifted to 1710 in NC-II over GO at 1723. With concentration of ZrO2, a regular decrease in the intensity of absorption corresponding to v O–H with simultaneous increase in the intensity of absorption corresponding to v Zr–O–O–Zr and v Zr–O, respectively, was observed. Such shift in the absorption of v COOH from 1723 to 1710 may be assigned to the bonding of ZrO2 with GO. Furthermore, the increase in the intensity of v Zr–O–O–Zr and v Zr–O with simultaneous decrease in v O–H in GO also supports the bonding of ZrO2 with GO (Fig. 1d).

Fig. 1
figure 1

FT-IR. a Graphene Oxide. b ZrO2. c NC-I. d NC-II. e NC-III


The power X-ray diffraction (XRD) spectra of as-prepared samples were recorded at room temperature over Rigaku-Geiger flex X-ray diffractometer using Cu-Kα radiation (λ = 0.154 nm) in the range of 10°–70° at 30 kV and 15 mA with step size 0.05 and step time of 19.2 s. The diffraction peaks observed at 2θ were used to calculate the particle size using Bragg’s equation:

$$ d=\frac{n\lambda }{2 \sin \theta } $$

The XRD spectra of graphite shows the peak corresponding to 2θ = 26.47° (d = 3.369), reduced to 2θ = 11.829° (d = 7.473 Ǻ) which indicates the exfoliation of the graphite into GO (Fig. 2a, b); ZrO2 shows several strong peaks located at 2θ = 28.25° (d = 3.155 Ǻ), 31.5°, 34.3°, 40.95°, 50.45°, 55.55°,60°, and 62.9° indicating their monoclinic nature (Fig. 3a) (Wu et al. 2012; Guo and Ding 2004; Cheng et al. 2011). With increase in concentration of GO, a regular increase in the gallery spacing of ZrO2 in respective NCs has been observed ranging 2θ = 28.10° to 27.80° (d = 3.172 to 3.205 Ǻ) as observed in Fig. 3bd.

Fig. 2
figure 2

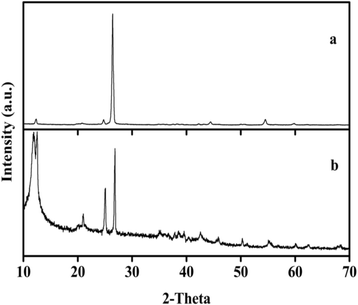

XRD. a Graphite. b GO

Fig. 3
figure 3

XRD. a ZrO2. b NC-I. c NC-II. d NC-III

The average particle size (Table 1) of all the samples was examined by using Debye-Scherrer formula:

$$ D=\frac{0.9\lambda }{\beta \cos \theta } $$

where “λ” is the wave length of X-ray (1.541 Å), “β” is the FWHM (full width at half maximum), “θ” is the diffraction angle, and “D” is the particle diameter size.

XPS studies

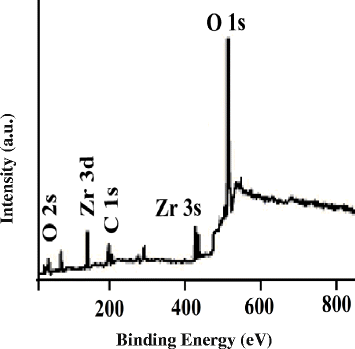

X-ray photoelectron spectroscopy (XPS) was carried out using XPS (VG ESCALAB 2000), using a monochromatic Al Kα X-ray source (1486.6 eV). The XPS spectrum of the NC-II shows the presence of the elements of ZrO2 and GO (Fig. 4). The peak corresponds to the characteristic peaks of Zr 3d, C 1s, and O 1s indicating the existence of zirconium, carbon, and oxygen in the sample. The signal for C 1s obtained at the C=C/C–C (283 eV), C–O/C–O–C (hydroxyl and epoxy groups, 285.8 eV), C=O (carbonyl groups, 288.2 eV), and O–C=O (carboxyl groups, 290.0 eV) indicates the presence of graphene oxide sheets, whereas signals observed at 533.2 corresponds to ZrO2, such as O 1s (Pham et al. 2011, Suchorski et al. 2008).

Fig. 4
figure 4


Morphology of graphene oxide, ZrO2, and ZrO2/GO NCs

Scanning electron microscopy (SEM) of the treated SS surfaces with GO, ZrO2, and NCs was recorded on JEOL (JSM-6610 LV) using a primary beam voltage of 5 kV under identical magnifications and scales of 5.5 to 1.0 KX and 2–10 μm, respectively. Blending of GO (75 %, w/w) with SPS has afforded the respective composite material that reveals flaky appearance of GO at 1.0 KX, 10 μm. Further increase in magnification shows a well distribution of flakes of GO in SPS matrix (Fig. 5ac). A competitive account of SEM images with the ZrO2 (75 %, w/w) in SPS matrix reveals that on filling grains of ZrO2 into SPS matrix, a fine distribution has been observed on higher magnification (Fig. 5df).

Fig. 5
figure 5

SEM micrographs of GO (a-c), ZrO (d-f) and NC-II (g-i) at various magnifications

The morphological change in the as-grown ZrO2 on GO (NC-II) into SPS matrix indicates the formation of multiphase system created due to component used for preparation of electrode. Such multiphase system has been well distinguished in Fig. 5g–i. All the nanocomposites show porous stacking structures of graphene oxide sheets. There is no remarkable dependency of crystal morphology on the mixing ratio of zirconium oxide and graphene oxide, confirming homogeneous distribution of the two. The observed porous morphology of the present nanocomposite is quite different from the nonporous morphology of the pristine ZrO2 material which may be due to the presence of GO in the former.

Atomic force microscopy

Figure 6 shows the AFM images of the ZrO2, GO, and ZrO2/GO (NC-II) film over the substrate at room temperature, the surface of the film was very smooth (confirmed by cyclic voltammetry), and the roughness was only 25, 25, and 12 nm of RMS (root mean square), respectively. The continuous granular morphology of the ZrO2/GO film reveals that the film might be constructed by an amorphous network. The reduced roughness in case of nanocomposite may be attributed to the filling of interstitial site of ZrO2 by GO nanoparticles (Chang and Doong 2005; Vilian et al. 2014).

Fig. 6
figure 6

AFM micrographs

Thermal analysis

DTA-DTG-TG data were recorded over EXSTAR TG/DTA/6300 in air at flow rate of 200 mL/min in the temperature ranging 30 to 800 °C with heating rate of 10 °C/min. The sample size was in the range of 10.5 to 10.9 mg. Two-step decomposition was shown by thermogram of GO (Fig. 7). In the first-step decomposition of GO appeared at 170 °C leaving wt. residue 87.4 %, this has been supported with weak DTA signal of 0 mV at 206 °C with heat of fusion 216 mJ/mg (Fig. 8) and a DTG peak at temperature 204 °C with range of degradation 0.57 mg/min (Fig. 9). Prior to this temperature, GO was decomposed leaving residue of 91.2 % at 106 °C. This may be assigned to the loss of moisture (0.8 %) present in GO. Increase in temperature beyond 170 °C indicates a rapid weight loss in GO leaving weight residue 74.9 % at 215 °C. Within the range of temperature 170–215 °C, the functionalities over GO created due to oxidation of graphite has been removed, reverting this into graphite (Some et al. 2013). On subsequent heating of GO from 215–432 °C, a steep weight loss has been observed at 432 °C leaving weight residue 57.2 %. This may be assigned due to thermal stability of graphite. The rapid decomposition of graphite was observed at 432 to 486 °C supported with an intense DTA signal of 1 mV at 499 °C with heat of decomposition 6.24 J/mg. Such decomposition of GO was progressed with rate of decomposition 3.10 mg/min at 472 °C. Further increase in temperature from 468 °C has contributed a marginal loss in weight leaving residue 14.6 % at 547 °C. The decomposition of GO was terminated at 818 °C leaving 13.3 % weight residue due to formation of carbon black.

Fig. 7
figure 7


Fig. 8
figure 8


Fig. 9
figure 9


Thermogram of ZrO2 reveals that it is free from any contamination. ZrO2 shows rapid decomposition up to 700 °C leaving 98.81 % and was associated with moisture of 0.15 % (Fig. 7). No observed degradation peaks occur in DTA and DTG analysis of ZrO2 proving that the material is quite resistible towards thermal degradation (Figs. 8 and 9, inset).

The NC-III derived from ZrO2 shows two-step decomposition (Fig. 7). The first-step decomposition of NC-III appeared at 152 °C leaving 98.2 % residue. This was supported with a DTG at 197 °C with the rate of degradation 84.2 μJ/min. Before this temperature, a weight loss of 1.27 % at 99.8 °C may be assigned content of NC. Such removal of moisture of NC was progressed at the rate of 32 μJ/min at 48 °C. Decomposition of NC was in the range of 152 to 200 °C leaving weight residue 96.04 %. In comparison to GO, such range of decomposition was shifted to lower temperature. This may be due to the formation of multiphase system that has reduced the thermal stability of NC over GO. During this temperature change, the NC was decomposed at 84 μJ/min at 197 °C. Increase in temperature from 200 °C has induced a steep weight loss up to 400 °C leaving the weight residue 90.97 % at 400 °C; further increase in temperature to 500 °C leaving weight residue 83.74 % was associated with a DTA signal of 34.9 μV at 461 °C with heat of decomposition 1.71 J/mg. This was supported with a DTG at 458 °C with rate of decomposition 125 μg/min; beyond 500 °C, no remarkable weight was appeared in the NC. At 817 °C, the decomposition of NC was terminated leaving weight residue 83.07 %.

Electrochemical characterization

The electrochemical activity of the Zirconium oxide-graphene oxide nanocomposites was studied by measuring cyclic voltammograms (CV) and galvanostatic charge-discharge cycles of these nanomaterials. Full range CV of all the samples were scanned on Iviumstat electrochemical work station (Ivium technologies, Netherlands) at current compliance 10 mA and ranges of voltage compliance 0.0 to −1.5 V, at scan rate 0.05–0.15 V/s using a conventional three-electrode cell assembly with reference to Ag/AgCl electrode; Pt foil with 1 cm2 area was used as counter electrode and commercially available SS electrode as a working electrode. 1.0 M KOH solution was used as electrolyte in whole experiment.

All the electroactive material show I/V compliance in one anodic and one cathodic step; redox transitions between a semi-conducting state and a conducting state are responsible for cathodic and anodic peaks. With scan rate, all such I/V compliances were found to consist of increasing peak current and a shift in the voltage to higher values. The peak potential shift in CV is probably due to slow ion diffusion or interfacial charge transfer processes. In a CV, the higher the redox peak, the greater is the electrochemical reaction activity (Mudila et al. 2014). CV curves of all the electrodes clearly show faradaic redox reactions, which exhibits anodic peaks associated with oxidation of material, and a cathodic peak corresponding to reduction (Figs. 10, 11, and 12). Among the three, NC-III had the greatest redox activity while the redox activity is the least for ZrO2.

Fig. 10
figure 10

CV of GO showing anodic and cathodic peaks

Fig. 11
figure 11

CV of ZrO2 showing anodic and cathodic peaks

Fig. 12
figure 12

CV of NC-II showing anodic and cathodic peaks

Supercapacitive characterization

The supercapacitive studies of electroactive materials viz. GO, ZrO2, and NCs were recorded at the common scan rate ranging 0.001–0.15 V/s, at −0.2 to 0.2 potential range (Table 2). The CV curves were found to be close to rectangular at the applied scan rates which indicate an excellent capacitive behavior and a low contact resistance in the as-prepared supercapacitor. Two mechanisms are responsible for the specific capacitance of metal oxide electrode: the surface adsorption/desorption and the intercalation/deintercalation of alkali metal ions (Lee et al. 2010). The calculations based on I/V characteristics reveal very low CS ranging 17.13 to 2.82 F/g for ZrO2 (Fig. 13) (Kim et al. 2009).

Table 2 Comparative oxidative and reductive potential of materials at varying scan rates
Fig. 13
figure 13

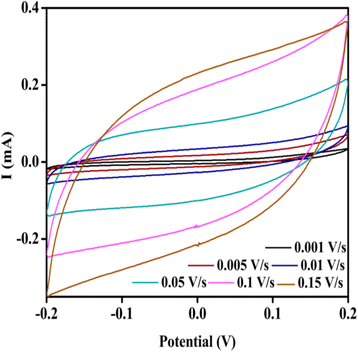

CV of ZrO2

Graphene oxide is known to comprise of well capacity and a potential material to store energy (Reta et al. 2009) (Fig. 14). At the above said potential range and scan rates, GO provides specific capacitance as high as 161.62 F/g. Specific capacitance (Cs) of the active materials was calculated from the voltammetric charges by the CV curve, by means of relation:

Fig. 14
figure 14

CV of NCs

$$ Cs\left(F/g\right)=\frac{\mathrm{qa} + \left|\mathrm{q}\mathrm{c}\left.\right|\right.}{2m\varDelta V} $$

where “qa” and “qc” are the voltammetric charges on anodic and cathodic scans, in the capacitive potential region (ΔV), and “m” being the mass of active material. This comparative account reveals higher CS of GO over ZrO2 (Fig. 15) which prompted to investigate the effect of GO concentration on the CS of ZrO2 in the respective NCs.

Fig. 15
figure 15

Comparative Cs of GO and ZrO2

The capacitance of the ZrO2/GO nanocomposites was compared to those of pristine GO. The well-dispersed nanoscale ZrO2 particles on GO not only effectively inhibited agglomeration of GO, which resulted in a high capacitance, but also increased the electrochemical active surface areas of ZrO2. The enhanced capacitance for the composite electrodes was related to the combined effect of the pseudocapacitance of ZrO2 and GO. The area of the CV is directly proportional to the electrochemical capacitance of the electrode material. Thus, it is visually apparent from Figs. 14 and 16 that the electrochemical capacitance of NC-II is much higher than that of all other electrode materials which is confirmed by the values of specific capacitance. It was also a matter of concern that NC-II (17.75 F/g) had shown comparable specific capacitance to ZrO2/graphene nanocomposite (Liu et al. 2013) which was found to be 10.2 F/g at 0.05 V/s.

Fig. 16
figure 16

Comparative Cs of NCs

With various concentrations of ZrO2 and GO, under identical I/V compliance, NC-I corresponds to the CS ranging 4.40 to 175.37 F/g at proposed scan rates, NC-III shows CS ranges from 4.58 to 250.41 F/g, while for NC-II, it was reported to be ranging from 10.58 to 299.26 F/g. All such NCs metal oxide and GO display stable I/V compliance till 1000 cycles (Fig. 18). At a high scan rate, diffusion of electrolyte ions was limited due to the time constraint and only the outer active surface was utilized for charge storage; thus, specific capacitance decreased with increase in scan rate from 0.001 to 0.15 V/s. (Fig. 16). The present results of electrochemical measurement clearly demonstrate that the increase in concentration of graphene oxide leads to the increase in the specific capacitance to a limit beyond which the decrease in specific capacitance of NCs was encountered. This strongly suggests that the high content of graphene oxide is not advantageous for improving the electrode performance of the NCs.

The specific energy density (E) and maximum specific power density (P) of NCs were found to be high and were calculated respectively through the following relations (Guo and Ding 2004):

$$ E\left(\mathrm{Wh}/\mathrm{kg}\right)=\frac{\mathrm{Cs}\ {\left(\varDelta \mathrm{V}\right)}^2}{2} $$
$$ P\left(W/\mathrm{kg}\right)=\frac{E}{t} $$

where “Cs” is the specific capacitance, ΔV is the applied initial voltage, and “t” is the corresponding discharge time in hour. The NC-II was evaluated as the representative of ZrO2/GO nanocomposites for further studies and the maximum energy density of 0.38 Wh/Kg and 6.6 Wh/Kg for ZrO2 and NC-II, while corresponding power density of 13.68 and 59.40 W/kg was accounted for ZrO2 and NC-II, respectively.

Figure 17 shows systematic reversible charging-discharging curves of ZrO2 and corresponding NCs recorded in the voltage range from −0.2 to 0.2 V at an applied current density of 10 mA/cm2 without any apparent deviation in each cycle. These charge/discharge curves are almost linear in the full range of potential with constant slopes, depicting perfect electrocapacitive behavior. This suggests good electrochemical stability for the NC electrodes.

Fig. 17
figure 17

Charge-discharge curves

A rapid fall up to 50 cycles was observed after which the capacitance remained constant throughout the cycling period for 1000 cycles at a 0.1 V/s (Fig. 18); this indicates the excellent cyclic stability of the nanocomposites for supercapacitor applications. Thus, introduction of GO had afforded NCs to attain electrochemical activity with higher level specific capacitance and excellent power performance. This result implies that the ZrO2/GO nanocomposite could be considered as a promising material in solving problems for electrochemical supercapacitors without losing its performance and can be employed as the electric energy storage device for the hybrid vehicles and new generation electronic devices.

Fig. 18
figure 18

Cyclic performance of NC II


In summary, the fabricated ZrO2/GO nanocomposites present efficient high-power material for supercapacitive studies. These materials were observed to have good thermal stability, specific capacitance, and cycleability as confirm by TG-DTA-DTG and CV studies, respectively. The electrochemical outcome clearly demonstrates that the increase of graphene oxide after a certain limit (here ZrO2: GO, 1:2) leads to the decline of the specific capacitance of nanocomposite. This strongly advocates that the high content of graphene oxide is not advantageous for enhancing the electrode performance of the nanocomposite. The remarkable performance of ZrO2/GO nanocomposite could be credited to the nanosize and high surface area of ZrO2 particles along with the good electronic conductivity of GO. Both factors can contribute to the enhanced charge-transfer-reaction pseudocapacitance of the NCs, which is based on rapid and reversible redox reactions at the surface of electrode. FT-IR SEM studies were performed to confirm the intermixing of reactant material, while XRD confirms the nanosized materials with layered matrix.
