A new simple method for determining the critical micelle concentration of surfactants using surface plasmon resonance of silver nanoparticles

  • Mohammad Ali Karimi1, 2Email author,
  • Malihe Alsadat Mozaheb3, 4,
  • Abdolhamid Hatefi-Mehrjardi1, 2,
  • Hossein Tavallali1,
  • Abdol Mohammad Attaran1 and
  • Roghayeh Shamsi2
Journal of Analytical Science and Technology20156:35

https://doi.org/10.1186/s40543-015-0077-y

Received: 11 August 2015

Accepted: 2 December 2015

Published: 10 December 2015

Abstract

Background

A new and simple determination method for critical micelle concentration (CMC) has been developed based on surface plasmon resonance (SPR) technique. In the current work, the CMCs for sodium dodecyl sulfate (SDS), cetyl trimethyl ammonium bromide (CTAB), and Triton X-100 (TX-100) were determined in aqueous media by SPR of silver nanoparticles (AgNPs).

Findings

The variation of the absorbance of AgNPs in respect of bulk water is a consequence of the micelles formation from the surfactants monomer, here, SDS, CTAB, and TX-100. Under the optimal experimental conditions, CMCs for SDS, CTAB, and TX-100 using SPR technique were 8.6 × 10−3, 9.1 × 10−4, and 2.6 × 10-4 mol L−1, respectively.

Conclusions

The potential application of SPR technique for the CMC determination has been demonstrated in this work. Comparing to the other CMC determination methods, this SPR method is universal, sensitive, and nonadditive; it can be used for the direct measurements of CMC without adding any dyes or fluorescent probes. CMC values of various surfactants including SDS, CTAB, and TX-100 determined by this method are in agreement with those determined by the other methods. The results obtained by our simple method have comparable accuracy with those obtained from more elaborate experiments.

Keywords

Critical micellar concentration (CMC) Surfactants Silver nanoparticles (AgNPs) Surface plasmon resonance (SPR)

Findings

Introduction

Surfactants are compounds with molecular structure consisting of hydrophilic and hydrophobic parts. These important classes of industrial chemicals are widely used in modern industries. The hydrophilic part consists of an ionic or polar group whereas the hydrophobic part is generally a long hydrocarbon chain. In diluted solutions, the surfactants are found as individual monomers. At a concentration above a critical value, i.e., critical micelle concentration (CMC), surfactant molecules tend to aggregate forming micelles. At CMC point, some properties of surfactant solutions like conductivity, surface tension, osmotic pressure, absorption, and fluorescence as a function of concentration suffer abrupt changes due to the micelle formation (Tran & Yu 2005; Van Os et al. 1993).

CMC value of surfactants must be known in many applications like solubilization, stabilization, isolation, crystallization, etc. Therefore, CMC determination as an important characteristic of a surfactant is of great importance. CMC point can be determined by examining the changes in the chemical and physical characteristics of surface activator solutions after increasing their concentrations. Several methods have been reported for the determination of CMC such as UV-visible spectrophotometry (Khamis et al. 2005; Mondal & Ghosh 2012), fluorimetry (Mondal & Ghosh 2012; Topel et al. 2013; Zhu et al. 2014), infrared spectroscopy (Tran & Yu 2005), light scattering (Topel et al. 2013), nuclear magnetic resonance (NMR) (Yan & Palmer 1969), chromatography (Lin & Lin 2000), sound velocity (Zielinski et al. 1987), calorimetry (Simonović & Momirović 1997), and electrochemical techniques (Racaud et al. 2010; Nesmerak & Nemcova 2006).

In the past years, the theory and applications of surface plasmon resonance (SPR) have been discussed by several researchers (Yong et al. 2009; Abdulhalim et al. 2008; Amendola et al. 2010). Several of these applications take advantage of the engineering of silver nanoparticle (AgNP) plasmonic response that depends on their shape, size, dielectric environment, and on mutual electromagnetic interactions among particles in close proximity (Ren & Tilley 2007). SPR is a powerful technique to retrieve information on optical properties of nanomaterials. Essentially, SPR depends on the optical properties of metal layer and environmental changes, so it is related to charge density oscillation at the interface between them (Homola 2006). Hence, the main potential of SPR is the characterization of medium after the metal layer. Resize of the SPR signal is proportional to the mass of material that has immobilized SPR data, mass and thickness of absorbed layers can be inferred (Pattnaik 2005).

To the best of our knowledge, CMC determination by SPR method using AgNPs has not yet been reported. The aim of this work was to evaluate the possibility of using this method for CMC determination in aqueous solutions.

This paper describes a method for the CMC determination of sodium dodecyl sulfate (SDS), cetyl trimethyl ammonium bromide (CTAB), and Triton X-100 (TX-100) in aqueous media by SPR of AgNPs. The method is based on the variations observed in the absorbance of AgNPs.

Materials and methods

Instruments and reagents

A GBC UV-Visible Cintra 6 Spectrophotometer model, attached to a Pentium (IV) computer, with 1-cm quartz cell was used for the evaluation of optical characteristics of the SPR of AgNPs and for recording the spectra data. Metrohm 781 pH-meter was used to adjust pH of the buffered solutions.

All chemicals were of analytical grade and used as received without further purification. Silver nitrate (AgNO3), sodium borohydride (NaBH4), SDS, CTAB, and TX-100 which are used for the synthesis of AgNPs and CMC determination of surfactants were purchased from Merck. SDS, CTAB, and TX-100 solutions (1.0 × 10−2 mol L−1) were prepared by dissolving 0.288, 0.364, and 0.647 g in water and diluting to 100 mL with water, respectively. The minimum number of possible dilution steps was used for the preparation of more dilute solutions. All other common laboratory chemicals were of the best available grade.

Procedure

All the measurements were performed at 25.0 ± 0.2 °C. The change of absorbance was recorded spectrophotometrically by measuring the absorbance of the mixture solutions at 410 nm that is λmax of SPR peak of AgNPs at these conditions against a reagent blank. In a typical procedure, 2.0 mL of AgNO3 solution (2.0 × 10−3 mol L−1) and 2.0 mL of KH2PO4 buffer solution (pH 7.0) were transferred into 10-mL volumetric flasks. Then, appropriate volumes of SDS, CTAB, and TX-100 solutions, in the range of 0.0 to 12.0, 0.0 to 1.6, and 0.0 to 0.5 mmol L−1, were added respectively to this solution and were put on magnetic stirring. After they were being mixed completely, the solutions were titrating by 1.0 mL of quite cold NaBH4 (1.0 × 10−2 mol L−1). Yellow colored solution confirmed the presence of AgNPs, and subsequently the solution diluted up to the volume mark with deionized water and measured its absorbance at 410 nm.

Results and discussion

Preliminary investigations of the system

The AgNPs were prepared according to the previous reported method with minor modification (Fan et al. 2009). Chemical synthesis of AgNPs and dimensions, shape, and distribution of NPs were influenced by several parameters, such as the AgNO3 and NaBH4 concentrations, time, temperature, pH, and surfactant concentration. All experimental parameters affecting the AgNP synthesis and CMC determination were optimized by “one at a time” method.

The effect of AgNO3 concentration

The concentration of AgNO3 as one of the reactants has an effect on the absorption of AgNPs. The effect of AgNO3 concentration on the plasmon peak of AgNPs was investigated by changing the silver ion concentration and keeping the other parameters as constant. It was found that by increasing AgNO3 concentration, more AgNPs will be produced and the plasmon peak will be increased. Figure 1 shows the absorption of AgNPs versus different concentrations of AgNO3. From the spectrum of AgNPs, it was found that the best yellowish colored solution with more transparency and stability obtain at 2.0 × 10−3 mol L−1 AgNO3. Therefore, experiments were carried with this concentration as the optimum concentration for further studies.
Fig. 1

The effect of silver nitrate concentration on AgNP absorption spectrum

The effect of NaBH4 concentration

In order to establish the effect of NaBH4 concentration on the amount of absorption of AgNPs, different concentration values of NaBH4 in the range of 5.0 × 10−4 to 1.0 × 10−2 mol L−1 were studied. For this purpose, the solutions containing 2.0 × 10−3 mol L−1 AgNO3 were studied. It was founded that 1.0 × 10−2 mol L−1 NaBH4 was sufficient for further studies.

The effect of pH

The effect of pH within the range of 7.0 to 11.0 on the SPR band intensity of AgNO3 reduction by NaBH4 was investigated in the presence of SDS, CTAB, and TX-100 in their CMC (Fig. 2). Maximum intensity of SPR peak of AgNPs at 410 nm was observed at pHs lower than 7.0 for each of three surfactants. The decrease in the SPR band intensity at alkaline media is probably due to the Ag2O formation. Thus, pH 7.0 was selected as the optimum pH for further studies.
Fig. 2

The SPR spectra of AgNPs at different pHs in the presence of CTAB (a), TX-100 (b), and SDS (c). Conditions: 2.0 mL AgNO3 (2.0 × 10−3 mol L−1), 1.0 mL NaBH4 (1.0 × 10−2 mol L−1), 1.0 mL of 1.0 × 10−3 mol L−1 surfactant and 25 °C

The effect of temperature

The temperature of the solution evidently affects on the amount of AgNP absorption. The effect of temperature within the range of 15 to 45 °C on the SPR band intensity of AgNPs was investigated. The results are presented in Fig. 3. It was found that high temperatures have negative effect on the SPR band intensity of AgNPs. Therefore, the temperature of the solution was kept constant at 25 ± 0.2 °C by a thermostatic water bath in all of the measurements.
Fig. 3

AgNP absorption spectrum at different temperatures. Conditions as Fig. 2

The effect of time

The measured time includes the interval time between complete mixture of the materials and the time of obtaining spectrum from the mixture. Reduction of the silver ions, formation of AgNPs, and then their growth will begin after the addition of NaBH4 to the AgNO3 coated with cetyl trimethyl ammonium hydroxide (CTAOH). The reaction of AgNP formation will be continuing up to the time that NaBH4 exists in the environment to reduce the silver ions. The obtained spectra in the time range of 15–900 min were recorded and examined. Figure 4 shows after 120 min, the absorption changes of AgNPs were insignificant, and it seemed that the reaction was completed. Therefore, 120 min was chosen as the optimum time for further studies.
Fig. 4

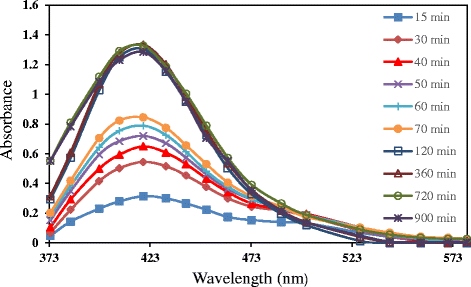

Ag NPs absorption spectrum at various times. Conditions as Fig. 2

CMC determination of SDS, CTAB, and TX-100

Representative surfactants of different classes including SDS, CTAB, and TX-100 as anionic, cationic, and nonionic surfactants were tested, respectively. The plots of absorbance of AgNPs versus wavelength (nm) in the presence of the different concentrations of SDS, CTAB, and TX-100 are shown in Figs. 5a, 6a, and 7a, respectively. It was observed that in the absence of surfactants, the absorption reduced and shifts to the longer wavelengths. When surfactant concentrations increased, the size of NPs decreased and they would show higher absorption. This is the consequence of agglomeration of the AgNPs, in the absence of surfactant and isolation in the presence of surfactants when surfactant concentration increases. SDS and CTAB micelles through the electrostatic repulsion and TX-100 through the spatial repulsion prevent the particles from sticking together. Increasing of surfactant concentration up to the amount of micellar formation, until the critical micellar concentration, causes increase in absorption. In this concentration, Ag+ ions are surrounded by micelle and reduced to Ag0, and AgNPs are formed within the isolated reactor. Above this concentration, addition of the surfactant has not any significant effect on the AgNP absorption because nanoparticles are surrounded completely and they reach the saturation level.
Fig. 5

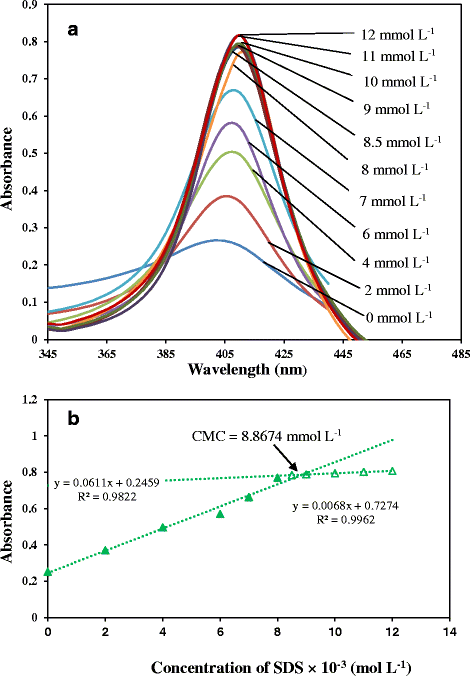

The SPR spectra of AgNPs in aqueous solutions of the different concentrations of SDS (a) and plot of the absorbance intensity of AgNPs as a function of molar concentration of SDS at 410 nm (b). Conditions: 2.0 mL AgNO3 solution (2.0 × 10−3 mol L−1); 1.0 mL NaBH4 (1.0 × 10−2 mol L−1); 2.0 mL KH2PO4 buffer solution (pH 8.0); appropriate volumes of SDS solutions of (a) 0.0, (b) 2.0, (c) 4.0, (d) 6.0, (e) 7.0, (f) 8.0, (f) 8.5, (g) 9.0, (h) 10.0, (i) 11.0, and (j) 12.0 mmol L−1

Fig. 6

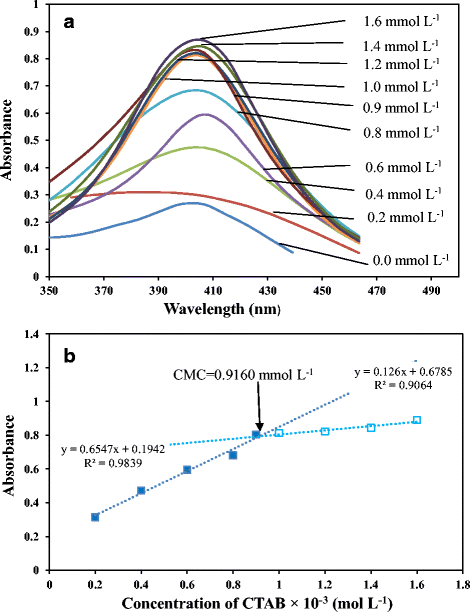

The SPR spectra of AgNPs in aqueous solutions of the different concentrations of CTAB (a) and plot of the absorbance intensity of AgNPs as a function of molar concentration of CTAB at 410 nm (b). Conditions: conditions as in Fig. 1 except 2.0-mL K2HPO4 buffer solution (pH 9.5); appropriate volumes of CTAB solutions of (a) 0.0, (b) 0.2, (c) 0.4, (d) 0.6, (e) 0.8, (f) 0.9, (f) 1.0, (g) 1.2, (h) 1.4, and (i) 1.6 mmol L−1

Fig. 7

The SPR spectra of AgNPs in aqueous solutions of the different concentrations of TX-100 (a) and plot of the absorbance intensity of AgNPs as a function of molar concentration of TX-100 at 410 nm (b). Conditions: conditions as in Fig. 1 except 2.0-mL KH2PO4 buffer solution (pH 7.5); appropriate volumes of TX-100 solutions of (a) 0.0, (b) 0.05, (c) 0.1, (d) 0.16, (e) 0.2, (f) 0.25, (f) 0.3, (g) 0.35, (h) 0.4, (i) 0.45, and (j) 0.5 mmol L−1

In order to determine the CMC points by SPR technique, anionic, cationic, and nonionic surfactants with different concentrations were utilized, and the curves were prepared from the related SPR peaks. All of the tested surfactants showed a sharp inflection point in the curves that enabled sensitive determination of their CMC values. In addition, all displayed similar magnitude of absorbance changes and shared similar curves around their CMC independent of the charge, class of surfactant, and order of magnitude of the CMC, indicating the universality of the method. Based on the mechanism of micelle formation, there is an inflection point in the absorbance of SPR of AgNPs versus surfactant concentration for all of the tested surfactants (Figs. 5b, 6b, and 7b). As can be seen, in all of the curves, a fracture in the slope of the surfactant concentration versus absorption at λmax of SPR peak of AgNPs (410 nm) is observed, that is the CMC point. Under the optimal experimental conditions, CMCs for SDS, CTAB, and TX-100 using this method were 8.0 × 10−3, 9.0 × 10−4, and 2.5 × 10−4 mol L−1, respectively.

Table 1 shows a comparison of the proposed method with other reported methods. It could be seen that, the obtained CMC values of SDS, CTAB, and TX-100 by this method are in agreement very well with those determined by previously reported methods. CMCs for SDS, CTAB, and TX-100 using SPR technique (our propositional method) were 8.6 × 10−3, 9.1 × 10−4, and 2.6 × 10−4 mol L−1, respectively. The respected CMC values are close to voltammetry (8.3 × 10−3, 8.8 × 10−3, and 3.1 × 10−3), conductometry (8.1 × 10−3, 9.9 × 10−3, and 3.1 × 10−3), and fluorescence (7.62 × 10−3, 8.9 × 10−3, and 2.4 × 10−3) results. With regard to these results, it could be seen that, the obtained CMC values of SDS, CTAB, and TX-100 by this method is accommodating previously reported methods.
Table 1

Comparison of the CMC of SDS, CTAB, and TX-100 between typical published methods and the proposed method in water solution

Technique

CMC, × 10−3 mol L−1

Reference

SDS

CTAB

TX-100



UV-visible spectrophotometry

1.0a

0.06a

0.70a

(Khamis et al. 2005)

0.80b

0.10b

0.70b

(Khamis et al. 2005)

7.19a

0.76a

n.d

(Mondal and Ghosh 2012)

Fluorescence

n.d

0.75

n.d

(Halder 2007)

7.62

0.89

0.24

(Aguiar et al. 2003)

4.22

0.83

n.d

(Prazeres et al. 2012)

7.96

0.75

n.d

(Mondal and Ghosh 2012)

Resonance Rayleigh scattering

8.0

0.98

n.d

(Shi et al. 2011)

Fiber-optic refractive index

8.1

0.15

0.21

(Tan et al. 2010)

Conductometry

8.1

0.99

0.31

(Brooks et al. 1988)

8.0

n.d

n.d

(Fuguet et al. 2005)

Voltammetry

8.3

0.88

n.d

(Ma et al. 1998)

n.d

n.d

0.31

(Liu et al. 1999)

SPR of AgNPs

8.6a

0.9a

0.26a

This work

n.d not determined

aCMC from absorbance changes measurements

bCMC from surface tension changes measurements

Conclusions

In summary, we have successfully developed a new and facile surfactant CMC determination by using SPR of AgNPs. Our goal was principally determining the CMCs of ionic and nonionic surfactants with a method that is comparable in scope and resolution to those currently obtainable from other techniques such as conductometric, voltammetric, spectrophotometric, fluorescence, and surface tension measurements. It could be seen that, the obtained CMC values of SDS, CTAB, and TX-100 by this method agree very well with those determined by previously reported methods. Furthermore, this method is universal, sensitive, and nonadditive; accordingly, it can be used for the direct measurements of CMC without the addition of any dye or fluorescent probe. Values obtained by our simple method have accuracy which is comparable with the data obtained from more elaborate experiments.
