Measurement of ice thickness on vitreous ice embedded cryo-EM grids: investigation of optimizing condition for visualizing macromolecules

Abstract

Background

Cryo-electron microscopy is an excellent method for the structural analysis of biological materials. Advantage of its use over conventional electron microscopy techniques is the preservation of the sample in a near-native, hydrated state. To achieve the analysis with greatly improved structural details, optimization of various parameters involved in sample vitrification is required. Most considerable parameter is the thickness of ice: thick and thin layers are ideally in favor for larger and smaller target objects.

Findings

We measured the thickness of vitreous ice from different types of widely used holey carbon grids using cryo-EM and electron energy loss spectroscopy. It showed that Quantifoil grids are suitable for the structural analysis of large biological macromolecules (>100 nm in size), whereas the use of lacey and C-flat grids are ideal for smaller particles.

Conclusions

This report provides informative details that may help increasing chances of obtaining optimal vitreous ice for various biological objects with different sizes, hence facilitate the successful application of cryo-electron microscopy.

Findings

Transmission electron microscopy (TEM) is a powerful and versatile technique that enables direct visualization of biological samples of sizes ranging from whole cell to near-atomic resolution details of a single protein molecule (Frank 2006). For structural analysis of protein macromolecular assemblies (e.g. virus particles) and proteins that harbor multiple conformations (e.g. ribosome), TEM has evolved into a popular tool despite lower achievable resolving power than X-ray crystallography and nuclear magnetic resonance (NMR) spectroscopy. Major advantages of TEM over other structure determination techniques include minimization of artifacts derived from harsh crystallization conditions, direct visualization of proteins in near-physiological environment, and relatively larger molecular mass limit for the analysis (van Heel et al. 2000). In addition, relatively small amount of protein sample is required for the TEM analysis, and therefore overcomes limited availability of target macromolecules.

Among many specialized TEM techniques, cryo-electron microscopy (cryo-EM) allows for direct imaging and structural analysis of fully hydrated biological specimen in near-physiological environment (Frank 2006). The technique involves preservation of the sample in vitrified aqueous solution (Adrian et al. 1984; Cavalier et al. 2008) and therefore prevents artifacts that can be derived from chemical fixation, staining and dehydration (Frank 2006; van Heel et al. 2000). Moreover, in comparison to stain-embedded samples of which the resolution is limited to the size of heavy metal salts, cryo-EM can achieve structure determination of macromolecular assemblies at near-atomic resolution because the image formation directly results from electron scattering of biological specimen (Gonen et al. 2005). Inherently low contrast of cryo-EM images can be compensated by using image processing tools which greatly improve signal-to-noise ratio though image alignment and averaging (Frank et al. 1996; van Heel et al. 1996; Grigorieff 2007). Despite these advantages, cryo-EM is often technically demanding. One of the difficulties comes from preparation of vitrified specimen that is suitable for efficient data collection and high-resolution image processing. An ideal specimen (a) should be free of contaminants such as ethane and ice crystals, (b) should have maximum number of particles within a field of view, yet the particles are sufficiently spaced, and (c) has a vitrified solution that is thick enough to contain the protein particles but thin enough to prevent excessive beam interference that reduces image contrast (Orlova & Saibil 2011). Therefore, for a given macromolecular sample, both concentration and ice thickness need be optimized by an experienced researcher through trial-and-error.

Because specimen preparation for biological cryo-EM is critical for achieving high-resolution structure determination, understanding relationship between the practical use of instrumentation and the materials is important. In order to entrap biological specimen in vitreous ice that is free of supporting material, EM grid coated with a thin carbon film with perforated holes, namely “holey carbon grid”, is used. Uniformity of sample adsorption and even ice thickness across the EM grid requires the surface of carbon film to be rendered hydrophilic, which is usually achieved by glow discharging in vacuum (Aebi & Pollard 1987). After loading aqueous sample onto a holey carbon grid, excess solution is blotted and the grid is plunged into cryogen that is cooled to liquid nitrogen temperature. This step is crucial for reproducible and consistent outcome of the experiment, which is aided by using automated vitrification devices (Iancu et al. 2006; Grassucci et al. 2008). In addition, such devices can reduce ice crystal contamination since manual handling of the sample is minimized. In combination with user-defined virification conditions, a principal step to find the optimal thickness of vitreous ice is the choice of a particular type of support film.

In this study, using cryo-EM and electron energy loss spectroscopy (EELS), we measure one of critical but basic parameter for successful application of cryo-EM, which is the thickness of vitreous ice from various types of holey carbon grids that are commercially available. The results suggest that larger and smaller biological objects are ideally suitable for the use of Quantifoil and C-flat grids (Lacey grids), respectively, and the thickness of ice in each type of grid is dependent on the thickness of carbon support film.

Materials and methods

Specimen preparation

Three types of widely used holey carbon grids were subjected to the experiments; (a) Quantifoil grid (Cu 300 mesh, R2/2, SPI Supplies, U.S), (b) Lacey carbon grid (Agar Scientific, U.K.) and (c) C-flat (Cu 200 mesh, CF-1.2/1.3, Protochips Inc., U.S.). The grids were rendered hydrophilic using plasma cleaner (PDC-32G-2, Harrick Plasma, U.S), followed by application of 5μ l of distilled water. The sample grid was semi-automatically vitrified using Vitrobot Mark I (FEI, U.S), at 100% relative humidity and 4°C. Blot time of 3.5 seconds and blot offset of −0.5 mm were consistently applied to all viritirification processes. The entire procedure is described in (Grassucci et al. 2008).

Cryo-electron microscopy

Vitrified samples were maintained at liquid nitrogen temperature during sample transfer and image acquisition using a cryo transfer holder (cryo holder-626, Gatan, U.S). The sample temperature throughout the experiment was carefully monitored using SmartSet Controller (Gatan, U.S), where the temperature was typically kept at approximately −177°C within the electron microscope. Tecnai G2 Sprit Twin equipped with lanthanum hexaboride (Lab6) gun operating at 120kV was used to acquire images. Micrographs were recorded using Ultracan™ 4000 CCD detector (Gatan, U.S), under low dose imaging mode, with typical electron does of 10–20 e/Å2.

Electron energy loss spectroscopy

Ice thickness was estimated using log-ratio method (Malis et al. 1998), which is based on following relationship:

t λ ρ = 1 n I t I 0

where t is the specimen thickness, λ ρ is the effective mean free path length for inelastic scattering, and I 0 and I t are zero-loss peak in electron energy loss spectrum and the whole spectrum, respectively. Electron energy loss spectrum was obtained using Gatan Imaging Filter (GIF) system (T12, Gatan, U.S), and the objective aperture that corresponds to the collection angle of 1.639 mrad was used for data collection. Integrated ratio between I t and I 0 was used for estimation of inelastic mean free path, from which the specimen thickness was calculated using Digital Micrograph 3.0 software (Gatan, U.S). Typically, EELS was performed at nominal magnifications of ×28,000 and ×68,000, suitable for obtaining the spectrum of the entire hole and the center of vitreous ice, respectively.

Results and discussion

In order to correlate the thickness of supporting carbon film and that of the resulting vitreous ice, thickness of carbon film with no vitreous ice was measured using EELS. Average (represented by standard deviation) of 20 independent measurements from different areas of each grid type was used for evaluation (Figures 1 and 2). It was found that Quantifoil grid had the thickest carbon (49.11 ± 8.50 nm; mean ± S.D.) whereas C-flat grid had the thinnest (17.32 ± 0.82 nm). Reported carbon film thickness of C-flat grid (10–20 nm) agreed well with reported experimental data (Quispe et al. 2007). Lacey carbon grid had carbon film with an intermediate thickness (28.36 ± 2.95 nm). Variation of film thickness from different areas was minimal for C-flat grid (S.D. 0.82 nm), suggesting the most uniform carbon film amongst the three types of grids tested.

Figure 1
figure 1

TEM images of holey carbon grids in the absence and the presence of vitreous ice. (A-C) Apparent views of Cryo-EM grids used in this study: Quantifoil grid (A), Lacey carbon grid (B), C-flat grid (C). (D-F) Appearances of each grid type with embedded vitreous ice. Note that C-flat grid is manufactured without plastics, thus it is known to be ultra-flat compared to other types of carbon grids.

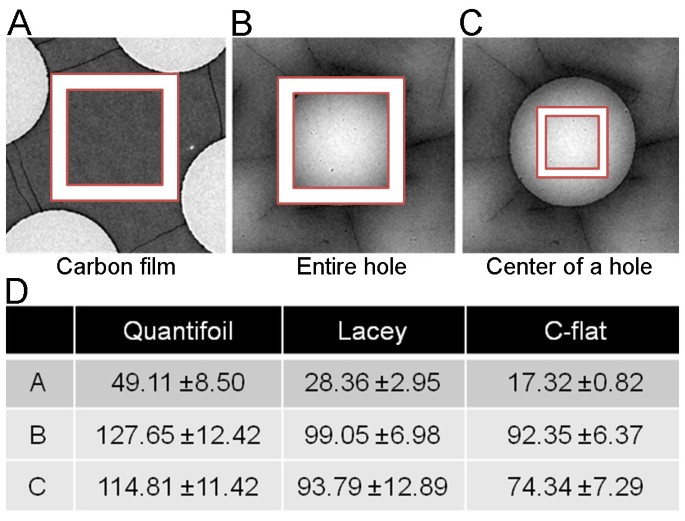

Figure 2
figure 2

Thickness values measured from carbon film and vitreous ice embedded cryo-EM grids. (A-C) Chosen areas for thickness measurements are represented as inside rectangle: area of carbon film (A), entire area of vitreous ice within a hole (B), central region of vitreous ice (C). (D) Measured thickness values of each type grid according to different area as described in (A-C). For each condition, 20 independent areas was chosen and used to measure the thickness. Mean values are in nm and measured thickness is represented by standard deviation.

Distilled water with no solute was subjected to the analysis since adsorption of extra materials onto the grids may introduce further variability to the outcome. Thickness of vitreous ice was measured from each type of grid that was prepared under the same vitrification condition (Figure 2). Each measurement was obtained from the entire hole without surrounding carbon film (Figure 2B). Average of 20 independent measurements was used for evaluation (Figure 2D). Ice thickness ranged from the largest to the smallest in the order of Quantifoil grid (127.65 ± 12.42 nm), lacey carbon grid (99.05 ± 6.98 nm) and C-flat grid (92.35 ± 6.37 nm). In addition, ice thickness variation observed for Quantifoil grid (S.D. 12.42 nm) was almost two fold higher than that of lacey carbon grid (S.D. 6.98 nm) and C-flat grid (S.D. 6.73 nm), suggesting the variation of carbon film thickness is directly reflected on the uniformity of resulting vitreous ice.

Variation of vitreous ice thickness across the hole was often apparent from electron micrographs, forming a smooth density gradient from the center toward the edge of the hole. Such thickness variation, so called ‘lens effect’, is well known for vitrified specimen, and may contribute to uneven particle distribution that can hamper efficient data collection. In order to characterize the lens effect for each grid type, micrographs were visually examined. All the grid types showed typical lens effect with varying extent although lacey carbon grid did not show distinctive, circular lens effect due to irregular size and shape of the holes (Figure 1).

For a more quantitative analysis, ice thickness of the center of a hole, which had the minimal electron density variation, was estimated (Figure 2C). In consistent to bare carbon thickness and ice thickness of the entire hole, the thickness of the center of a hole varied from thickest to the thinnest in the order of Quantifoil grid (114.81 ± 11.42 nm), lacey carbon grid (93.79 ± 12.89 nm) and C-flat grid (74.34 ± 7.29 nm). However, the extent of lens effect, as characterized by the difference between the ice thickness between the entire hole and the center, was most pronounced for C-flat grid (18.01 nm), followed by Quantifoil grid (12.84 nm) and lacey carbon grid (5.26 nm).

In this study we have used a simple method for estimating the thickness of vitreous ice using electron energy loss spectroscopy (EELS) and the log-ratio method. Thicknesses of supporting carbon film and embedded vitreous ice for three types of widely used holey carbon grids were efficiently measured. It was found that thickness of resulting vitreous ice was different in each type grid, possibly dependent of the thickness and of supporting carbon film. In addition, the extent of continuous variation of the ice thickness within the hole was characterized by estimating difference between the ice thickness of the entire hole and the central region.

Thickness of carbon support film and vitreous ice varied from thickest to thinnest in the order of Quantifoil grid, lacey carbon grid and C-flat grid. Substantial discrepancy between measured thickness of holy carbon grids from this study and that of manufacturer’s description is possibly due to residual plastic layer underneath carbon film (Ermantraut et al. 1998), which may have hampered correct EELS measurement. Quantitative analysis showed that the lens effect was most pronounced for C-flat grid, followed by Quantifoil grid and lacey carbon grid. However, lacey carbon grid lacks symmetrically circular hole, and hence the thickness of the entire hole is unlikely to be estimated by using symmetric beam illumination.

Literatures suggest thinnest possible ice thickness that does not alter the integrity of the protein structure is optimal for cryo-EM (Orlova & Saibil 2011). With this respect, control of ice thickness for a given sample is extremely important. For extreme cases, ice thickness of 700–800 nm is required as exemplified by cryo-EM study of giant Mimivirus (Xiao et al. 2005; Xiao et al. 2009), whereas the thinnest achievable ice thickness is necessary for 7 nm DNA tetrahedron (Kato et al. 2009). Therefore characterization of vitreous ice thickness shown in this study would be beneficial, along with other vitrification parameters, for obtaining optimal cryo-EM data.

Abbreviations

TEM:

Transmission electron microscopy

NMR:

Nuclear magnetic resonance

Cryo-EM:

Cryo-electron microscopy

EELS:

Electron energy loss spectroscopy

Lab6:

Lanthanum hexaboride

GIF:

Gatan imaging filter.

References

  1. Frank J: Three-dimensional electron microscopy of macromolecular assemblies: visualization of biological molecules in their native state. 2nd edition. New York: Oxford University Press; 2006.

    Book  Google Scholar

  2. van Heel M, Gowen B, Matadeen R, Orlova EV, Finn R, Pape T, Cohen D, Stark H, Schmidt R, Schatz M, Patwardhan A: Single-particle electron cryo-microscopy: towards atomic resolution. Q Rev Biophys 2000, 33: 307–369. 10.1017/S0033583500003644

    Article  CAS  Google Scholar

  3. Adrian M, Dubochet J, Lepault J, McDowall AW: Cryo-electron microscopy of viruses. Nature 1984, 308: 32–36. 10.1038/308032a0

    Article  CAS  Google Scholar

  4. Cavalier A, Spehner D, Humbel BM: Handbook of cryo-preparation methods for electron microscopy. Boca Raton: CRC Press; 2008.

    Google Scholar

  5. Gonen T, Cheng Y, Sliz P, Hiroaki Y, Fujiyoshi Y, Harrison SC, Walz T: Lipid-protein interactions in double-layered two-dimensional AQP0 crystals. Nature 2005, 438: 633–638. 10.1038/nature04321

    Article  CAS  Google Scholar

  6. Frank J, Radermacher M, Penczek P, Zhu J, Li Y, Ladjadj M, Leith A: SPIDER and WEB: processing and visualization of images in 3D electron microscopy and related fields. J Struct Biol 1996, 116: 190–199. 10.1006/jsbi.1996.0030

    Article  CAS  Google Scholar

  7. van Heel M, Harauz G, Orlova EV, Schmidt R, Schatz M: A new generation of the IMAGIC image processing system. J Struct Biol 1996, 116: 17–24. 10.1006/jsbi.1996.0004

    Article  CAS  Google Scholar

  8. Grigorieff N: FREALIGN: high-resolution refinement of single particle structures. J Struct Biol 2007, 157: 117–125. 10.1016/j.jsb.2006.05.004

    Article  CAS  Google Scholar

  9. Orlova EV, Saibil HR: Structural analysis of macromolecular assemblies by electron microscopy. Chem Rev 2011, 111: 7710–7748. 10.1021/cr100353t

    Article  CAS  Google Scholar

  10. Aebi U, Pollard TD: A glow discharge unit to render electron microscope grids and other surfaces hydrophilic. J Electron Microsc Tech 1987, 7: 29–33. 10.1002/jemt.1060070104

    Article  CAS  Google Scholar

  11. Iancu CV, Tivol WF, Schooler JB, Dias DP, Henderson GP, Murphy GE, Wright ER, Li Z, Yu Z, Briegel A, Gan L, He Y, Jensen GJ: Electron cryotomography sample preparation using the Vitrobot. Nat Protoc 2006, 1: 2813–2819.

    Article  CAS  Google Scholar

  12. Grassucci RA, Taylor D, Frank J: Visualization of macromolecular complexes using cryo-electron microscopy with FEI Tecnai transmission electron microscopes. Nat Protoc 2008, 3: 330–339. 10.1038/nprot.2007.474

    Article  CAS  Google Scholar

  13. Malis T, Cheng SC, Egerton RF: EELS log-ratio technique for specimen-thickness measurement in the TEM. J Electron Microsc Tech 1998, 8: 193–200.

    Article  Google Scholar

  14. Quispe J, Damiano J, Mick SE, Nackashi DP, Fellmann D, Ajero TG, Carragher B, Potter CS: An improved holey carbon film for cryo-electron microscopy. Microsc Microanal 2007, 13: 365–371.

    Article  CAS  Google Scholar

  15. Ermantraut E, Wohlfart K, Tichelaar W: Perforated support foils with pre-defined hole size, shape and arrangement. Ultramicroscopy 1998, 74: 75–81. 10.1016/S0304-3991(98)00025-4

    Article  CAS  Google Scholar

  16. Xiao C, Chipman PR, Battisti AJ, Bowman VD, Renesto P, Raoult D, Rossmann MG: Cryo-electron microscopy of the giant Mimivirus. J Mol Biol 2005, 353: 493–496. 10.1016/j.jmb.2005.08.060

    Article  CAS  Google Scholar

  17. Xiao C, Kuznetsov YG, Sun S, Hafenstein SL, Kostyuchenko VA, Chipman PR, Suzan-Monti M, Raoult D, McPherson A, Rossmann MG: Structural studies of the giant mimivirus. PLoS Biol 2009, 7: e92. 10.1371/journal.pbio.1000092

    Article  Google Scholar

  18. Kato T, Goodman RP, Erben CM, Turberfield AJ, Namba K: High-resolution structural analysis of a DNA nanostructure by cryoEM. Nano Lett 2009, 9: 2747–2750. 10.1021/nl901265n

    Article  CAS  Google Scholar

Download references

Acknowledgements

This work was supported by Korea Basic Science Institute grant (T33415) to JK Hyun.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Hyun Suk Jung.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

H.S.J. designed research; H-J.C. and J-K.H. performed researches; J-G.K. contributed spectroscopy analysis. H-J.C. J-K.H. H.S.J. H.N.P. and D-J.Y. analzed EM data. J-K.H. and H.S.J. wrote the paper. All authors read and approved the final manuscript.

Hye-Jin Cho, Jae-Kyung Hyun contributed equally to this work.
